Hello,,

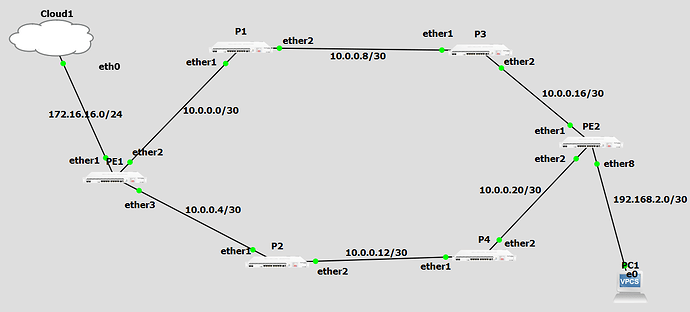

I'm having a problem with MPLS-TE. This topology is pictured in a simple lab I created to track the problem, but I haven't found a solution.
MPLS-TE isn't working. You can view the configuration in the text files.
I created an OSPF route and configured MPLS and MPLS-TE. The tunnels and their routes appear in MPLS --> Traffic-Engineering --> Flow. However, when I test it using traceroute, it doesn't follow the paths I specified, whether from client PC1 or even from PE1 to PE2.
If anyone has any information on this, or has run MPLS-TE with OSPF, please help us with this.
Thank you very much.
P1.txt (1.9 KB)
P2.txt (1.8 KB)
P4.txt (1.8 KB)
P3.txt (1.8 KB)
PE1.txt (2.4 KB)
PE2.txt (2.3 KB)
