MSTP / Port Override / Priority not working as expected

[Guscht]

Hi,

I try to setup a simple MSTP and it works not as expected.
I have set-up two router with the same VLANs (11 and 21) and created a MSTP instance.

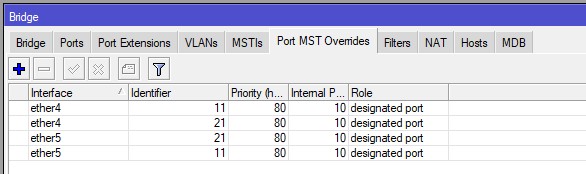

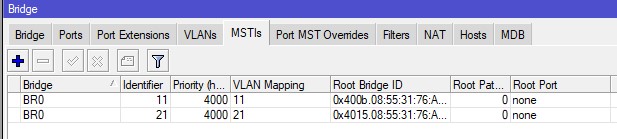

Root:

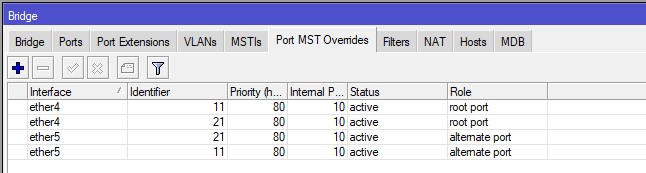

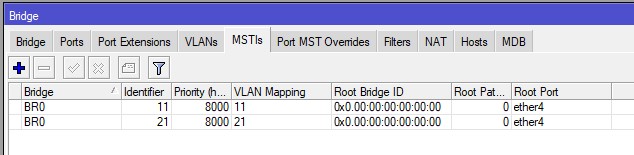

The salve bridge behaves as expected:


So far everything works as expected, VLAN 11 and 21 go through ether4.

Now I want VLAN11 to go through ether4 and VLAN21 through ether5.

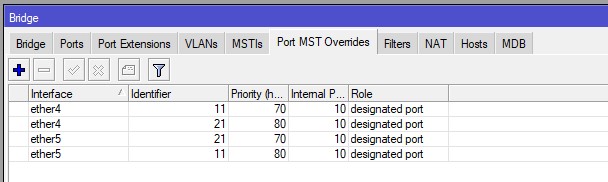

I edit the port priority of the root bridge as follwing:

ether4 = ID11 = VLAN11 = 70
ether4 = ID21 = VLAN21 = 80
ether5 = ID11 = VLAN11 = 80
ether5 = ID21 = VLAN21 = 70

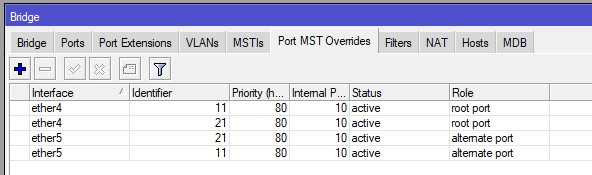

THE RPOBLEM: The slave bridge ignores the priority setting of the root-bridge:

Everything still goes through ether4.

What do I wrong??

[Guscht]

Is this a bug in ROS or in my head??

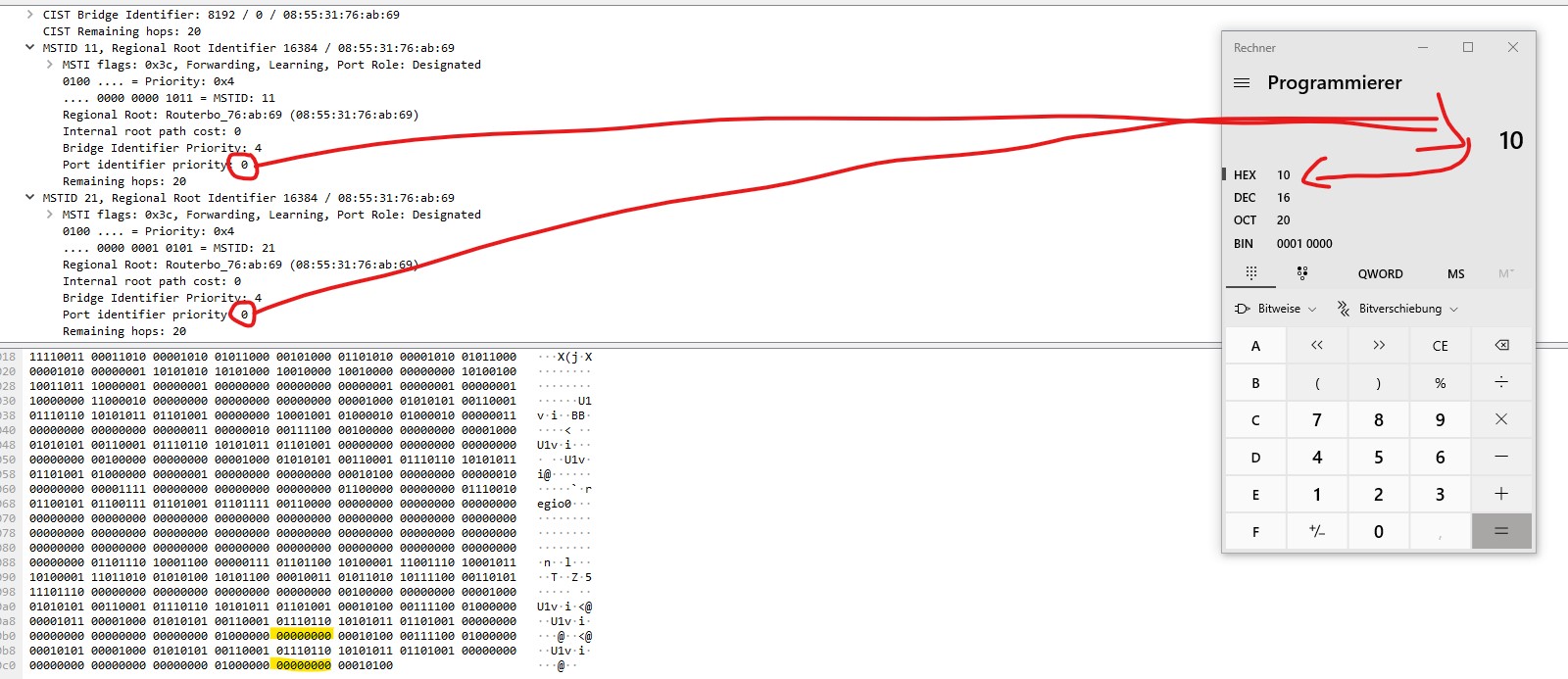

The Wirshark-Output is from the salve-bridge (NOT the root-bridge), the received frames are FROM the root-bridge.

ROS transmitts always the sequence: 0b0100.0000
0b0100 = 0x4 = 0b0100.0000 = 0x40

Reagrdless of what is configured 0x80 (0b1000.0000):

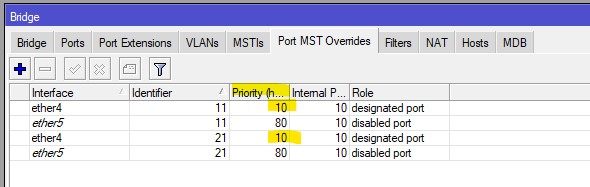

OK, now we change the Port-Priority to 0x10 (0b01000.0000):

Now, ROS transmitts 0b0000.0000 insted of 0b0001.0000 (0x10):

I am totaly wrong (or crazy - doing this stuff for hours), or is this a bug???

[Guscht]

And its getting better, the behaviour is other after a reboot:

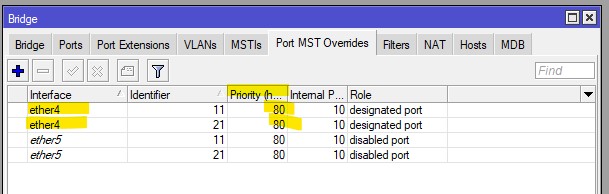

PRIOR the reboot: 0x80 is configured:

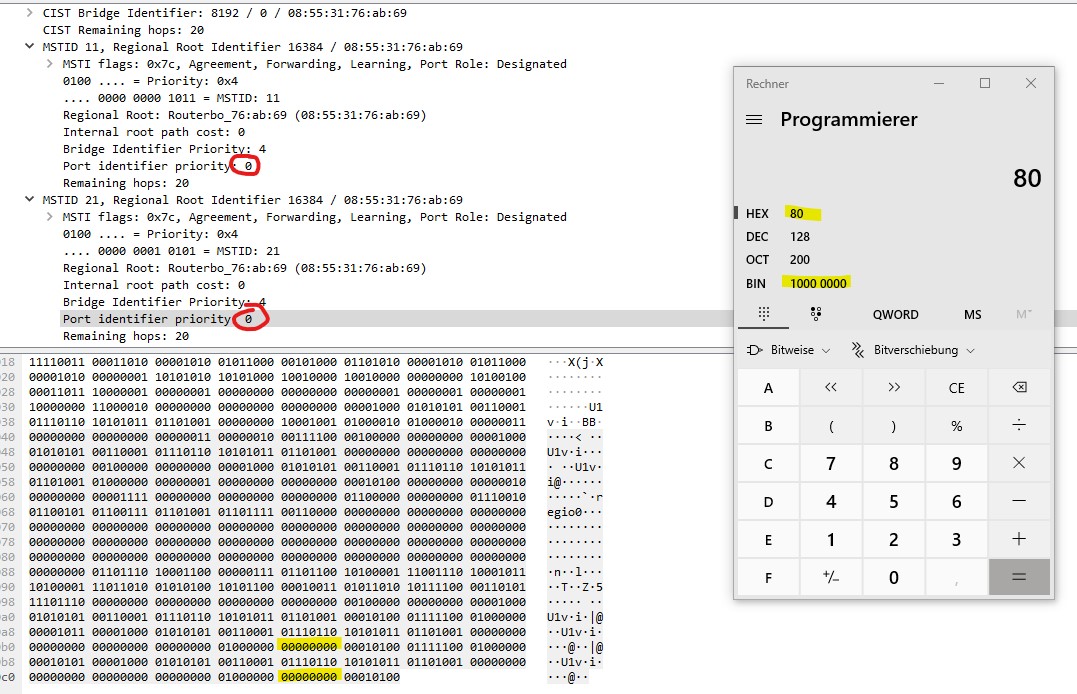

Transmitts 0x0 instead of 0x1000.0000:

NOW we reboot the device…

Same config:

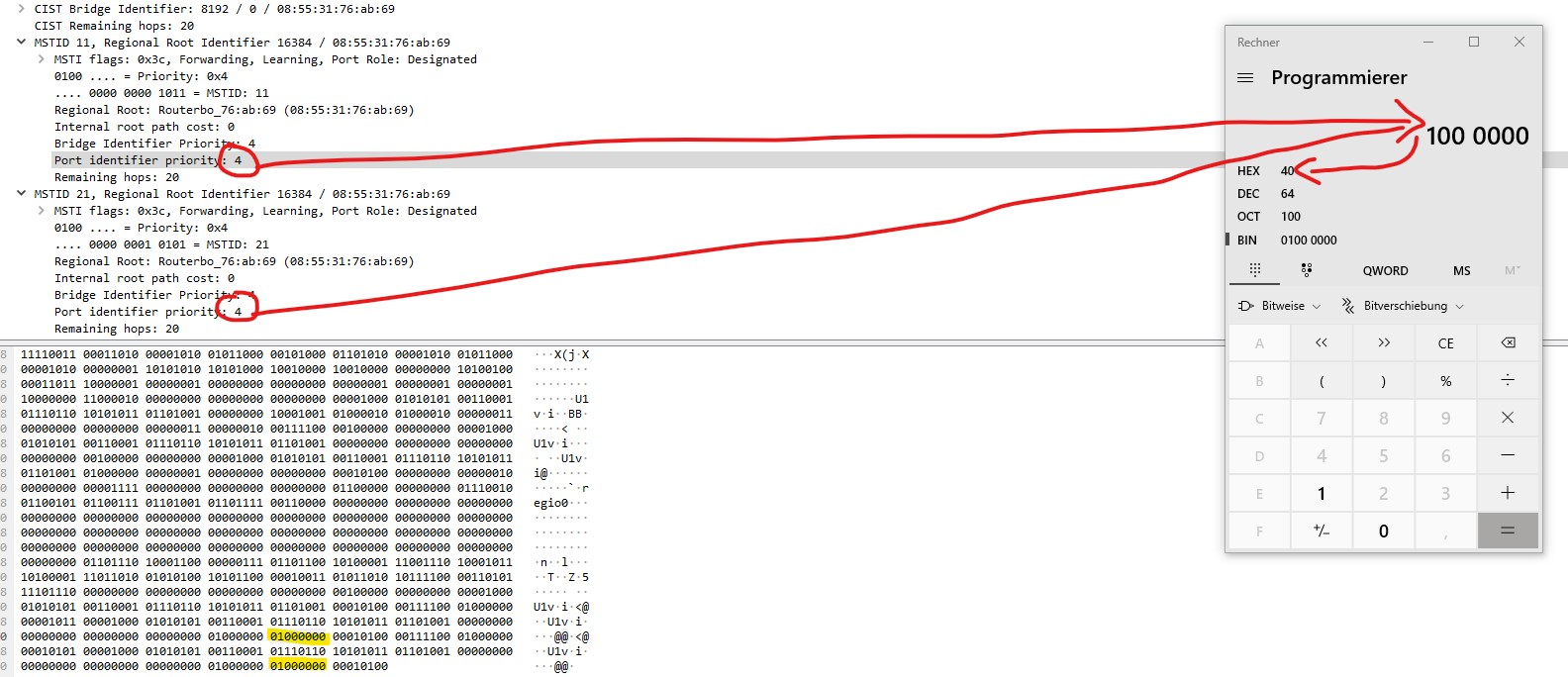

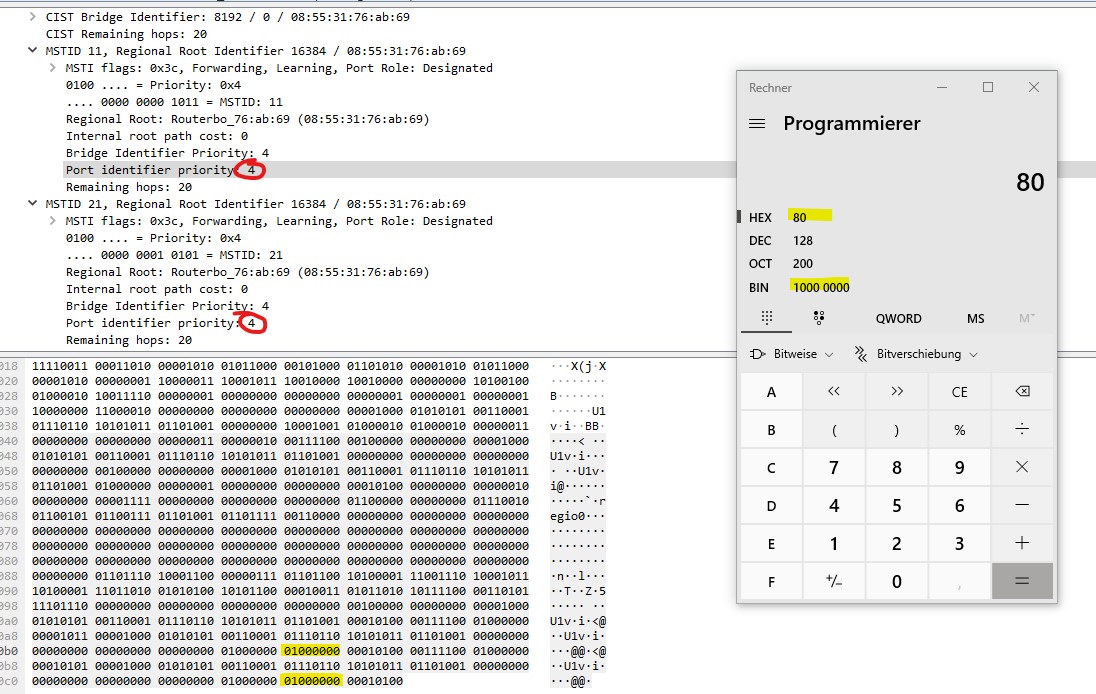

But now 0x40 (0b0100.0000) is transmitted insted of 0x80 (0b1000.0000):

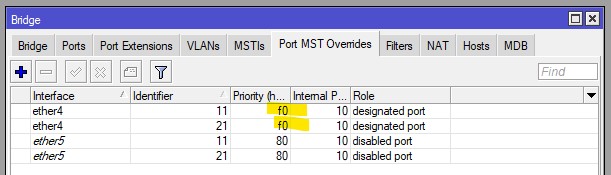

Now with 0xf0 (0b1111.0000):

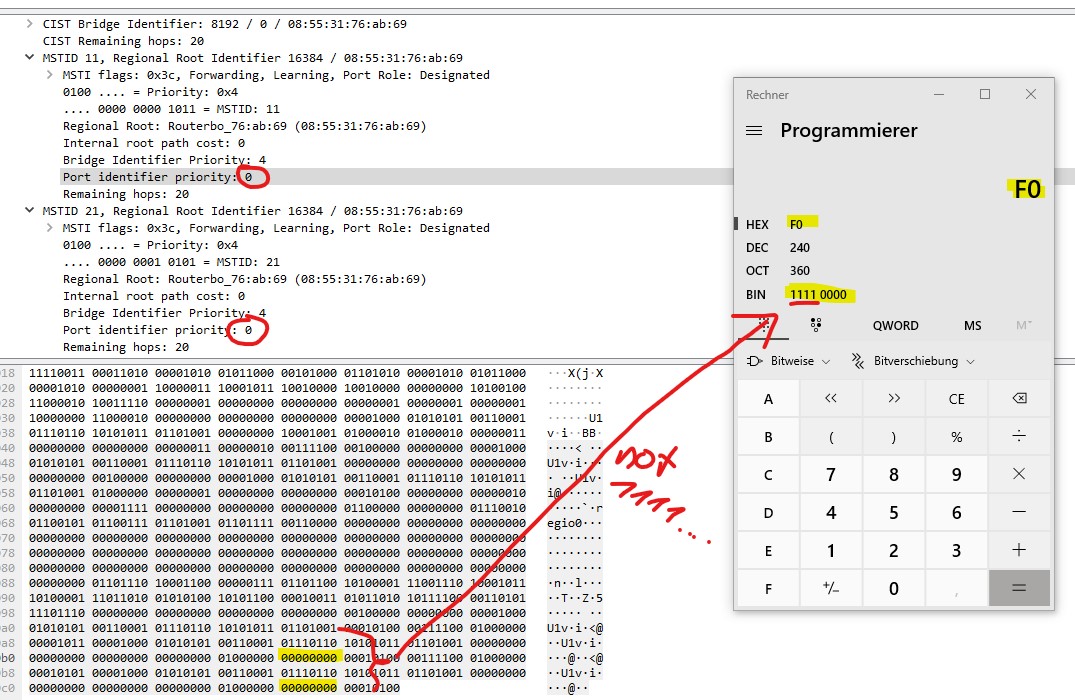

PRIOR reboot 0x0:

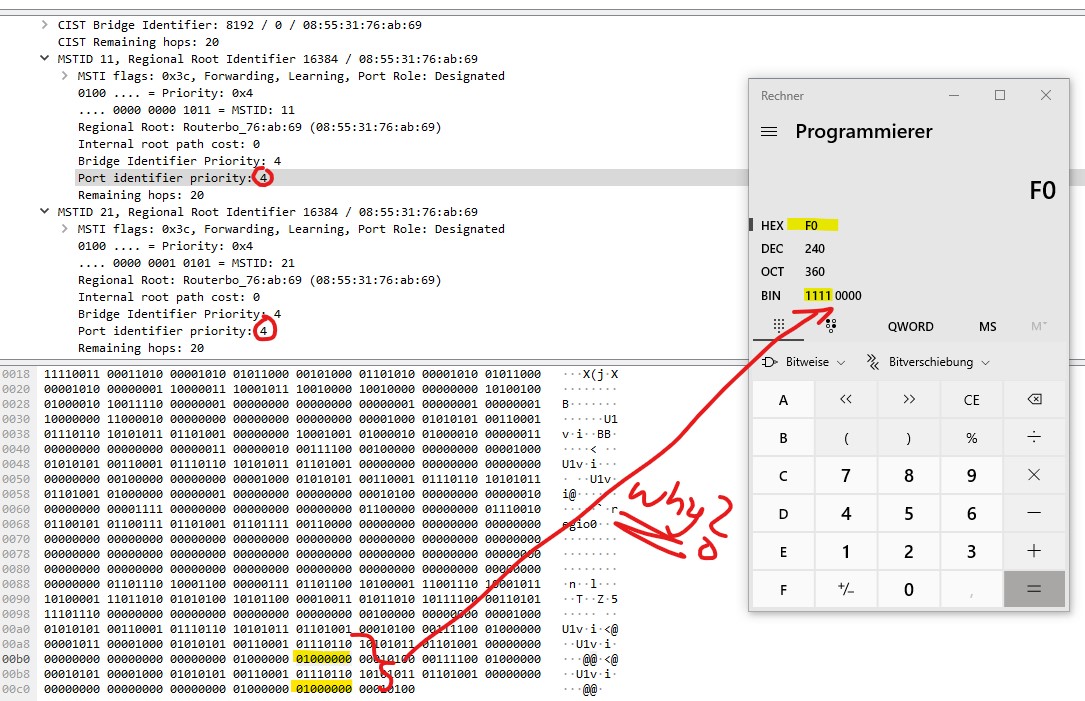

AFTER reboot again 0x4 instead of 0xfb:

This erratic behaviour would correlate to my finding from the original post.
I seems something is wrong with ROS…??
