Multicast

RouterOS Forwarding Protocols
1

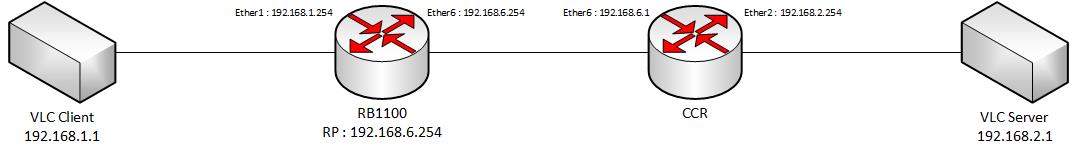

I tried to create a test multicast network. Example is below. When I start an RTP stream on the VLC server I can pick it up localy. So that is running The stream uses an address of 224.0.1.1. However the client won’t connect to the stream on the server. When I setup a simple bridge with two ports in it, the stream will run, obviously. There is something with the layer 3 config, I think…

I read the Wiki on the site, viewed MUM demo’s and so on. Is there anyone who can help me to get a bit further.



RB1100

/ip address
add address=192.168.1.254/24 interface=ether1 network=192.168.1.0
add address=192.168.6.254/24 interface=ether6 network=192.168.6.0

/ip route
add distance=1 dst-address=192.168.2.0/24 gateway=192.168.6.1

/routing pim interface
add alternative-subnets=192.168.2.0/24,192.168.6.0/24

/routing pim rp
add address=192.168.6.254

CCR

/ip address
add address=192.168.2.254/24 interface=ether2 network=192.168.2.0
add address=192.168.6.1/24 interface=ether6 network=192.168.6.0

/ip route
add distance=1 dst-address=192.168.1.0/24 gateway=192.168.6.254

/routing pim interface
add alternative-subnets=192.168.2.0/24,192.168.6.0/24

/routing pim rp
add address=192.168.6.254
2

Bump

3

Im missing the forward rule in the firewall, I dont know the command out of my head but it should be

Firewall → add rule → forward → DST-Adress = 224.0.0.0/4 → -> in interface / out interface → action accept or passthrough..

4

There are no firewall rules what so ever. The only config on the routers is that what you see.

But thank you vert much for thinking about it

5

try

6

There’s a chance that you have packets with TTL=1. If you have them, you can increase TTL using mangle.

I recall it was explicitly mentioned for VLC when tried to configure my setup.

Check this example as well, it has nearly yours case.

7

Thanks, I will test the solitions in a day or two and let know if it is resolved.

8

Thanks TTL it is!!!

9

Is it not possible to configure the TTL in VLC?

10

From what I have read, no. There is something in VLC that is preventing that.
