Multicasting problem in mikrotic os !

RouterOS General
1

Dear concern:

I want build up a streaming server using VLC meadia player.on server side i used 239.255.10.10 ip for multicasting from server and my OS version 3.30

Can any one help about what is problem on my configuration about multicasting in mikrotik router ?

Router A (Server)

/ip address
add address=10.0.0.1/24 interface=ether1
add address=10.0.1.1/24 interface=ether2

VLC Server IP:10.0.1.2

/ip route
ip route add dst-address=10.0.2.0/24 gateway=10.0.0.2

/routing pim interface
add interface=ether1
add interface=ether2

/routing pim rp
add address=10.0.0.1


\

Router B (Client)

/ip address
add address=10.0.0.2/24 interface=ether1
add address=10.0.2.1/24 interface=ether2

VLC Client IP:10.0.2.2

/ip route
ip route add dst-address=10.0.1.0/24 gateway=10.0.0.1

/routing pim interface
add interface=ether1
add interface=ether2

/routing pim rp
add address=10.0.0.1

Route of VLC Server:

ip route add 239.255.10.10/32 10.0.1.1


i can ping from both server and client each other ...but can i not see multicasting video from client side


Thanks
jahangir

2

is your client join request successful? does your RP receive stream from source?

3

Thanks for reply…

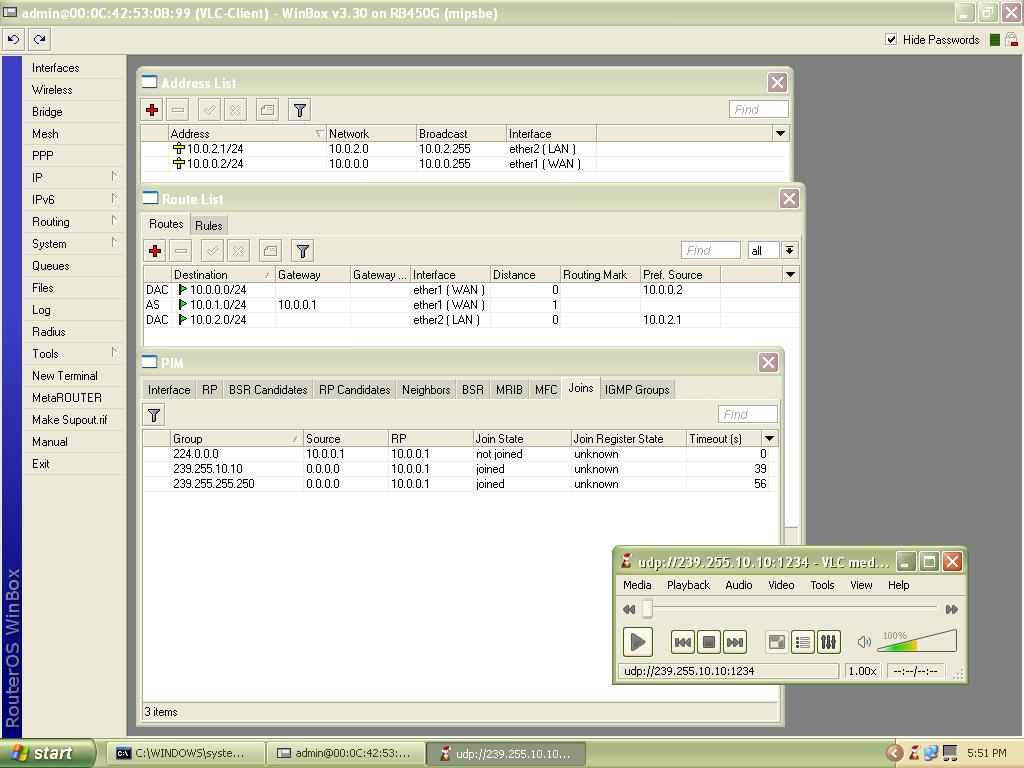

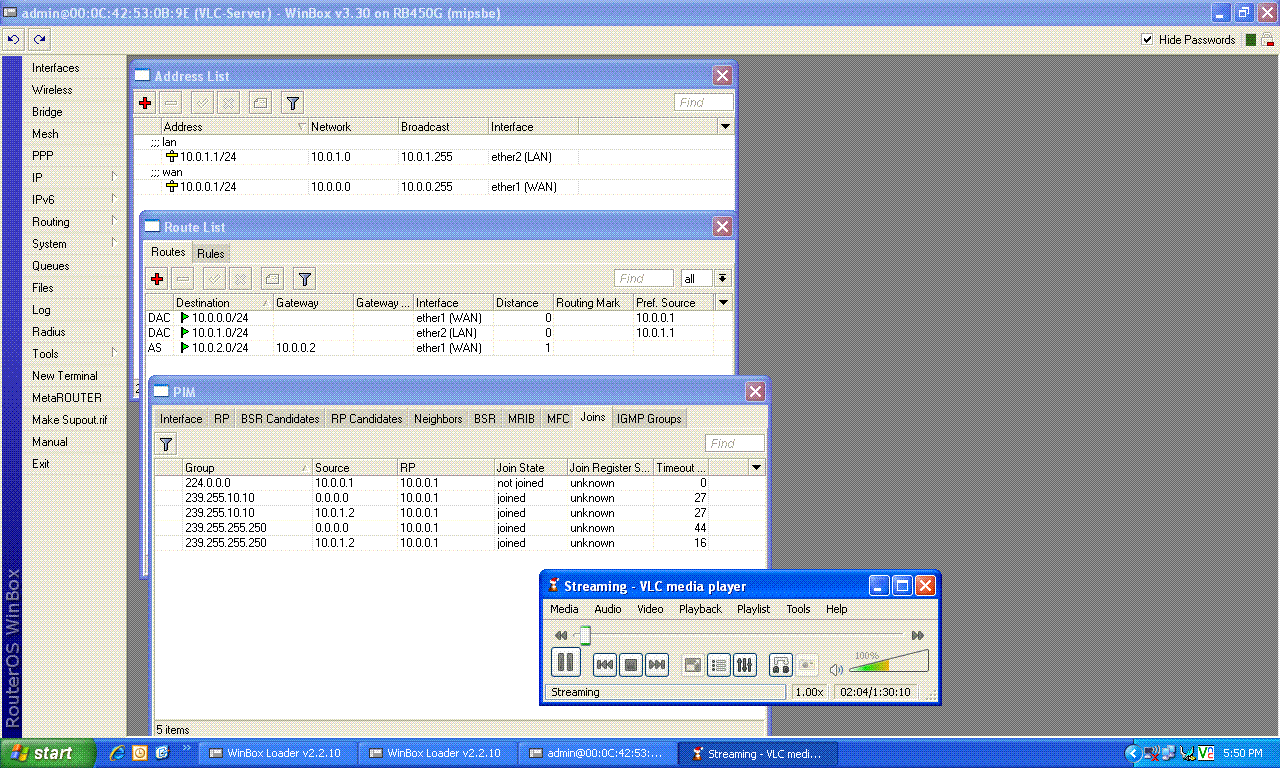

I attached the print screen into my reply while i run video server and try to connect video server from client.

It would be nice for me please see attachment about client joint request and RP receive stream from source.

4

and your RP is receiving stream data all the time, and when client joins on your other router, then is traffic passed further?

5

Thanks again ..

Can you told me ? or what can i do for this ?
when client joins on your other router, then is traffic passed further ?

6

janisk, can i get any update for this issue ?

7

if you have set up everything in working order then if A is stream source B and C are routers and D is client, then:

state when A is sending stream and D (client) has not requested stream:

= stream data

  • connection

A====B------C-----D

when client issues Join, client is actually joined at router C, then router C is trying to get to RP of group client joined at. and issues join on router B, at that moment that looks like that

A====B=====C====D

and client should receive the stream. You can monitor that on routers see that stream is coming in, and when streams is sent out of routerB, does it reach router C and afterwards sent to client D?

also you want to try to enable STP

8

Thanks again ..


i add a route to vlc server which is:

ip route 239.255.10.10/32 10.0.1.1

is it ok ?


can you pls check again my final configuration for confirmation ?

on the other hand i am checking to enable stp for your query.

Thanks…

9

multicast forwarding info is different from routing, you should not add routes at random.

all that matters that network is configured so TCP/IP and ICMP packets can reach from any host to any host in your network, and on that network you build up multicast streaming.

In /routing pim mrib you can check multicast routing information to see if multicast knows where RP is
