Need help Load balancing between 2 ADSL routers

RouterOS General
1

Hi

I’m posting this because I have tried every thing I could think of to load balance my internet server between my 2 ADSL routers

I have 2 (4mbps) DSL routers, an internet server, and a proxy server, connected to a RB750G configured to redirect all port 80 traffic from the internet server to the proxy server.

Internet server = 10.0.0.4 gw =10.0.0.1
Proxy server= 10.0.5.1 gw =10.0.5.2
DSL1= 10.0.10.1
DSL2= 10.0.11.1

RB750G = eth1 = 10.0.10.2/24
eth2 = 10.0.11.2/24
eth3 = 10.0.5.2/24
eth5 = 10.0.0.1/24

Now my question is how do I make both DSL connections do the same amount of work?
I believe it’s called Load Balancing between 2 or more gateways

I would appreciate it if some one could give me an answer to my question?

Ps. I’ve bin using Mikrotik routers for 5 months now so I’m still new to most of it

And Yes I have bin doing research on load balancing but I’m one of those people that understands when they see its working.

Thanks in advance

2

Internet server should do the work

3

The internet server is simple

Windows server 2003 sp2
Running hotspot software http://www.antamedia.com/hotspot/

I cant do it with the server it will conflict with the software’s configs
(did trie walking that path)

4

please make a drawing of your network…

5

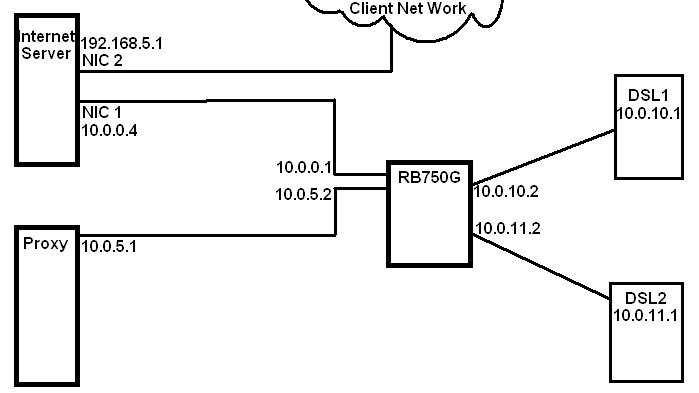

Hope this will give you an idea

6

then simpliest load balancing will help you :slight_smile:

http://wiki.mikrotik.com/wiki/PCC#Application_Example_-_Load_Balancing
