⍎ netinstall for /container and desktop (including Mac) + automatic downloads

Amm0 · March 24, 2026, 11:04pm

MikroTik `netinstall` using `make`

Automates MikroTik device flashing with netinstall-cli. Downloads the right packages for your device's CPU and version channel, then runs netinstall — all via make.

Works three ways:

As a MikroTik /container — an OCI image runs netinstall as a service, no PC needed
On macOS — runs netinstall via a lightweight QEMU VM with bridged networking (MikroTik only provides a Linux binary — this project makes it work on Mac)
On Linux — runs netinstall-cli directly (or via QEMU user-mode on ARM/ARM64)

Source: tikoci/netinstall — DockerHub: ammo74/netinstall — License: CC0 1.0

Quick Start

Interactive Wizard

The easiest way to get started — walks you through every option:

git clone https://github.com/tikoci/netinstall.git
cd netinstall
make wizard

The wizard (./mknetinstall) detects your platform, guides you through architecture/package/interface selection, and runs netinstall. Use ./mknetinstall --help for CLI flags or ./mknetinstall --dry-run to preview the command without executing.

Install it to your PATH with make mknetinstall.

Direct `make` Usage

# Download packages only (no device needed)
make download ARCH=arm64 PKGS="container wifi-qcom"

# Run netinstall once
sudo make run ARCH=arm64 PKGS="container wifi-qcom" IFACE=eth0

# Channel and arch shortcuts
sudo make testing arm64

# Run as a service (loop)
sudo make service ARCH=arm64 IFACE=eth0

# Pin exact versions
sudo make run ARCH=mipsbe VER=7.14.3 PKGS="iot gps" CLIENTIP=192.168.88.7

WiFi driver packages vary by device model — use wifi-qcom or wifi-qcom-ac for Qualcomm-based devices, wifi-mediatek for MediaTek, or wireless for older legacy chipsets. Check your device's specifications to pick the right one. The mknetinstall wizard lists all available packages after downloading.

macOS

MikroTik's netinstall-cli is a Linux-only binary. This project uses a lightweight QEMU VM with bridged networking so netinstall can access your ethernet port directly — no Docker required. The same make commands work on both platforms.

Get the project

# Option A: git clone
git clone https://github.com/tikoci/netinstall.git && cd netinstall

# Option B: download ZIP
curl -L https://github.com/tikoci/netinstall/archive/refs/heads/master.zip -o netinstall.zip
unzip netinstall.zip && cd netinstall-master

Install prerequisites

brew install qemu crane make wget

See macOS VM Details in the Configuration Guide for what each tool does.

Run the interactive wizard

./mknetinstall

The wizard guides you through architecture, package, and interface selection. See Interactive Wizard for details.

Run netinstall directly

Set IFACE to the macOS interface your target device is connected to (e.g., en5 for a USB ethernet adapter):

sudo make run ARCH=arm64 PKGS="container wifi-qcom-ac" IFACE=en5

[!IMPORTANT]

To exit the QEMU VM, press Ctrl-A then X (the QEMU monitor escape sequence). Ctrl-C does not work — this is intentional, since interrupting netinstall mid-flash could leave a device in a bad state. The VM shuts down automatically after a single make run completes.

RouterOS `/container` Setup

Running netinstall as a container lets you flash MikroTik devices without a PC — the container bridges its VETH to a physical port and runs netinstall via QEMU emulation.

Prerequisites

RouterOS device with container support (ARM, ARM64, or x86)
Non-flash storage (internal drive, USB, ramdisk, NFS/SMB)
container.npk installed and /system/device-mode set to enable containers

See MikroTik's /container docs for prerequisites.

Automated Setup

tools/container-manager.sh handles everything via the RouterOS REST API — creates the VETH, bridge, environment variables, builds and uploads the image, and creates the container.

[!WARNING]

Requires RouterOS 7.20+ (REST API /container/envs property name changed to list.

# Store credentials in system keychain
./tools/container-manager.sh credentials -r 192.168.88.1 -P 7080 -S http

# Provision everything
./tools/container-manager.sh setup -r 192.168.88.1 -P 7080 -S http -d disk1 -p ether5

# Lifecycle
./tools/container-manager.sh start  -r 192.168.88.1 -P 7080 -S http
./tools/container-manager.sh status -r 192.168.88.1 -P 7080 -S http
./tools/container-manager.sh logs   -r 192.168.88.1 -P 7080 -S http
./tools/container-manager.sh stop   -r 192.168.88.1 -P 7080 -S http
./tools/container-manager.sh remove -r 192.168.88.1 -P 7080 -S http

Run ./tools/container-manager.sh without arguments for option summary, or see the Configuration Guide for the full reference.

Manual Setup (RouterOS CLI)

For manual setup or to understand what the automated tool does, see tools/container-setup.rsc or the Configuration Guide.

Container Environment Variables

Configure via /container/envs (RouterOS 7.20+ syntax):

/container envs add key=ARCH    list=NETINSTALL value=arm64
/container envs add key=PKGS    list=NETINSTALL value="container wifi-qcom"
/container envs add key=CHANNEL list=NETINSTALL value=stable
/container envs add key=OPTS    list=NETINSTALL value="-b -r"
/container envs add key=IFACE   list=NETINSTALL value=veth-netinstall

On RouterOS pre-7.20, use name=NETINSTALL instead of list=NETINSTALL.

Configuration Variables

All variables use ?= — override via CLI (make VAR=val), environment, or /container/envs.

Variable	Default	Purpose
`ARCH`	`arm`	Target architecture(s), space-separated: `arm`, `arm64`, `mipsbe`, `mmips`, `smips`, `ppc`, `tile`, `x86`
`PKGS`	`wifi-qcom-ac`	Extra packages (space-separated, no version/arch suffix)
`CHANNEL`	`stable`	Version channel: `stable`, `testing`, `long-term`, `development`
`VER`	(from CHANNEL)	Pin a specific RouterOS version (e.g., `7.14.3`)
`VER_NETINSTALL`	(from CHANNEL)	Pin `netinstall-cli` version independently
`OPTS`	`-b -r`	Flags for `netinstall-cli` (`-r` default config, `-e` empty config, `-b` strip branding)
`IFACE`	`eth0`	Network interface; set to VETH name in containers, macOS host interface for VM
`CLIENTIP`	(unset)	Use `-a <IP>` instead of `-i <IFACE>`
`MODESCRIPT`	(auto-set)	First-boot mode script via `-sm` — see Controlling `device-mode` below

See the Configuration Guide for the complete variable reference, netinstall-cli flags, and advanced options.

Controlling `device-mode`

RouterOS uses /system/device-mode to control access to advanced features like containers and ZeroTier. netinstall-cli 7.22 added the -sm flag, which accepts a RouterOS script that runs once on first boot — before the device is network-accessible.

When both VER and VER_NETINSTALL are 7.22 or newer, the Makefile automatically generates a MODESCRIPT that sets mode=advanced and conditionally enables container=yes and/or zerotier=yes based on what's in PKGS. For example, with the default PKGS=wifi-qcom-ac:

/system/device-mode update mode=advanced

With PKGS="container wifi-qcom-ac":

/system/device-mode update mode=advanced container=yes

When either version is below 7.22, no -sm flag is passed. MODESCRIPT accepts any RouterOS script content — set it directly to override the default, or set MODESCRIPT= (empty) to disable it entirely. See the Configuration Guide for the full behavior table and examples.

Building Container Images

OCI images are built with crane (no Docker required):

make image                                    # All platforms
make image-platform IMAGE_PLATFORM=linux/arm64  # Single platform
make image-push IMAGE=ammo74/netinstall       # Push to registry

For Docker-based builds, see tools/docker/. For details on the image format and architecture mapping, see the Configuration Guide.

Make Targets

Target	Purpose
`make` / `make run`	Run netinstall once
`make service`	Run in a loop (container default)
`make download`	Download packages only — safe without a device
`make wizard`	Launch the interactive wizard (`mknetinstall`)
`make mknetinstall`	Install wizard to `~/.local/bin` (or `/usr/local/bin` as root)
`make image`	Build OCI images for all platforms
`make clean`	Remove all downloads, images, and build artifacts
`make dump`	Print computed variables for debugging
`make nothing`	Keep container alive without running netinstall
`make test`	Lint Makefile (checkmake) and shell scripts (shellcheck with `--shell=dash`)

Channel shortcuts: make stable, make testing, make long-term, make development

Architecture shortcuts: make arm64, make mipsbe, make x86, etc.

Combine them: sudo make testing arm64 PKGS="container wifi-qcom"

See the Configuration Guide for the complete variable reference, netinstall-cli flags, multi-arch support, macOS VM internals, and advanced options.

Project Structure

mknetinstall              Interactive wizard (POSIX sh)
Makefile                  All automation logic
Dockerfile                Alternative Docker-based image build
tools/
  container-manager.sh    Provision & manage container on RouterOS (REST API)
  container-setup.rsc     Manual RouterOS CLI setup reference
  docker/                 Docker buildx image customization

License

CC0 1.0 — https://creativecommons.org/publicdomain/zero/1.0/

Amm0 · March 24, 2026, 11:26pm

I recently updated my netinstall "container" on DockerHub (which has always support Linux desktop too) to add:

device-mode control via -snmodescript set automatically to mode=advance in 7.22+, controllable via MODESCRIPT which takes a script to provide to netinstall-cli
multiple architecture support - previous version only support one version as older version did not support, but now ARCH="arm arm64 mipsbe" work, just add new ones with a space. make will download packages for all three, and use in netinstall-cli.
macOS support via QEMU (with Apple's vmnet bridged network and 9P to access downloaded files. See How the macOS VM works.

See tikoci/netinstall on GitHub. There is more complete configuration guide (GUIDE.md) hosted there:

github.com/tikoci/netinstall

GUIDE.md

master

# Configuration Guide

Extended reference for MikroTik netinstall automation.  See the [README](README.md) for quick start and overview.

## Configuration Variables (Complete Reference)

All variables use `?=` (default if not set), overridable via CLI (`make VAR=val`), environment variables, or `/container/envs`.

### Basic Settings

| Variable | Default | Purpose |
|---|---|---|
| `ARCH` | `arm` | Target architecture(s), space-separated: `arm`, `arm64`, `mipsbe`, `mmips`, `smips`, `ppc`, `tile`, `x86` |
| `PKGS` | `wifi-qcom-ac` | Extra packages (space-separated, no version/arch suffix). `routeros-*.npk` is always included automatically. |
| `CHANNEL` | `stable` | Version channel: `stable`, `testing`, `long-term`, `development` |

Each time `make` runs, the channel's current version is checked via `upgrade.mikrotik.com`.

### Version Selection

This file has been truncated. show original

If you have problems or feature requests, post below or in GitHub Issues.

Amm0 · March 25, 2026, 4:19am

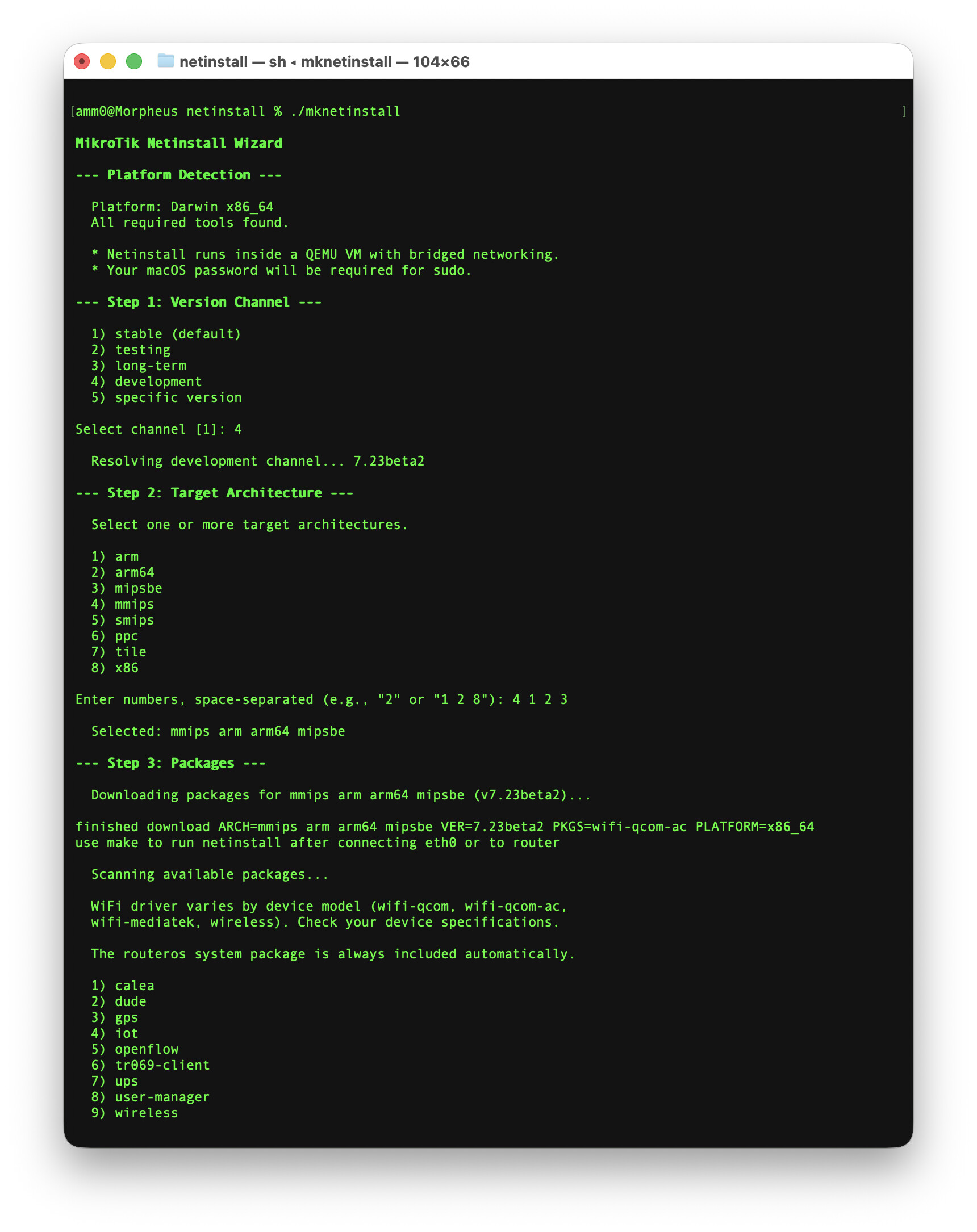

Placeholder Post for future content, for now a screenshot

e.g. having an /app YAML container script... but separate bridge/port is not a built-in mode... of /app's "networks", and the network: part of /app YAML is least understood, why there is not one yet
