Network Topology With Link Redundency And Traffic Control

Hi guys.
Please consider following scenario:

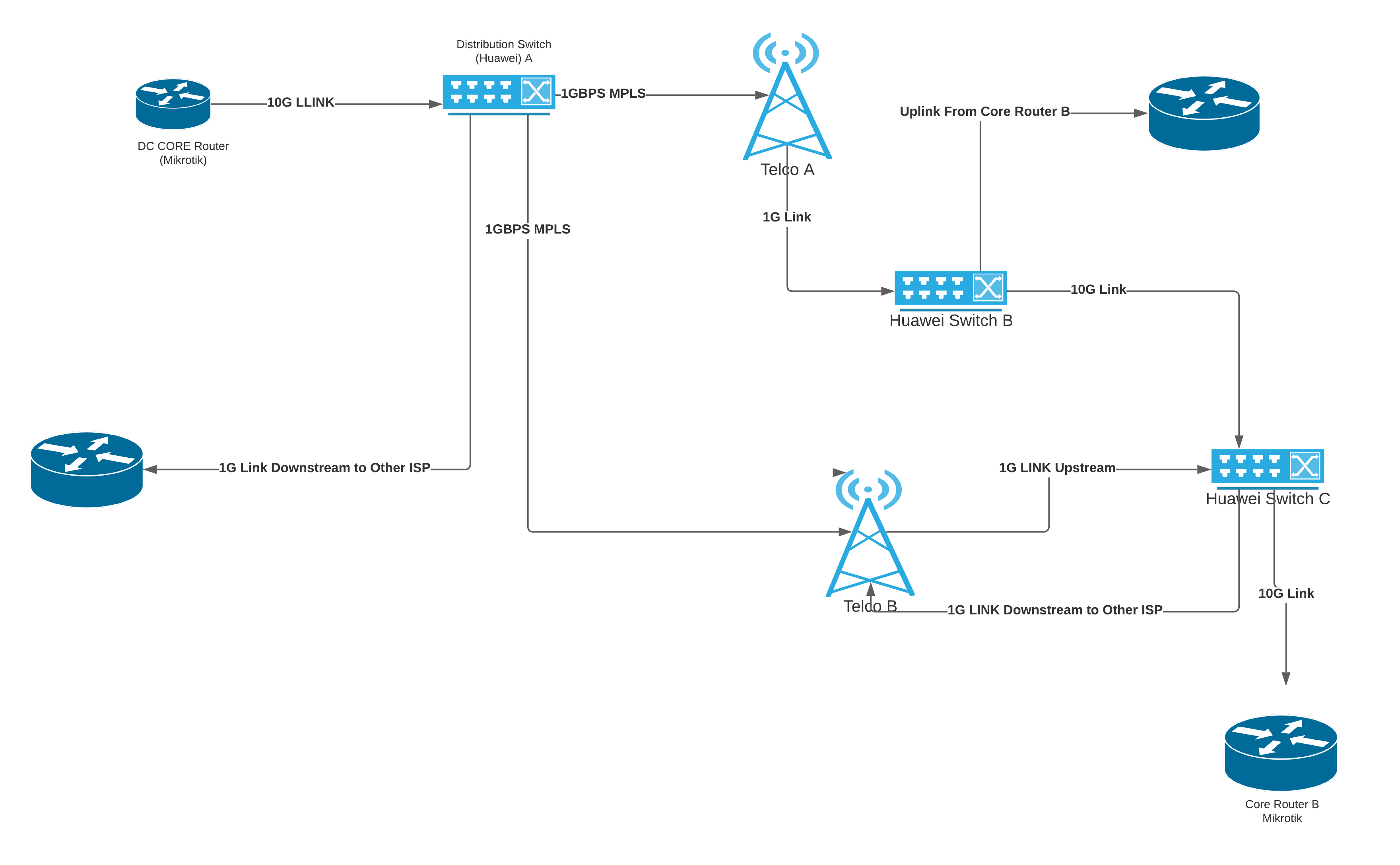

Blank Diagram (1).png
I would like to able manage my links and use both paths on basis of bandwidth availibility.

I want to create a network as in attachment.
with able to change bandwidth availibility of Both MPLS Links.

As for now Iam Only Trunking My Vlans through Switches And Using Interface Boniding to use both links simaltenously
But problen is that if 1 MPLS Degraded to 500MBPS then another MPLS Can be get used for 500 MBPS
Both Core Routers will be connected with BGP.
Plz Help Me
Thanks in Advance.

anyone… help!!!

Hi, please check out this article writen by one of our Senior Architects

https://stubarea51.net/2018/06/01/wisp-design-ospf-leapfrog-path-for-traffic-engineering/

The example uses only one internet provider but it is focused on how to leverage unused bandwidth on a backup path

As the article says, labbing the topology to see what will happen is always a good idea.

I hope it helps. Have a nice one!
