New SNMP MIB file for MikroTik RouterOS

RouterOS General
1

We have updated the MikroTik MIB file to be compatible with the validator (http://www.simpleweb.org/ietf/mibs/validate/)

This change also requires that we change one OID:

“Wireless Registration Table Entry Count” will change

From: 1.3.6.1.4.1.14988.1.1.1.2.2.0
To: 1.3.6.1.4.1.14988.1.1.1.4.0

In next RouterOS releases. Please update your program settings. This will be included in the Changelog as well.

New MIB is attached, and also available here: http://mikrotik.com/download/Mikrotik.mib
Mikrotik.zip (3.66 KB)

2

how to install it?? do i upload it and just reboot???

3

it’s for SNMP programs, not for RouterOS

4

i thought so. :confused: :confused:

5

Did you expect something else? Maybe I can help. What did you want to achieve?

6

actually i am using what’s up gold for real time graphing (to graph cisco routers) installed on a windows PC with vnc.. i can graph mikrotik using cacti on a linux pc but on what’s up gold seems like the Oid is wrong or something, i thought it is because of mikrotik oid or something..

7

you can use the Dude software, which is made for MikroTik devices.

otherwise, let us know which OID it doesn’t like and we will check what’s wrong. Show us the problem with a screenshot if you can

8

ok , i tried to graph mikrotik with same oid as cisco but no graph and no values, i have same community in mikrotik snmp settings and in graphing software, i tried to use dude to graph interfaces but cannot open a side graph like in what’s up gold.

Regards.

9

it won’t work with “same oid as cisco” as it has different oids. you have to go and check what oids you need, for example:

10

thanks for the fast reply, but it didn’t work , looks like i should try another software.
can the dude give me a graph for interfaces in a separate window??

11

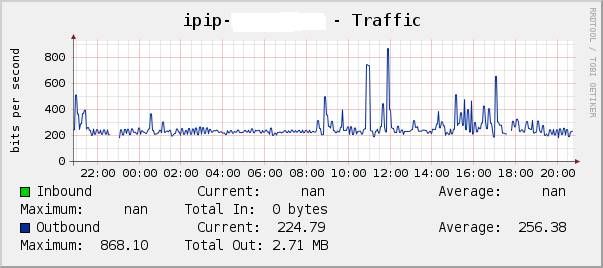

I have a problem which described at http://forum.mikrotik.com/t/ipip-graph-via-snmp-cacti/37717/1 with graphing the IPIP interface . it works in Dude but i tried a lots of ways to graph it in Cacti . It does not graph Inbound traffic .

12

I use OIDs from /interface print oid - MRTG graphs IPIP tunnels just fine =)

13

I have tried OID but i does not work . it works for everything except IPIP inbound traffic in Cacti .

14

hm… interesting problem…

15

Strange problem . I am not new to cacti nor mikrotik but this problem tired me . :frowning:

16

Glad to see it. Thanks!

17

Hello I would like to know more about PRTG Wifi and also can monitor data as a sign , the CCQ ubiquiti radios and mikrotik of my provider and etc.
