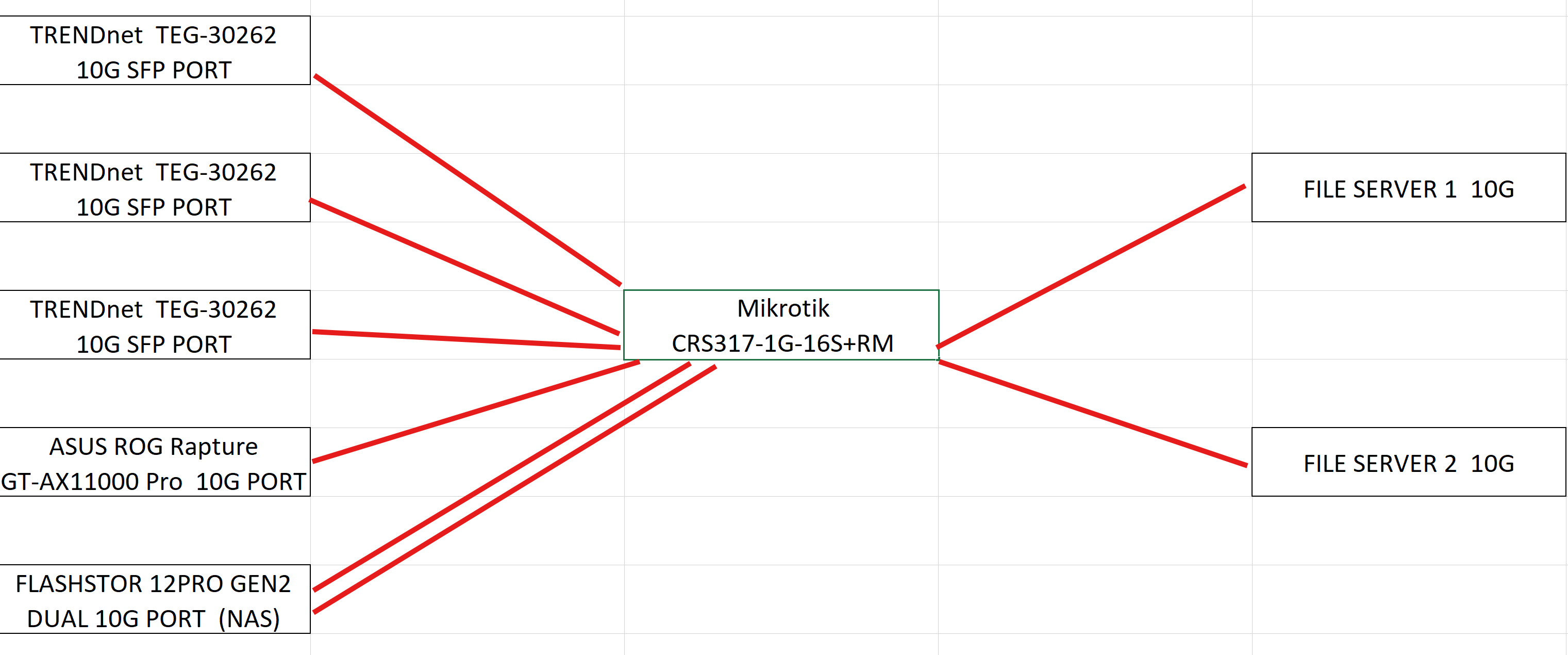

So I am wanting to use our new Mikrotik CRS317-1G-16S+RM as our new network hub. The previous trendnet 10G switch could not handle link aggregation for our new NAS. I want the switchOS to be as simple as possible. I dont need a bunch of special permissions or static IPs. I want it to work like an unmanaged switch except for using 2 of the ports for link aggregation. I had everything connected the other day, and internet speed tests were only getting a 10th of what they did previous. Not sure if something is set wrong. I pretty much left everything at default. Please help. I attached a network layout below. Everything connected to the mikrotik is 10G, through sfp+ to RJ45 modules.
/system/reset-configuration no-defaults=yes skip-backup=yes
#name
/interface ethernet
set [ find default-name=sfp-sfpplus1 ] name=sp1_LAN_simple
set [ find default-name=sfp-sfpplus2 ] name=sp2_LAN_simple
set [ find default-name=sfp-sfpplus3 ] name=sp3_LAN_simple
..
set [ find default-name=sfp-sfpplus15 ] name=sp15_LAN_simple-bond1
set [ find default-name=sfp-sfpplus16 ] name=sp16_LAN_simple-bond1
#bonding
/interface bonding add mode=802.3ad name=bond1_LNK_nas slaves=sp15_LAN_simple-bond1,sp16_LAN_simple-bond1
#bridge
/interface bridge add name=b1_LAN_simple
#dev to bridge
/interface bridge port
add bridge=b1_LAN_simple interface=bond1_LNK_nas
add bridge=b1_LAN_simple interface=sp1_LAN_simple
add bridge=b1_LAN_simple interface=sp2_LAN_simple
add bridge=b1_LAN_simple interface=sp3_LAN_simple
...
add bridge=b1_LAN_simple interface=sp14_LAN_simple
You state you are trying to use SwitchOS, but you give a RouterOS config snippet. Which are you trying to use?
Assuming CRS booted to ROS, not SwitchOS.
I would add a DHCP client for the bridge.
