I upgraded a link today, from nstreme to nstreme dual. But I am getting a terriable thruput on the link. before I was getting 25Mb or a little more. With duel running I get at the most 5Mb each way. We upgraded the OS to 3.17 and nothing changed. We setup everything according to the Mikrotik manual.
Please can someone help me find out where we are going wrong, as we need the link fully operational by Wednesday morning.
post your wireless configuration, including the nstreme dual configuration
Hi. Please see attachment for the Nstreme Dual configuration.
Both wireless cards on either end have been put in nstreme dual slave mode. Wireless cards running on same frequency as allocated on nstreme dual tab. Using same SSID for both wireless cards per station. Also tried different SSID’s - doesnt seem to make a difference. Also switch nstreme on and off on the wireless cards, but doesn’t effect the Nstreme dual setup. Connection still stays up after making all theses changes. Seems as though when you put wireless cards in nstreme dual slave mode, none of the changes you make on the physical card itself, registers. Only changes made on the Nsteme dual tab in Winbox affects the setup.
Link comes up (shows connected on nstreme dual tab). On the status tab, the RX and TX signal strength are between -55 and -65. (good link). The RX and TX Rate jumps between 54Mb and 48Mb. Seems like a good link. But as soon as a bandwith test is done or actually data flows over the link, the RX, TX rate drops to about 9Mb and the actual bandwith tests shows 5Mb up and 5Mb down (at best!)
Any advice would be appreciated.
PS - Both the frequencies used get about 25Mb when running in bridge - station mode with nstreme on. But together, i just can’t get it working.
Thanks
nstreme2.TIF (37.6 KB)
nstreme1.TIF (41.7 KB)
please type command in the RouterOS terminal:
/interface wireless export
and post the output here
Link currently in use in bridge/station mode. Will change back to nstreme dual slave tonight and capture the export and post tonight. Thanks.
OUTPUT OF ONE SIDE:
[xxxxxxxx@South-2nd] > /interface wireless export
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=“” group-key-update=5m interim-update=0s mode=none name=default radius-eap-accounting=no
radius-mac-accounting=no radius-mac-authentication=no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username static-algo-0=none
static-algo-1=none static-algo-2=none static-algo-3=none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“” static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=South-2nd tls-certificate=none tls-mode=no-certificates unicast-ciphers=“” wpa-pre-shared-key=“” wpa2-pre-shared-key=“”
add authentication-types=wpa-psk,wpa2-psk group-ciphers=tkip group-key-update=5m interim-update=0s mode=dynamic-keys name=Security radius-eap-accounting=no radius-mac-accounting=
no radius-mac-authentication=no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username static-algo-0=none static-algo-1=none
static-algo-2=none static-algo-3=none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“” static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=“” tls-certificate=none tls-mode=no-certificates unicast-ciphers=tkip wpa-pre-shared-key=“xxxxxxxxxxxxx”
wpa2-pre-shared-key=“xxxxxxxxxxxxxxxx”
/interface wireless
set 0 ack-timeout=dynamic adaptive-noise-immunity=client-mode allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz basic-rates-a/g=6Mbps burst-time=
disabled comment=“” compression=yes country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none
disable-running-check=no disabled=no disconnect-timeout=3s frame-lifetime=0 frequency=5745 frequency-mode=manual-txpower hide-ssid=yes hw-retries=4 mac-address=
00:15:6D:63:27:4E max-station-count=2007 mode=nstreme-dual-slave mtu=1500 name=wlan1 noise-floor-threshold=default on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=00156D63274E rate-set=default scan-list=default security-profile=default
ssid=SALT station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps tx-power-mode=default update-stats-interval=
disabled wds-cost-range=50-150 wds-default-bridge=none wds-default-cost=100 wds-ignore-ssid=no wds-mode=disabled wmm-support=disabled
set 1 ack-timeout=dynamic adaptive-noise-immunity=client-mode allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz basic-rates-a/g=6Mbps burst-time=
disabled comment=“” compression=yes country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none
disable-running-check=no disabled=no disconnect-timeout=3s frame-lifetime=0 frequency=5320 frequency-mode=manual-txpower hide-ssid=no hw-retries=4 mac-address=
00:15:6D:63:6A:51 max-station-count=2007 mode=nstreme-dual-slave mtu=1500 name=wlan2 noise-floor-threshold=default on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=00156D636A51 rate-set=default scan-list=default security-profile=default
ssid=SALT1 station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps tx-power-mode=default update-stats-interval=
disabled wds-cost-range=50-150 wds-default-bridge=none wds-default-cost=100 wds-ignore-ssid=no wds-mode=disabled wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3
:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
set wlan2 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3
:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
/interface wireless nstreme
set wlan1 comment=“” disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=3200 framer-policy=best-fit
set wlan2 comment=“” disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=3200 framer-policy=best-fit
/interface wireless nstreme-dual
add arp=enabled comment=“” disable-csma=yes disable-running-check=no disabled=no framer-limit=2560 framer-policy=best-fit ht-channel-width=20mhz ht-guard-interval=long ht-rates=
1,2,3,4,5,6,7,8 ht-streams=single mtu=1500 name=nstreme1 rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps remote-mac=
00:15:6D:63:7F:09 rx-band=5ghz rx-frequency=5320 rx-radio=wlan2 tx-band=5ghz tx-frequency=5745 tx-radio=wlan1
/interface wireless access-list
add ap-tx-limit=0 authentication=yes client-tx-limit=0 comment=“” disabled=yes forwarding=yes interface=wlan1 mac-address=00:15:6D:63:7F:09 private-algo=none private-key=“”
private-pre-shared-key=“” signal-range=-120.120
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300 frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10 multiple-channels=no only-headers=no receive-errors=no streaming-enabled=no streaming-max-rate=0
streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
OUTPUT OF OTHER SIDE:
[xxxxxxxx@2ndAve] > /interface wireless export
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=“” group-key-update=5m interim-update=0s mode=none name=default radius-eap-accounting=no
radius-mac-accounting=no radius-mac-authentication=no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username static-algo-0=none
static-algo-1=none static-algo-2=none static-algo-3=none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“” static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=2ndAve tls-certificate=none tls-mode=no-certificates unicast-ciphers=“” wpa-pre-shared-key=“” wpa2-pre-shared-key=“”
add authentication-types=wpa-psk,wpa2-psk group-ciphers=tkip group-key-update=5m interim-update=0s mode=dynamic-keys name=Security radius-eap-accounting=no radius-mac-accounting=
no radius-mac-authentication=no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username static-algo-0=none static-algo-1=none
static-algo-2=none static-algo-3=none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“” static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=“” tls-certificate=none tls-mode=no-certificates unicast-ciphers=tkip wpa-pre-shared-key=“xxxxxxxxxxxxxxxxxx”
wpa2-pre-shared-key=“xxxxxxxxxxxxxxxxxxx”
/interface wireless
set 0 ack-timeout=dynamic adaptive-noise-immunity=client-mode allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz basic-rates-a/g=6Mbps burst-time=
disabled comment=“” compression=yes country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none
disable-running-check=no disabled=no disconnect-timeout=3s frame-lifetime=0 frequency=5745 frequency-mode=manual-txpower hide-ssid=no hw-retries=4 mac-address=
00:15:6D:63:7F:09 max-station-count=2007 mode=nstreme-dual-slave mtu=1500 name=wlan1 noise-floor-threshold=default on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=00156D637F09 rate-set=default scan-list=default security-profile=default
ssid=SALT station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps tx-power-mode=default update-stats-interval=
disabled wds-cost-range=50-150 wds-default-bridge=none wds-default-cost=100 wds-ignore-ssid=no wds-mode=disabled wmm-support=disabled
set 1 ack-timeout=dynamic adaptive-noise-immunity=client-mode allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz basic-rates-a/g=6Mbps burst-time=
disabled comment=“” compression=yes country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none
disable-running-check=no disabled=no disconnect-timeout=3s frame-lifetime=0 frequency=5320 frequency-mode=manual-txpower hide-ssid=no hw-retries=4 mac-address=
00:15:6D:63:7E:EE max-station-count=2007 mode=nstreme-dual-slave mtu=1500 name=wlan2 noise-floor-threshold=default on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=00156D637EEE rate-set=default scan-list=default security-profile=default
ssid=SALT1 station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps tx-power-mode=default update-stats-interval=
disabled wds-cost-range=50-150 wds-default-bridge=none wds-default-cost=100 wds-ignore-ssid=no wds-mode=disabled wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3
:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
set wlan2 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3
:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
/interface wireless nstreme
set wlan1 comment=“” disable-csma=no enable-nstreme=no enable-polling=no framer-limit=3200 framer-policy=none
set wlan2 comment=“” disable-csma=no enable-nstreme=no enable-polling=no framer-limit=3200 framer-policy=none
/interface wireless nstreme-dual
add arp=enabled comment=“” disable-csma=yes disable-running-check=no disabled=no framer-limit=2560 framer-policy=best-fit ht-channel-width=20mhz ht-guard-interval=long ht-rates=
1,2,3,4,5,6,7,8 ht-streams=single mtu=1500 name=nstreme1 rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps remote-mac=
00:15:6D:63:6A:51 rx-band=5ghz rx-frequency=5745 rx-radio=wlan1 tx-band=5ghz tx-frequency=5320 tx-radio=wlan2
/interface wireless access-list
add ap-tx-limit=0 authentication=yes client-tx-limit=0 comment=“” disabled=yes forwarding=yes interface=wlan1 mac-address=00:15:6D:63:27:4E private-algo=none private-key=“”
private-pre-shared-key=“” signal-range=-120.120
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300 frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10 multiple-channels=no only-headers=no receive-errors=no streaming-enabled=no streaming-max-rate=0
streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no

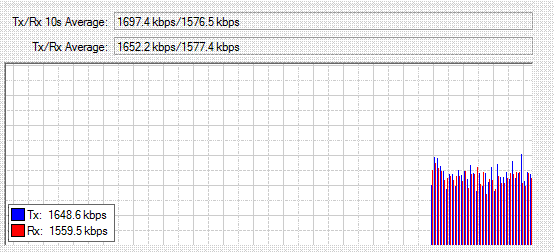

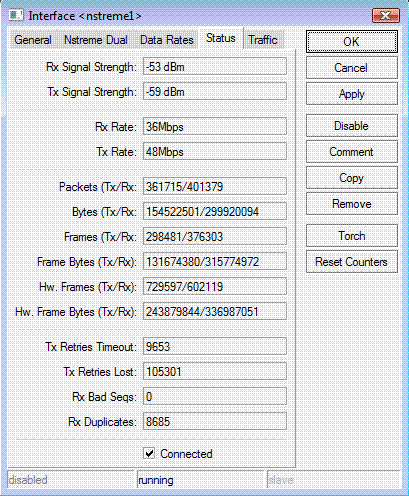

Also see attached STATUS bar capture and bandwidth test.
Hi Guys
Any advice would be appreciated.
Thanks
Please help here. I am stumped, and reallt keen to get the link running spot on ASAP.
Have you tried greater spacing between tx and rx channels? I have read with good dual polarity antenna you neef atleast 100mhz separation
Im running 5320 and 5745 for rx and tx. Gap is bigger than 100. Thanks for suggestion.
you have problem about interfernce.
lower the TX power for each transmitting card to 6,
you will see the thing goes better!
Then put more power at steps of one db and find the optimal value.
regards
Ros
Lowered the tx power of the main site transmitting card to 6 first. Nstreme Dual connectivity died. Tried going up in 1’s - link only came alive again when i reached 15 power on the main site. Left it at 15 and connected to remote site. When i set the transmitting cards tx power to 15 there, i lost my link. Will have to go out and set back to default to get registration up.
Should the link work with both tx cards set to 6?
Thanks
yes because your signal was very high!
Tried both sides TX cards at 6 fixed rates and card rates, but link doesnt come up. I played around with higher values, but also no luck. Back to defaults and link up again. This one got me stumped.
I’m seeing a VERY similar problem, using XR5’s and 433AH’s on a 20 mile link with dipole antennas (using about 400MHz seperation between channels). Wondering if anyone has any recommendations or suggestions, because I’m pulling my hair out here. I even set up a test lab in our office, same equipment and setup, using the same equipment, about 15 feet from each other, and acheived similar results. The folks at Ubiquiti didn’t have much to say in the way of help, other than directing me here. I’d appreciate any light that could be shed on this.
TIA,
-Aaron
