PCC Load Balancing + Hotspot

RouterOS General
1

Hello people.

I have setup a PCC load balancer + Hotspot on a Mikrotik 750G.

The PCC configuration is as shown in the wiki article http://wiki.mikrotik.com/wiki/Manual:PCC
Since I run a hotspot, I have added the --hotspot: auth option in the PCC rules

My problem is, with this configuration all traffic prefers going through 1 line. If I disable that WAN interface, it does use the other one.
If I remove the --hotspot: auth option, load balancing works well but users don’t automatically get redirected to the hotspot page.

I load balance 2 lines from the same ISP, sometimes giving me the same gateway. To overcome potential problems, I have the 2 modems NATing on IPs 192.168.9.1/24 and 192.168.8.1/24. The Mikrotik runs on 192.168.10.1/24 just as the LAN clients behind it.

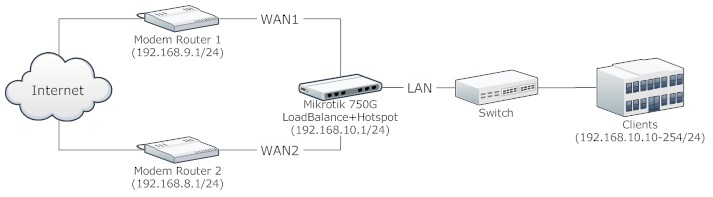

Here’s a diagram:
And here are exports from my configuration:

/ip address
add address=192.168.10.1/24 disabled=no interface=LAN network=192.168.10.0
add address=192.168.8.2/24 disabled=no interface=WAN2 network=192.168.8.0
add address=192.168.9.2/24 disabled=no interface=WAN1 network=192.168.9.0

/ip dhcp-server network
add address=192.168.10.0/24 dns-server=192.168.10.1 gateway=192.168.10.1

/ip dhcp-server
add add-arp=yes address-pool=static-only authoritative=after-2sec-delay bootp-support=static disabled=no interface=LAN lease-time=3d name=dhcp1

/ip dhcp-server config
set store-leases-disk=5m


/ip firewall mangle
add action=accept chain=prerouting disabled=no dst-address=192.168.9.0/24 in-interface=LAN
add action=accept chain=prerouting disabled=no dst-address=192.168.8.0/24 in-interface=LAN
add action=mark-connection chain=prerouting disabled=no in-interface=WAN1 new-connection-mark=WAN1_conn passthrough=yes
add action=mark-connection chain=prerouting disabled=no in-interface=WAN2 new-connection-mark=WAN2_conn passthrough=yes
add action=mark-connection chain=prerouting disabled=no dst-address-type=!local hotspot=auth in-interface=LAN new-connection-mark=WAN1_conn passthrough=yes per-connection-classifier=both-addresses-and-ports:2/0
add action=mark-connection chain=prerouting disabled=no dst-address-type=!local hotspot=auth in-interface=LAN new-connection-mark=WAN2_conn passthrough=yes per-connection-classifier=both-addresses-and-ports:2/1
add action=mark-routing chain=output connection-mark=WAN1_conn disabled=no new-routing-mark=to_WAN1 passthrough=yes
add action=mark-routing chain=output connection-mark=WAN2_conn disabled=no new-routing-mark=to_WAN2 passthrough=yes
add action=mark-routing chain=prerouting connection-mark=WAN1_conn disabled=no in-interface=LAN new-routing-mark=to_WAN1 passthrough=yes
add action=mark-routing chain=prerouting connection-mark=WAN2_conn disabled=no in-interface=LAN new-routing-mark=to_WAN2 passthrough=yes

/ip firewall nat
add action=masquerade chain=srcnat disabled=no out-interface=WAN1
add action=masquerade chain=srcnat disabled=no out-interface=WAN2


/ip route
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=192.168.9.1 routing-mark=to_WAN1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=192.168.8.1 routing-mark=to_WAN2 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=192.168.8.1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=192.168.9.1 scope=30 target-scope=10


/ip hotspot profile
set default dns-name=“” hotspot-address=0.0.0.0 html-directory=hotspot http-cookie-lifetime=3d http-proxy=0.0.0.0:0 login-by=cookie,http-chap name=default rate-limit=“” smtp-server=0.0.0.0 split-user-domain=no use-radius=no
add dns-name=interlandns.com hotspot-address=0.0.0.0 html-directory=hotspot http-cookie-lifetime=3d http-proxy=0.0.0.0:0 login-by=cookie,http-chap name=hsprof2 rate-limit=“” smtp-server=0.0.0.0 split-user-domain=no use-radius=no

/ip hotspot
add address-pool=default-dhcp addresses-per-mac=2 disabled=no idle-timeout=5m interface=LAN keepalive-timeout=none name=hotspot1 profile=hsprof2

/ip hotspot user profile
set default idle-timeout=none keepalive-timeout=2m name=default shared-users=1 status-autorefresh=1m transparent-proxy=no

2

I just noticed with --hotspot: auth in PCC rules, packets don’t get a routing mark.
Pretty positive I’ve followed instructions correctly on every other thread I’ve been reading these 3 days.

Any help would be appreciated.

3

I need help to the same problem
I want to use 2 WAN and Hotspot
Every 1 or the 2 minutes, internet goes down for few seconds and comes back again
This I obeserved when i use yahoo messeger and skype
browsing is ok
Can any body help me???/
please…

4

Just add --Hotspot: Auth to all mangle rules.

5

see my file my wan1 is a static ip replace it with your own ip
local 192.168.0.1
wan1 41.41.71.178
wan2 192.168.1.2
wan3 192.168.2.2
wan4 192.168.2.2
ip export.txt (14.7 KB)

6

Was this issue solved?

7

hi i have same issue, did this got resolved?

Thanks

8

chack this working like charm .. ppc with src address


/interface
set ether1 name=WAN1
set ether2 name=WAN2
set ether5 name=Local




/ ip address
add address=192.168.88.1/24 interface=Local comment=OUT
add address=192.168.1.5/24 interface=WAN1 comment=Line1
add address=192.168.2.5/24 interface=WAN2 comment=Line2






/ip firewall mangle
add action=accept chain=prerouting disabled=no in-interface=WAN1
add action=accept chain=prerouting disabled=no in-interface=WAN2


add action=mark-connection chain=prerouting disabled=no dst-address-type=!local
new-connection-mark=wan1_conn passthrough=yes per-connection-classifier=
both-addresses-and-ports:2/0 src-address=192.168.88.0/24
add action=mark-connection chain=prerouting disabled=no dst-address-type=!local
new-connection-mark=wan2_conn passthrough=yes per-connection-classifier=
both-addresses-and-ports:2/1 src-address=192.168.88.0/24


add action=mark-routing chain=prerouting connection-mark=wan1_conn disabled=no
new-routing-mark=to_wan1 passthrough=yes src-address=192.168.88.0/24
add action=mark-routing chain=prerouting connection-mark=wan2_conn disabled=no
new-routing-mark=to_wan2 passthrough=yes src-address=192.168.88.0/24



/ip firewall nat
add action=masquerade chain=srcnat disabled=no out-interface=WAN1
src-address=192.168.88.0/24
add action=masquerade chain=srcnat disabled=no out-interface=WAN2
src-address=192.168.88.0/24


/ip route
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=
192.168.1.1 routing-mark=to_wan1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=
192.168.2.1 routing-mark=to_wan2 scope=30 target-scope=10


add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=
192.168.1.1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=2 dst-address=0.0.0.0/0 gateway=
192.168.2.1 scope=30 target-scope=10

9

for this issue >> the user login or logout page does not upload .

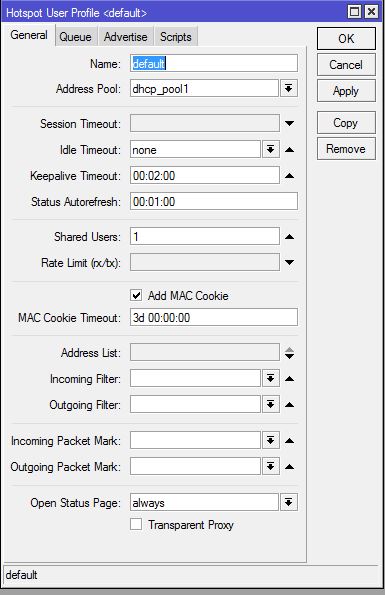

try this >>> go to hotspot user profile and set the addredss pool of the hotspot same as load balance address pool
:smiley:

10

for this issue >> the user login or logout page does not upload .
try this >>> go to hotspot user profile and set the addredss pool of the hotspot same as load balance address pool
:smiley:
