I need some more help
I think previously I didnāt have things set right but it just worked for some reason.

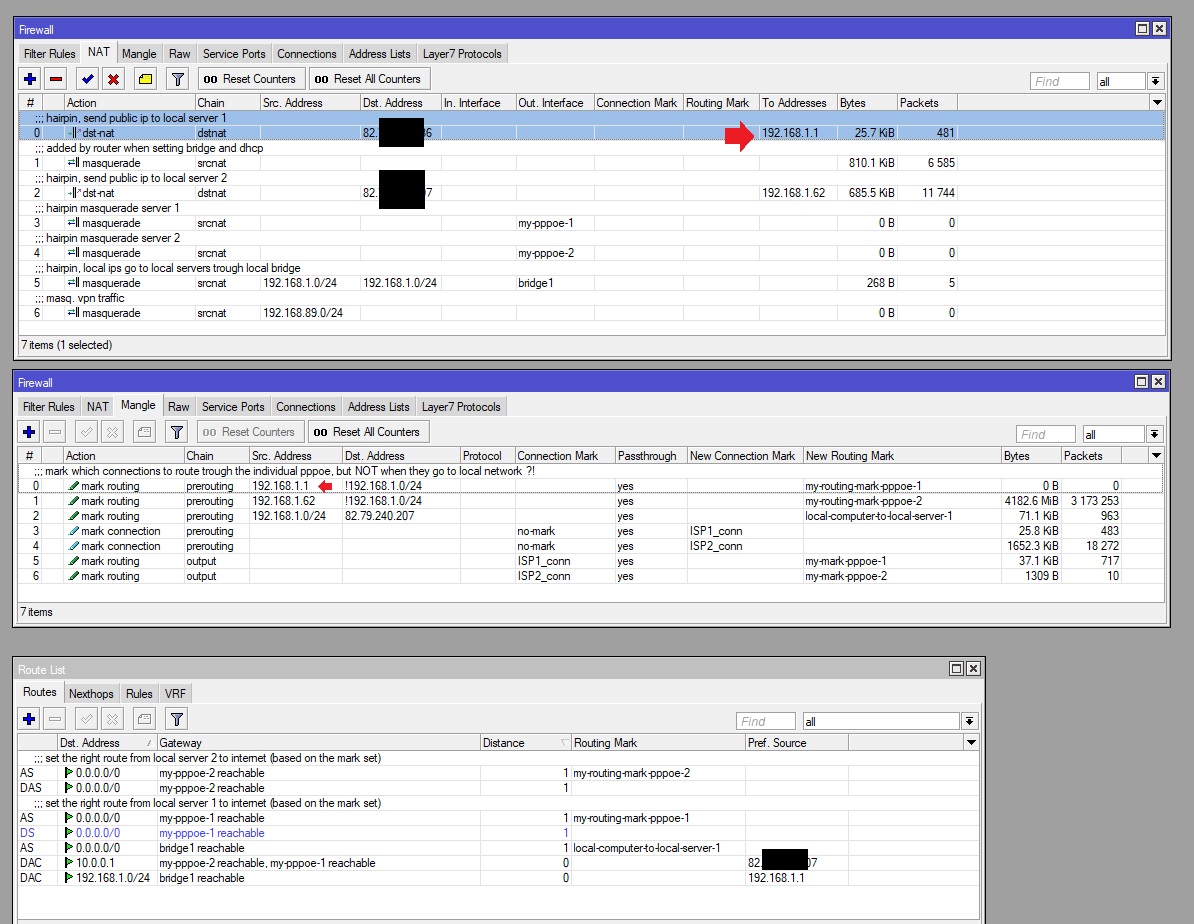

With current setup, the local computer 192.168.1.16 cannot reach public IP 82.x.x.7 UNLESS I add that blue mangle routing rule and the blue route, allow to reach that public IP by local bridge (?!).
Is that a must ?
Is there a simpler way ? (e.g just by one rule in NAT ?)
Donāt other NAT rules there already do that ? allow 192.168.1.16 to reach 82.x.x.7 locally ?
Simpler way is routing rule:
/ip route rule
add action=lookup-only-in-table dst-address=192.168.1.0/24 table=main
Problem is that prerouting mangle (where you mark routing) occurs before dstnat. So you have packet going to public address which matches dst-address=!192.168.1.0/24 in rules #0-1 and it gets marked. Then dstnat changes destination to 192.168.1.x, but routing is already marked, so destination is looked up only in my-routing-mark-pppoe-x table and it doesnāt contain route to 192.168.1.0/24, so packet goes out to internet.
Options are:
a) What you did
b) Add dst-address-type=!local to mangle rules #0-1, to also exclude all addresses on router
c) The routing rule I posted (it tells the router to always look up 192.168.1.0/24 only in main routing table)
OK, I left that as it was since you said it is one way to do it, and I have a hard time understanding all the rules.
I am very close to smashing it right now, I think what I need is very simple (e.g 3 pppoe accounts each going to/from different computer) I canāt understand why I need tons of rules for it, each of them overwrites each other and cause conflicts, etc. Itās a nightmare, it is over 16 days already, every day I āworkā on this thing, itās ridiculous.
Now ā¦ I cannot reach it by internet in order to manage it, in ip > services, I set www port to 380, I understand the 192.168.1.1 is the one replying on the web port, no ?!

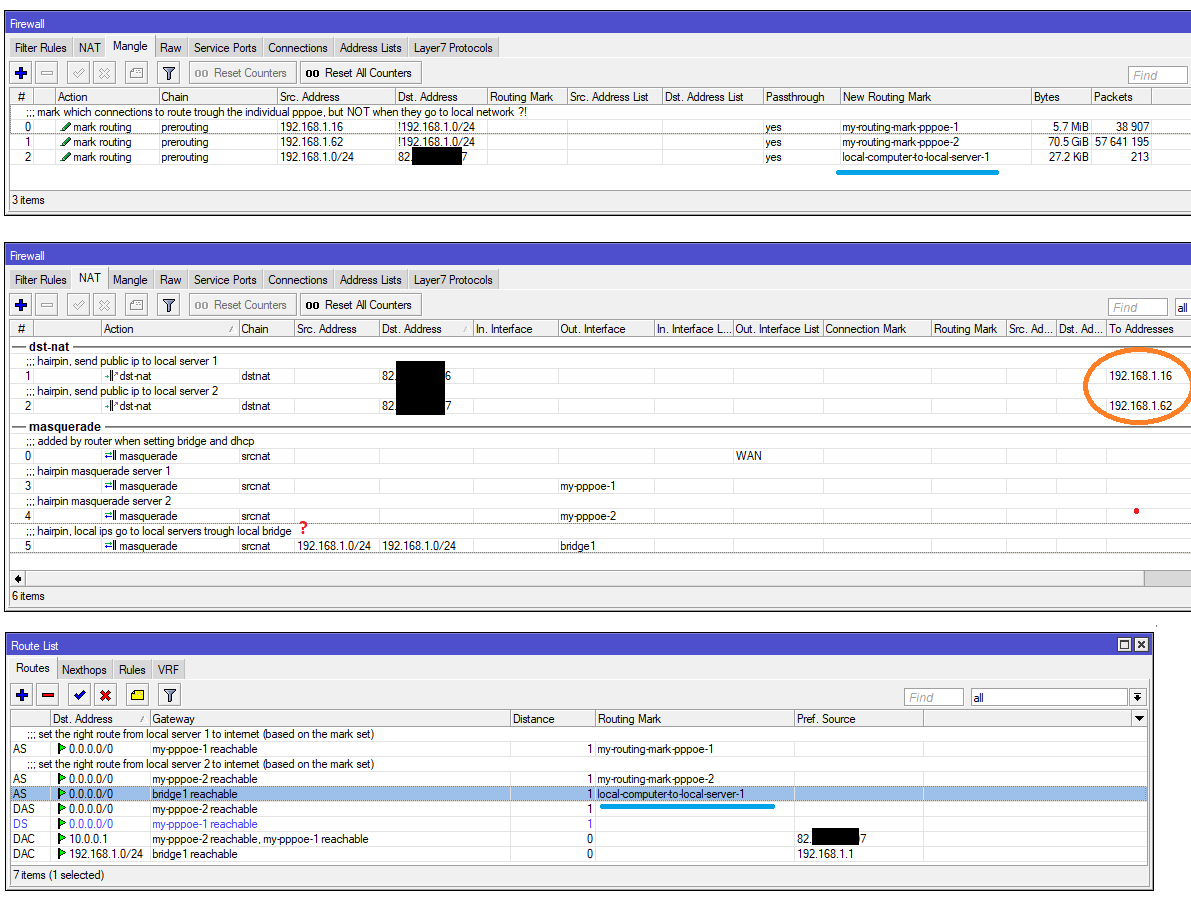

So for testing, I changed that first NAT (dst-nat) to forward all traffic of that public 82.x.x.6 IP to 192.168.1.1 instead of the 192.168.1.16 as it was in the images.
And nothing, doesnāt reply on port :380, only from local network.
What am I doing wrong ?
Help
The 82.x.x.6 is also the internet connection I see under āquick setā, I have no idea why another āinternet connectionā shows there when I already have tons of rules in order to connect to the internet.
Dont play in quickset once you start configuring the routerā¦
The router creates dynamic routing rules if thats what you are seeing (normal).
Great.
Now it works and I have no idea why, I am going crazy.
Does it need reboots on each change ?
Strategy to take down a country - drop hex routers, like leaflets, on the population and watch them self destruct and go stark raving mad. No bullets need be fired, no animals hurt in the process.
I was thinking it does that, but I wasnāt sure, and I applied āquickā settings there in order for it to make the local bridge, enable DHCP and VPN. I cannot find another location for VPN settings eider.
OK, I need sleep and will see what this^ is tomorrow
Take a deep breath and donāt panic, everything is ok, but you need some more rules.
With multi-WAN config, router doesnāt automatically send replies via the same WAN from where the request came in. So the basic idea is to mark incoming connections based on incoming interface:
/ip firewall mangle
add chain=prerouting in-interface=my-pppoe-1 connection-mark=no-mark action=mark-connection new-connection-mark=ISP1_conn
add chain=prerouting in-interface=my-pppoe-2 connection-mark=no-mark action=mark-connection new-connection-mark=ISP2_conn
add chain=prerouting in-interface=my-pppoe-3 connection-mark=no-mark action=mark-connection new-connection-mark=ISP3_conn
And then send replies the right way (this is for services on router):
/ip firewall mangle
add chain=output connection-mark=ISP1_conn action=mark-routing new-routing-mark=my-mark-pppoe-1
add chain=output connection-mark=ISP2_conn action=mark-routing new-routing-mark=my-mark-pppoe-2
add chain=output connection-mark=ISP3_conn action=mark-routing new-routing-mark=my-mark-pppoe-3
And this would be for replies from internal servers (you may not need it for your current config, if each server is accessible only from one WAN interface and always uses the same interface for outgoing traffic):
/ip firewall mangle
add chain=prerouting connection-mark=ISP1_conn in-interface=bridge1 action=mark-routing new-routing-mark=my-mark-pppoe-1
add chain=prerouting connection-mark=ISP2_conn in-interface=bridge1 action=mark-routing new-routing-mark=my-mark-pppoe-2
add chain=prerouting connection-mark=ISP3_conn in-interface=bridge1 action=mark-routing new-routing-mark=my-mark-pppoe-3
And thatās it, no need to hurt poor little router.
For the 2 connections I have now, I added the rules you mentioned, except the last group which you said might not be needed, this is what I have now.
Problem is ā¦ I still cannot reach it on port 380 when accessing from outside, but from local computers I can see the web interface at 192.168.1.1:380
Sob, if you think you can help me by some live chat method it would be great and I think I would leave you alone faster
In plain English,
(1) All external requests (originating) are connection marked by the router, depending upon which WAN interface they come in on.
(2) When traffic is exiting the router and has these marks, assign the applicable routing marks to match the same interface.
This does nothing by itself but is something that the admin directs the router to follow so that when the admin is making the IP route rules, the router will be able to physically route the traffic appropriately
(3) When server traffic replies to the requests, and we know they have the original marks the router put on them, we assign router marks as we did in 2.
@sob (4) What is missing is the IP Route rules that tie everything togetherā¦
@sob My question is why do we bother with 2?
In part 1. we connection mark the incoming traffic per WAN.
In part 3. we track the replies by their connection marks and route mark the responses.
In part 4. we apply IP route rules to ensure the connection marked traffic goes out the applicable WAN by the route mark
(where does 2 come in to play)
I am so lost, I donāt even know what to ask anymore
Hi Adrian, that is why I am trying to put advice in language that is digestible. The MT geeks here speak config as though its our mother tongue LOL.
I have taken it upon myself, through humour, to attempt to bring them down to earth. I could have put on my signa, I would rather herd rats than big MT egos
Seriously, stick with it! Between Sobās expert advice and my amateurish fumbling, we will get there. Heck its not about the end result its about the journey and the people we meet along the way.
To me, ROSish and English are both alien languages ā¦ so I tend to use the less appropriate one whenever thereās a chance
No argument from me mkx. At least you admitted RoS was alien LOL. I do have to admit though there is nothing sexier than a person of the opposite (hmmmm lets say gender that attracts you) speaking your language with a foreign accent. In my case even those purporting to speak english (UK, Aussies etc), so hot! Hmm, mkxās plan was to distract me from the thread at hand so I didnāt provide any further incorrect, confusing or damaging adviceā¦ it worked!!
Does this show any tips on why it would not open the web interface over port 380 ?
This is an attempt over internet (failing), but it loads from local network if I access both 192.0.0.1 or public IP too.
OK, I added another route āip routesā to use pppoe-1 interface for that ISP1_conn connection mark (seen in the image) and it seems to work.
Now I need to try to understand them all and find other things that donāt work
Port 380 is quite uncommon and it wouldnāt surprise me if some your ISP was blocking it. Try to forward some more standard port (e.g. port 80) to verify that your port forwarding rule actually works. You might want to enable logging on port forwarding rule to see if it actually gets triggered when accessed from internet ā¦
Nah, it is open, lucky for them
I was able to fix this part, now I am trying to understand them and see if any of the rules are not needed.
