Hello,

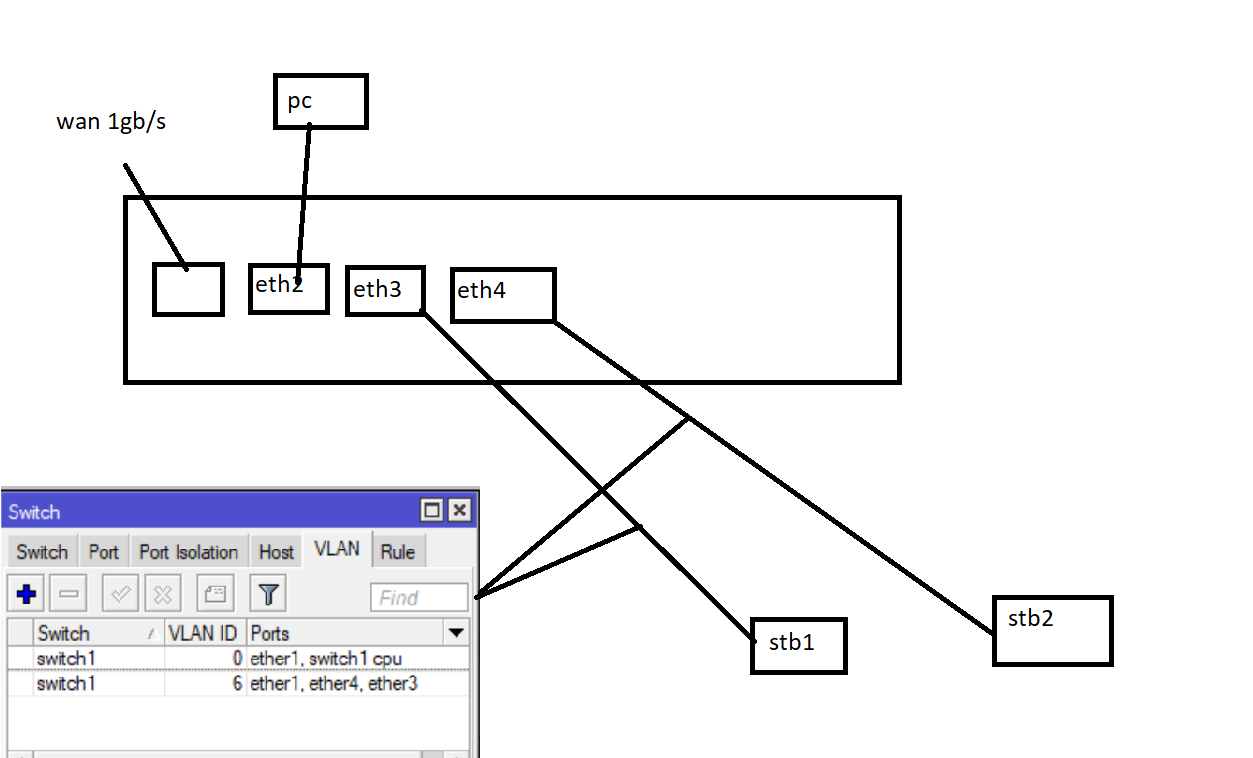

I have 2011UiAS-2HnD, and before my configuration was:
Everything worked perfecetly without any issues.

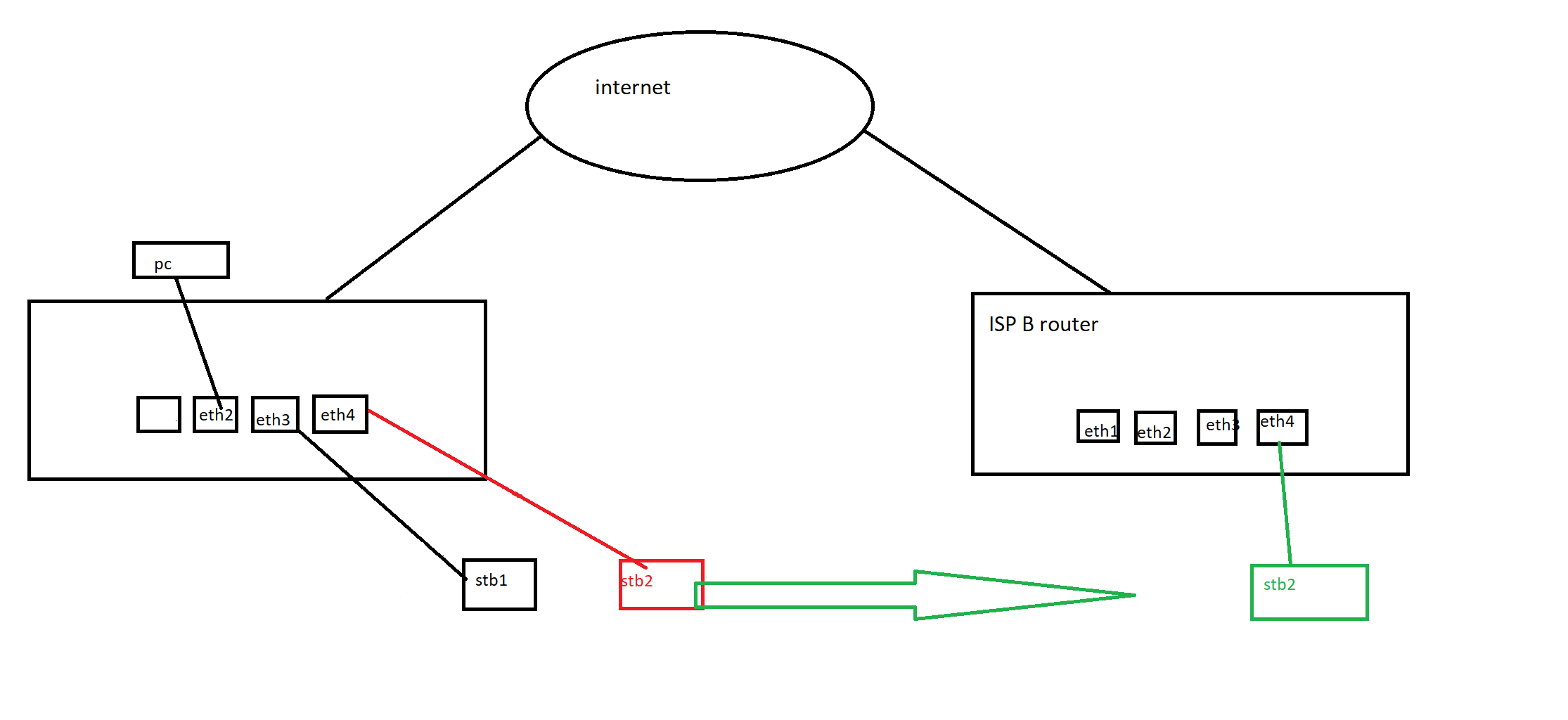

But then i moved one stb to another home.
I removed switch rules, then made eoip tunnel, then vlan6 from ether1, made iptv-bridge and added in to the bridge eth3/eth4/iptv-vlan/eoip tunnel.

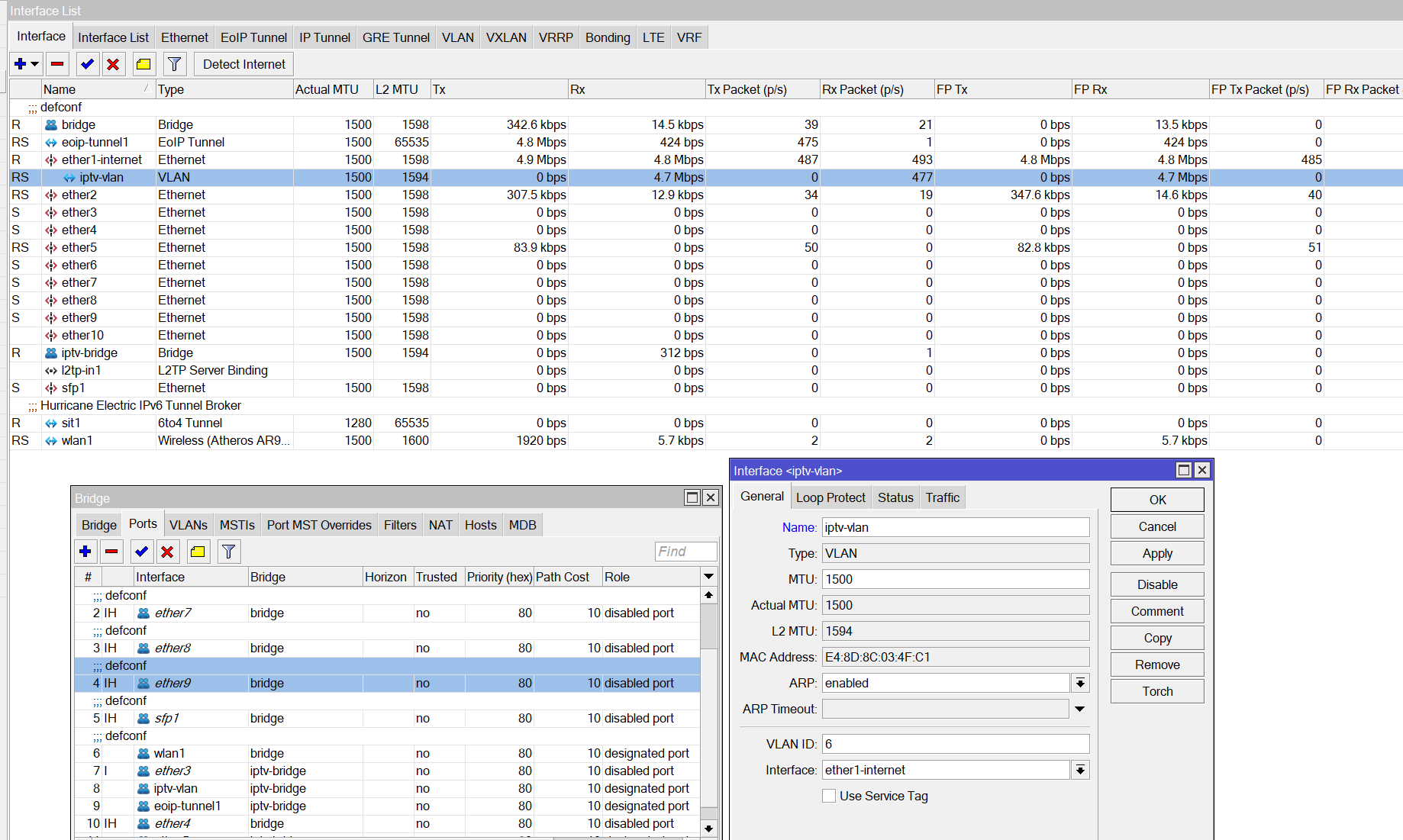

[admin@MikroTik] > interface/print
Flags: R - RUNNING; S - SLAVE
Columns: NAME, TYPE, ACTUAL-MTU, L2MTU, MAX-L2MTU, MAC-ADDRESS
# NAME TYPE ACTU L2MTU MAX- MAC-ADDRESS
0 R ether1-internet ether 1500 1598 4074 E4:8D:8C:03:4F:C1
1 RS ether2 ether 1500 1598 4074 E4:8D:8C:03:4F:C2
2 S ether3 ether 1500 1598 4074 E4:8D:8C:03:4F:C3
3 S ether4 ether 1500 1598 4074 E4:8D:8C:03:4F:C4
4 RS ether5 ether 1500 1598 4074 E4:8D:8C:03:4F:C5
5 S ether6 ether 1500 1598 2028 E4:8D:8C:03:4F:C6
6 S ether7 ether 1500 1598 2028 E4:8D:8C:03:4F:C7
7 S ether8 ether 1500 1598 2028 E4:8D:8C:03:4F:C8
8 S ether9 ether 1500 1598 2028 E4:8D:8C:03:4F:C9
9 ether10 ether 1500 1598 2028 E4:8D:8C:03:4F:CA
10 S sfp1 ether 1500 1598 4074 E4:8D:8C:03:4F:C0
11 RS wlan1 wlan 1500 1600 2290 E4:8D:8C:03:4F:CB
;;; defconf
12 R bridge bridge 1500 1598 E4:8D:8C:03:4F:C2
13 RS eoip-tunnel1 eoip 1500 65535 02:2B:F1:DB:97:E3
14 R iptv-bridge bridge 1500 1594 E4:8D:8C:03:4F:C1
15 RS iptv-vlan vlan 1500 1594 E4:8D:8C:03:4F:C1
16 l2tp-in1 l2tp-in
;;; Hurricane Electric IPv6 Tunnel Broker
17 R sit1 6to4-tunnel 1280 65535
[admin@MikroTik] > interface/vlan/print
Flags: R - RUNNING
Columns: NAME, MTU, ARP, VLAN-ID, INTERFACE
# NAME MTU ARP V INTERFACE
0 R iptv-vlan 1500 enabled 6 ether1-internet
[admin@MikroTik] > interface/bridge/print
Flags: X - disabled, R - running
0 R ;;; defconf
name="bridge" mtu=auto actual-mtu=1500 l2mtu=1598 arp=enabled arp-timeout=auto mac-address=E4:8D:8C:03:4F:C2 protocol-mode=rstp fast-forward=yes igmp-snooping=no auto-mac=no admin-mac=E4:8D:8C:03:4F:C2
ageing-time=5m priority=0x8000 max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no dhcp-snooping=no
1 R name="iptv-bridge" mtu=1500 actual-mtu=1500 l2mtu=1594 arp=enabled arp-timeout=auto mac-address=E4:8D:8C:03:4F:C1 protocol-mode=none fast-forward=yes igmp-snooping=yes multicast-router=temporary-query
multicast-querier=no startup-query-count=2 last-member-query-count=2 last-member-interval=1s membership-interval=4m20s querier-interval=4m15s query-interval=2m5s query-response-interval=10s
startup-query-interval=31s250ms igmp-version=2 mld-version=1 auto-mac=no admin-mac=E4:8D:8C:03:4F:C1 ageing-time=5m vlan-filtering=no dhcp-snooping=no
[admin@MikroTik] > interface/bridge/port print
Flags: I - INACTIVE; H - HW-OFFLOAD
Columns: INTERFACE, BRIDGE, HW, PVID, PRIORITY, PATH-COST, INTERNAL-PATH-COST, HORIZON
# INTERFACE BRIDGE HW P PRIO PA IN HORI
;;; defconf
0 H ether2 bridge yes 1 0x80 10 10 none
;;; defconf
1 IH ether6 bridge yes 1 0x80 10 10 none
;;; defconf
2 IH ether7 bridge yes 1 0x80 10 10 none
;;; defconf
3 IH ether8 bridge yes 1 0x80 10 10 none
;;; defconf
4 IH ether9 bridge yes 1 0x80 10 10 none
;;; defconf
5 IH sfp1 bridge yes 1 0x80 10 10 none
;;; defconf
6 wlan1 bridge 1 0x80 10 10 none
7 I ether3 iptv-bridge yes 1 0x80 10 10 none
8 iptv-vlan iptv-bridge 1 0x80 10 10 none
9 eoip-tunnel1 iptv-bridge 1 0x80 10 10 none
10 IH ether4 bridge yes 1 0x80 10 10 none
11 ether5 iptv-bridge yes 1 0x80 10 10 none
[admin@MikroTik] >
Everything works until i not using pc, when i using pc downloading something, trying to wach youtube hd videos, etc, stb’s being laggy and it’s impossible to wach tv, internet speed is 1gb/s, both stb’s are set up to 5mb/s speed limit. Also pc download speed drops to ~280mb/s, before was 950mb/s. I think the problem is cpu, but maybe is some solution to solve this problem without buying new router
