PtP Bridge Alignment 60 GHz (CubeG-5ac60ay)

RouterOS Wireless Networking
1

Hi,

As I understand

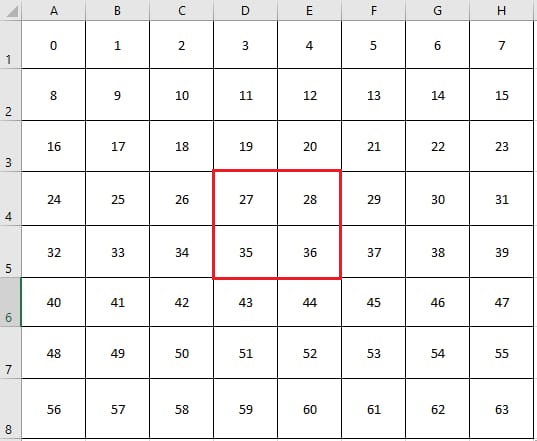

When adjusting ptp 60 GHz, you need to block the tx-sector in the central part (sector 27,28,35,36).

Example (Master and Slave)


/interface/w60g/set wlan60-1 tx-sector=35

For alignment use Align (Master and Slave)

/interface/w60g/align wlan60-1

After completing the setup, switch the tx-sector to auto.


/interface/w60g/set wlan60-1 tx-sector=auto

Here’s what I got

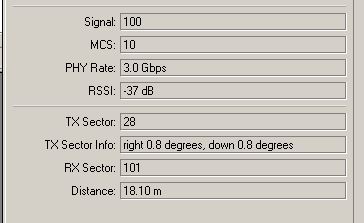

Master

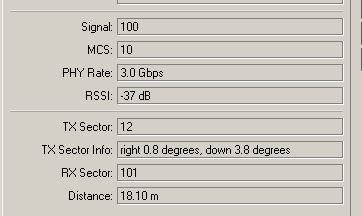

Slave

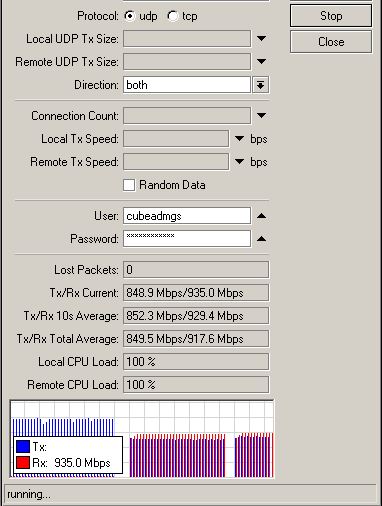

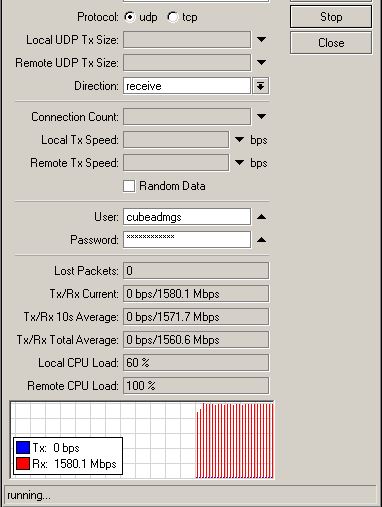

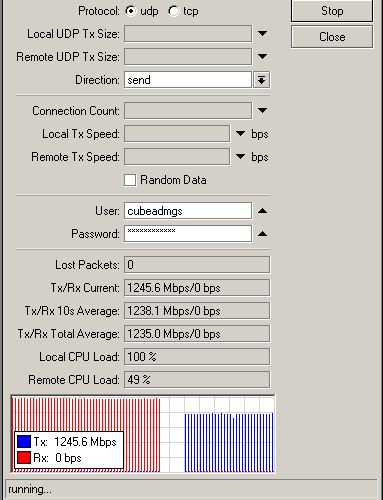

Bandwidth Test PtP 60 GHz (CubeG-5ac60ay)

Problems aiming nRAY
Cube 60Pro link up, link down
LHG 60G stops responding
Unstable connection with pair of nRAYG60ad
2

Unfortunately, there is very little information about 60 GHz on wiki.mikrotik.com and help.mikrotik.com/docs
The adjustment process is especially interesting (alignment)

3

At least that’s not how it works for me, because if I fix the center, it stops showing the changing alignment angles in % percent. Therefore, I leave “auto” and adjust through it (as usual).

4

In auto mode, it is difficult to center.
What version of RoS are you using?
