Hello,

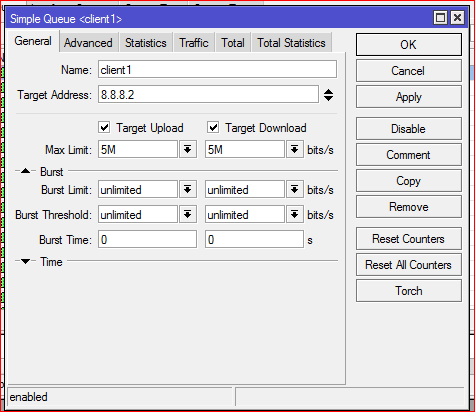

Could someone give me the CLI (Terminal) command that will addthe following Queue?
I need it in a script that will crate hundreds of simimilar queues.
Thank you for accorded time!
Hope this will help you:
http://wiki.mikrotik.com/wiki/Automated_Usage_Script_without_usermanager#Final_Notes
http://wiki.mikrotik.com/wiki/Manual:Queue#Simple_Queues
/queue simple
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both \
disabled=no interface=all limit-at=0/0 max-limit=5M/5M name=client1 \
packet-marks=external_traff parent=none priority=8 queue=\
default-small/default-small target-addresses=8.8.8.2/32 total-queue=\
default-small
It’s real easy for you to find this code as well after you have configured the settings using Winbox. Open a New Terminal and type:
/queue simple export
This can be done for any settings. If you want to see ALL configurations, simply type:
/export
i did it in a file to add all the 254 ip but the cash did not accept more than 10 lines every time i make it to do 64k/256k and i do not know what other setting do so i can use it
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.1 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.1 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.2 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.2 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.3 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.3 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.4 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.4 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.5 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.5 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.6 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.6 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.7 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.7 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.8 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.8 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.9 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.9 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.10 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.10 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.11 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.11 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.12 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.12 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.13 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.13 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.14 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.14 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.15 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.15 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.16 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.16 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.17 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.17 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.18 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.18 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.19 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.19 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.20 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.20 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.21 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.21 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.22 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.22 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.23 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.23 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.24 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.24 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.25 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.25 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.26 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.26 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.27 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.27 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.28 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.28 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.29 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.29 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.30 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.30 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.31 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.31 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.32 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.32 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.33 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.33 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.34 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.34 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.35 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.35 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.36 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.36 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.37 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.37 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.38 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.38 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.39 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.39 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.40 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.40 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.41 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.41 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.42 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.42 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.43 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.43 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.44 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.44 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.45 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.45 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.46 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.46 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.47 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.47 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.48 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.48 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.49 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.49 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.50 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.50 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.51 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.51 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.52 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.52 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.53 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.53 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.54 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.54 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.55 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.55 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.56 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.56 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.57 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.57 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.58 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.58 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.59 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.59 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.60 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.60 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.61 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.61 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.62 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.62 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.63 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.63 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.64 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.64 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.65 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.65 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.66 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.66 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.67 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.67 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.68 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.68 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.69 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.69 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.70 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.70 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.71 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.71 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.72 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.72 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.73 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.73 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.74 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.74 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.75 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.75 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.76 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.76 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.77 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.77 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.78 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.78 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.79 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.79 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.80 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.80 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.81 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.81 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.82 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.82 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.83 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.83 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.84 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.84 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.85 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.85 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.86 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.86 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.87 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.87 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.88 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.88 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.89 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.89 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.90 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.90 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.91 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.91 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.92 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.92 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.93 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.93 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.94 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.94 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.95 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.95 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.96 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.96 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.97 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.97 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.98 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.98 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.99 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.99 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.100 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.100 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.11 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.11 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.12 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.12 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.13 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.13 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.14 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.14 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.15 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.15 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.16 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.16 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.17 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.17 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.18 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.18 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.19 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.19 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.110 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.110 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.111 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.111 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.112 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.112 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.113 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.113 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.114 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.114 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.115 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.115 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.116 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.116 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.117 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.117 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.118 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.118 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.119 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.119 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.120 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.120 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.121 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.121 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.122 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.122 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.123 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.123 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.124 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.124 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.125 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.125 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.126 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.126 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.127 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.127 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.128 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.128 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.129 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.129 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.130 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.130 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.131 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.131 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.132 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.132 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.133 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.133 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.134 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.134 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.135 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.135 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.136 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.136 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.137 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.137 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.138 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.138 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.139 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.139 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.140 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.140 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.141 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.141 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.142 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.142 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.143 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.143 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.144 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.144 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.145 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.145 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.146 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.146 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.147 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.147 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.148 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.148 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.149 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.149 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.150 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.150 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.151 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.151 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.152 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.152 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.153 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.153 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.154 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.154 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.155 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.155 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.156 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.156 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.157 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.157 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.158 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.158 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.159 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.159 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.160 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.160 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.161 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.161 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.162 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.162 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.163 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.163 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.164 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.164 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.165 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.165 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.166 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.166 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.167 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.167 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.168 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.168 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.169 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.169 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.170 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.170 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.171 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.171 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.172 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.172 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.173 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.173 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.174 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.174 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.175 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.175 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.176 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.176 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.177 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.177 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.178 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.178 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.179 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.179 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.180 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.180 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.181 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.181 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.182 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.182 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.183 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.183 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.184 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.184 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.185 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.185 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.186 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.186 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.187 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.187 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.188 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.188 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.189 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.189 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.190 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.190 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.191 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.191 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.192 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.192 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.193 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.193 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.194 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.194 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.195 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.195 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.196 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.196 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.197 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.197 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.198 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.198 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.199 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.199 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.200 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.200 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.201 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.201 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.202 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.202 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.203 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.203 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.204 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.204 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.205 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.205 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.206 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.206 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.207 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.207 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.208 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.208 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.209 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.209 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.210 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.210 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.210 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.210 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.211 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.211 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.212 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.212 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.213 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.213 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.214 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.214 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.215 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.215 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.216 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.216 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.217 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.217 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.218 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.218 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.219 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.219 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.220 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.220 total-queue=default- small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.221 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.221 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.222 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.222 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.223 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.223 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.224 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.224 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.225 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.225 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.226 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.226 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.227 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.227 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.228 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.228 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.229 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.229 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.231 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.231 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.232 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.232 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.233 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.233 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.234 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.234 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.235 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.235 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.236 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.236 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.237 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.237 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.238 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.238 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.239 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.239 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.241 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.241 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.242 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.242 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.243 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.243 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.244 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.244 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.245 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.245 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.246 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.246 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.247 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.247 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.248 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.248 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.249 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.249 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.251 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.251 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.252 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.252 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.253 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.253 total-queue=default-small
add burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s direction=both disabled=no interface=all limit-at=0/0 max-limit=64k/256k name=192.168.0.254 parent=none priority=8 queue=default-small/default-small target-addresses=192.168.0.254 total-queue=default-small
done
this simple code for upload 64 k and download 256 k
queue simple code.xls (86 KB)
why not just use PCQ and have only two rules?
i read every solution for any problem i have and try to use them one by one and when i find any script that do what i want i do not care how long it is if it is the only i have but as soon as i find new way i go to the best script so if you not mind tell me what script to use so i can remove that queue script
