Radius auth issues

wadeblackwell · June 28, 2017, 12:09pm

Good morning from the Central Coast of Ca,
I have a freeradius implementation that sits off a local bridged interface of a CCR1009-8G-1S running 6.31. Radius server is pingable, service is up. If I use the traceroute tool in ROS and specify radius server IP and udp 1812 I can see the traffic on the radius server interface. When I try to auth against this host (winbox or ssh) it never sends traffic to the radius server. I added specific fw rules and turned on radius debugging and nothing, just authentication failed for the radius user. The radius configuration tool says the radius traffic is timing out. I’m a little new to ROS but have been debugging issues like this on IOS/NXOS/Freebsd & Linux for a long time. Is there a nuance in ROS that I am missing to get this working? Any help would be great, losing it a little with what seems to be a very basic issue. I can provide any configs or logs needed, thanks all.

-W

pukkita · June 28, 2017, 1:53pm

traceroute? Or connection table?

Can you post

/radius export

wadeblackwell · June 28, 2017, 4:47pm

Good morning and thanks so much for the reply,
----start-----
[nope@Edge DW] > /radius export

jun/28/2017 09:41:59 by RouterOS 6.31

software id = YS5S-E7TL

/radius
add address=10.100.3.120 secret="abc123" service=login
src-address=10.100.3.1
[nope@Edge DW] >
-----end------
The tool I was using inside of winbox was the traceroute tool

pukkita · June 28, 2017, 5:00pm

I assume 10.100.3.1 is the router IP?

Double check this IP is on the radius client entry for the radius server.

The radius configuration tool says the radius traffic is timing out.

Have you tried the radius server with NTradping, or any other CLI tool (radclient) outside of the own radius server?

This means that the router is trying to contact the radius server, but is not getting any responses or not able to contact it.

did you see anything by running radiusd -X?

Double check router<->freeradius connection is not being tampered with (nat, bridge filters…)

BTW is there any specific reason to use 6.31? I’d rather use latest bugfix (6.38.7)

please post

/radius monitor 0

wadeblackwell · June 28, 2017, 5:20pm

Thanks for the feedback,
I was running a packet capture;

tcpdump -nnvvXSs 1514 -i eth0 port 1812 -w /home/nope/RadiusCapNew6-28-2017.cap

and no traffic hit the interface. Yes the source address is the router interface facing the client. I have tried with and without a source address. I have not tried NTradping or radclient but I do have 6.38.5 running in my lab that can authenticate against this radius server (successful auth screenshot attached). The only difference is that the source of my radius traffic (and all traffic) is natting to a public IP whereas all the failing radius traffic is sourced from my client’s 10/8 space.

pukkita · June 29, 2017, 8:30am

Ok, so it’s a fact radius traffic isn’t hitting the radius server.

Can go to radius entry status tab, reset status, and post either a screenshot of it or

/radius monitor 0

After trying to login a couple times?

Double check the radius responses aren’t being natted or tampered with on any of the routers (radius and .3.120).

Are you using mangle or VRFs on radius or .3.120?

wadeblackwell · July 20, 2017, 7:32pm

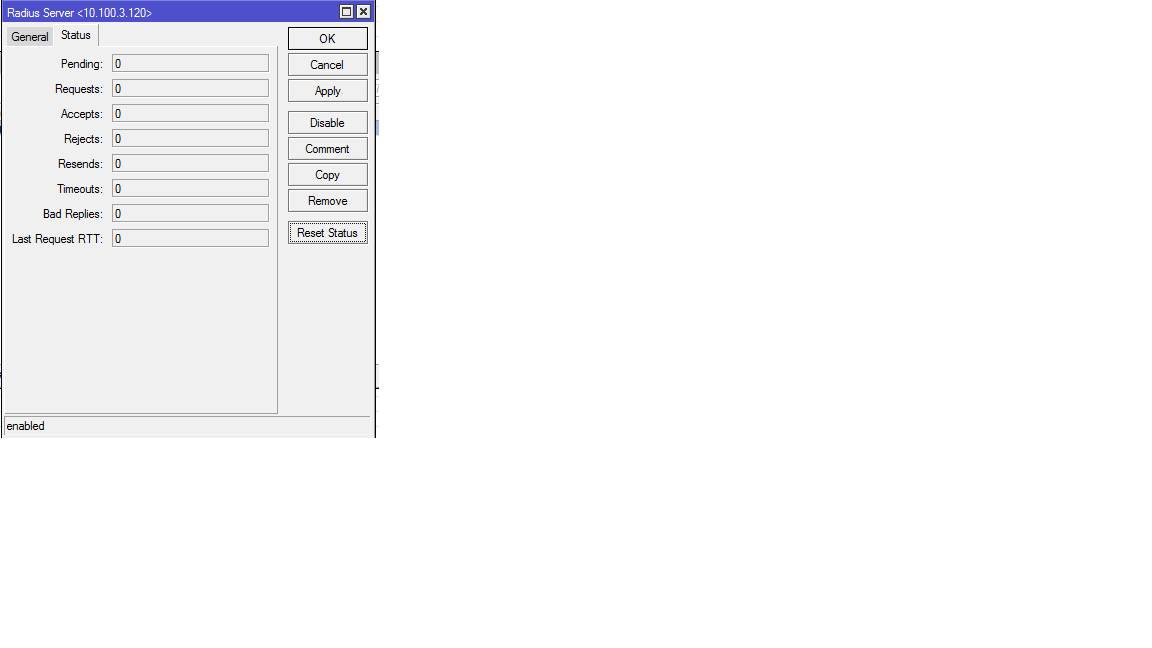

I can attach the nat rules as well if you think it would shed some light. My apologies on the late reply.Radius reset stats attached. No mangle but src-nat, dst-nat and masquerade are all being used. I don’t believe the requests are being natted and if they were the source “should” appear as the locally attached interface to the radius server and thus the responses “again should” be directed back towards that interface in ever circumstance. L3 is pointed at this interface as the default gateway and L2 should be a GARP/arp away from success but not so. I’m not convinced I have a good handle on the NAT in Mikrotik. I come Cisco Land and it appears to function a bit differently. After several failed attempts at authenticating the counters remain at zero. Not sure if the refresh for that is on a cron or real time. Please advise, thanks so much!

pukkita · July 21, 2017, 8:09am

First thing I’d do is upgrading to 6.38.7 (Latest bugfix), checking System > Routerboard Current vs Upgrade firmware afterwards, upgrading if needed and rebooting.

Check that you have enabled:

login ticked on Radius > radius server entry
System > Users, [AAA] button, Use Radius should be enabled

because the router is not sending any radius requests (0 Requests).

These stats are close to real time, if the router were using radius for login auth you’ll see the Requests counter increasing; if there were any problem contacting the radius server, both Resends and Timeouts counters would increase too.

savage · July 21, 2017, 8:48am

You configured ROS to use 10.100.3.1 as a src-address for radius requests, yet, the packet dump indicates that the request is originating from 10.100.3.120 (the local ethernet interface address).

That would indicate to me that 10.100.3.1 is not assigned to the router. Do you have a loopback iterface, with that IP assigned to it? Can you ping from the loopback to the FR server, and visa versa? Export /interfaces, /ip address, and /ip route.

The reason the radius is rejecting the request (ignoring it), is presumably because you have the client configured in radius with a src of 10.100.3.1, but the request is coming from 10.100.3.120. If you check the FR logs, or run FR in debug mode, you’d also notice big fat warnings and errors generated in the logs because it is receiving requests from an unknown client.

pukkita · July 21, 2017, 11:36am

If that were the only cause, Rejects should have counters increasing.

First goal is seeing Requests counter is increasing, i.e., ROS is using radius for login auth, which doesn’t seem to be the case right now.

Once the Requests counter increases, if as you pointed out, Rejects starts increasing, it will mean exactly that: src-address needs to be checked.

savage · July 21, 2017, 11:49am

True, yes. But given his post, “Radius reset stats attached” it’s also understandable to presume that he’s reset the statistics, and then attached a image of it I’ve seen stranger things before…

wadeblackwell · July 21, 2017, 1:34pm

Thanks all and good morning from the West Coast,
I’ll look into the settings mentioned. The source hasn’t been set to 10.100.3.120 as that is the destination for the auth traffic though I will re-check the FR log and see if it’s complaining. It hasn’t been in fact the traffic never even made it to the host. I have 40+ devices exhibiting the same behavior and consistently the radius traffic, specifically, stops at this host which is directly attached to the radius server. More coffee and I’ll look at the settings and logs and report back. Thanks all.

wadeblackwell · July 24, 2017, 8:36pm

Happy Monday folks,
Radius export below (scrubbed);

[uh-nope@Edge DW] > /radius export
# jul/24/2017 13:18:56 by RouterOS 6.35.4
# software id = YS5S-E7TL
#
/radius
add address=10.100.3.120 secret="<removed>*" service=login
[uh-nope@Edge DW] >

Traceroute for the directly connected radius server below using icmp then udp on 1812;

[uh-nope@Edge DW] /tool> traceroute 10.100.3.120 protocol=icmp
 # ADDRESS                          LOSS SENT    LAST     AVG    BEST   WORST
 1 10.100.3.120                       0%   15   0.6ms     0.6     0.5     0.8

[uh-nope@Edge DW] /tool> traceroute 10.100.3.120 protocol=u
 # ADDRESS                          LOSS SENT    LAST     AV
 1                                  100%    2 timeout
 2                                  100%    1 timeout
 3                                  100%    1 timeout
 4                                  100%    1 timeout
 5                                  100%    1 timeout

To be clear running radius is debug mode and performing capture in the server interface shows the traffic never hits the server, it dies on this RouterOS device. It looks like it’s being black holed.

pukkita · July 25, 2017, 9:45am

Traceroute in udp mode it’s not doing what you think, only another router is going to show as reachable, is not suitable for testing services reachability, but an alternative route/path tracing transport when e.g. icmp cannot be used because is filtered.

Post

/interface export
/ip export

From the radius directly connected router, to double check:

1.- Interface facing the radius server is the right one
2.- IP on such interface is the right one
3.- Proper routes

(all this looks like is fine as there’s ping, but we’d better make sure…)

4.- No Firewall filters messing with radius traffic
5.- No Firewall nat hosing radius traffic

ifconfig
netstat -rn
netstat -an
iptables -nL
iptables -t nat -nL

On the radius server in order to check the same.

Let me insist on using the latest bugfix, 6.38.7, along with latest firmware.

If this radius was working fine previously, and suddenly started to misbehave due to this router, I would save an export and a backup (or manually backup any certs, etc) of its config and netinstall it to 6.38.7 straight away.

wadeblackwell · July 25, 2017, 1:49pm

Thanks so much for the reply,
The information requested is attached. I did some scrubbing but the bones are there. I’m, 99% certain the linux host is not the problem. I think the issue is buried in the NAT table, if I had to guess.
int-ipexport.txt (68.1 KB)

pukkita · July 25, 2017, 3:01pm

Still having a look (huge .rsc), but

/ip firewall filter
add chain=input connection-nat-state=srcnat,dstnat connection-state=related,new dst-address=10.100.3.120 dst-port=1812  \
log=yes protocol=udp src-address=10.0.0.0/8 src-address-list=WCC
...
/ip firewall filter
add chain=forward comment="Allow Radius Traffic to wil-rad-01" protocol=tcp dst-address=10.100.3.120 dst-port=1812,1813 in-interface=bridge-Servers

protocol on second rule should be udp.

I doubt first rule is going to be applied as per the criteria you set; we’re working on the forward chain even when dst-natting, so I would change first rule to:

/ip firewall filter
add chain=forward dst-address=10.100.3.120 dst-port=1812,1813 log=yes protocol=udp src-address-list=WCC

That would be all the rules needed, provided you keep WCC list up to date.

I only saw one radius related src-nat rule, I guess intended for the radius server to be able to reach the internet to fetch updates, etc.?

mlay · July 27, 2017, 12:08pm
