RB2011UAS-2HnD-IN LCD problem

Hardware MikroTik hardware general
1

I have a RB2011UAS-2HnD-IN, it works well. But it has a problem with LCD. When the lcd backlight auto off, I touch the lcd screen, it just turn backlight on and display blank.
last night i upgraded the router to v6.1, but the problem still exists.
[admin@MikroTik] > lcd print
enabled: yes
backlight: off
backlight-timeout: 5m
read-only-mode: yes
current-interface: ether1-gateway
time-interval: min

[admin@MikroTik] > system routerboard print
routerboard: yes
model: 2011UAS-2HnD
serial-number: 402702******
current-firmware: 3.08
upgrade-firmware: 3.08

[admin@MikroTik] > system resource print
uptime: 8h17m
version: 6.1
build-time: Jun/12/2013 11:50:54
free-memory: 104.6MiB
total-memory: 128.0MiB
cpu: MIPS 74Kc V4.12
cpu-count: 1
cpu-frequency: 600MHz
cpu-load: 13%
free-hdd-space: 109.7MiB
total-hdd-space: 128.0MiB
write-sect-since-reboot: 1119
write-sect-total: 495901
bad-blocks: 0%
architecture-name: mipsbe
board-name: RB2011UAS-2HnD
platform: MikroTik

2

when i set lcd backlight-timeout to never, the lcd display normal more than one hour then turn into blank . the backlight still on. But nothing is display.

when use winbox, issue “lcd tack-screenshot”, take a screen shot.
when the lcd display blank, use winbox issue “reboot” to reboot router cannot make lcd work, it still display blank.

You must take the DC-converter from socket then plug it again, the router reboot and the lcd work.

3

I continue test process.

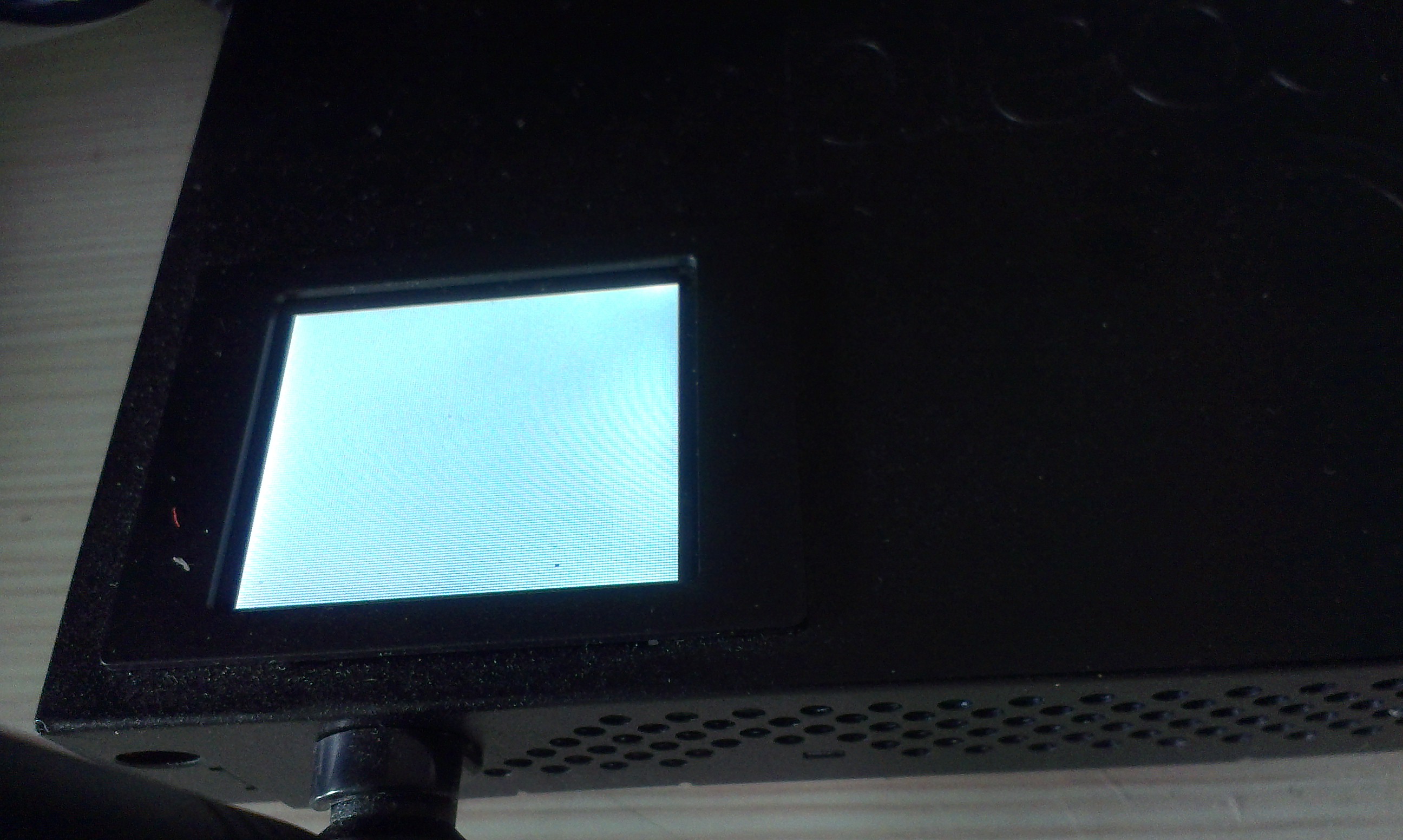

when lcd auto turnoff, touch the lcd, it’s backlight on and display nothing.
then use winbox, make a screenshot, the capture file shows below.
