RB953GS-5HnT-RP + LTE HUAWEI ME909s-120 Not Recognized

RouterOS General
1

I bought RB953GS-5HnT-RP and 2 LTE HUAWEI ME909s-120 MiniPCI-e because there stated that they are compatible

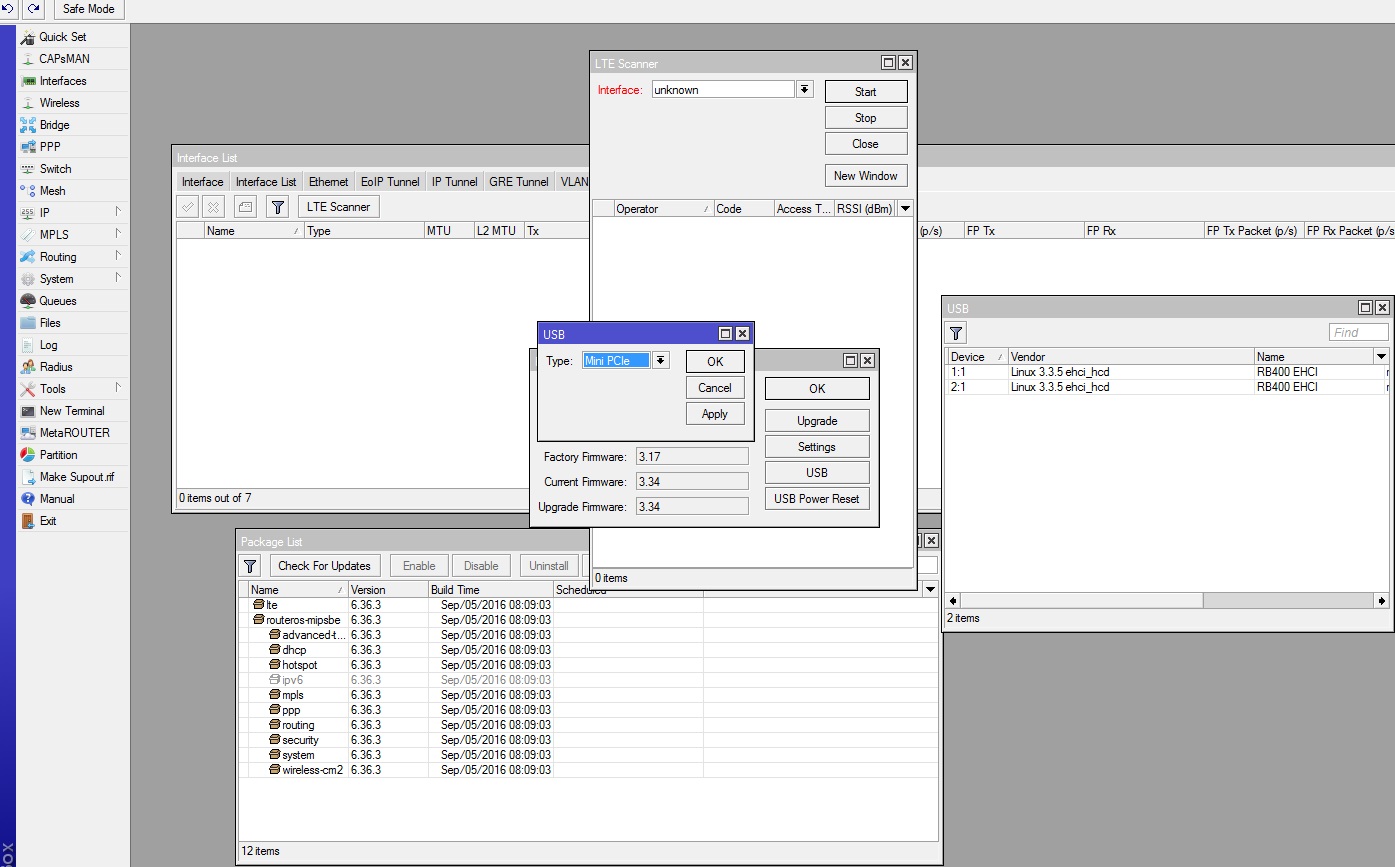

but the modem is not recognized

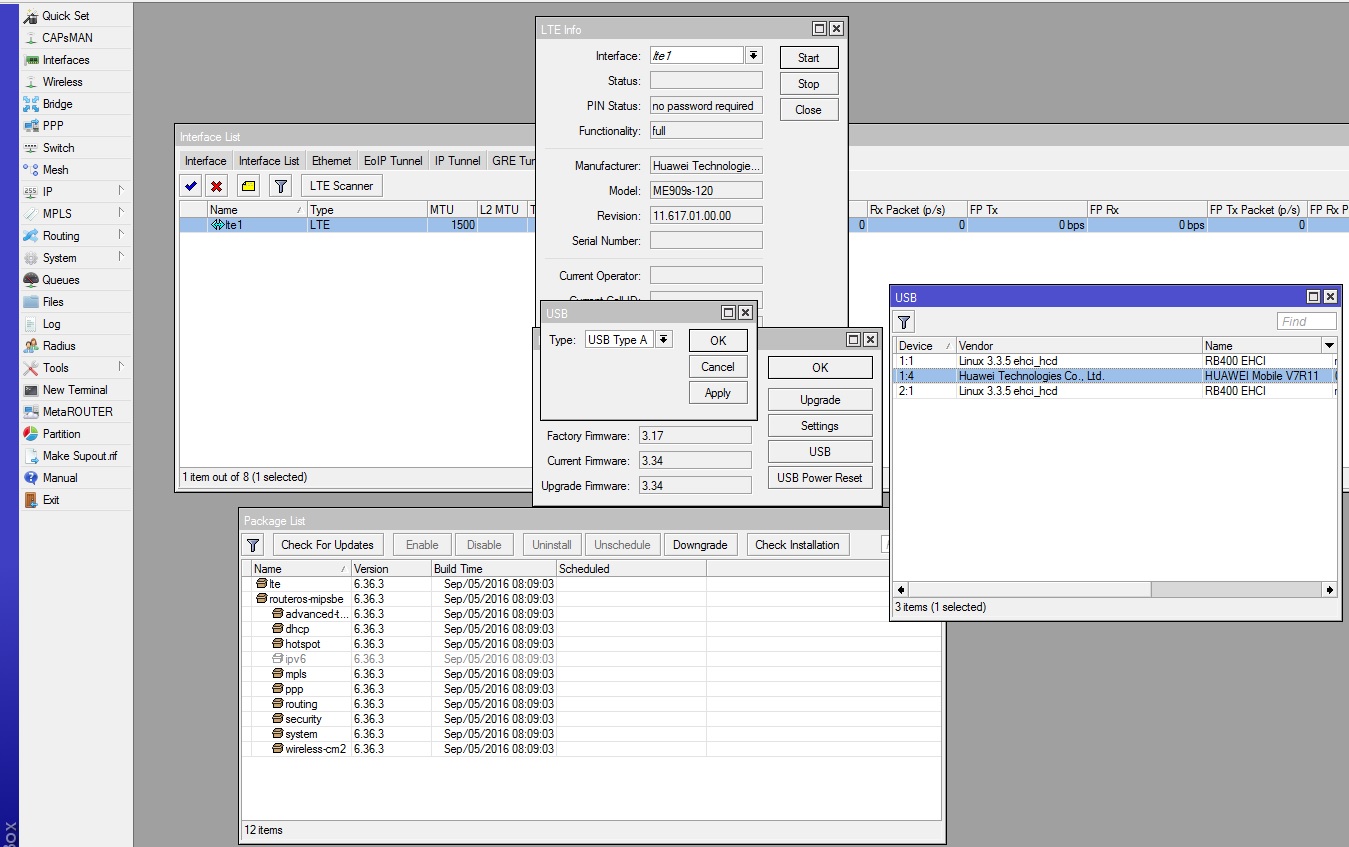

If I use PCIE MINI Converted to USB the card LTE HUAWEI ME909s-120 then everything works
Usb mode.jpg
But I need to work with the port MiniPCI-e
please help me!

2

I found a post with a similar problem

3

Hello,

just to make sure:

  1. you’re operating a miniPCIe-module with RB953 which is properly fixed :slight_smile: (have seen some troublesome fixed modules as well)
  2. you set the USB mode to mini PCIe
  3. you rebooted the system

then open a terminal window issuing

 /system routerboard settings set init-delay=4

reboot again and check if the lte interface is present

please report your findings back

greets

4

Thank you for your help

  1. Well fixed
  2. yes
  3. yes
  4. Execute the command - yes
    Unfortunately it did not help. LTE interface does not appear.
    What firmware version LTE HUAWEI ME909s-120 do you use?
5

seems this workaround works with RB922UAGS-5HPacD but not with RB953GW-5Hnt-RP boards.

Greetings, Andreas

6

somebody write what version of firmware LTE HUAWEI ME909s-120 works?

7

Hello,

got several ME909s-120 working flawlessly,

Huawei firmware 11.617.01.00.00
latest RouterOS release (6.36.3) and latest firmware per device

greets

8

If you are experiencing issues with ME909s card in RouterOS or in RouterBoard please send us email support@mikroptik.com

Also you can try to set this setting as mentioned before.
/system routerboard settings set init-delay=5

9

RB922UAGS-5HPacD and ME909s-120 works fine

  • V6.37rc32 / firmware 3.34
  • 11.617.01.00.00

however RB953GW-5Hnt-RP board and ME909s-120 not!!

  • V6.37rc32 / firmware 3.34

  • 11.617.01.00.00

  • NO lte1 Interface!

/system routerboard settings set init-delay=5 → does not fix that issue.


I double checked that with two RB953GW boards and ME909s-120 modules. Always the same!

10

Hello,

@Hursta:
Please proceed with Kristaps’ hint to find the issue.

Generate supout.rif file from your system (RB + ME909s) and mail it to support@mikrotik.com

Greets

11

Soooooo was there never any answer to this?

12

I have the same problem, how can i fix it?

13

Please,
I’m trying to use Huawei ME909s-120 with RB411 but nothing. I have also changed capacitor n routerboard.
Dear Mikrotik, please, can you send me an official answer please? I bought a lot of ME909s-120and RB411 and I can’t use it.
