ROSv7.2.1 RIP Configuration

RouterOS Forwarding Protocols
1

Hi there!
I’m currently getting started with Mikrotik but I’m have some troubles with RIP that I am unfortunately not able to resolve via some tutorials, as most still use the “old” ROS version.

My Situation:

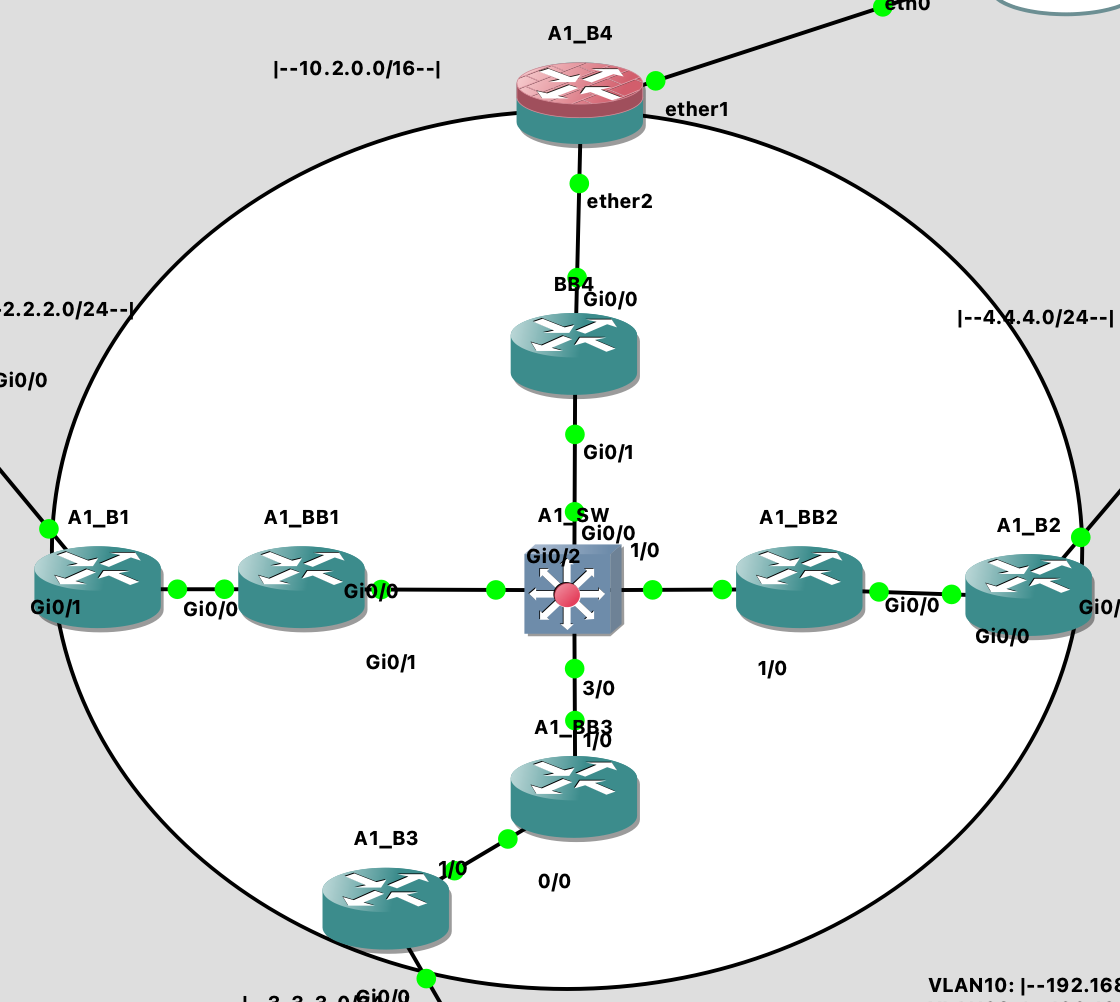

As seen in the attchments my topology is mostly Cisco-based, with the exception for B4 which is a Mikrotik CHR. The Mikrotik Router should propagete the IPs of his tunnel-interfaces and its’ lo1 interface.
Here my configuration:
[admin@MikroTik] > routing/rip/export

apr/19/2022 12:22:18 by RouterOS 7.2.1

software id =

/routing rip instance
add disabled=no name=default
/routing rip interface-template
add disabled=no instance=default interfaces=tun1,tun2,tun3,lo1

The Router receives RIP routes from the neighbors but does not send any.

Now my question: How can I specify the neworks it shoudl distribute?

Best Regards,
Fabio

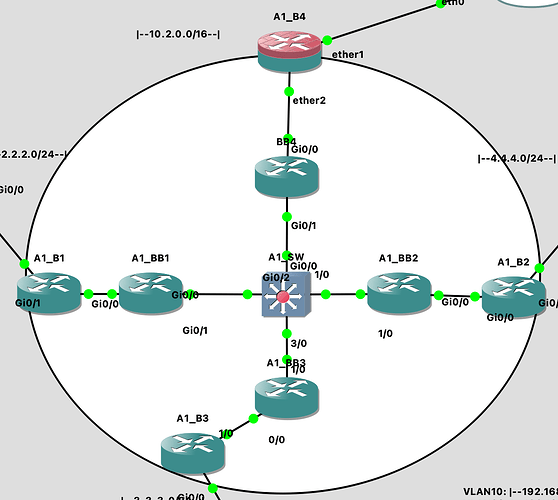

Bildschirmfoto 2022-04-19 um 14.15.38.png

2

You are redistributing routes by enabling “redistribute” options in RIP instance configuration.

3

Thanks for your quick answer!
From my understanding that way I would only be able to redistribute all connected/static/… routes. In my case I want to distribute just some of my connected routes. How would I go about this?

4

Enable connected redistribution and set up output routing filter to accept only specific prefixes

5

Thanks that would work for me. I only found one resource to do that in ROSv7 but unfortunately it didn’t work.
What would be a correct rule if for example I want to allow the distribution of the route for the network 192.168.2.0/24

From the example I found online I would do it like that:
/routing/filter/rule add chain=rip_out rule=“if (dst in 192.168.2.0/24 && dst-len==24 && protocol rip) { accept }”

6

remove “protocol rip” otherwise the rule will try to match only redistributed routes from other RIP instances.

7

Thank you! You saved the day :smiley:

8

Hi,
I would like to ask if normal (not redistribution) route advertisement is on road map in near future.
thank you

9

HOW? (to do this filter)?
Do you filter in RIP instance?
What is the logic?
What is the syntax?
