Hi there - I just finished the first phase of setting up my hAP ac2. Means: VLANs are set-up, wifi networks are working via WAN and the firewall at least seems to do what it should. And the great thing: I can still config my MT, even via the main VLAN.
If there are more advanced users who have fun in commenting improvements of my setup, please feel free. This may help others with similar requirements as well when reading this post. Thanks!
(all of this is combined from three tutorials and further research)
Why I ended up setting up a MT hAP ac2 (my requirements):
- improve Wifi networks (approx. 50 wifis are broadcasting around my flat) - the cable router/modem does not offer many options for that
- connect different Wifi and LAN clients to different LAN devices (e.g. audio/video receiver and NAS = only for the owner’s Wifi/LAN devices)
- have a separate WAN access for home-office clients (both via LAN port and Wifi), in the future also for the employee’s VPN access
- allow access to the LAN printer for guests and the home-office clients
- collect one (and possibly later on further) smart home devices in a separate Wifi (2.4GHz, as the first device does not support 5GHz)
- integrate the 8port switch in room A and the 5port switch in room B (the clients on one switch may have to communicate with clients on the other switch)
- both switches have mixed groups of clients (home-office client / owner’s clients), so just a physical split of the LAN segments is not possible
- both switches are capable of tagged/untagged VLAN ports (Netgear GS105E/GS108E), I think they’re called Level2-managed
- connect to the existing consumer router/modem, make a switch of the provider / modem easy if needed in the future
Focus should be on:
- flexibility
- security (be safe in the owner’s VLAN when e.g. a guest or home-office device was infected with a virus or other threats)
- speed (rather in terms of latency that bandwidth, to ensure fast browsing and fast access to internal and external file systems e.g. sharepoint, NAS)
What I did so far (RouterOS 6.45.9, based on a manual setup without Quick Set):
- Bridge: create one bridge for all VLANs
- Ports: added the relevant Router ports and the Wifis to the bridge
- Ports: 1=WAN, 2=management port, 3=home-office (untagged), 4=(nn), 5=uplink (tagged) to 8port switch
- VLANs: 1(default)=not used/separated, 66=smart home, 77=guests, 88=home-office, 99=owner
- every VLAN ist member of the bridge interface
- DHCP/DNS: all VLANs with separate DHCP servers and address segments (192.168.a.0/24 … 192.168.e.0/24), with defined DNS in each DHCP server
- created lists of Interfaces to group the communication of the VLANs for firewall rules (VLANs with full WAN access vs. VLANs with limited WAN access)
- standard NAT rule in the firewall
- block connections from the IPs that are used at the ports of the cable modem/router (the LAN is currently still connected directly to the cable router), the LAN will be connected to the MT in the next phase
- also created address lists based on the VLAN addresses (were meant to be used for firewall rules), which I don’t seem to need with all the other settings (e.g. interfaces)
Current status:
- WAN access from every Wifi is working
- Winbox config is working via ether2 and VLAN99 only (as desired)
- no pings between the clients of separate VLANs possible (as desired)
- no forwarding between Wifi clients of the guest wifi (as desired)
Questions:

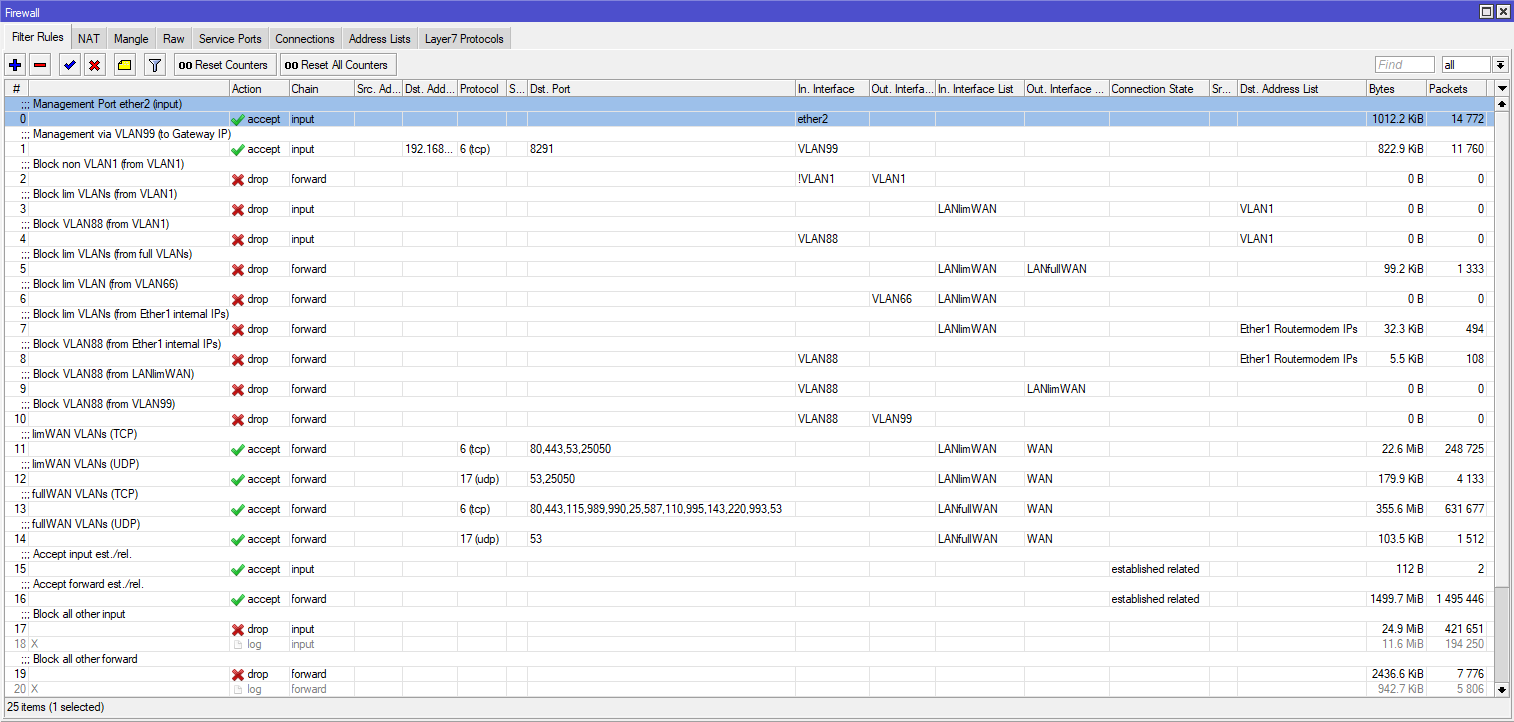

- Do my firewall rules make sense in this setup? Being a beginner, my gut feeling says I’m a bit too paranoid on one hand and a bit too lax on the oher?! Still have to grasp all details here …
To be tested / configured:
- connect to the LAN (2 switches) and configure VLAN on the switches
- check better option: both switches may be connected to the MT (2x uplinks from the MT) or they also may be connected in a row (1st uplink from the MT, 2nd uplink from the first switch)
- test access within the owner’s network (LAN printer, NAS, TV, …) and from LAN devices to WAN (streaming, browsing, …)
- create rules to let users outside the owner’s VLAN access the LAN printer (firewall?)
- check and possibly create MAC address based access to selected wifis
- optimize wifi speed if possible / if necessary (e.g. by solving conflicts with other wifis)
- optimize LAN speed if possible / if necessary

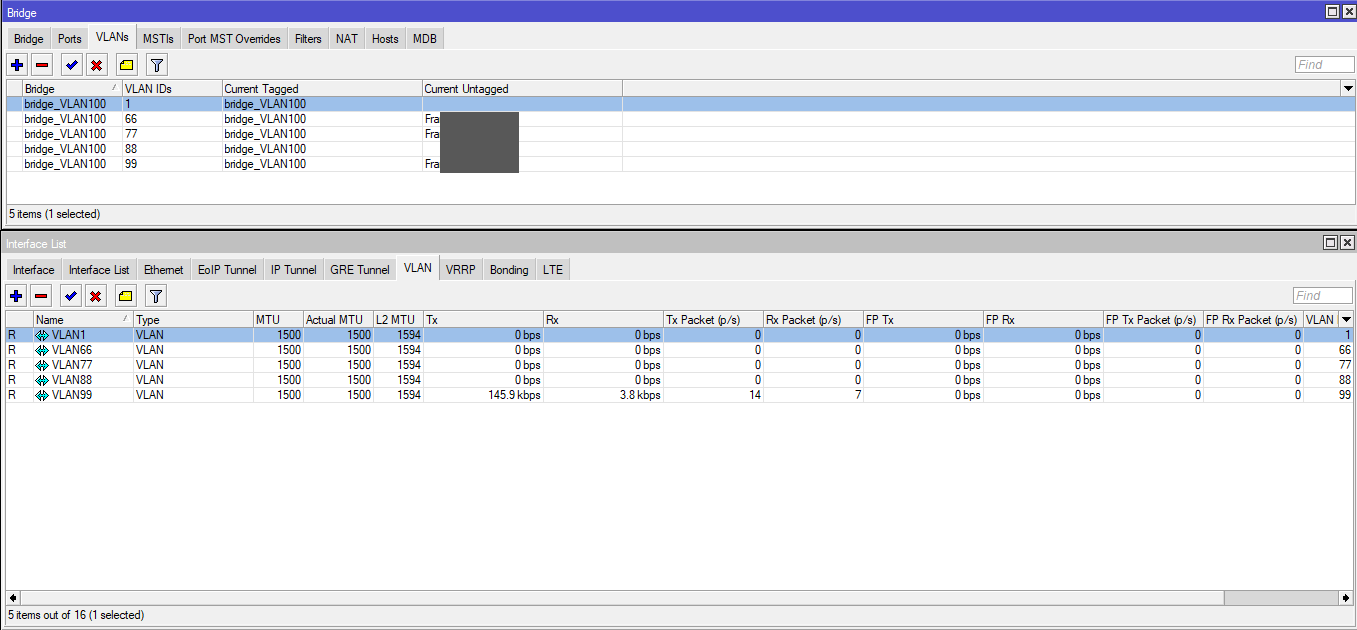

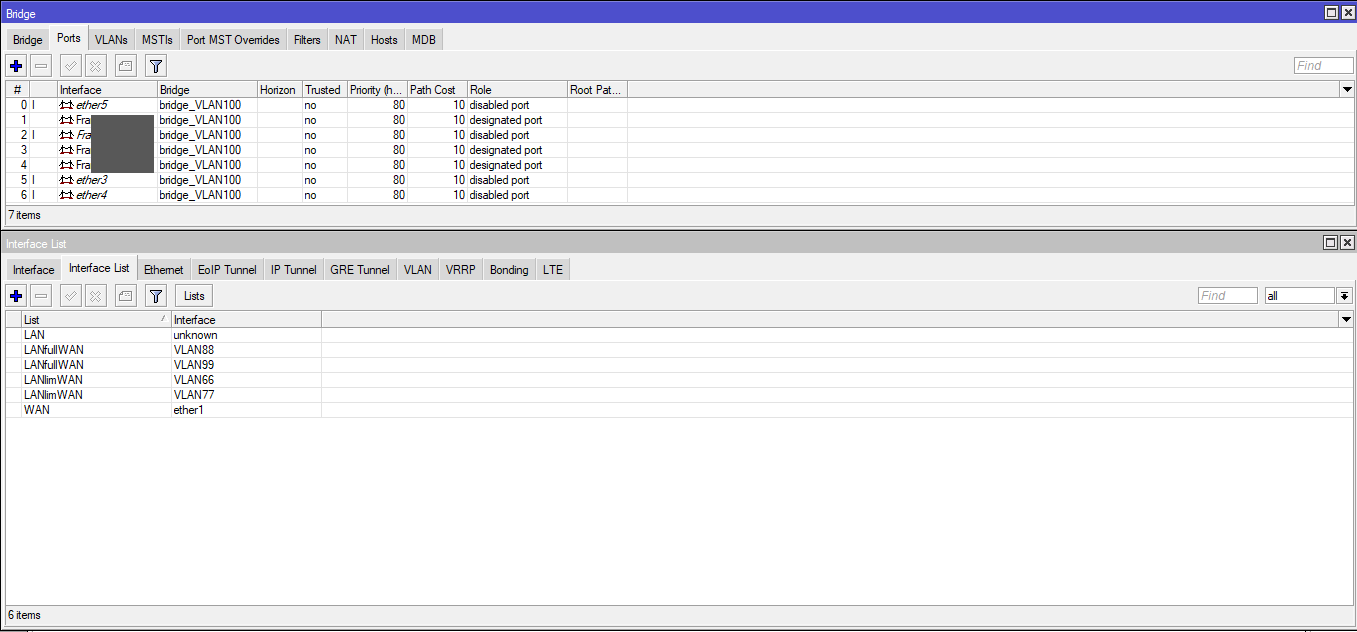

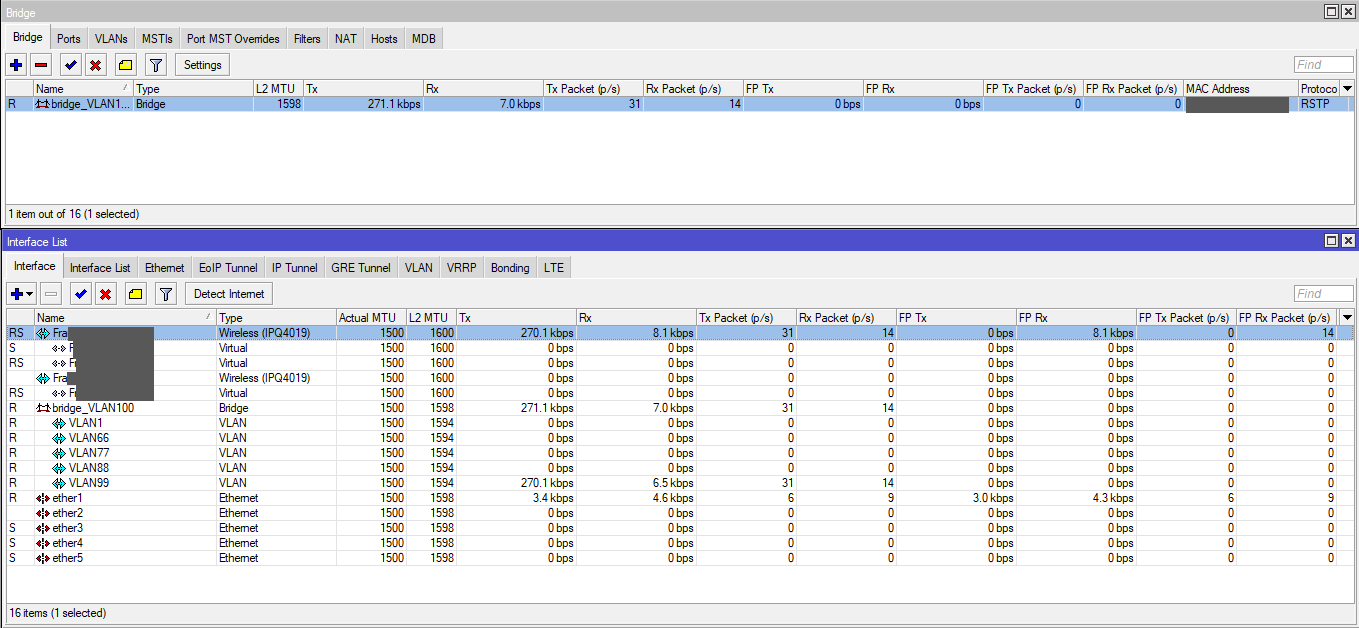

You will see some details in the screenshots / config of the bridge and firewall settings.
If you have any question on this for your setup - and of course if you have recommendations for my firewall settings or so - feel free! and thanks a lot!
# jan/22/2021 16:19:51 by RouterOS 6.45.9
# software id = 8ZCU-N24W
#
# model = RBD52G-5HacD2HnD
# serial number = YY
/interface bridge
add dhcp-snooping=yes igmp-snooping=yes name=bridge_VLAN100 vlan-filtering=yes
/interface wireless
set [ find default-name=wlan2 ] band=5ghz-onlyac country=germany disabled=no \
frequency=auto hide-ssid=yes mode=ap-bridge name=FrannyOwnerW ssid=\
FrannyOwnerW vlan-id=99 wireless-protocol=802.11 wps-mode=disabled
set [ find default-name=wlan1 ] band=2ghz-onlyn country=germany \
default-forwarding=no disabled=no frequency=auto hide-ssid=yes mode=\
ap-bridge name=FrannyW24 ssid=FrannyOwnerW24 vlan-id=66 wireless-protocol=\
802.11 wps-mode=disabled
/interface vlan
add interface=bridge_VLAN100 name=VLAN1 vlan-id=1
add interface=bridge_VLAN100 name=VLAN66 vlan-id=66
add interface=bridge_VLAN100 name=VLAN77 vlan-id=77
add interface=bridge_VLAN100 name=VLAN88 vlan-id=88
add interface=bridge_VLAN100 name=VLAN99 vlan-id=99
/interface ethernet switch port
set 1 default-vlan-id=0
/interface list
add name=WAN
add name=LAN
add name=LANfullWAN
add name=LANlimWAN
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk eap-methods="" mode=\
dynamic-keys supplicant-identity=MikroTik
add authentication-types=wpa2-psk eap-methods="" mode=dynamic-keys name=guest \
supplicant-identity=""
add authentication-types=wpa2-psk eap-methods="" mode=dynamic-keys name=\
business supplicant-identity=""
add authentication-types=wpa2-psk eap-methods="" mode=dynamic-keys name=home \
supplicant-identity=""
/interface wireless
add default-forwarding=no disabled=no hide-ssid=yes keepalive-frames=disabled \
mac-address=0A:55:31:3B:07:7F master-interface=FrannyOwnerW \
multicast-buffering=disabled name=FrannyOfficeW security-profile=business \
ssid=FrannyOfficeW vlan-id=88 wds-cost-range=0 wds-default-cost=0 wps-mode=\
disabled
add default-forwarding=no disabled=no keepalive-frames=disabled mac-address=\
0A:55:31:3B:07:7E master-interface=FrannyOwnerW multicast-buffering=\
disabled name=FrannyGastW security-profile=guest ssid=FrannyGastW \
vlan-id=77 wds-cost-range=0 wds-default-cost=0 wps-mode=disabled
add default-forwarding=no disabled=no keepalive-frames=disabled mac-address=\
0A:55:31:3B:07:7D master-interface=FrannyW24 multicast-buffering=disabled \
name=FrannySmartHoW24 security-profile=home ssid=FrannySmartHoW24 vlan-id=66 \
wds-cost-range=0 wds-default-cost=0 wps-mode=disabled
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip pool
add comment="Default VLAN (ID 1):" name=dhcp_pool5 ranges=\
192.168.100.10-192.168.100.50
add comment="Smart Home Network:" name=dhcp_pool6 ranges=\
192.168.166.10-192.168.166.30
add comment="Guest Wifi:" name=dhcp_pool7 ranges=192.168.177.10-192.168.177.30
add comment="Business Network:" name=dhcp_pool8 ranges=\
192.168.188.10-192.168.188.30
add comment="Internal Network:" name=dhcp_pool9 ranges=\
192.168.199.10-192.168.199.50
/ip dhcp-server
add address-pool=dhcp_pool5 disabled=no interface=VLAN1 lease-time=10h name=\
dhcp1
add address-pool=dhcp_pool6 disabled=no interface=VLAN66 lease-time=1d name=\
dhcp2
add address-pool=dhcp_pool7 disabled=no interface=VLAN77 lease-time=10h name=\
dhcp3
add address-pool=dhcp_pool8 disabled=no interface=VLAN88 lease-time=10h name=\
dhcp4
add address-pool=dhcp_pool9 disabled=no interface=VLAN99 lease-time=10h name=\
dhcp5
/interface bridge port
add bridge=bridge_VLAN100 frame-types=admit-only-vlan-tagged interface=ether5
add bridge=bridge_VLAN100 interface=FrannyGastW pvid=77
add bridge=bridge_VLAN100 interface=FrannyOfficeW pvid=88
add bridge=bridge_VLAN100 interface=FrannyOwnerW pvid=99
add bridge=bridge_VLAN100 interface=FrannySmartHoW24 pvid=66
add bridge=bridge_VLAN100 interface=ether3 pvid=77
add bridge=bridge_VLAN100 interface=ether4 pvid=99
/interface bridge vlan
add bridge=bridge_VLAN100 tagged=bridge_VLAN100 vlan-ids=1
add bridge=bridge_VLAN100 tagged=bridge_VLAN100 vlan-ids=66
add bridge=bridge_VLAN100 tagged=bridge_VLAN100 vlan-ids=77
add bridge=bridge_VLAN100 tagged=bridge_VLAN100,ether5 vlan-ids=88
add bridge=bridge_VLAN100 tagged=bridge_VLAN100,ether5 vlan-ids=99
/interface list member
add interface=ether1 list=WAN
add list=LAN
add interface=VLAN88 list=LANfullWAN
add interface=VLAN99 list=LANfullWAN
add interface=VLAN66 list=LANlimWAN
add interface=VLAN77 list=LANlimWAN
/ip address
add address=192.168.199.1/24 interface=VLAN99 network=192.168.199.0
add address=192.168.166.1/24 interface=VLAN66 network=192.168.166.0
add address=192.168.188.1/24 interface=VLAN88 network=192.168.188.0
add address=192.168.177.1/24 interface=VLAN77 network=192.168.177.0
add address=192.168.100.1/24 interface=VLAN1 network=192.168.100.0
/ip dhcp-client
add disabled=no interface=ether1 use-peer-dns=no
/ip dhcp-server network
add address=192.168.100.0/24 dns-server=9.9.9.9,1.1.1.1 gateway=192.168.100.1
add address=192.168.166.0/24 dns-server=9.9.9.9,1.1.1.1 gateway=192.168.166.1
add address=192.168.177.0/24 dns-server=9.9.9.9,1.1.1.1 gateway=192.168.177.1
add address=192.168.188.0/24 dns-server=9.9.9.9,1.1.1.1 gateway=192.168.188.1
add address=192.168.199.0/24 dns-server=9.9.9.9,1.1.1.1 gateway=192.168.199.1 \
netmask=24
/ip firewall address-list
add address=192.168.177.0/24 list="VLAN77 Guest Wifi"
add address=192.168.188.0/24 list="VLAN88 Business"
add address=192.168.199.0/24 list="VLAN99 Intern"
add address=192.168.166.0/24 list="VLAN66 Home"
add address=192.168.100.0/24 list="VLAN1 "
add address=192.168.2.0/24 list="Ether1 Routermodem IPs"
add address=192.168.100.1-192.168.177.255 disabled=yes list=limWAN
add address=192.168.188.1-192.168.199.255 disabled=yes list=fullWAN
/ip firewall filter
add action=accept chain=input comment="Management Port ether2 (input)" \
in-interface=ether2
add action=accept chain=input comment="Management via VLAN99 (to Gateway IP)" \
dst-address=192.168.199.1 dst-port=8291 in-interface=VLAN99 protocol=tcp
add action=drop chain=forward comment="Block non VLAN1 (from VLAN1)" \
in-interface=!VLAN1 out-interface=VLAN1
add action=drop chain=input comment="Block lim VLANs (from VLAN1)" \
dst-address-list="VLAN1 " in-interface-list=LANlimWAN
add action=drop chain=input comment="Block VLAN88 (from VLAN1)" \
dst-address-list="VLAN1 " in-interface=VLAN88
add action=drop chain=forward comment="Block lim VLANs (from full VLANs)" \
in-interface-list=LANlimWAN out-interface-list=LANfullWAN
add action=drop chain=forward comment="Block lim VLAN (from VLAN66)" \
in-interface-list=LANlimWAN out-interface=VLAN66
add action=drop chain=forward comment=\
"Block lim VLANs (from Ether1 internal IPs)" dst-address-list=\
"Ether1 Routermodem IPs" in-interface-list=LANlimWAN
add action=drop chain=forward comment="Block VLAN88 (from Ether1 internal IPs)" \
dst-address-list="Ether1 Routermodem IPs" in-interface=VLAN88
add action=drop chain=forward comment="Block VLAN88 (from LANlimWAN)" \
in-interface=VLAN88 out-interface-list=LANlimWAN
add action=drop chain=forward comment="Block VLAN88 (from VLAN99)" \
in-interface=VLAN88 out-interface=VLAN99
add action=accept chain=forward comment="limWAN VLANs (TCP)" dst-port=\
80,443,53,25050 in-interface-list=LANlimWAN out-interface-list=WAN \
protocol=tcp
add action=accept chain=forward comment="limWAN VLANs (UDP)" dst-port=53,25050 \
in-interface-list=LANlimWAN out-interface-list=WAN protocol=udp
add action=accept chain=forward comment="fullWAN VLANs (TCP)" dst-port=\
80,443,115,989,990,25,587,110,995,143,220,993,53 in-interface-list=\
LANfullWAN out-interface-list=WAN protocol=tcp
add action=accept chain=forward comment="fullWAN VLANs (UDP)" dst-port=53 \
in-interface-list=LANfullWAN out-interface-list=WAN protocol=udp
add action=accept chain=input comment="Accept input est./rel." \
connection-state=established,related
add action=accept chain=forward comment="Accept forward est./rel." \
connection-state=established,related
add action=drop chain=input comment="Block all other input"
add action=log chain=input disabled=yes
add action=drop chain=forward comment="Block all other forward"
add action=log chain=forward disabled=yes
add action=accept chain=forward comment="Streaming forward (TCP, external)" \
disabled=yes dst-port=1755,7070,7071,554 protocol=tcp
add action=accept chain=forward comment="Streaming forward (UDP, external)" \
disabled=yes dst-port=6970-7170,1024-5000 protocol=udp
add action=accept chain=forward comment=\
"Streaming forward (TCP, internal DLNA)" disabled=yes dst-port=8200 \
protocol=tcp
add action=accept chain=forward comment=\
"Streaming forward (UDP, internal DLNA)" disabled=yes dst-port=1900 \
protocol=udp
/ip firewall nat
add action=masquerade chain=srcnat out-interface-list=WAN
/system clock
set time-zone-name=Europe/Berlin
/system identity
set name=FrannyHap
