I have multiple SwOS devices (2x CSS326-24G-2S+, 1x CRS305-1G-4S+ in SwOS mode). All are running the latest available version 2.17.
Today I recognized that I cannot modify the VLAN settings for either of the CSS326. Each time I modify a setting, the “Pending changes” indicator appears below the table, but the “Apply all” button does not respond to clicks. I tried modifying VLAN mode, tried modifying VLAN receive, tried modifying default VLAN ID – everything gets the same behavior, regardless of the port I try to modify. I tried modifying a port that doesn’t have link: no success. I tried disabling a port first, then modifying it’s VLAN settings: no success
Modifying VLAN settings on the CRS305 still works fine.
I am using VLANs on 8 various SwitchOS devices (including 5 CSS326 switches) and have never had any issue making VLAN changes. Do so rather regularly.
What are you attempting to change?
I have a couple of WLAN access points connected to a dumb PoE switch. That PoE switch is currently connected to an “only tagged” port on one of my CSS326. I want to change that port from “only tagged” to “any”, because that makes provisioning new APs easier.
I also have Access Points that use VLANs for each SSID and untagged for management, so I understand what you need to do. Those ports are already set to Any, but I took a VLAN only trunk and changed it in one of my CSS326 switches (SWOS version 2.17) to any and saved it and it saved properly. I then changed it back to VLAN only and again it saved properly.

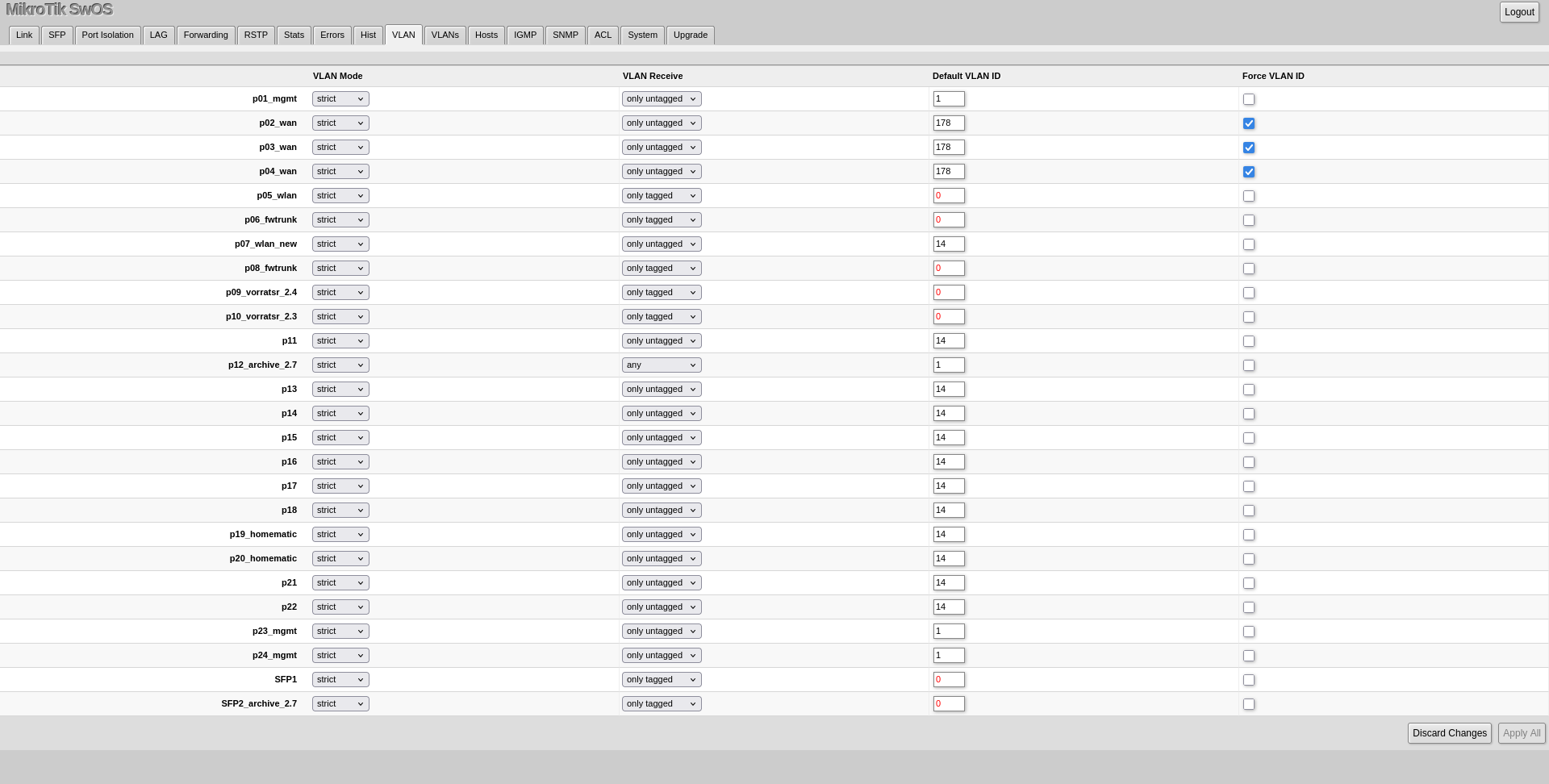

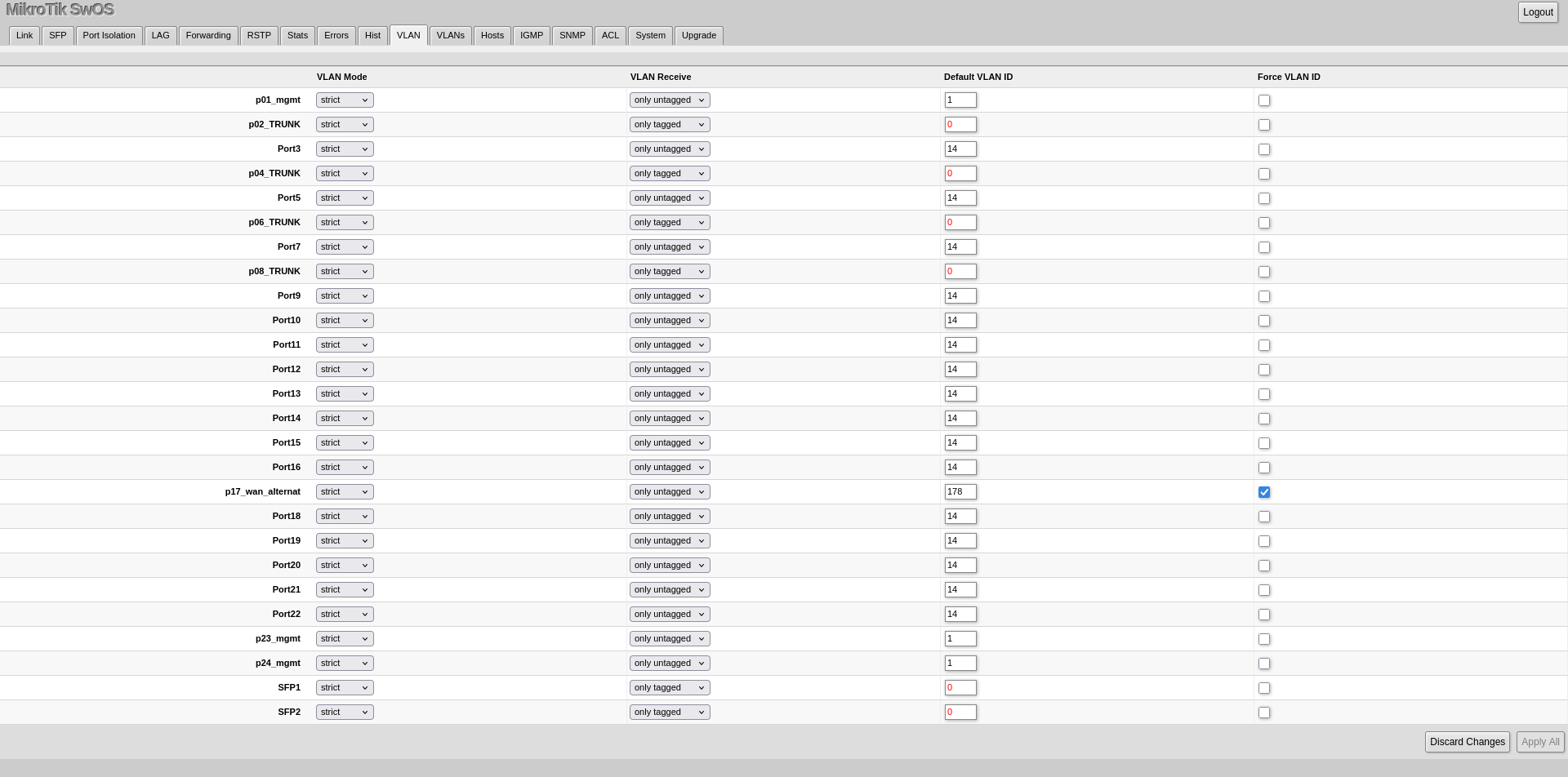

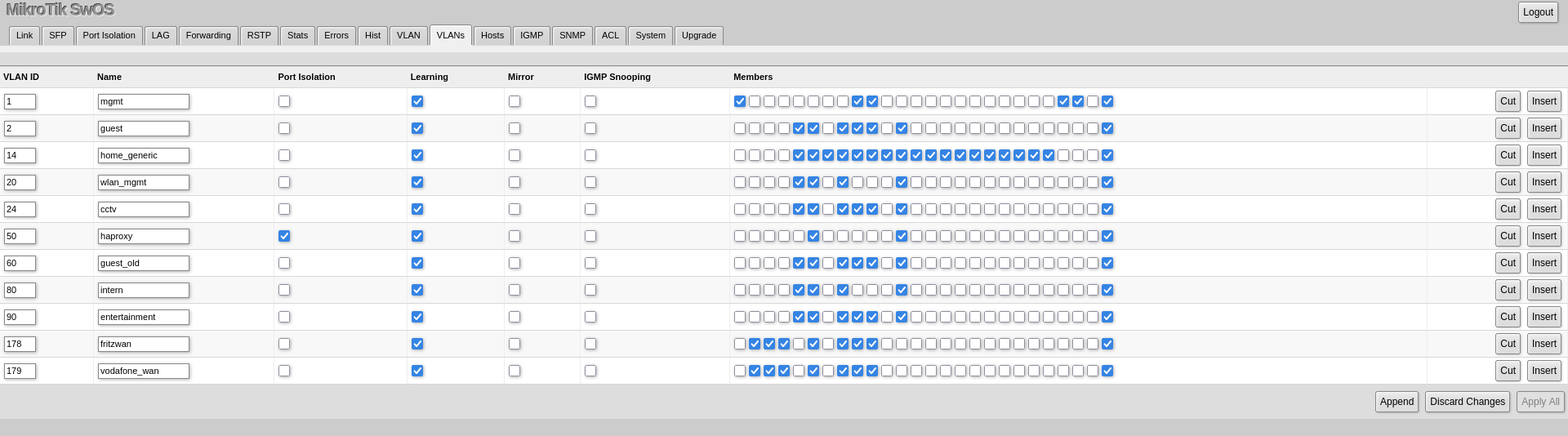

First suggestion is to try a different browser, and if that does not help, grab a screen capture of both the VLAN and VLANs tabs and post them here.
:
