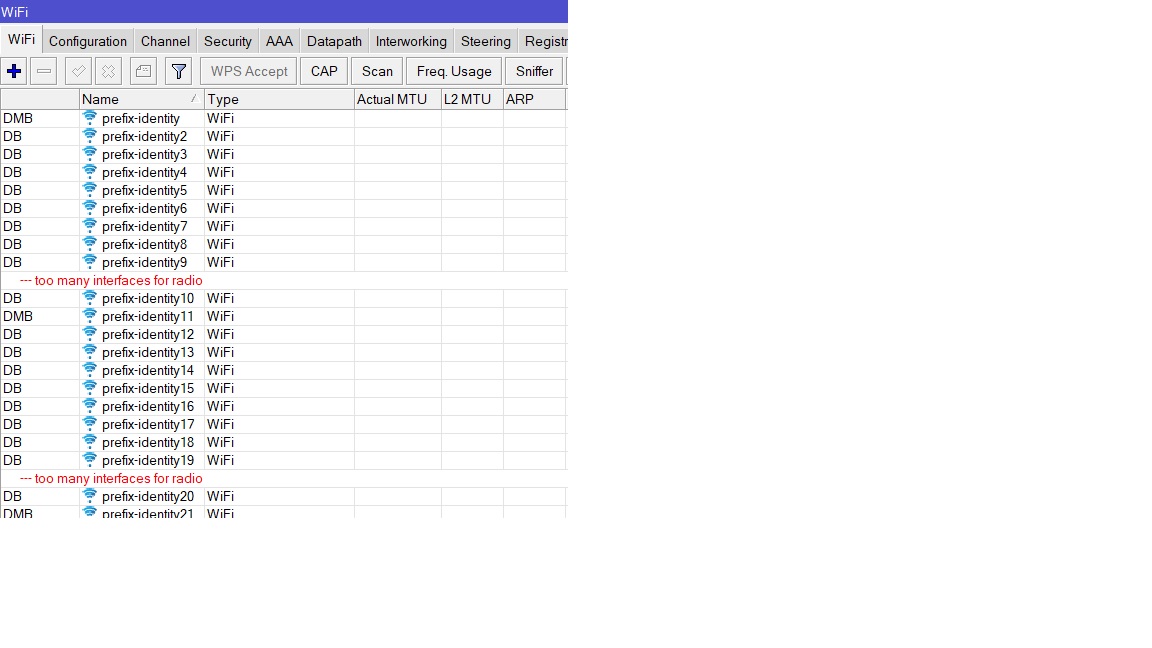

Hi, I have CAPsMAN configured on a CCR2004 with ROS version 7.15.3. In it there are 17 cAPs AX and 6 mANTBOX AX 15s. In WIFI tab (image attached) I see the message “Too many interfaces for radio” Anybody know what that means?. Thanks in advanced.
Seems to me that there are more SSID/interfaces configured than can be handled. A quick peek on your config will give better insights, can you pleas share it?
/interface/wifi export file=anynameyoulike
Remove serial and any other private info and post in between code tags by using the </> button.
Thanks for your quick response, I share with you extract of my config
/interface wifi channel
add band=2ghz-ax disabled=no name=ch-2-ax width=20mhz
add band=2ghz-n disabled=no name=ch-2-n width=20mhz
add band=5ghz-ax disabled=no name=ch-5-ax skip-dfs-channels=all width=
20/40/80mhz
add band=5ghz-ac disabled=no name=ch-5-ac skip-dfs-channels=all width=
20/40mhz
/interface wifi datapath
add bridge=Bridge-Vlans name=VLAN10 vlan-id=10
add bridge=Bridge-Vlans name=VLAN20 vlan-id=20
add bridge=Bridge-Vlans name=VLAN30 vlan-id=30
add bridge=Bridge-Vlans name=VLAN40 vlan-id=40
add bridge=Bridge-Vlans name=VLAN50 vlan-id=50
add bridge=Bridge-Vlans name=VLAN60 vlan-id=60
add bridge=Bridge-Vlans name=VLAN70 vlan-id=70
add bridge=Bridge-Vlans name=VLAN80 vlan-id=80
add bridge=Bridge-Vlans disabled=no name=VLAN90 vlan-id=90
add bridge=Bridge-Vlans disabled=no name=VLAN99 vlan-id=99
/interface wifi security
add authentication-types=wpa2-psk,wpa3-psk disabled=no ft=yes ft-over-ds=yes
name=sec10
add authentication-types=wpa2-psk,wpa3-psk disabled=no ft=yes ft-over-ds=yes
name=sec20
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec30
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec40
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec50
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec60
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec70
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec80
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec90
add authentication-types=wpa2-psk,wpa3-psk disabled=no name=sec99
/interface wifi configuration
add channel=ch-2-ax country=Argentina datapath=VLAN10 disabled=no mode=ap
name=cfg-2-VLAN10-ax security=sec10 ssid=Company1
add channel=ch-2-ax country=Argentina datapath=VLAN20 disabled=no mode=ap
name=cfg-2-VLAN20-ax security=sec20 ssid=Company2
add channel=ch-2-n country=Argentina datapath=VLAN10 disabled=no mode=ap
name=cfg-2-VLAN10-n security=sec10 ssid=Company1
add channel=ch-5-ax country=Argentina datapath=VLAN10 disabled=no mode=ap
name=cfg-5-VLAN10-ax security=sec10 ssid=Company1
add channel=ch-5-ac country=Argentina datapath=VLAN10 disabled=no mode=ap
name=cfg-5-VLAN10-ac security=sec10 ssid=Company1
add channel=ch-2-n country=Argentina datapath=VLAN20 disabled=no mode=ap
name=cfg-2-VLAN20-n security=sec20 ssid=Company2
add channel=ch-5-ax country=Argentina datapath=VLAN20 disabled=no mode=ap
name=cfg-5-VLAN20-ax security=sec20 ssid=Company2
add channel=ch-5-ac country=Argentina datapath=VLAN20 disabled=no mode=ap
name=cfg-5-VLAN20-ac security=sec20 ssid=Company2
add channel=ch-2-ax country=Argentina datapath=VLAN30 disabled=no mode=ap
name=cfg-2-VLAN30-ax security=sec30 ssid=Company3
add channel=ch-2-n country=Argentina datapath=VLAN30 disabled=no mode=ap
name=cfg-2-VLAN30-n security=sec30 ssid=Company3
add channel=ch-5-ax country=Argentina datapath=VLAN30 disabled=no mode=ap
name=cfg-5-VLAN30-ax security=sec30 ssid=Company3
add channel=ch-5-ac country=Argentina datapath=VLAN30 disabled=no mode=ap
name=cfg-5-VLAN30-ac security=sec30 ssid=Company3
add channel=ch-2-ax country=Argentina datapath=VLAN40 disabled=no mode=ap
name=cfg-2-VLAN40-ax security=sec40 ssid=Company4
add channel=ch-2-n country=Argentina datapath=VLAN40 disabled=no mode=ap
name=cfg-2-VLAN40-n security=sec40 ssid=Company4
add channel=ch-5-ac country=Argentina datapath=VLAN40 disabled=no mode=ap
name=cfg-5-VLAN40-ac security=sec40 ssid=Company4
add channel=ch-5-ax country=Argentina datapath=VLAN40 disabled=no mode=ap
name=cfg-5-VLAN40-ax security=sec40 ssid=Company4
add channel=ch-2-ax country=Argentina datapath=VLAN50 disabled=no mode=ap
name=cfg-2-VLAN50-ax security=sec50 ssid=Company5
add channel=ch-2-n country=Argentina datapath=VLAN50 disabled=no mode=ap
name=cfg-2-VLAN50-n security=sec50 ssid=Company5
add channel=ch-5-ac country=Argentina datapath=VLAN50 disabled=no mode=ap
name=cfg-5-VLAN50-ac security=sec50 ssid=Company5
add channel=ch-5-ax country=Argentina datapath=VLAN50 disabled=no mode=ap
name=cfg-5-VLAN50-ax security=sec50 ssid=Company5
add channel=ch-2-ax country=Argentina datapath=VLAN60 disabled=no mode=ap
name=cfg-2-VLAN60-ax security=sec60 ssid=Company6
add channel=ch-2-n country=Argentina datapath=VLAN60 disabled=no mode=ap
name=cfg-2-VLAN60-n security=sec60 ssid=Company6
add channel=ch-5-ac country=Argentina datapath=VLAN60 disabled=no mode=ap
name=cfg-5-VLAN60-ac security=sec60 ssid=Company6
add channel=ch-5-ax country=Argentina datapath=VLAN60 disabled=no mode=ap
name=cfg-5-VLAN60-ax security=sec60 ssid=Company6
add channel=ch-2-ax country=Argentina datapath=VLAN70 disabled=no mode=ap
name=cfg-2-VLAN70-ax security=sec70 ssid=Company7
add channel=ch-2-n country=Argentina datapath=VLAN70 disabled=no mode=ap
name=cfg-2-VLAN70-n security=sec70 ssid=Company7
add channel=ch-5-ac country=Argentina datapath=VLAN70 disabled=no mode=ap
name=cfg-5-VLAN70-ac security=sec70 ssid=Company7
add channel=ch-5-ax country=Argentina datapath=VLAN70 disabled=no mode=ap
name=cfg-5-VLAN70-ax security=sec70 ssid=Company7
add channel=ch-2-ax country=Argentina datapath=VLAN80 disabled=no mode=ap
name=cfg-2-VLAN80-ax security=sec80 ssid=Company8
add channel=ch-2-n country=Argentina datapath=VLAN80 disabled=no mode=ap
name=cfg-2-VLAN80-n security=sec80 ssid=Company8
add channel=ch-5-ac country=Argentina datapath=VLAN80 disabled=no mode=ap
name=cfg-5-VLAN80-ac security=sec80 ssid=Company8
add channel=ch-5-ax country=Argentina datapath=VLAN80 disabled=no mode=ap
name=cfg-5-VLAN80-ax security=sec80 ssid=Company8
add channel=ch-2-ax country=Argentina datapath=VLAN90 disabled=no mode=ap
name=cfg-2-VLAN90-ax security=sec90 ssid=Company9
add channel=ch-2-n country=Argentina datapath=VLAN90 disabled=no mode=ap
name=cfg-2-VLAN90-n security=sec90 ssid=Company9
add channel=ch-5-ac country=Argentina datapath=VLAN90 disabled=no mode=ap
name=cfg-5-VLAN90-ac security=sec90 ssid=Company9
add channel=ch-5-ax country=Argentina datapath=VLAN90 disabled=no mode=ap
name=cfg-5-VLAN90-ax security=sec90 ssid=Company9
add channel=ch-2-ax country=Argentina datapath=VLAN99 disabled=no mode=ap
name=cfg-2-VLAN99-ax security=sec99 ssid=WIFI-Guest
add channel=ch-2-n country=Argentina datapath=VLAN99 disabled=no mode=ap
name=cfg-2-VLAN99-n security=sec99 ssid=WIFI-Guest
add channel=ch-5-ac country=Argentina datapath=VLAN99 disabled=no mode=ap
name=cfg-5-VLAN99-ac security=sec99 ssid=WIFI-Guest
add channel=ch-5-ax country=Argentina datapath=VLAN99 disabled=no mode=ap
name=cfg-5-VLAN99-ax security=sec99 ssid=WIFI-Guest
/interface wifi capsman
set enabled=yes interfaces=Bridge-Vlans
/interface wifi provisioning
add action=create-dynamic-enabled disabled=no master-configuration=
cfg-5-VLAN10-ax name-format=“"%I-5Gax-wifi"” slave-configurations=“cfg-5
-VLAN20-ax,cfg-5-VLAN30-ax,cfg-5-VLAN40-ax,cfg-5-VLAN50-ax,cfg-5-VLAN60-ax
,cfg-5-VLAN70-ax,cfg-5-VLAN80-ax,cfg-5-VLAN90-ax,cfg-5-VLAN99-ax”
supported-bands=5ghz-ax
add action=create-dynamic-enabled disabled=no master-configuration=
cfg-2-VLAN10-n name-format=“"%I-2Gn-wifi"” slave-configurations=“cfg-2-V
LAN20-n,cfg-2-VLAN30-n,cfg-2-VLAN40-n,cfg-2-VLAN50-n,cfg-2-VLAN60-n,cfg-2-
VLAN70-n,cfg-2-VLAN80-n,cfg-2-VLAN90-n,cfg-2-VLAN99-n” supported-bands=
2ghz-n
add action=create-dynamic-enabled disabled=no master-configuration=
cfg-5-VLAN10-ac name-format=“"%I-5Gac-wifi"” slave-configurations=“cfg-5
-VLAN20-ac,cfg-5-VLAN30-ac,cfg-5-VLAN40-ac,cfg-5-VLAN50-ac,cfg-5-VLAN60-ac
,cfg-5-VLAN70-ac,cfg-5-VLAN80-ac,cfg-5-VLAN90-ac,cfg-5-VLAN99-ac”
supported-bands=5ghz-ac
add action=create-dynamic-enabled disabled=no master-configuration=
cfg-2-VLAN10-ax name-format=“"%I-2Gax-wifi"” slave-configurations=“cfg-2
-VLAN20-ax,cfg-2-VLAN30-ax,cfg-2-VLAN40-ax,cfg-2-VLAN50-ax,cfg-2-VLAN60-ax
,cfg-2-VLAN70-ax,cfg-2-VLAN80-ax,cfg-2-VLAN90-ax,cfg-2-VLAN99-ax”
supported-bands=2ghz-ax
too many slave configurations. like the error message told you.
