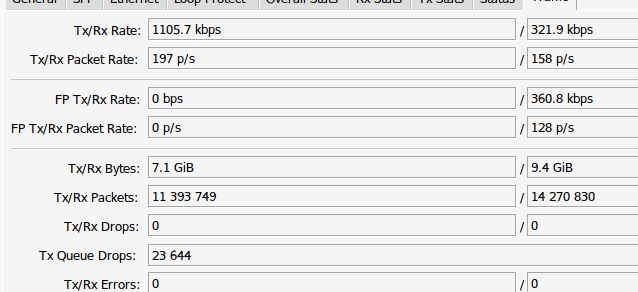

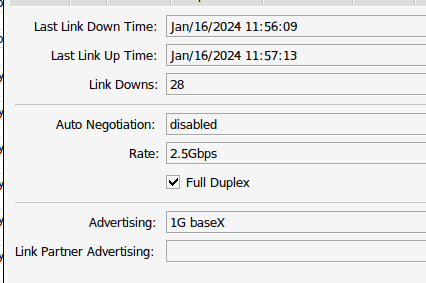

Hi, I recently bought a XPON SFP unit to use with my RB5009. It works well at 1G but at 2.5G I am seeing a lot of tx queue drops. SFP’s interface becomes inaccessible some times.
I found a few old threads here and it looks like this has not been fully fixed.
Is there any thing else I can try to improve this?

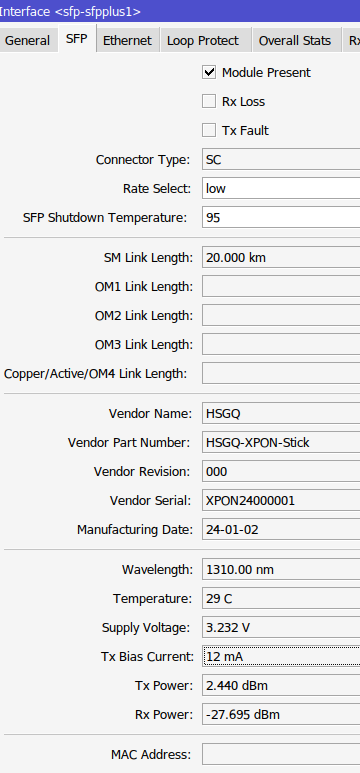

SFP Product page, https://www.alibaba.com/product-detail/HSGQ-XPON-STICK-ODI-1-25G_1600443208516.html
Previous similar threads here:
This problem is not specific to the SFP interface or the SFP module.
I have TX Queue drops on all interfaces. I am running 7.13.1 on this rb5009.
Columns: NAME, RX-BYTE, TX-BYTE, RX-PACKET, TX-PACKET, RX-DROP, TX-DROP, TX-QUEUE-DROP, RX-ERROR, TX-ERROR
# NAME RX-BYTE TX-BYTE RX-PACKET TX-PACKET RX-DROP TX-DROP TX-QUEUE-DROP RX-ERROR TX-ERROR
;;; Proxmox NAS
0 RS ether1 177 098 359 379 136 313 512 991 182 000 947 164 587 948 150 162
;;; 1F Switch
1 RS ether2 90 357 970 480 2 002 219 480 833 483 202 637 1 426 012 361 19 114
;;; 2F Switch
2 RS ether3 1 813 259 787 994 32 732 419 585 1 246 421 423 388 565 155 0
;;; AP2
3 RS ether4 7 133 446 391 78 833 557 059 20 984 731 63 799 257 505
;;; AP3
4 RS ether5 4 258 410 175 19 026 386 355 7 117 868 16 670 736 4 863
;;; AP4
5 RS ether6 5 565 363 312 114 300 264 418 20 506 656 90 581 961 99 394
;;; Emergency access
6 R ether7 55 994 372 010 11 994 187 320 46 944 658 22 137 355 81 979
;;; LTE/5G Modem
7 R ether8 154 444 366 169 32 754 990 083 136 437 707 61 372 168 23 332
;;; Fiber ISP
8 R sfp-sfpplus1 74 332 706 819 25 069 807 048 68 312 245 34 679 079 10 460
;;; default
9 R bridge 245 852 410 032 509 119 851 500 289 897 044 458 585 342 0 0 0 0 0
;;; Personal VPN
10 R personal-vpn 13 021 624 548 17 752 946 656 19 266 522 16 515 775 0 1 931 0 0 0
;;; Private Internet Access
11 R pia 259 243 172 8 062 720 215 080 76 359 0 0 0 0 0
12 R vlan-10 47 652 102 572 177 428 391 374 69 298 385 147 929 874 0 0 0 0 0
13 R vlan-20 5 878 454 860 126 375 202 344 26 422 240 100 709 790 0 0 0 0 0
14 R vlan-30 2 611 055 140 61 940 718 935 11 954 803 48 708 261 0 0 0 0 0
15 R vlan-40 563 628 377 15 432 063 061 3 712 719 13 059 959 0 0 0 0 0
16 R vlan-50 169 505 161 725 125 861 223 169 156 839 483 133 008 266 0 0 0 0 0
17 R vlan-60 4 035 935 25 673 906 17 873 25 567 0 0 0 0 0
18 R vlan-70 12 343 654 568 263 464 860 10 004 269 3 823 619 0 0 0 0 0
19 R vlan-99 5 688 786 223 1 437 234 784 8 553 404 8 909 962 0 0 0 0 0
I see a couple of threads like this http://forum.mikrotik.com/t/crs-ethernet-tx-drops/136924/1 with similar problems on CHR and no clear solution.
using mq-pfifo on the interfaces instead of only-hardware-queue fixes this problem.
