Hi
This is for a home setup
I have a ISP supplied fiber modem, that is bridged. That is connected to my RB750Gr3 via ethernet 1.
The RB750Gr3 ethernet 2 is connected to a simple network switch, to witch to Raspberry Pi:s and a Eufycam Homebase 2 is connected. One of the RPis is running Home Assistant and the other running PiHole (my home DNS).
The RB750Gr3 ethernet 3 is connected to a Netgear MR60 wireless access point which the bulk of phones, chromecasts, tvs, laptops, sonos, and phones are connected.
I want to create a set of VLANs to isolate primarily my IoT devices that might be more prone to be “unsecure”, but still enable Home Assistant to communicate with these freely.

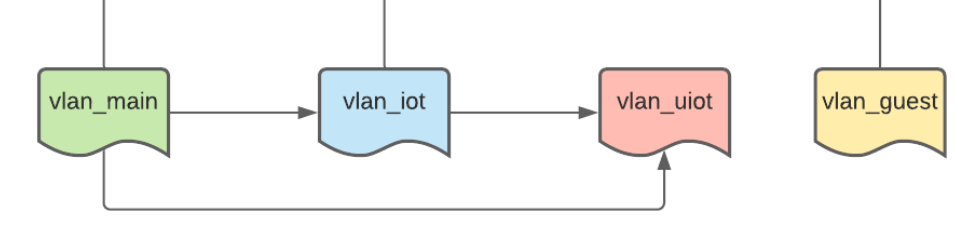

I’m guessing this would be something like this;
I have tried to read up on the topic, but I feel that it’s way too hard to read so much that I can create it all correctly from scratch…
So Im asking for help;
Could someone help me out with the creation of these VLANs, how to set them up, and place my devices in the right category, and also implement the correct rules to make the communication between them work?
It would be much appriciated =)
Best of regards!
# dec/17/2021 16:19:35 by RouterOS 7.1
# software id = M2VH-09C3
#
# model = RB750Gr3
# serial number = D5030E324875
/interface bridge
add admin-mac=2C:C8:1B:A5:14:C0 auto-mac=no comment=defconf name=bridge
/interface ethernet
set [ find default-name=ether1 ] comment=WAN-port-Drosk-ISP-Modem
set [ find default-name=ether2 ] comment=LAN-Drosk-Switch
set [ find default-name=ether3 ] comment=LAN-Droskv-MR60-AP
/interface wireguard
add disabled=yes listen-port=13231 mtu=1420 name=wireguard1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip kid-control
add fri=0s-1d mon=0s-1d name=system-dummy sat=0s-1d sun=0s-1d thu=0s-1d tue=\
0s-1d tur-fri=0s-1d tur-mon=0s-1d tur-sat=0s-1d tur-sun=0s-1d tur-thu=\
0s-1d tur-tue=0s-1d tur-wed=0s-1d wed=0s-1d
/ip pool
add name=dhcp ranges=10.0.0.90-10.0.0.200
/ip dhcp-server
add address-pool=dhcp interface=bridge lease-script=":local DHCPtag\r\
\n:set DHCPtag \"#DHCP\"\r\
\n\r\
\n:if ( [ :len \$leaseActIP ] <= 0 ) do={ :error \"empty lease address\" }\
\r\
\n\r\
\n:if ( \$leaseBound = 1 ) do=\\\r\
\n{\r\
\n :local ttl\r\
\n :local domain\r\
\n :local hostname\r\
\n :local fqdn\r\
\n :local leaseId\r\
\n :local comment\r\
\n\r\
\n /ip dhcp-server\r\
\n :set ttl [ get [ find name=\$leaseServerName ] lease-time ]\r\
\n network \r\
\n :set domain [ get [ find \$leaseActIP in address ] domain ]\r\
\n \r\
\n .. lease\r\
\n :set leaseId [ find address=\$leaseActIP ]\r\
\n\r\
\n# Check for multiple active leases for the same IP address. It's weird a\
nd it shouldn't be, but just in case.\r\
\n\r\
\n :if ( [ :len \$leaseId ] != 1) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: not registering domain name for address \$lease\
ActIP because of multiple active leases for \$leaseActIP\"\r\
\n :error \"multiple active leases for \$leaseActIP\"\r\
\n } \r\
\n\r\
\n :set hostname [ get \$leaseId host-name ]\r\
\n :set comment [ get \$leaseId comment ]\r\
\n /\r\
\n\r\
\n :if ( [ :len \$hostname ] <= 0 ) do={ :set hostname \$comment }\r\
\n\r\
\n :if ( [ :len \$hostname ] <= 0 ) do=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name for address \$lea\
seActIP because of empty lease host-name or comment\"\r\
\n :error \"empty lease host-name or comment\"\r\
\n }\r\
\n :if ( [ :len \$domain ] <= 0 ) do=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name for address \$lea\
seActIP because of empty network domain name\"\r\
\n :error \"empty network domain name\"\r\
\n }\r\
\n\r\
\n :set fqdn \"\$hostname.\$domain\"\r\
\n \r\
\n /ip dns static\r\
\n :if ( [ :len [ find name=\$fqdn and address=\$leaseActIP and disabled=\
no ] ] = 0 ) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: registering static domain name \$fqdn for addr\
ess \$leaseActIP with ttl \$ttl\"\r\
\n add address=\$leaseActIP name=\$fqdn ttl=\$ttl comment=\$DHCPtag dis\
abled=no\r\
\n } else=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name \$fqdn for addres\
s \$leaseActIP because of existing active static DNS entry with this name \
or address\" \r\
\n }\r\
\n /\r\
\n} \\\r\
\nelse=\\\r\
\n{\r\
\n /ip dns static\r\
\n :local dnsDhcpId \r\
\n :set dnsDhcpId [ find address=\$leaseActIP and comment=\$DHCPtag ]\r\
\n\r\
\n :if ( [ :len \$dnsDhcpId ] > 0 ) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: removing static domain name(s) for address \$l\
easeActIP\"\r\
\n remove \$dnsDhcpId\r\
\n }\r\
\n /\r\
\n}" lease-time=6m name=defconf
/port
set 0 name=serial0
/routing bgp template
set default as=65530 disabled=no name=default output.network=bgp-networks
/routing ospf instance
add name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/interface bridge port
add bridge=bridge comment=defconf ingress-filtering=no interface=ether2
add bridge=bridge comment=defconf ingress-filtering=no interface=ether3
add bridge=bridge comment=defconf ingress-filtering=no interface=ether4
add bridge=bridge comment=defconf ingress-filtering=no interface=ether5
/ip neighbor discovery-settings
set discover-interface-list=LAN
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface detect-internet
set detect-interface-list=all
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/ip address
add address=10.0.0.1/24 comment=defconf interface=bridge network=10.0.0.0
/ip cloud
set ddns-enabled=yes
/ip dhcp-client
add comment=defconf interface=ether1 use-peer-dns=no
/ip dhcp-server lease
add address=10.0.0.33 client-id=1:dc:a6:32:ba:2d:3e mac-address=\
DC:A6:32:BA:2D:3E server=defconf
add address=10.0.0.43 mac-address=A8:BB:50:D5:3A:D4 server=defconf
add address=10.0.0.42 mac-address=A8:BB:50:D5:38:10 server=defconf
add address=10.0.0.40 mac-address=A8:BB:50:D5:44:CA server=defconf
add address=10.0.0.45 mac-address=6C:29:90:51:82:42 server=defconf
add address=10.0.0.41 mac-address=A8:BB:50:D5:3A:0E server=defconf
add address=10.0.0.38 client-id=1:8c:85:80:62:22:20 comment=\
"Eufycam Barnrummet" mac-address=8C:85:80:62:22:20 server=defconf
add address=10.0.0.3 client-id=1:28:80:88:29:17:2d comment=MR60 mac-address=\
28:80:88:29:17:2D server=defconf
add address=10.0.0.5 client-id=1:2:f:b5:25:e4:ef mac-address=\
02:0F:B5:25:E4:EF server=defconf
add address=10.0.0.35 mac-address=02:0F:B5:01:AE:2C server=defconf
add address=10.0.0.55 client-id=1:0:4:4b:ef:f7:4 comment="Nvidia Shield TV" \
mac-address=00:04:4B:EF:F7:04 server=defconf
add address=10.0.0.15 client-id=Tablet_001 mac-address=60:D9:A0:E9:FA:5A \
server=defconf
add address=10.0.0.12 client-id=1:38:fb:14:9b:c9:e comment=Ebba mac-address=\
38:FB:14:9B:C9:0E server=defconf
add address=10.0.0.13 client-id=1:8e:74:4c:e9:64:fb comment=\
"Isabellas telefon" mac-address=8E:74:4C:E9:64:FB server=defconf
add address=10.0.0.53 client-id=1:0:e:58:72:22:78 comment="Sonos Vardagsrum" \
mac-address=00:0E:58:72:22:78 server=defconf
add address=10.0.0.52 client-id=1:34:7e:5c:82:4e:8e comment="Sonos TV-rum" \
mac-address=34:7E:5C:82:4E:8E server=defconf
add address=10.0.0.14 client-id=1:fe:62:4e:f8:82:d6 comment="Linneas telefon" \
mac-address=FE:62:4E:F8:82:D6 server=defconf
add address=10.0.0.51 comment="Sonos Kok" mac-address=78:28:CA:22:43:4A \
server=defconf
add address=10.0.0.37 client-id=1:8c:85:80:77:42:75 comment=HomeBase2 \
mac-address=8C:85:80:77:42:75 server=defconf
add address=10.0.0.11 client-id=1:e2:40:26:e:25:cd comment=Sofie mac-address=\
E2:40:26:0E:25:CD server=defconf
add address=10.0.0.10 client-id=1:34:79:16:ac:a4:26 comment=Andreas \
mac-address=34:79:16:AC:A4:26 server=defconf
add address=10.0.0.16 mac-address=D0:F8:8C:21:F1:04 server=defconf
add address=10.0.0.31 comment=PiHole mac-address=00:00:10:01:49:4A server=\
defconf
add address=10.0.0.4 client-id=1:10:c:6b:4a:4a:74 comment=MS60 mac-address=\
10:0C:6B:4A:4A:74 server=defconf
add address=10.0.0.56 client-id=1:48:6d:bb:d7:97:1b mac-address=\
48:6D:BB:D7:97:1B server=defconf
add address=10.0.0.17 mac-address=54:27:58:F0:16:95 server=defconf
add address=10.0.0.60 client-id=1:80:c5:f2:ca:3d:73 comment=\
"Andreas laptop wifi" mac-address=80:C5:F2:CA:3D:73 server=defconf
add address=10.0.0.18 client-id=1:66:63:40:90:a5:47 comment="Maja iPhone" \
mac-address=66:63:40:90:A5:47 server=defconf
add address=10.0.0.61 client-id=1:5c:80:b6:f7:9a:2c comment=\
"Sofie laptop wi-fi" mac-address=5C:80:B6:F7:9A:2C server=defconf
add address=10.0.0.19 client-id=1:60:7e:c9:aa:21:ec mac-address=\
60:7E:C9:AA:21:EC server=defconf
add address=10.0.0.20 client-id=1:4e:9f:b6:b5:72:62 comment="Elsas iPad3" \
mac-address=4E:9F:B6:B5:72:62 server=defconf
add address=10.0.0.21 client-id=1:22:8c:47:a1:db:a2 comment="Majas iPad4" \
mac-address=22:8C:47:A1:DB:A2 server=defconf
add address=10.0.0.62 client-id=1:ac:89:95:f6:6a:5b comment=\
"Linneas Skoldator" mac-address=AC:89:95:F6:6A:5B server=defconf
/ip dhcp-server network
add address=10.0.0.0/24 comment=defconf dns-server=10.0.0.1 domain=drosk \
gateway=10.0.0.1 netmask=24
/ip dns
set allow-remote-requests=yes servers=8.8.8.8,8.8.4.4
/ip dns static
add address=10.0.0.1 comment=defconf name=router.lan
add address=10.0.0.15 comment=#DHCP name=android-2d3eb2e5c2b44bfa.drosk ttl=\
6m
add address=10.0.0.43 comment=#DHCP name=wiz_d53ad4.drosk ttl=6m
add address=10.0.0.40 comment=#DHCP name=wiz_d544ca.drosk ttl=6m
add address=10.0.0.4 comment=#DHCP name=MS60.drosk ttl=6m
add address=10.0.0.41 comment=#DHCP name=wiz_d53a0e.drosk ttl=6m
add address=10.0.0.45 comment=#DHCP name=wiz_518242.drosk ttl=6m
add address=10.0.0.3 comment=#DHCP name=MR60.drosk ttl=6m
add address=10.0.0.37 comment=#DHCP name=HomeBase2.drosk ttl=6m
add address=10.0.0.35 comment=#DHCP name=Telldus-TellStick-ZNet-Lite-v2.drosk \
ttl=6m
add address=10.0.0.38 comment=#DHCP name="Eufycam Barnrummet.drosk" ttl=6m
add address=10.0.0.11 comment=#DHCP name=Pixel-4a.drosk ttl=6m
add address=10.0.0.10 comment=#DHCP name=HUAWEI_P30-7b1c4007e5df17.drosk ttl=\
6m
add address=10.0.0.56 comment=#DHCP name=ANDERSSON-TV.drosk ttl=6m
add address=10.0.0.60 comment=#DHCP name=Andreas-ASUS.drosk ttl=6m
/ip firewall address-list
add address=123.123.123.123 disabled=yes list=WANs
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
ipsec-policy=out,none out-interface-list=WAN
add action=dst-nat chain=dstnat comment=wg dst-port=51845 in-interface-list=\
WAN protocol=udp to-addresses=10.0.0.31 to-ports=51845
add action=dst-nat chain=dstnat comment=piholeNAT1 dst-address=!10.0.0.31 \
dst-port=53 in-interface=bridge protocol=udp src-address=!10.0.0.31 \
to-addresses=10.0.0.31
add action=dst-nat chain=dstnat comment=piholeNAT2 dst-address=!10.0.0.31 \
dst-port=53 in-interface=bridge protocol=tcp src-address=!10.0.0.31 \
to-addresses=10.0.0.31
add action=masquerade chain=srcnat comment=piholeNAT3 dst-address=10.0.0.31 \
dst-port=53 protocol=udp src-address=10.0.0.0/24
add action=masquerade chain=srcnat comment=piholeNAT4 dst-address=10.0.0.31 \
dst-port=53 protocol=tcp src-address=10.0.0.0/24
/ip kid-control device
add mac-address=00:00:10:01:49:4A name="RpiZEthernet;4"
add mac-address=DC:A6:32:BA:2D:3E name="homeassistant;4"
add mac-address=02:0F:B5:01:AE:2C name="Telldus-TellStick-ZNet-Lite-v2;4"
add mac-address=28:80:88:29:17:2D name="MR60;-2"
add mac-address=A8:BB:50:D5:44:CA name="wiz_d544ca;6"
add mac-address=A8:BB:50:D5:3A:D4 name="wiz_d53ad4;6"
add mac-address=A8:BB:50:D5:38:10 name="wiz_d53810;6"
add mac-address=A8:BB:50:D5:3A:0E name="wiz_d53a0e;6"
add mac-address=6C:29:90:51:82:42 name="wiz_518242;6"
add mac-address=02:0F:B5:25:E4:EF name="WN3000RPv3;5"
add mac-address=FE:62:4E:F8:82:D6 name="OnePlus-Nord-N100;2"
add mac-address=38:FB:14:9B:C9:0E name="HUAWEI_Y5_2019-998742728e;2"
add mac-address=34:79:16:AC:A4:26 name="HUAWEI_P30-7b1c4007e5df17;2"
add mac-address=60:D9:A0:E9:FA:5A name="android-2d3eb2e5c2b44bfa;2"
add mac-address=8E:74:4C:E9:64:FB name="OnePlus-Nord-N1002;2"
add mac-address=E2:40:26:0E:25:CD name="Pixel-4a;2"
add mac-address=8C:85:80:77:42:75 name="Homebase eufycam;4"
add mac-address=8C:85:80:62:22:20 name="Eufycam barnrummet;8"
add mac-address=7C:2E:BD:F4:02:23 name="Chromecast;3"
add mac-address=48:6D:BB:D7:97:1B name="ANDERSSON-TV;3"
add mac-address=00:04:4B:EF:F7:04 name="Nvidia Shield Tv;3"
add mac-address=10:0C:6B:4A:4A:74 name="MS60;-2"
add mac-address=D0:F8:8C:21:F1:04 name="android-11e665960771a264;2"
add mac-address=5C:80:B6:F7:9A:2C name="LAPTOP-3OG50167;1"
/system clock
set time-zone-name=Europe/Stockholm
/system package update
set channel=development
/system scheduler
add interval=1m name=PingCheckPiDNS on-event=":local piholeDNS \"10.0.0.31\"\r\
\n:local testDomain \"www.google.com\"\r\
\n\r\
\n\r\
\n:if ([/ip firewall nat [find comment=\"piholeNAT1\"] enabled]) do={\r\
\n :do {\r\
\n :resolve \$testDomain server \$piholeDNS\r\
\n } on-error={\r\
\n\t\t/ip firewall nat disable [find comment=\"piholeNAT1\"]\r\
\n\t\t/ip firewall nat disable [find comment=\"piholeNAT2\"]\r\
\n\t\t/ip firewall nat disable [find comment=\"piholeNAT3\"]\r\
\n\t\t/ip firewall nat disable [find comment=\"piholeNAT4\"]\r\
\n }\r\
\n} else={\r\
\n :do {\r\
\n :resolve \$testDomain server \$piholeDNS\r\
\n\t\t/ip firewall nat enable [find comment=\"piholeNAT1\"]\r\
\n\t\t/ip firewall nat enable [find comment=\"piholeNAT2\"]\r\
\n\t\t/ip firewall nat enable [find comment=\"piholeNAT3\"]\r\
\n\t\t/ip firewall nat enable [find comment=\"piholeNAT4\"]\r\
\n } on-error={}\r\
\n}" policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
start-date=dec/06/2021 start-time=18:56:53
/system script
add dont-require-permissions=no name=script1 owner=andi policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source=\
test
add dont-require-permissions=no name=leasescript001 owner=andi policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source=":\
local DHCPtag\r\
\n:set DHCPtag \"#DHCP\"\r\
\n\r\
\n:if ( [ :len \$leaseActIP ] <= 0 ) do={ :error \"empty lease address\" }\
\r\
\n\r\
\n:if ( \$leaseBound = 1 ) do=\\\r\
\n{\r\
\n :local ttl\r\
\n :local domain\r\
\n :local hostname\r\
\n :local fqdn\r\
\n :local leaseId\r\
\n :local comment\r\
\n\r\
\n /ip dhcp-server\r\
\n :set ttl [ get [ find name=\$leaseServerName ] lease-time ]\r\
\n network \r\
\n :set domain [ get [ find \$leaseActIP in address ] domain ]\r\
\n \r\
\n .. lease\r\
\n :set leaseId [ find address=\$leaseActIP ]\r\
\n\r\
\n# Check for multiple active leases for the same IP address. It's weird a\
nd it shouldn't be, but just in case.\r\
\n\r\
\n :if ( [ :len \$leaseId ] != 1) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: not registering domain name for address \$lease\
ActIP because of multiple active leases for \$leaseActIP\"\r\
\n :error \"multiple active leases for \$leaseActIP\"\r\
\n } \r\
\n\r\
\n :set hostname [ get \$leaseId host-name ]\r\
\n :set comment [ get \$leaseId comment ]\r\
\n /\r\
\n\r\
\n :if ( [ :len \$hostname ] <= 0 ) do={ :set hostname \$comment }\r\
\n\r\
\n :if ( [ :len \$hostname ] <= 0 ) do=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name for address \$lea\
seActIP because of empty lease host-name or comment\"\r\
\n :error \"empty lease host-name or comment\"\r\
\n }\r\
\n :if ( [ :len \$domain ] <= 0 ) do=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name for address \$lea\
seActIP because of empty network domain name\"\r\
\n :error \"empty network domain name\"\r\
\n }\r\
\n\r\
\n :set fqdn \"\$hostname.\$domain\"\r\
\n \r\
\n /ip dns static\r\
\n :if ( [ :len [ find name=\$fqdn and address=\$leaseActIP and disabled=\
no ] ] = 0 ) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: registering static domain name \$fqdn for addr\
ess \$leaseActIP with ttl \$ttl\"\r\
\n add address=\$leaseActIP name=\$fqdn ttl=\$ttl comment=\$DHCPtag dis\
abled=no\r\
\n } else=\\\r\
\n {\r\
\n :log error \"DHCP2DNS: not registering domain name \$fqdn for addres\
s \$leaseActIP because of existing active static DNS entry with this name \
or address\" \r\
\n }\r\
\n /\r\
\n} \\\r\
\nelse=\\\r\
\n{\r\
\n /ip dns static\r\
\n :local dnsDhcpId \r\
\n :set dnsDhcpId [ find address=\$leaseActIP and comment=\$DHCPtag ]\r\
\n\r\
\n :if ( [ :len \$dnsDhcpId ] > 0 ) do=\\\r\
\n {\r\
\n :log info \"DHCP2DNS: removing static domain name(s) for address \$l\
easeActIP\"\r\
\n remove \$dnsDhcpId\r\
\n }\r\
\n /\r\
\n}"
/system watchdog
set auto-send-supout=yes send-email-from=¤¤¤¤\
send-email-to=¤¤¤¤¤m send-smtp-server=smtp.gmail.com \
watch-address=10.0.0.31 watchdog-timer=no
/tool bandwidth-server
set enabled=no
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
