VLAN troubleshooting Mikrotik Router and Unifi Switch / Access points

themitchell · October 10, 2023, 11:10am

Hello all, this is my first post so go easy.

Im struggling with VLAN setup on my Mikrotic Chateau 5g with a unifi switch and unifi access points. I’d like my network to look similar to the below diagram. I have no specific firewall rules between VLANs at the moment. I wanted to keep everything open until i got IP address assignments fully resolved. The diagram doesnt show a full list of devices but gives an idea of the structure.

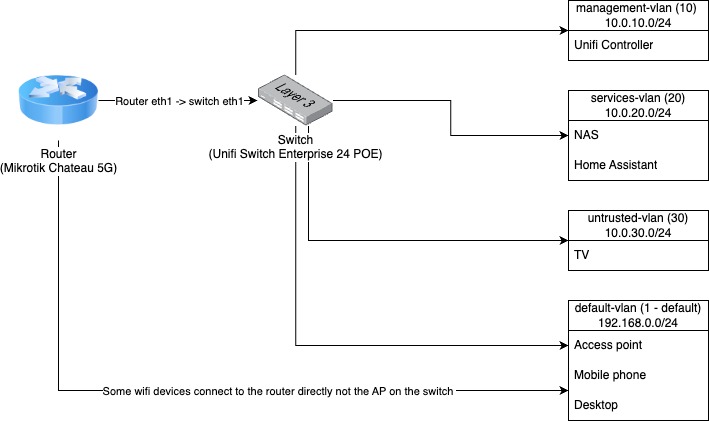

Network Diagram.jpg
I have setup 3 VLANs in the router, and on the unifi controller managing the unifi switch enterprise 24 poe and wireless access points i have setup 3 networks for my 3 tagged VLANs. I understand that on the unifi side it should be as simple as creating the VLAN networks with a 3rd party gateway. I created a port profile setting the default VLAN to the VLAN i want that port to be tagged with and then assigned the port profile to my port. These are shown in the screenshots below.

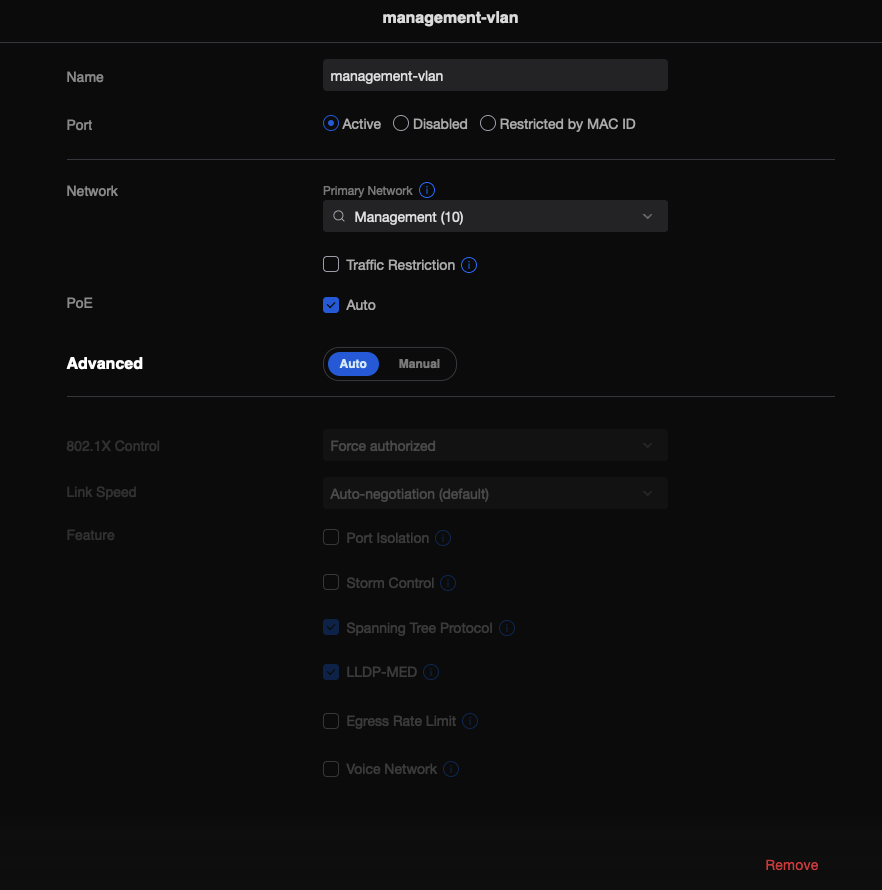

unifi port profile.png
unifi port profile assignments.png

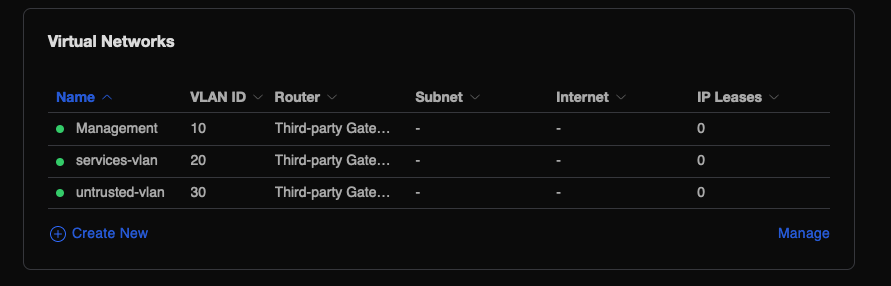

unifi networks.png
I expected any untagged traffic to be provided an IP address directly to the bridge default pool (I assume this may be where my problem lies but im unsure). This seems to work, all devices connected to the switch without a port profile are simply provided an IP from my default range in the bridge directly. The default pool is currently directly on the bridge but i plan to move this to its own VLAN in the future. This is basically so i can try not to disturb the entire network at once and i can slowly move devices into each vlan bit by bit.

On trying to assign a VLAN tag port profile to a device attached to my unifi switch, the device attached to the tagged access port only gets a self assigned IP and doent seem to use an IP address from the dhcp pool for that VLAN (I have tried all of the VLANs to no avail). Im stumped as to what im doing wrong. Am i missing something in the Mikrotik config?

# 2023-10-10 11:30:05 by RouterOS 7.10.2
# software id = PUHY-IU22
#
# model = D53G-5HacD2HnD
# serial number = xxxx
/interface bridge
add admin-mac=xxxxx auto-mac=no comment=defconf name=bridge vlan-filtering=yes

/interface vlan
add interface=bridge name=management-vlan vlan-id=10
add interface=bridge name=services-vlan vlan-id=20
add interface=bridge name=untrusted-vlan vlan-id=30

/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN

/ip pool
add name=default-vlan ranges=192.168.0.100-192.168.0.199
add name=services-vlan ranges=10.0.20.100-10.0.20.254
add name=management-vlan ranges=10.0.10.100-10.0.10.254
add name=untrusted-vlan ranges=10.0.30.100-10.0.30.254

/ip dhcp-server
add address-pool=default-vlan interface=bridge name=dhcp-server
add address-pool=services-vlan interface=services-vlan name=services-vlan
add address-pool=management-vlan interface=management-vlan name=management-vlan
add address-pool=untrusted-vlan interface=untrusted-vlan name=untrusted-vlan

/interface bridge port
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether1
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wlan1
add bridge=bridge comment=defconf interface=wlan2

/interface bridge vlan
add bridge=bridge tagged=bridge,ether1 vlan-ids=10
add bridge=bridge tagged=bridge,ether1 vlan-ids=20
add bridge=bridge tagged=bridge,ether1 vlan-ids=30

/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=lte1 list=WAN
add interface=wireguard1 list=LAN

/ip address
add address=192.168.0.1/24 comment=default-vlan interface=bridge network=192.168.0.0
add address=10.0.20.1/24 comment=services-vlan interface=services-vlan network=10.0.20.0
add address=10.0.10.1/24 comment=management-vlan interface=management-vlan network=10.0.10.0
add address=10.0.30.1/24 comment=untrusted-vlan interface=untrusted-vlan network=10.0.30.0

/ip dhcp-server network
add address=10.0.10.0/24 dns-server=10.0.10.1 gateway=10.0.10.1
add address=10.0.20.0/24 dns-server=10.0.20.1 gateway=10.0.20.1
add address=10.0.30.0/24 dns-server=10.0.30.1 gateway=10.0.30.1
add address=192.168.0.0/24 dns-server=192.168.0.1 gateway=192.168.0.1

/ip dns
set allow-remote-requests=yes servers=9.9.9.9

/ip dns static
add address=192.168.0.1 name=router.lan

/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN

/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN
add action=accept chain=srcnat

/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6

/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN

llamajaja · October 10, 2023, 3:21pm

No need for bridge related subnet it should do no dhcp servicing.
vlan10 managment 10.0.20.0
vlan20 NAS 10.0.20.0
vlan30 untrusted ( guest wifi?) 10.0.30.0
vlan 5 home 192.168.0.0

How to setup up vlans —> http://forum.mikrotik.com/t/using-routeros-to-vlan-your-network/126489/1

Since unifi by default expects management vlan untagged, suggest the following concept
All smart devices get IP address on management subnet. This includes any device that can read tags, typically switches and access points.
Your diagram concerns me a bit because you show two connections going to the same place from router and from l3 switch to lower box, bad idea or perhaps your diagram is poor and thus misleading.? I will assume what you mean is some devices have the option of connection to router wifi or to a separate ap wifi?

In any case
/intrerface bridge port setup
ether1 is hybrid port (no frame types, no ingress filtering) pvid=vlan10
ether2-4 & WLAN ports, are access ports frame types=priority and untagged frames pvid= applicable vlan (only one vlan per access port of WLA)

/interface bridge vlan setup
vlan10 is tagged on bridge, and untagged on ether1 ( this assumes no other smart devices on ether2-4 of chateau or wlan ports)
vlan 20 is tagged on bridge ans ether1 and untagged on applicable etherport(s) or WLAN(s) ( for eth1 assumes vlan20 must be trunked to switch)
vlan30 is tagged on bridge and ether1 and untagged if applicable on etherport(s) or WLAN(s) ( for eth1 assumes vlan30 must be trunked to switch)
vlan5 is tagged on bridge and ether1 and ungtagged if applicable on etheport(s) or WLAN(s) (for eth1 assumes vlan5 must be trunked to switch)

Personally I would take ether5 off the bridge give the etherport and do all my configuration from there much safer…
as per … https://forum.mikrotik.com/viewtopic.php?t=181718

themitchell · October 11, 2023, 9:36am

Fantastic thank you for your response,

First off, I like the idea of having a “safety port” off the bridge. Resetting and restoring backups is tedious each time i cut myself out so that will be very useful.

In regards to your questions yes i can probably clarify some of the diagram. At the moment the chateau is acting as our sole internet connection via LTE so no external internet sources.

I will assume what you mean is some devices have the option of connection to router wifi or to a separate ap wifi?

You are also correct that the MT Chateau also acts as an access point. The chateau serves WiFi devices at one end of the house whilst I also have 2 unifi acces points serving an office in the garden and the rear of the house. These access points are fed directly from the switch.

This means there are some limitations to positioning of the devices. The MT chateau essentially needs to be at the front of the property for best internet speeds, and also needs to be in a spot where it can serve connectivity to the front of the property. The switch however sits in a basement with a bunch of small servers (raspberry pis, NAS etc) and has a number of cables feeding from the switch out to the garden office and other access points. I think you picked up on this correctly judging by the brdige vlan tagging config you posted.

Having made some changes, my guinea pig server seems to have picked up the ip in the services-vlan which is great, thank you.

One thing im not clear on is why the management vlan would be the untagged vlan specifically. My assumption would be to make anything that is untagged goes to the home vlan (this way by default all devices go to home unless explicitly added to the management vlan). Am i understanding that correctly?
