Hello,
I am a newcomer with RouterOS and VLANs, or general network technology
.
I have been reading/trying for a few days to get what I want with VLANs but I doesnt seem like I get it, so I hope someone can help me here.
My setup:

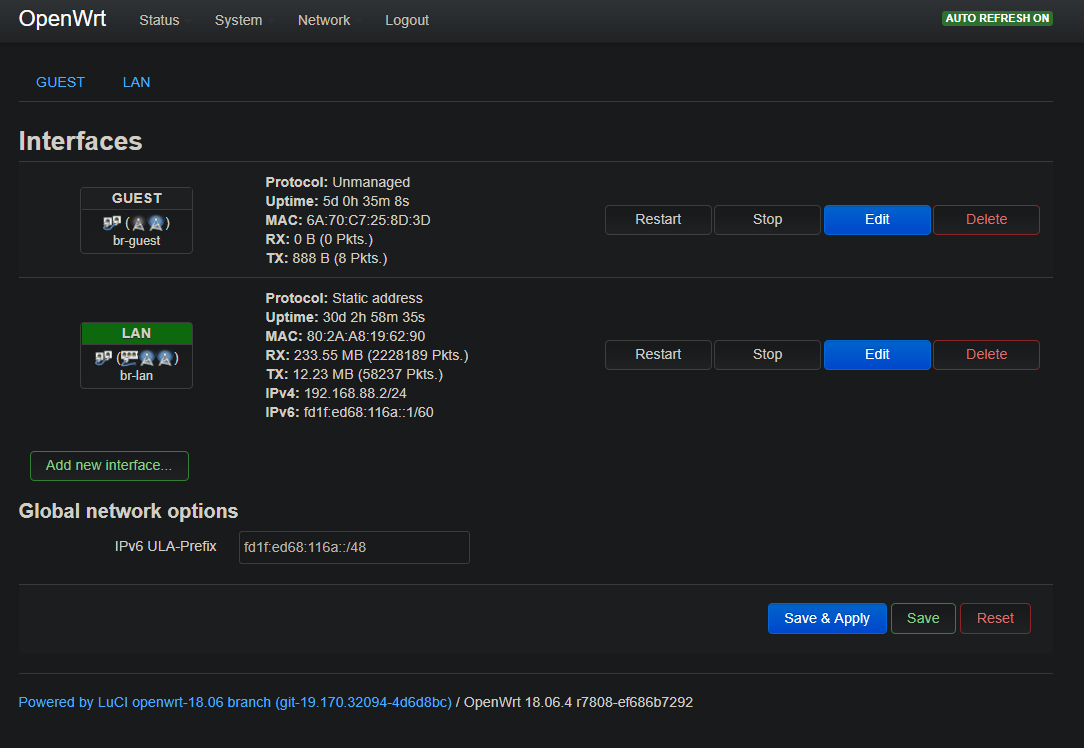

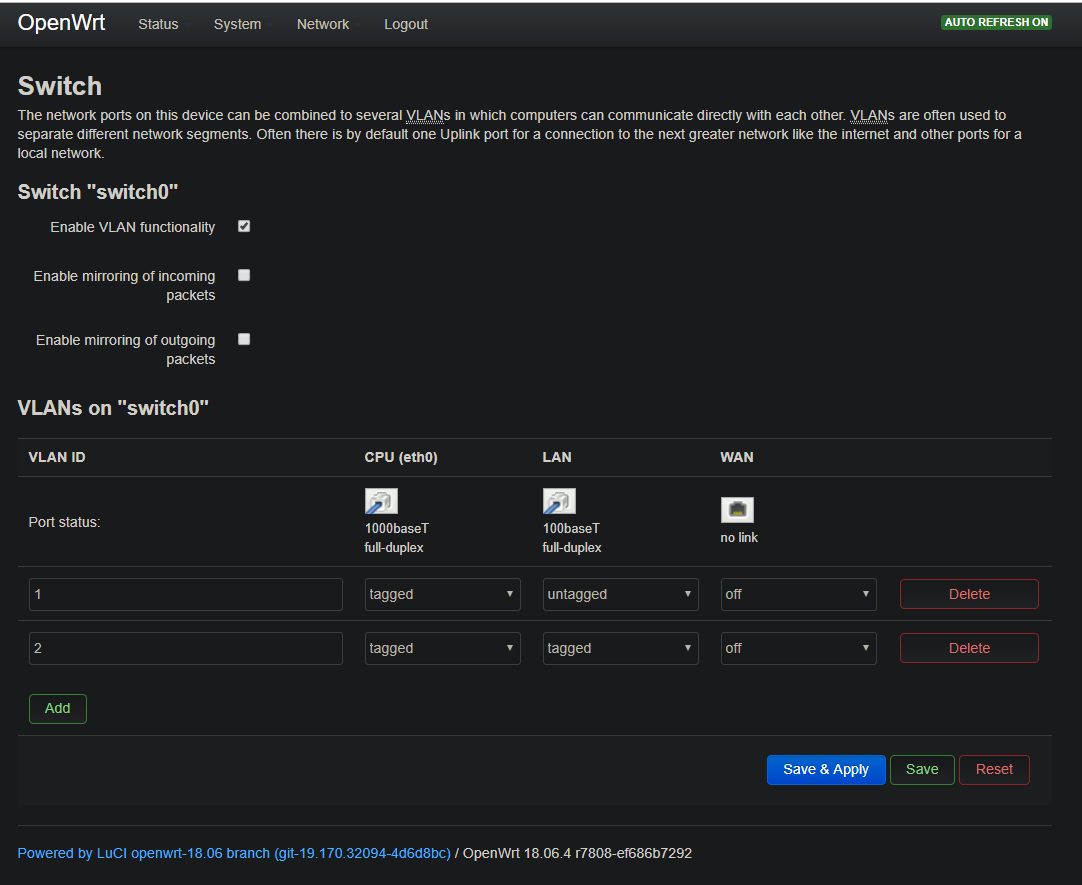

I have an Ubiquiti AC AP Pro with OpenWrt where I set up WLAN and WLAN GUEST as an Dumb AP (https://openwrt.org/docs/guide-user/network/wifi/dumbap).
The AP is connect with my Mikrotik 2011UiAS on Ether2.
Ether1 is PPPoE mit DSL-Modem.
Ether3 is my NAS.
Ether4 is my Printer.
Now I want VLAN where the Guest Wlan is, with access to the printer.
And the other VLAN should have access to everything else, including the printer.
Somehow I dont know where to go, currently I have all interfaces connected with a bridge…do I need to set a VLAN for the bridge, or configure the tags for every interface on its own or…?

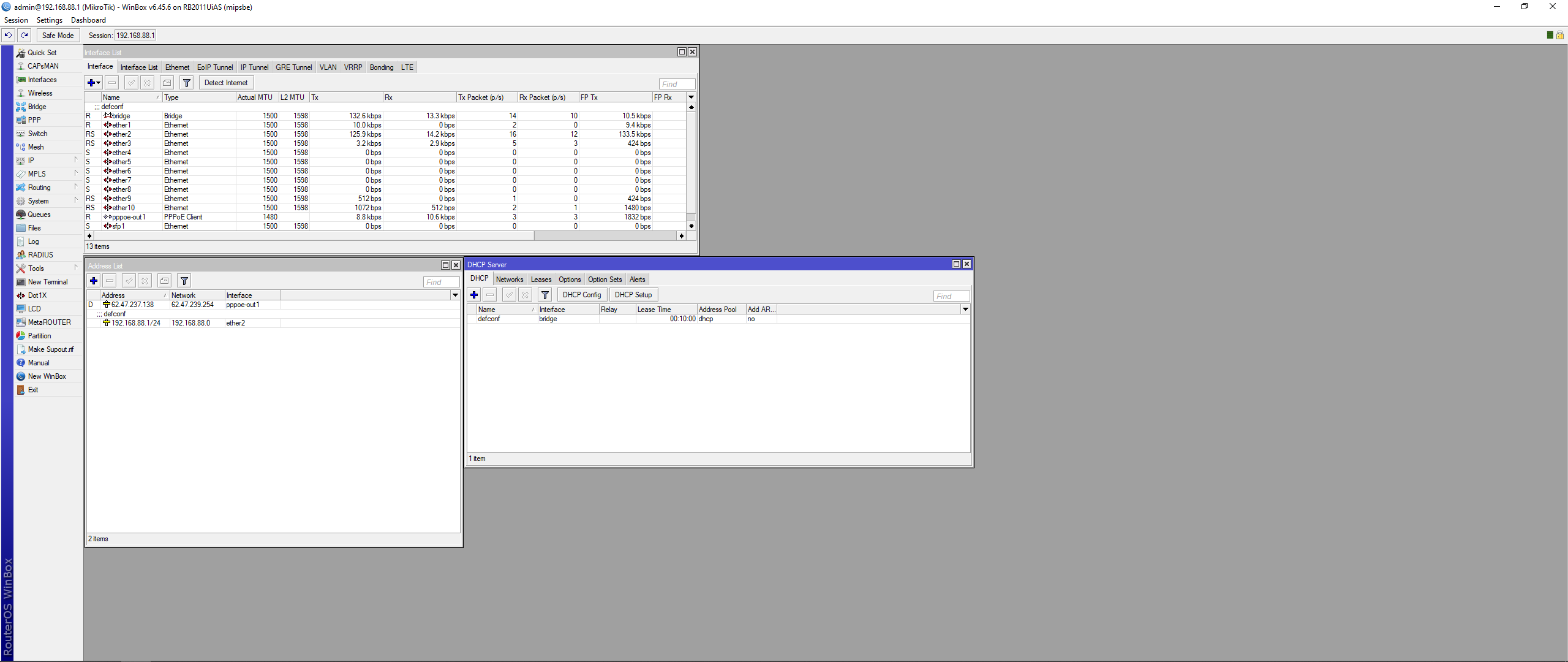

I am very new in this thematic…I have my current config and my wanted config attached, I hope someone can help me.
Thanks,
Tropaion
WantedConfig.pdf (1.34 MB)
Try reading some helpful resources. If you’re fast learner, there’s manual with some helpful examples. You can look at this one:
and also the following one, and it should give you some ideas. Focus on the part how vlans are defined, type (tagged/untagged), number, port, and how you assign IP subnet to different vlans (that’s in example #3).
If that’s not enough, there’s also this popular and very detailed thread: Using RouterOS to VLAN your network
