Hello.
The configuration is based on bridge VLAN-Filtering.
Everything works fine but i notice 2 problems:
-

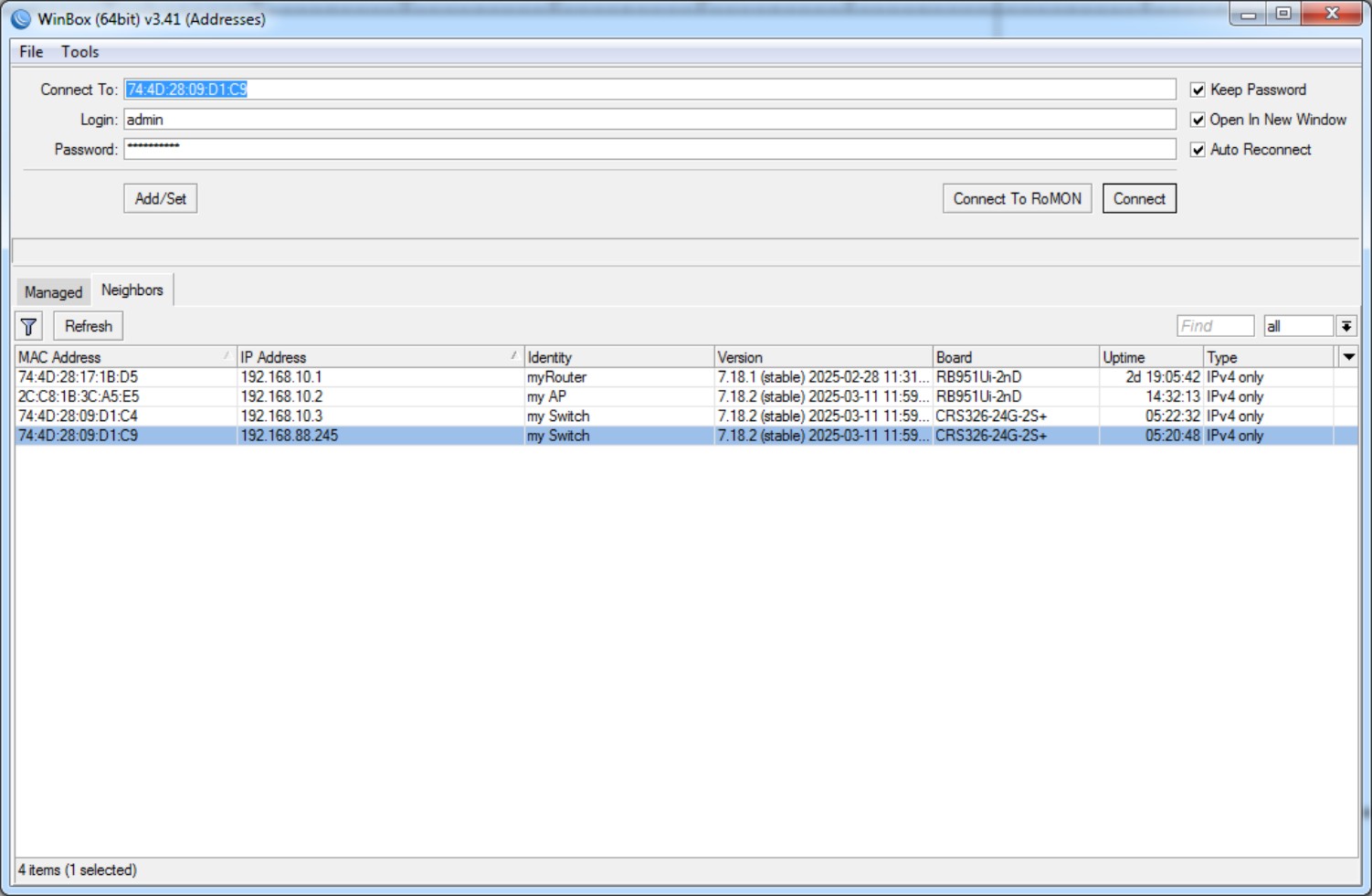

If i conect at any vlan-10 access port and open winbox shows all the Mikrotik devices in vlan10-test 192.168.10.0/24 subnet only.
Afrter some time shows one more device 192.168.88.245 that is the device physical interface i am connected to mac address and bridge-trunk ip address, and i can connect to it by mac address
not by ip. -
If i conect at any bridge-trunk hybrid port and open winbox shows all the Mikrotik devices in bridge-trunk 192.168.88.0/24 subnet only.
Afrter some time shows also all Mikrotik devices that are in vlans i can connect to them by mac address not by ip.
Some time i mean is not standar… 5 minutes to 1 hour.
How i can prevent that 2 problems???
# model = CRS326-24G-2S+
/interface bridge
add name=bridge-hub protocol-mode=none
add name=bridge-local protocol-mode=none
add dhcp-snooping=yes name=bridge-trunk protocol-mode=none vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] name="ether1 Router"
set [ find default-name=ether2 ] name="ether2 ER-X"
set [ find default-name=ether6 ] name="ether6 PC"
/interface vlan
add interface=bridge-trunk name=vlan10-test vlan-id=10
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/ip pool
add name=pool-local ranges=192.168.0.100-192.168.0.200
/ip dhcp-server
add address-pool=pool-local interface=bridge-local lease-time=10m name=\
server-local
/ip smb users
set [ find default=yes ] disabled=yes/port
set 0 name=serial0
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/interface bridge port
add bridge=bridge-trunk hw=no interface="ether1 Router" trusted=yes
add bridge=bridge-trunk hw=no interface="ether2 ER-X" pvid=10
add bridge=bridge-trunk hw=no interface=ether3
add bridge=bridge-trunk hw=no interface=ether4
add bridge=bridge-trunk hw=no interface=ether5 pvid=10
add bridge=bridge-trunk hw=no interface="ether6 PC" pvid=10
add bridge=bridge-trunk hw=no interface=ether7 pvid=10
add bridge=bridge-trunk hw=no interface=ether9 pvid=10
add bridge=bridge-hub interface=ether21
add bridge=bridge-hub interface=ether22
add bridge=bridge-local interface=ether23
add bridge=bridge-local interface=ether24
add bridge=bridge-hub interface=ether19
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=all
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes
/interface bridge vlan
add bridge=bridge-trunk tagged="bridge-trunk,ether1 Router,ether3,ether4" \
vlan-ids=10
add bridge=bridge-trunk tagged="ether1 Router,ether3,ether4" vlan-ids=20
/ip address
add address=192.168.0.1/24 interface=bridge-local network=192.168.0.0
add address=192.168.10.3/24 interface=vlan10-test network=192.168.10.0
/ip dhcp-client
add default-route-tables=main interface=bridge-trunk
/ip dhcp-server network
add address=192.168.0.0/24 dns-server=192.168.0.1 gateway=192.168.0.1
/ip dns
set allow-remote-requests=yes
/ip firewall nat
add action=masquerade chain=srcnat out-interface=bridge-trunk
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www disabled=yes
set ssh disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ip smb shares
set [ find default=yes ] directory=/flash/pub
/ipv6 nd
set [ find default=yes ] advertise-dns=no advertise-mac-address=no disabled=yes
/routing bfd configuration
add disabled=no interfaces=all min-rx=200ms min-tx=200ms multiplier=5
/system clock
set time-zone-name=Europe/Athens
/system identity
set name="my Switch"
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=gr.pool.ntp.org
