Winbox on Apple Silicon first try

RouterOS General
1

TLDR: Winbox 3.27 (64-bit) + CrossOver Mac = :white_check_mark:

Hi guys,

today I tried Apple Silicon (Winbox 3.27-64bit, Big Sur 11.0.1, Rosetta + Homebrew 2.5.11 + wine64 5.7). I can run Winbox fine, but there is at least one glitch. Winbox window can’t be resized. Maybe something with xquartz. There is no such glitch on Intel based Big Sur. I tried wine-stable 5.7 and wine-staging 5.7 with the same result.

~/.zshrc

# Aliases
alias intel="arch -x86_64"
alias winbox="arch -x86_64 wine64 /Applications/winbox64.exe"

# Mikrotik Winbox
export PATH="/Applications/Wine Staging.app/Contents/Resources/wine/bin:$PATH"
export FREETYPE_PROPERTIES="truetype:interpreter-version=35"
export DYLD_FALLBACK_LIBRARY_PATH="/usr/lib:/opt/X11/lib:$DYLD_FALLBACK_LIBRARY_PATH"
2

I suggest using web browser for Mikrotik control, or CLI (e.g. SSH) for now as workaround.

This should be addressed to Wine as well because it’s more or less issue with Wine.

3

Today I tried CrossOver and everything goes nice without any glitches :ok_hand:

4

Good to read, which Version of Winbox (32 or 64Bit) are you running?

5

Work like a charm :ok_hand:Winbox 3.27 (64-bit).

6

good news to me - i will get a m1 too …

7

crossover works perfect - MikroTik we need a nativ version …

8

I agree +1

9

In case anyone is buying Crossover, CX35 coupon is currently working for Crossover One & Pro.

10

I am very new to homebrew and such, does anyone have any detailed steps on how to get winbox working with the homebrew option? I have home brew loaded and the winbox but I can’t see to get it to run. Any help is greatly appreciated. Thanks

11

I don’t think homebrew option is supported on the M1 macs.

Crossover is the only reliable option right now.

12

The most native solution is to use the native iOS app on your M1 mac:

Just click the following link (only for M1 Macs).
https://apps.apple.com/at/app/mikrotik/ … 64830?l=en

It is not as convenient but it is stable and you don’t have to worry every time you upgrade your OS.

13

macOS 11.3 beta 2 broke Crossover’s 64-bit bottles. 32-bit bottles are still working fine with winbox 32-bit.

64-bit bottles are working again with macOS 11.3 beta 3.

14

can I have this one too?

15
brew install --cask nrlquaker-winbox

Version 3.27.1 works with Apple Silicon

Changelog 3.27.1:

  • update Wine to devel 6.2;


  • use custom Wine build to greatly reduce size;


  • add support running under Rosetta2.

https://github.com/nrlquaker/winbox-mac

16

Works perfectly! Thank you.

17

I’m on MacOS Big Sur 11.2.3 and successfully install using homebrew, but when starting winbox the icon bounces one time in the dock and the app does not start.

18

works perfectly. Thanks.

19

Hi,
I am using an Apple Macbook Pro M1, can u help me and please send a video how u do it.

20

Follow the link for install Home brew on m1
https://youtu.be/SOjSNB7F2m4

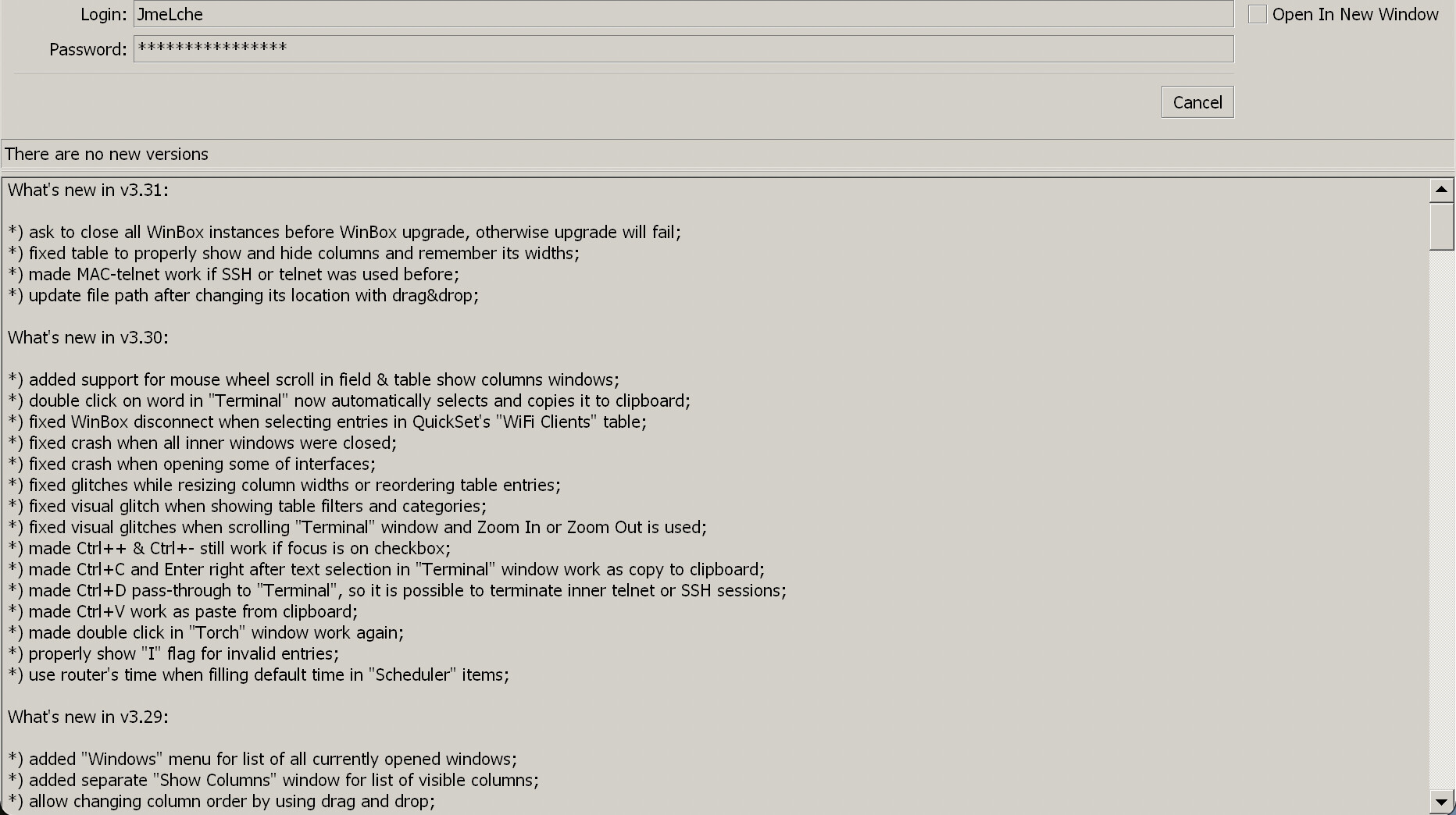

Screenshot 2021-10-10 at 10.49.39.png

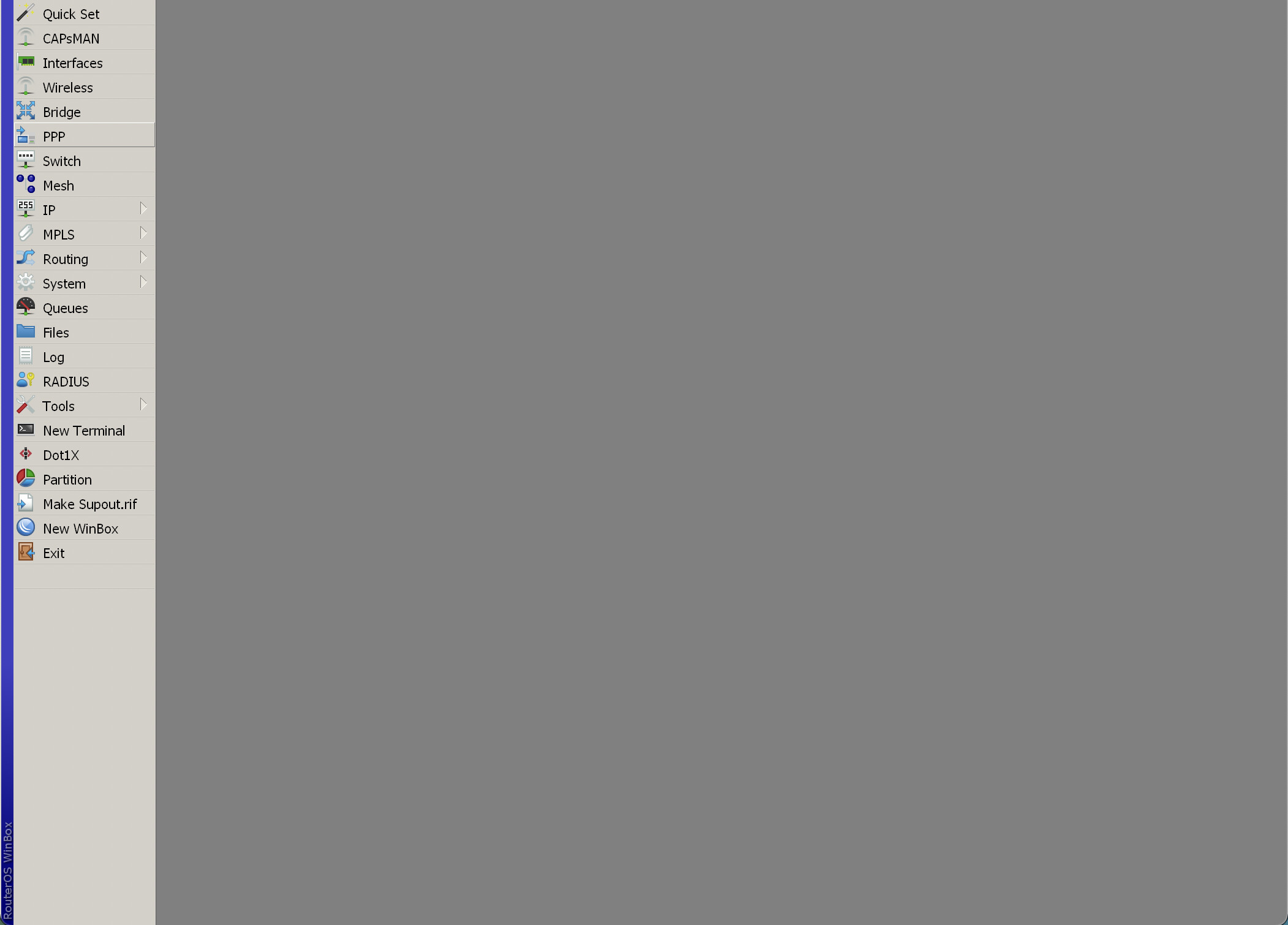

Screenshot 2021-10-10 at 10.50.04.png
