wireless implementation with vrf

RouterOS Forwarding Protocols
1

Hi ppl.

Searching the forum i had found info about vrf implementation. Ive been trying to apply many examples to my case which i expose here.
My goal is to make that every CE lan reach the CE1 lan only. The wireless transport is the difference with other examples, becasue i linked a wlan card for every CE on the network. Im not a big expert in dynamic protocols, but i think i can follow instructions.

Any suggestion..?

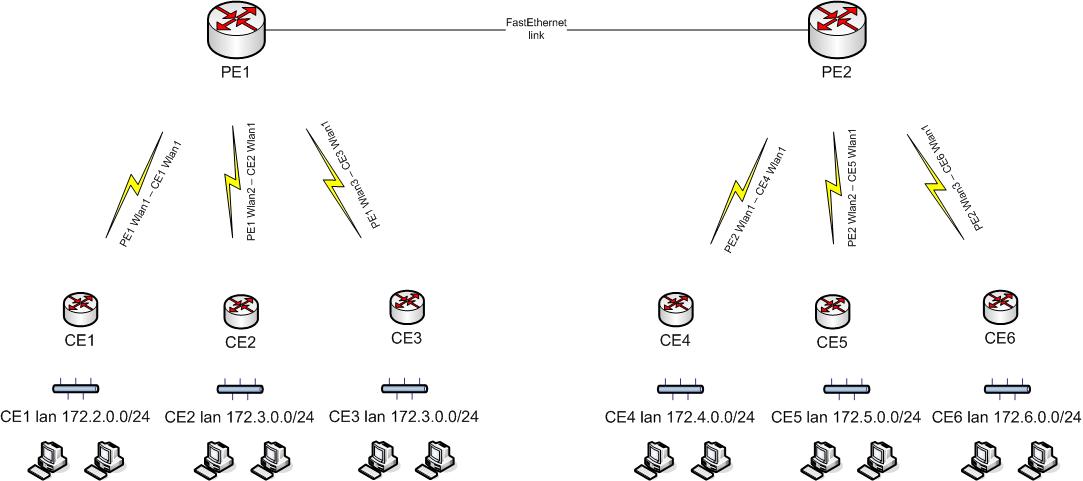

diseño vrf sobre wireless.jpg

2

You don’t need VRFs in this setup.
Easiest way is to add proper routes so that all routers know how to reach CE1 lan and set up firewall rules that drops communication between all other lans.

3

Hi ppl.

@mrz - In the future there’s a big chance of overlapping prefixes. So besides i need to avoid main routing table used. That’s why i choose VRF. MPLS/VPLS dont work at L3.


Best regards
