Wirless Managemnt On VLAN and Pass All vlans

RouterOS General
1

Hi i have mikrotik Wiless link that Uplink on 2 switch cisco

So i want Bridge link pass all VLAn on trunk
is work

My problem is Only see Radios Ap and Client On VLAN 1 Native VLAN

I want See Radios For example On vlan 100

And the Trunk Cross all VLan

If tage vlan 100 on WLAN interface Trunk Disconnect

2

Can you post a diagram?

3

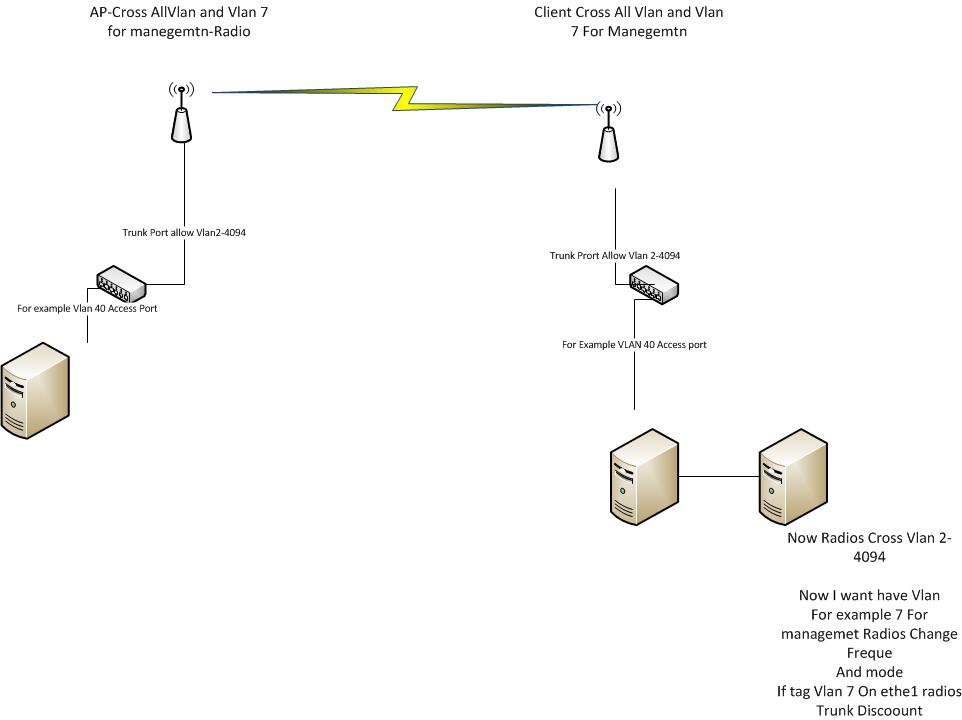

Hi Dear I post Visio For my toplogy

4

So you already created a vlan interface.
Put this on the bridge, not on physical ports. Then add an appropriate ip address to that vlan interface.

Or enable vlan filtering on your bridges, create all allowed vlans for these and their tagged port mappings for both physiical interfaces (ether and wlan) and set your bridge pvid to your desired vlan (and adjust the IP address of course).

-Chris

5

Let see config of AP
/export hide-sensitive file=myapconfig
