Hi, I’ve bought RBSXTR&R11e-LTE and I want to collect data about it with Zabbix.
With just Zabbix template for Mikrotik, he collect few items just. I want it to get RSRP and SINR and volumen used by it.
Have someone tried to add it to the template, or created/found a template for Zabbix collecting data above?
Forum thread’s about this:
Global var empty when scripting, but exist in terminal. [SOLVED]
Remote monitoring of 4g RB SXT LTE6 routers
Mikrotik LTE adaptor SNMP results inconsistent
For now I not collect that info to Zabbix and not have a template. We can do it. I use a R11e-LTE6 and by SNMP OID we can grab info and put graph’s.
# enable SNMP Engine
snmp/set enabled=yes
# search OID ID of lte1 interface
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.14.1.1.2
Columns: OID, TYPE, VALUE
OID TYPE VALUE
1.3.6.1.4.1.14988.1.1.14.1.1.2.1 octet-string ether1
1.3.6.1.4.1.14988.1.1.14.1.1.2.2 octet-string lte1
1.3.6.1.4.1.14988.1.1.14.1.1.2.4 octet-string l2tp-out1
# SINR
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16.1.1.7
1.3.6.1.4.1.14988.1.1.16.1.1.7.2 integer 6
# RSRP
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16.1.1.4
1.3.6.1.4.1.14988.1.1.16.1.1.4.2 integer -100
# RSRQ
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16.1.1.3
1.3.6.1.4.1.14988.1.1.16.1.1.3.2 integer -8
# RSSI
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16.1.1.2
1.3.6.1.4.1.14988.1.1.16.1.1.2.2 integer -79
# Current Cell ID
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16.1.1.5
1.3.6.1.4.1.14988.1.1.16.1.1.5.2 integer 2851360
General
tool/snmp-walk address=127.0.0.1 oid=1.3.6.1.4.1.14988.1.1.16
Columns: OID, TYPE, VALUE
OID TYPE VALUE
1.3.6.1.4.1.14988.1.1.16.1.1.2.2 integer -81 > rssi
1.3.6.1.4.1.14988.1.1.16.1.1.3.2 integer -9 > rsrq
1.3.6.1.4.1.14988.1.1.16.1.1.4.2 integer -100 > rsrp
1.3.6.1.4.1.14988.1.1.16.1.1.5.2 integer 2851360 > current-cellid
1.3.6.1.4.1.14988.1.1.16.1.1.6.2 integer 9
1.3.6.1.4.1.14988.1.1.16.1.1.7.2 integer 6 > sinr
1.3.6.1.4.1.14988.1.1.16.1.1.8.2 integer 11138 > end-id
1.3.6.1.4.1.14988.1.1.16.1.1.9.2 integer 32 > sector-id
1.3.6.1.4.1.14988.1.1.16.1.1.10.2 integer 11009 > lac
1.3.6.1.4.1.14988.1.1.16.1.1.11.2 octet-string 356662100257465 imei
1.3.6.1.4.1.14988.1.1.16.1.1.12.2 octet-string 260121000490483 imsi
1.3.6.1.4.1.14988.1.1.16.1.1.13.2 octet-string 8948121010004904830 uicc
1.3.6.1.4.1.14988.1.1.16.1.1.14.2 octet-string LTE (CA2) > access-technology
I haven’t even noticed I’ve commented on someone else post… You’re the best, thanks for helping
Great! I’ll try to work on it. For now, I ll just add items by GUI to the existing preinstalled template on Zabbix for MikroTik
Figuring out what “key” means, but I’m a fast learner, 2 hours ago there was no way that I collect mib from the device
in the context of snmp checks, the key can be whatever you want. its just a way to uniquely identify the item. as an example, heres how i do my snmp check for system uptime:
snmp oid = iso.org.dod.internet.mgmt.mib-2.system.sysUpTime.0
key = sysUpTime
now in the triggers, i can refer to this item as {HOSTNAME}.sysUpTime. i might want to send myself an alert when “{{HOSTNAME}.sysUpTime.last(0)}<500”.
ps: {HOSTNAME} is a variable that holds the hostname of the device were talking about.
nvm got it, i ll continue to work and update You as i got something working
Idk can it differ by the module (my device has 2 sim slots working on 1 module, so it can’t go with 2 simmitunisly), but I’ve look up for uid with Paessler SNMP tester, and it turnes out my RSRP is at 1.3.6.1.4.1.14988.1.1.16.1.1.4.1, when your seems ot be with 2 at the end
#RSRP
01.10.2021 13:21:39 (8245 ms) : 1.3.6.1.4.1.14988.1.1.16.1.1.4.1 = "-103" [ASN_INTEGER
#RSRQ
01.10.2021 13:21:39 (8237 ms) : 1.3.6.1.4.1.14988.1.1.16.1.1.3.1 = "-13" [ASN_INTEGER]
#SINR
01.10.2021 13:21:39 (8279 ms) : 1.3.6.1.4.1.14988.1.1.16.1.1.7.1 = "5" [ASN_INTEGER]
Of course correct me if i’m wrong, i’m newbie, and you’re expert here
Done with gui
And you finish or you plan monitor some more ?
Probably after some reboots etc. the OID will change and best way will be to use a Detection in Zabbix to fix OID.
I will try to collect how much data have modem used, would be nice to know when I’m close to run out of data on SIM cards.
I have no clue how to use detection in Zabbix, gonna lookout for it on the web.
Urfonutley, the problem occurred, one of the modems didn’t report Zabbix data how it should…

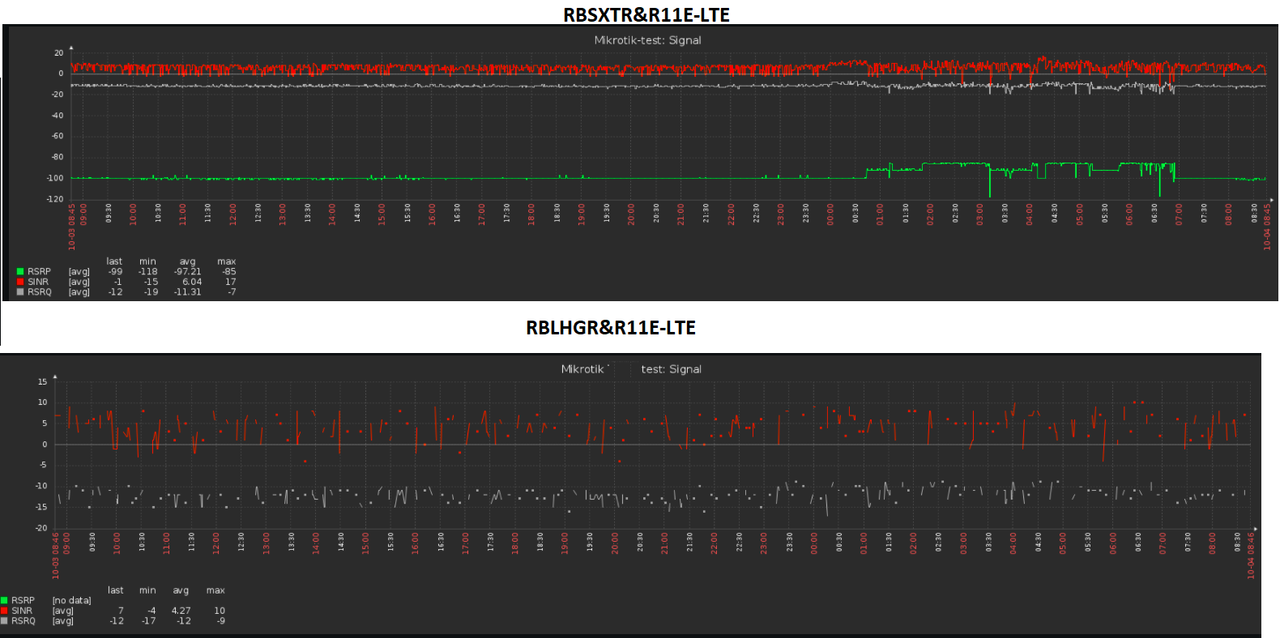

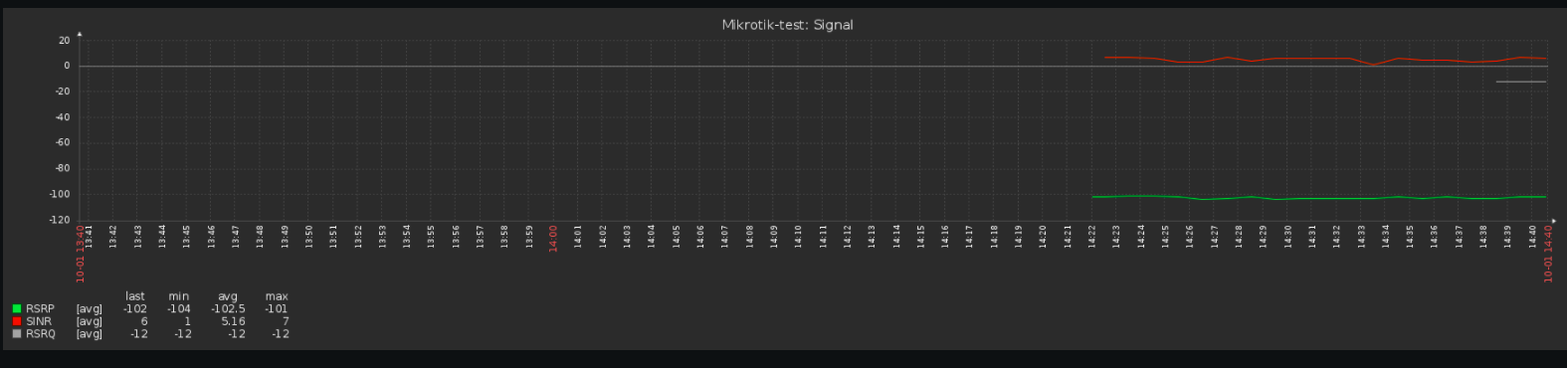

Might it be a hardware problem, or do I have to change something in WinBox? The problem as You can see is with reporting data simultaneously, and with RSRP at all (OID is correct, I’ve checked it with the app)
Go to template, export it and attach here. I can try monitor few my units and give feedback too
You can add to this graph a ping of host be see if this host not have lost package.
Thanks a lot for Your help, that’s invaluable help for me
zbx_export_templates_hardware_mikrotik_RB110AH.xml (76.6 KB)
Hi,
Have You come out with a solution on how to get usage of data by sim?
BTW. Is Zabbix totally free? or there are device limitations that you can manage with free version of Zabbix.
Zabbix is an enterprise-class open source distributed monitoring solution.
Zabbix is free of cost. Zabbix is written and distributed under the GPL General Public License version 2. It means that its source code is freely distributed and available for the general public.
Commercial support is available and provided by Zabbix Company and its partners around the world.
https://www.zabbix.com/documentation/5.0/manual/introduction/about
