7.24rc [testing] is released!

Before an upgrade:

  1. Remember to make backup/export files before an upgrade and save them on another storage device;
  2. Make sure the device will not lose power during upgrade process;
  3. Device has enough free storage space for all RouterOS packages to be downloaded.

What's new in 7.24rc2 (2026-Jul-10 11:58):

  • ! fixed a service security issue, home user with default config not affected, but we recommend the upgrade for all users regardless;
  • bridge - fixed MLAG MAC address handling issues related to aging, flushing and moving (additional fixes);
  • certificate - added "ISRG Root X2", "Root YE" and "Root YR" to SMIPS built-in root certificate authorities store;
  • certificate - added "Root YE" and "Root YR" to built-in root certificate authorities store;
  • dhcpv4-server - fixed "expires-after" field for disabled static lease (introduced in v7.23);
  • dns - fixed an issue where the resolve command was not functional when the "type" was specified (introduced in v7.24beta2);
  • fastpath - properly fall back to SlowPath when FastPath is not possible due to fragmentation;
  • ipsec,ike2 - use peer certificates also when identity has one set for peer matching;
  • l3hw - allow VLAN tagged traffic inside VXLAN tunnel (additional fixes);
  • netinstall - added Netinstall package (additional fixes);
  • snmp - added WiFi current channel "mtxrWifiInterfacesCurrentChannel" OID to MIKROTIK-MIB;
  • snmp - improved SNMPv3 request processing logic;
  • ssh - make SSH packet validation more strict (additional fixes);
  • system - improved handling of data re-sending on authorization requests (introduced in v7.22);
  • system - improved stability;
  • system - updated certificate for Windows executable signing;
  • tftp - limit maximum simultaneous session count to 100;
  • usb - fixed USB Ethernet interface default-name;
  • wifi - improved roaming/steering behavior for WiFi 7 MLO (additional fixes);
  • wireguard - added support for domain names in client-dns;
  • wireguard - added warning when allowed-address overlaps with another peer on the same interface;
  • wireguard - fixed wg-export comments output and case when endpoint is not set;
  • wireguard - fixed whitespace handling in AllowedIPs during wg-import;
  • wireguard - improved wg-export to print endpoint domain name;
  • wireguard - improved wg-import to quietly ignore wg-quick specific keys;
  • wireguard - reconfigure peer only when meaningful changes are detected;

What's new in 7.24rc1 (2026-Jul-01 16:53):

  • bridge - fixed forwarding through peer-port after disabling MLAG;
  • bridge - fixed stability issue when using DHCPv4 snooping;
  • bridge - improved STP, BPDU and topology change handling with MLAG, ensure dual-connected port STP state is in sync with MLAG peer;

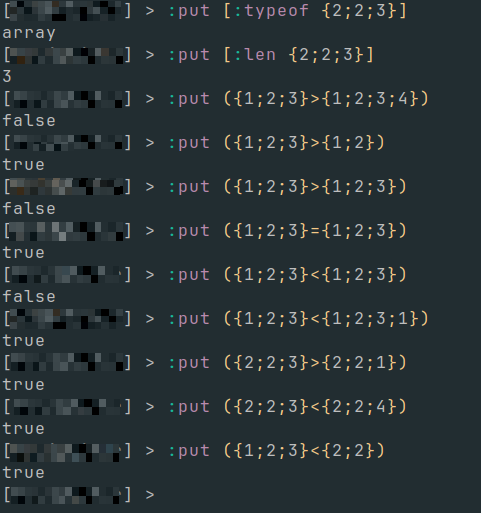

  • console - added comparison operators for array type (additional fixes);
  • console - improved script handling and error logging when running scripts from external sources (e.g. DHCP, SNMP, Netwatch, etc.) (additional fixes);
  • dhcpv4-server - set "ciaddr" in forcerenew messages so a relay, if used, can unicast such messages;
  • discovery - added "dying-gasp" feature for LLDP, MNDP, CDP that sends packet with "TTL=0" before graceful reboot/shutdown/upgrade;
  • discovery - clear neighbor entry when receiving "dying-gasp" packet;
  • l3hw - added HW offloaded VRF support on 98DX8208, 98DX8216, 98DX8212, 98DX8332, 98DX3257, 98DX4310, 98DX8525, 98DX3255, 98CX8410 switches (additional fixes);
  • l3hw - allow VLAN tagged traffic inside VXLAN tunnel;
  • l3hw - fixed VTEP offload on IPv4 /32 route changes;
  • lte - added force-confirmation parameter for eSIM provision command;
  • lte - do not query 5G neighbor cell info until RG650E-EU FW fixed;
  • lte - fixed cases where R11l-LTE7 modem would not display correct cell info after handover;
  • netinstall - added Netinstall package (additional fixes);
  • ospf - fixed stability issue during interface flaps;
  • ppp - added iccid field to ppp info command for BG77 and BG770 modems;
  • ppp - always show current FW version when running firmware-upgrade;
  • ppp - get IPv6 configuration via RA for modems using PPP emulation mode;
  • ppp - toggle radio state on interface disable/enable;
  • wifi-mediatek - improved stability during MLO channel switching;
  • winbox - do not pre-fill "Allowed Address" and "Client Allowed Address" with "::/0" when adding new WireGuard Peer;

Other changes since v7.23:

  • adlist - improved service stability when adjusting adlist configuration;
  • app - added "HF_TOKEN" env to openwebui;
  • app - added "network-outgoing-access" parameter which does not allow app to make outgoing connections;
  • app - added hermes-agent, inventree, opencloud, opencloud-extended apps;
  • app - allow "reset" even if disk not configured;
  • app - allow HTTP for Gitea when "check-certificate=no";
  • app - allow setting "working_dir" in app YAML;
  • app - changed pmacct-netflow YAML;
  • app - fixed "reset" not working with certain apps;
  • app - fixed apps not updating firewall redirects when changed in YAML;
  • app - fixed apps sometimes getting stuck on "waiting for layer";
  • app - fixed home-assistant default config files;
  • app - make secrets sensitive to avoid polluting configuration export;
  • app - only generate secrets for enabled apps;
  • app - removed healthcheck from opencloud-extended-collabora;
  • app - resolved issue where duplicate swaps are created;
  • app - show CHR's address instead of the container's;
  • app - use randomly generated secrets in new apps;
  • bfd - fixed delay on session print;
  • bgp - added option to add BGP VPLS created interfaces in interface-list;
  • bgp - fixed advertisement print handling by "dst" when destination is in VRF;
  • bgp - fixed EVPN label corruption and correct EVPN type-5 output;
  • bgp - fixed IPv6 End-of-Route processing;
  • bgp - improved stability on MP (multiprotocol) parsing;
  • bgp - improved stability when receiving malformed packets;
  • bgp - removed "save-to" from "resend" command;
  • bgp-vpn - fixed blackhole route export;
  • bridge - added "querier-uses-bridge-address" setting to use bridge source IP address for IGMP querier;
  • bridge - added DHCPv4 snooping IP binding table;
  • bridge - added scheduling point during VLAN processing to prevent soft lockups when flushing FDB over large VLAN ranges;
  • bridge - fixed local static host entries;
  • bridge - fixed MLAG MAC address handling issues related to aging, flushing and moving;
  • bridge - fixed stuck MLAG session when using mismatched L2MTU (introduced in v7.23);
  • bridge - improved bridge and port STP "priority" setting (warn when a non-compliant value is used and allow selecting a value from a list);
  • btest - added VRF support for bandwidth-test and speed-test;
  • certificate - added "acme-renew" command;
  • certificate - always use all trust stores for downloaded CRL validation;
  • certificate - general improvements in certificate handling;
  • certificate - use AES encryption when exporting certificates in PKCS#12 format;
  • console - added "days" to scheduler;
  • console - added "in" and "has" operators for array types;
  • console - added "order-by" parameter to "print" command, allowing sorting by up to three arguments in ascending or descending order;
  • console - added log tracing when scripts fail to start due to permissions;
  • console - do not terminate self-removing scripts;
  • console - fixed "print follow on-event" script runner command not showing all argument values in some cases;
  • console - fixed argument mappings in "do" block for monitor commands;
  • console - fixed proplist order in monitor commands;
  • console - fixed script import/export with empty "policy" setting;
  • console - fixed stability issue in full-screen editor;
  • console - fixed UTF-8 comparisons on some architectures;
  • console - improved "print detail" mode;
  • console - make "mac-auth-password" sensitive in "/ip/hotspot/profile";
  • console - make "password" sensitive in "/system/package/local-update/mirror";
  • console - produce runtime errors for bad command parameters;
  • console - prompt about and offer to stop already existing serial terminal session when opening new one;
  • console - renamed "address" to "available-from" in "/ip/service" (backwards compatible via deprecation);
  • console - renamed "reauth-timeout" to "reauth-period" in "/interface/dot1x/server" (backwards compatible via deprecation);
  • console - restrict editing comments in WiFi registration table;
  • container - added "save" command to allow saving container images;
  • container - added "swap-current" usage;
  • container - added "swap-max" global and per-container limit;
  • container - added ability to run containers in privileged mode;
  • container - added initial support for RKE2;
  • container - do not allow starting with empty default DNS list and no DNS override;
  • container - do not print environment variables in log on container startup;
  • container - fixed "start-on-boot" not retrying on certain startup errors;
  • container - fixed container "devices" override to appear under "/dev";
  • container - fixed missing config.json issue when upgrading from version 7.20.8 or older;
  • container - improved layer size calculation to avoid potential loops;
  • container - improved support for containers;
  • container - reduced writes to flash when running health check;
  • container - use env "TERM=xterm" if no TERM variable provided when running shell;
  • defconf - set "configuration.dtim-period=3" for WiFi;
  • defconf - use "add-dns-entries=yes" on devices with DHCP server;
  • dhcp - fixed processing of DHCP options that are longer than 255 bytes;
  • dhcpv4-relay - fixed stability issue when creating duplicate relays;
  • dhcpv4-server - do not reset "class-id" parameter when lease loses "bound" status;
  • dhcpv6-relay - fixed non-working relay when adding from WinBox;
  • dhcpv6-server - fixed invalid flag;
  • discovery - added "address6" column to default "/ip/neighbor" print view;
  • discovery - added "discovery" logging topic;
  • discovery - improved service stability when sending discovery packets on interfaces that have hundreds of IP addresses;
  • disk - added "last-seen" property that displays disk model and serial when removed;
  • disk - added "raid-scrub-cancel" command;
  • disk - added error message when disk state transitions from good to bad;
  • disk - do not consider USB drives as self-encryption capable;
  • disk - fixed "smart-info" not showing information on certain storage devices;
  • disk - limited maximum swap size to be no more than 10x of device RAM;
  • disk - resolved issue where storage device may change information upon reboot;
  • ethernet - fixed stability issue for Chateau PRO ax devices;
  • ethernet - fixed stability issue for devices with Alpine CPU;
  • ethernet - removed "1G-baseT-half" link mode on RTL8367 switch;
  • fetch - added "ip-type" parameter;
  • fetch - added option to force HTTP/2 only (only for ARM64 and x86/CHR devices);
  • fetch - fixed false "bad request" response when trying to fetch URL with IPv6 address in it;
  • fetch - hint file list for "src-path" and "dst-path" parameters;
  • hardware - renamed "max-power" to "manufacturer-reported-max-power";
  • interface - fixed duplicate MAC warning for wireless, wifi, macsec, w60g interfaces (introduced in v7.23);
  • iot - added LoRa keep alive logic for UDP protocol;
  • iot - added missing LoRa US radio plans;
  • iot - added Wiliot USB dongle support;
  • iot - allow maximum Modbus "timeout" property to 10 seconds;
  • iot - monitor LoRa worker state (watchdog);
  • iot - pass Wiliot certification;
  • ip-service - remove reverse-proxy for SMIPS;
  • ip-service - show service name for "l2tp";
  • ipsec - fixed policy move handling;
  • ipsec,ike1 - fixed negotiated PFS validation;
  • ipsec,ike2 - fixed active connection termination;
  • ipsec,ike2 - fixed SA payload validation;
  • ipsec,ike2 - improved KE generation validation during initial setup and child SA creation;
  • ipsec,ike2 - improved logging when remote ID is specified;
  • ipsec,ike2 - improved pending child SA cleanup and removal of dangling SAs during Phase 2 deletion;
  • ipsec,ike2 - improved PPK handling by always using it when authorized, including additional Child SAs, and moved PPK processing to the Child SA task;
  • ipsec,qkd - moved QKD to "/system/keymat-provider" menu and made it a generic key material provider;
  • ipv6 - added "status" column to default "/ipv6/neighbor" print view;
  • ipv6,ra - changed default "router-advertisement-route-distance" to 1;
  • ipv6,ra - correctly process RAs advertising previously expired prefix;
  • ipv6,ra - fixed prefix invalidation;
  • ipv6,ra - use lowest value between IPv6/Pool and IPv6/ND/Prefix/Default as dynamic prefix lifetime;
  • isis - fixed missing "l2.lsp-refresh-interval" parameter;
  • l2tp - allow fragmentation of large IPv6 packets;
  • l3hw - added HW offloaded support for VLAN interfaces created directly on Ethernet for CRS8xx series switches;
  • leds - added dark mode support for L009, hAP ax2, hAP ax3, hEX refresh, hEX S (2025), hAP ax S and Chateau ax devices;
  • leds - fixed missing wireless LED configuration (introduced in v7.21);
  • leds - improved interface stats activity for devices with Marvell Prestera switch chip;
  • lte - cap IPv6 prefix lifetime for ipv6-interface;
  • lte - do not add extra /128 IPv6 address for ipv6-interface;
  • lte - enabled AT registration unsolicited event reporting for EG25-G and EC25-EU boards;
  • lte - fixed cases where EC25-EU and EG25-G boards would receive packets with missing last 4 bytes;
  • lte - fixed EC/IO scale in CLI and GUI;
  • lte - fixed EC25-EU, EG25-G traffic to 67 UDP;
  • lte - fixed IPv6 RA handling for multiapn non-primary interface;
  • lte - fixed third-party modems ICCID decoding for eSIM;
  • lte - improved Cinterion PLS8-E roaming;
  • lte - improved deregistration handling for AT modems;
  • lte - improved system stability when no APN specified;
  • lte - limit IPv6 prefix lifetime only when lifetime is advertised as infinity;
  • lte - make modem MAC persistent for R11e-LTE6 and R11l-LTE7 modems;
  • lte - remove site local DNS for ipv6-interface;
  • lte - removed extra restart after firmware upgrade for EC200A-EU modem;
  • lte - report short cell ID in 3G network mode also for AT modems;
  • lte - restrict incoming calls for FG621-EU;
  • lte - show "+CME ERROR: 10" as "SIM not present";
  • lte - show "data-class" in LTE monitor instead of "access-technology" also for 5G AT modems;
  • lte - show "primary-band" instead of "earfcn" in LTE monitor also for modems without CA support;
  • lte - show RSCP and EC/IO parameter in 3G network mode for R11e-LTE6, R11l-LTE7 and FG621-EA modems;
  • mesh - fixed missing FDB entries from wireless ports;
  • mpls - added ICMP time exceeded handler for IPv6;
  • mpls - make FastPath work with expl-null;
  • netinstall - improved architecture detection;
  • netinstall-cli - added "help" parameter;
  • netinstall-cli - added "reboot" and "shutdown" flags to control reboot after installation;
  • netwatch - fixed an issue with DNS probe "timeout" parameter;
  • netwatch - fixed HTTP GET probe over IPv6;
  • netwatch - fixed inaccurate "rtt-stdev" value;
  • netwatch - fixed issue where ICMP probes did not accept TTL exceeded packets when "accept-icmp-time-exceeded" was enabled;
  • netwatch - increased maximum packet size to 65535;
  • ospf - allow comments on static interfaces;
  • ospf - fixed interface passive flag update in WinBox;
  • ospf - force passive for VRF interface;
  • pim - added comment for "/routing/gmp" entries;
  • pimsm - make "hash-mask-length" parameter naming consistent and fixed typos;
  • poe-in - added PoE-in monitoring and LLDP-based PoE negotiation support for newer devices (e.g. CRS504, CRS510, hEX S 2025, hAP be3 Media);
  • poe-out - firmware update for 802.3at capable boards (the update will cause a brief power interruption to poe-out interfaces);
  • poe-out - firmware update for 802.3bt capable boards (the update will cause a brief power interruption to poe-out interfaces);
  • ppp - added "MT-Address-List" to IPv6 address list when received from RADIUS and using DHCP for IPv6 configuration;
  • ppp - disable/enable modem radio state depending on ppp interface state;
  • ppp - fixed cases where BG77 or BG770 firmware upgrade was not available;
  • ppp - fixed ppp-out stability issue;
  • ppp - improved "info" command for BG77 and BG770 modems;
  • ppp - improved OVPN underlying SSL connection management;
  • ppp - only show pin in export with "show-sensitive" flag;
  • ppp - report actual network data usage statistics instead of "0" for all IPv6 RADIUS accounting parameters on accounting "Stop" packet;
  • queue - fixed "undo" command for simple queues;
  • rip - do not export authentication keys by default;
  • route - allow to add route with link-local destination address;
  • route - fixed memory leak when flapping addresses or interfaces with routing protocols running;
  • route - fixed potential race condition;
  • route - fixed static route flag handling by WinBox on disable;
  • route - respect the "interface" property when pinging IPv6 addresses over ECMP;
  • routerboard - renamed "ipq53xx" firmware type to "ipq5300";
  • sfp - fixed linking for hAP ax S and hEX S (2025) with "1G-baseX" link-mode;
  • sfp - removed unsupported "2.5G-baseX" speed on CRS312-4C+8XG and CRS326-4C+20G+2Q+;
  • sftp - fixed branding package upload;
  • sms - added some GSM7 symbols to SMS tool;
  • ssh - added mlkem768x25519-sha256 key exchange support;
  • ssh - do not attempt automatic empty password login when RADIUS is used;
  • ssh - fixed SSH tunnel with IPv6 link-local address on non-ethernet interfaces;
  • ssh - make SSH packet validation more strict;
  • supout - added interface monitor-traffic;
  • supout - added LTE eSIM section;
  • switch - fixed IEEE reserved MAC handling for CRS1xx, CRS2xx switches;
  • switch - increase "ingress-rate" and "egress-rate" maximum value to 400G;
  • system - renamed "factory-software" to "minimum-version" and "factory-firmware" to "minimum-firmware";
  • system - restrict RouterOS processes using swap;
  • system - show who is using "/system serial-terminal";
  • traffic-generator - fixed injecting pcap/pcapng files on MIPSBE architecture;
  • tunnel - fixed stability issue caused by a misconfigured routing loop under bridge (introduced in v7.22);
  • upgrade - prevent package scheduling from interfering with the upgrade feature;
  • vpls - added transmit loop detection;
  • vrrp - added "v3-checksum-as-v2" setting;
  • vrrp - fixed stability issue when "sync-connection-tracking" is enabled;
  • vxlan - fixed missing L2MTU property when VRF is specified;
  • vxlan - ignore disabled interfaces when checking for configuration conflicts;
  • webfig - fixed issue with increasing keep-alive traffic;
  • webfig - improved underlying encryption and stability processing;
  • webfig - improvements to graphs;
  • wifi - added "Preamble Puncturing" under "WiFi/Channel" menu;
  • wifi - added dash when CAPsMAN generates interface name and prefix ends with digit;
  • wifi - improved roaming/steering behavior for WiFi 7 MLO;
  • wifi - improved stability;
  • wifi - improved station-bridge mode;
  • wifi - updated radio regulatory information;
  • wifi - upgraded wifi-qcom driver;
  • wifi-mediatek - fixed broken interfaces on startup;
  • wifi-mediatek - fixed some channel definitions for certain countries;
  • wifi-mediatek - improved channel switching;
  • winbox - added "Network" configuration menu for WiFi;
  • winbox - added "Preferred Architecture" setting for L009;
  • winbox - added "SIM PIN" under "Tools/SMS";
  • winbox - added missing values to "AFI" setting under "Routing/BGP" menus;
  • winbox - fixed "Connection Bytes" field under "IP/Firewall" menu;
  • winbox - fixed "EC/IO" scaling for LTE interface;
  • winbox - fixed "Use Ipsec" and "Ipsec Secret" under "Interfaces/L2TP Ether" menu;
  • winbox - fixed empty value in "Immediate Gateway" under "IP/Routes" menu;
  • winbox - fixed sort for "Address List" under "IPv6/Firewall" menu;
  • winbox - fixed value unset under "MPLS/LDP Neighbor" menu;
  • winbox - make LoRa "Auth key" and MQTT "Password" sensitive;
  • winbox - move "EAP" under "Security" tab for WiFi;
  • winbox - show "Any. Port" column by default under "IP/Firewall" menu;
  • winbox - show preferred and valid lifetime of IPv6 address also on static IPs;
  • winbox - show priority bits in "VLAN ID" field under "Tools/Packet Sniffer" menu;
  • wireguard - fixed peer recreation on interface change;
  • x86 - fixed IRQ displaying per CPU on Intel 700 series NIC;

To upgrade, click Check For Updates under System/Packages menu and select the testing Channel in RouterOS configuration interface, or head to our download page: http://www.mikrotik.com/download

  • Everything went smoothly
  • I encountered an issue after the update (please post about the device, configuration, and unexpected symptoms)
  • I encountered an issue, but solved it (please post the solution)
0 voters

If you experience version related issues, then please send supout file from your router to support@mikrotik.com. The file must be generated while a router is not working as suspected or after some problem has appeared on the device

Please keep this forum topic strictly related to this particular RouterOS release.

Will you finally explain this? Array can't be more or less than other array. They can only be equal or not equal.

I would like to see a documentation on this as well. But there are other languages where you can do such a comparison. One approach I know is: compare first item of A with first item of B, second item of A with second item of B, and so on. It may be even what Mikrotik has implemented.

Seems like this was fixed: V7.24beta [development] is released! - #155 by CGGXANNX

Is there any documentation about limitations and process for configuration? Right now the docs are all "VRF no support".

Thanks. Though, for me such kind of comparison looks strange.

Especially thing like that:

[admin@MyIdentity] > :put ({"a";"b";"c"} > {"A";"b";"c"})
true

https://en.cppreference.com/cpp/language/ascii

A => 65
a => 97

Yes. And sometimes it can be useful for multi-column sorting (but I doubt sorting is really needed in our RouterOS scripts). Or maybe date comparison ({2026; 7; 2} vs {2024; 12; 31} if we don't want to first convert the components to timestamp.

And apparently it can be used as trick to compare text order:

(it also looks like <= and >= are not supported to compare arrays).

And can be abused to do multiple comparisons without using && (but probably bad for performance, because memory needs to be allocated each time):slight_smile:

Yes, I understand the logic, just said it's kind of weird comparison.

l3hw - allow VLAN tagged traffic inside VXLAN tunnel;

Does this mean that QinQ VLAN traffic can finally be transported in VXLAN (in L3HW)???

The array compare was required for this:

  • console - added "order-by" parameter to "print" command, allowing sorting by up to three arguments in ascending or descending order;

Some counters are array type, e.g. Ethernet stats. If you want to "order-by" these counters, you need to have an array compare functionality.

Just an example, you can print Ethernet stats and sort them by most packets received on CPU (driver-rx-packet) in descending order.

This was the primary motivation/use-case for the array compare functionality.

[test@SwitchRack] > :put [:typeof [/interface/ethernet/get ether1 value-name=driver-rx-packet]]
array
[test@SwitchRack] > :put [:len [/interface/ethernet/get ether1 value-name=driver-rx-packet]]
1
[test@SwitchRack] > interface/ethernet/print stats order-by=-driver-rx-packet where running
                   name:        ether1          ether7          ether4      ether8      ether2      ether3     ether24      ether9     ether10      ether5      ether6
         driver-rx-byte:   386 525 951      16 256 104      16 110 200  16 591 345  16 761 132  16 468 913  17 015 795  16 654 006  16 099 007  15 411 290  15 899 596
       driver-rx-packet:     2 240 772          85 023          82 965      82 364      82 286      82 135      81 822      81 188      79 592      79 028      78 792
         driver-tx-byte:   649 113 767      28 578 815      29 694 275  29 675 769  29 580 864  29 556 460  29 306 145  28 949 485  28 738 603  29 915 086  29 336 024
       driver-tx-packet:       618 577         323 804         344 354     344 327     343 158     342 754     335 824     333 096     329 051     344 446     335 349
               rx-bytes: 1 987 766 795     312 954 688     806 619 125 279 801 766 863 240 599 385 486 701 220 778 910 162 936 235  98 165 941  59 980 017  52 480 417
           rx-too-short:             0               0               0           0           0           0           0           0           0           0           0
            rx-too-long:             0               0               0           0           0           0           0           0           0           0           0
             rx-unicast:     4 745 471         875 458       1 136 236     455 924     916 913     562 949     429 232     304 555     193 987     112 211      97 372
           rx-broadcast:       599 872          19 267          18 595      19 048      19 929      19 429      19 200      19 134      18 356      18 537      18 305
               rx-pause:             0               0               0           0           0           0           0           0           0           0           0
           rx-multicast:     1 370 287          57 085          55 257      55 264      54 670      54 875      54 871      54 268      53 654      52 980      52 959
        rx-error-events:             0               0               0           0          14           0           0           0           0           0           0
           rx-fcs-error:             0               0               0           0           0           0           0           0           0           0           0
            rx-fragment:             0               0               0           4           0           0           0           0           0           0           0
            rx-overflow:             0               0               0           0           0           0           1           0           0           0           0
              rx-jabber:             0               0               0           0           0           0           0           0           0           0           0
               tx-bytes: 3 838 713 331     660 802 859     701 330 838 625 009 333 886 425 404 624 350 316 586 116 131 571 398 935 543 070 818 550 060 290 529 101 746
              tx-packet:     6 168 551       3 390 009       3 489 171   2 930 034   3 212 420   2 921 517   2 876 484   2 775 244   2 685 365   2 663 815   2 620 582
             tx-unicast:     5 564 596         921 246         970 680     412 159     698 713     407 879     373 905     282 183     198 123     142 687     118 584
           tx-broadcast:       202 736         760 385         802 201     801 827     799 634     798 834     787 460     779 530     772 190     802 695     784 802
               tx-pause:             0               0               0           0           0           0           0           0           0           0           0
           tx-multicast:       401 219       1 708 378       1 716 290   1 716 048   1 714 073   1 714 804   1 715 119   1 713 531   1 715 052   1 718 433   1 717 196
            tx-underrun:             0               0               0           0           0           0           0           0           0           0           0
           tx-collision:             0               0               0           0           0           0           0           0           0           0           0
      tx-late-collision:             0               0               0           0           0           0           0           0           0           0           0
               tx-rx-64:       393 566         287 275         326 639     324 694     323 071     322 038     310 451     302 662     294 380     323 778     306 084
           tx-rx-65-127:     5 402 819       1 259 742       1 188 770     481 724     625 397     470 320     506 272     365 349     260 758     168 846     148 923

The same limitations as in main table apply, and fasttrack/NAT/vxlan offload is limited only to main table.

There are no special configuration steps required. If you have routes in VRF, and out-interface is L3HW capable (ethernet, bond, bridge, VLAN) the switch will route the packet.

Thanks for the docs reminder, it will get updated soon.

NetInstall package sounds great, but please add an option to install a branding package.

Yes, I believe so.

But just like non-vxlan bridge, it only works with outer tag, you cannot modify or filter by the inner tag. And untagged/tagged traffic over VXLAN in L3HW at the same time is not supported.

Cool!

  • Will the VRF info eat into available TCAM slots?
  • Is the number of VRFs limited lower than the global system limit of 1024?
  • Will all routing tables with FIB enabled get offloaded, or just VRFs?

RouterOS upgrade 7.23.1 to 7.24.rc1 kernel error

RB5009UPr+S+

Automatic supout.rif file generated due to service malfunction, please contact MikroTik support and supply the generated file

SUP-219054

Downgrade to 7.23.1 and system restore backup.

@CGGXANNX

I'm still observing rogue "/app" entries in my export (even though I've never touched App feature) along with unwanted phantom/increased flash/nand writes after running /exporton my RB5009. Can you still confirm same?

Very sad, even after this has been reported multiple times, weeks ago...

Yes, I have them too. It's probably remnants from the incremental upgrades through the buggy versions. Since 7.23beta3 you can run /app reset ... on them once (*) and the entries will be gone for good from export (even /export show-sensitive). But running /app reset ... on the entries will cause some folders to be created under app on the file system. But those folders can also be manually deleted (and will not come back).

Afterwards the upgrade from 7.23beta3 to 7.24rc1 does not bring the export entries back.

A device upgrading from 7.23.1 to 7.24rc1 have a few bogus entries, but /app reset ... works for removing them too.

If I perform a "Reset Configuration" on a device with 7.24rc1 & container package installed, then after the reset /export show-sensitive shows nothing for /app.

Which means the bug is fixed, but RouterOS cannot correct existing configurations, you'll have to clean the old /app entries yourself.

(*) If you are lazy, instead of a dozen individual /app reset ... commands, you can do a

/app reset [find]

once, but be prepare to see a lot of stuff in the log, and plenty of subfolders created on the storage under app (that you can delete aftewards).

Thanks for this, indeed that rids me of the /app entries being exported erroneously!

However, I'm still seeing increased flash/nand/disk writes for unknown reason, on the order of several hundred sectors if I wait several minutes between executing /export several times.

I tracked my "normal" write behavior on this RB5009 for the past month or so on 7.23.1, it averaged out to around 200 sector writes per day, total.

I'm confused as to why /export would need to write anything, ever, unless I tell it to dump to a file...

Is there any manual on how to use the new /interface/wifi/network menu?

I am having an issue with the MLO configuration via CAPsMAN (MLO works great in standalone configuration on the hAP be lite). When I try to connect a Wi-Fi 7 device to the MLD interface, it always gets stuck on the "Obtaining IP address..." step.

Could the new Network menu help with this issue?

Never mind, found the issue. There was no MLD Datapath on the CAP (hAP be lite), but now MLO is fully working with CAPsMAN.
