That is always a trade-off. Easily removable antennas would make it impossible to pass homologation in some places.
Remember this is how the RP-SMA was invented: WiFi manufacturers wanted to have removable antennas for production and shipping efficiency reasons, but had to do something so users could not connect larger or external antennas. So make a difficult-to-obtain connector. Of course the market will arrange that those connectors will become commonly available.
The DIY solution is to mount switch's rack ears turned by 90deg and then use them to mount the device vertically to the left/right side panel what lets set antennas stright up.
The problem you’re trying to solve is to design a 4-channel antenna system for the 2.4 GHz Wi-Fi band and a 4-channel antenna system for the 5 GHz Wi-Fi band—without any special knowledge or equipment.
The best solution, since you’ve already purchased this rare device, is to place it on top of the case and use the built-in antennas. Alternatively, you can disable its Wi-Fi and use it as a regular switch, while using a separate device for Wi-Fi.
Although you didn’t specify the area you need to cover, if it’s 10 square meters, you can do whatever you want.
For the exhibition, it’s best to buy an enterprise-grade Wi-Fi device, such as a used Ruckus. SOHO-grade Wi-Fi devices don’t work well in crowded areas.
Be practical about this.
Have been using Ruckus where I can since ... I do not remeber. Do not know what WiFi glitches mean. Had CAPSMAN installations but it was a pain comparing to Unleash self configuring, self healing network.
Used WiFi 5 devices you can find for a dozen bucks. Worth trying even if you to decide trash them out.
I spent quite some time trying to find a practical solution.

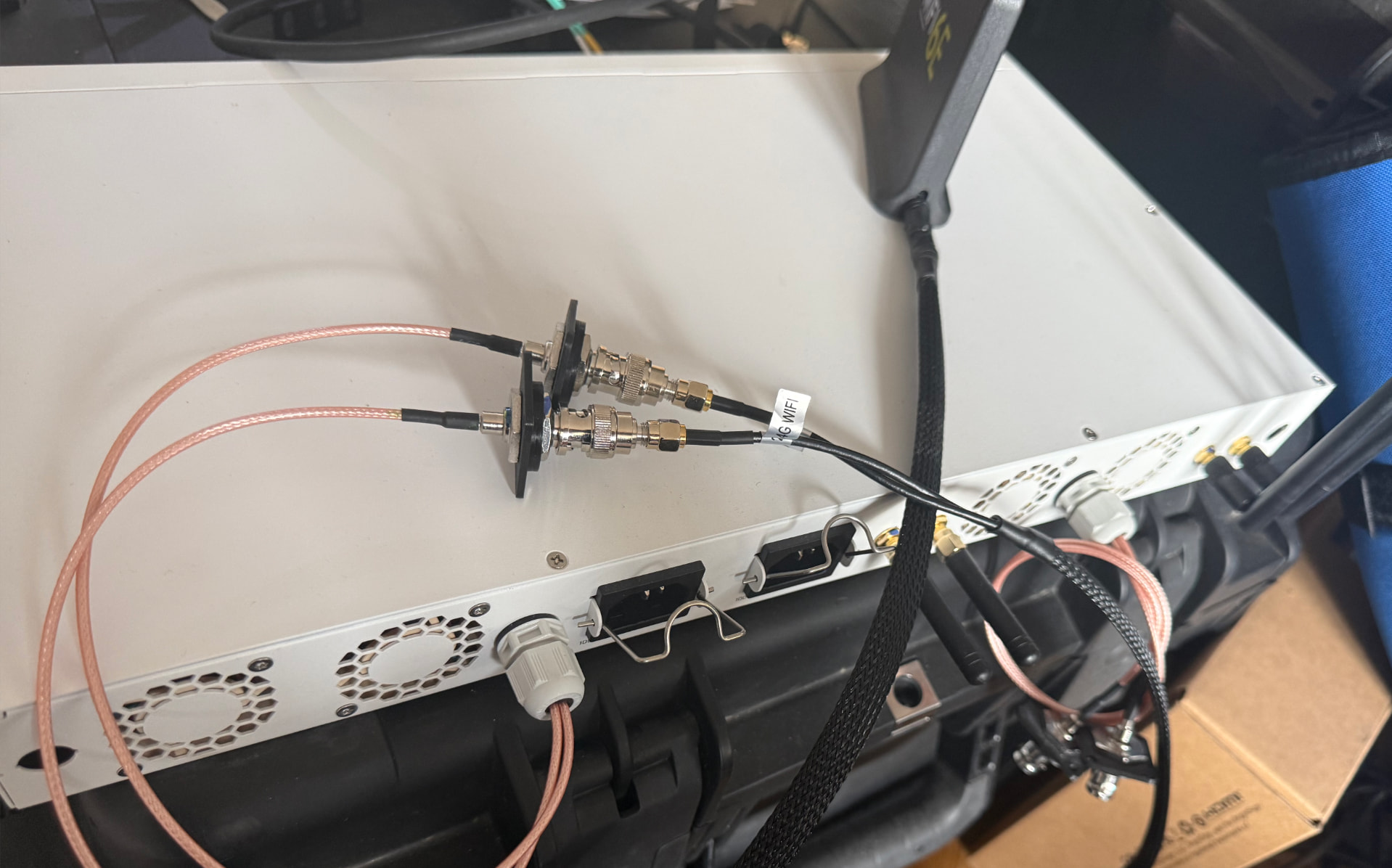

What I came up with is directly attaching four stub antennas and routing out the other four through the holes left after removing the stock antennas. Used some cable glands that almost fit. I used a stepped drill bit to slightly enlarge the holes. The connectors can then be rack mounted.
I could have left two of the stock antennas in place. But they are just a little to long and tend to be in the way.
Maybe it would have been slightly better to put a 2GHz and a 5GHz antenna at each of the pairs of SMA connector places, instead of 2 antennas for the same band alongside.
(i.e. swap 2 of the pigtails to internal connections and swap 2 antennas)
Yes, I’ve wired them in 2.4+5G pairs already. The small antennas are just for testing the fit. I might end up using those standard universal antennas for all four. I might also add a third of those dual band panel antennas.
Would it be possible to relocate the four antennas from the rear of the CRS418 to the top of the unit/rack, reusing the original antennas and cables?
My idea is to drill four holes in the CRS418's top cover and, if necessary, the rack's top panel, so that the antennas extend approximately 20 cm to reach above the rack.
Would the existing antennas be easy to remove from back and cables would be long enough for this? I noticed that the two cables in the middle appear shorter than the two on the sides. Does anyone know the exact length of the shorter cables?
I'd prefer to reuse the original antennas and cables rather than buy extensions, if possible.
Yes/No.
You can drill four holes on the top cover of the CRS418 and - within limits, the original cables will be good (in the sense of long) enough.
It will be tricky to connect the pigtails and re-assemble the cover, but doable.
It would make more sense to prepare a reverse U shaped
____|____|____|____|____
__/ \__
metal bracket bolted to the bottom of the unit and place the antennas on the bracket, drilling slightly larger holes on the router cover, possibly adding rubber grommets.
Then the CRS418 needs to be the very top device in the rack, but - depending on the specific rack - there might remain anyway too much space between the top of the 418 and the rack top, so the antennas might not protrude enough, it has to be seen.
You won't be able to place back the CRS cover/top plate.
The mounting holes are (obviously) smaller than the body of the antennas, to mount them you need to detach the pigtail connector from the board, insert into the hole from top to bottom and then reconnect them, and to do this you need to operate in some 5 cm space between the board of the CRS and the top of the rack plate (it won't work, and even if it did it would be a maintenance nightmare).
Or you should manufacture two "pillory like" plates.
Drilling 4 large hole on the CRS top cover, 4 corresponding large holes on the top of the rack, then apply the two halves of the pillory and thus have where to fix the antennas.

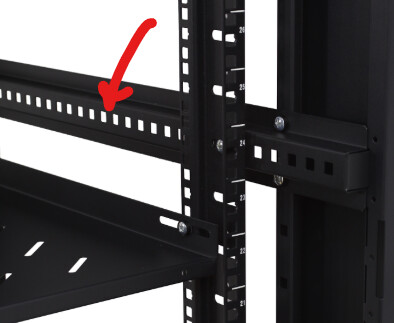

Or you need to make holes like this on the rack cover (doable but not very easy) :
