I have RB5009 and I want to setup Home Assistant there.
There is a USB flash installed and used for container
[admin@MikroTik] > disk print
Flags: B - BLOCK-DEVICE; M - MOUNTED
Columns: SLOT, MODEL, SERIAL, INTERFACE, SIZE
# SLOT MODEL SERIAL INTERFACE SIZE
0 BM usb1 Kingston DT microDuo 3C 408D5CBF8874E7A0895E075A USB 3.20 5000Mbps 248 034 361 344
[admin@MikroTik] >
I have successfully installed the image
[admin@MikroTik] > container export
# 2024-06-24 10:11:11 by RouterOS 7.15.1
# software id = 82T1-PVIK
#
# model = RB5009UPr+S+
# serial number = XXXXXXXXX
/container mounts
add dst=/config name=ha_config src=/usb1/ha_config
/container
add envlist=ha_env interface=veth2 logging=yes mounts=ha_config root-dir=usb1/ha
/container config
set registry-url=https://registry-1.docker.io tmpdir=/usb1/pull
/container envs
add key=TZ name=ha_env value=Europe/Kyiv
[admin@MikroTik] > container print
0 name="7d52c00c-6c85-439b-9e52-efdcb90a2842" tag="homeassistant/home-assistant" os="" arch="" interface=veth2
envlist="ha_env" root-dir=usb1/ha mounts=ha_config dns="" logging=yes status=stopped
However, whatever I do it does not starts…
No log records appears when I’m trying to start it.
Any ideas how to make it running?
Have you tried enabling logging “container,debug”? Maybe he’ll show what he’s missing?
Have just logging=yes in the container it salves.
Can you give me a hint how to enable debug logging?
/system logging add topics=container,debug action=memory
Thank you, but does not helps. No records in log after container start 0
Also check if all the points specified in this article are followed.
https://help.mikrotik.com/docs/display/ROS/Container+-+HomeAssistant
When I’m pulling the image it does shows log records
Has the container been downloaded completely? No errors at the end? (this happens sometimes)
Is container mode enabled?
/system/device-mode/update container=yes
It it has status “extracting” for a while and I can see how it is pulling layers in the log.
Than the status is tiring into “stopped”.
Sure containers are enabled otherwise I won’t be able to pull an image.
[admin@MikroTik] > /system/device-mode print
mode: enterprise
container: yes
Can you please provide your full configuration?
/export file=config

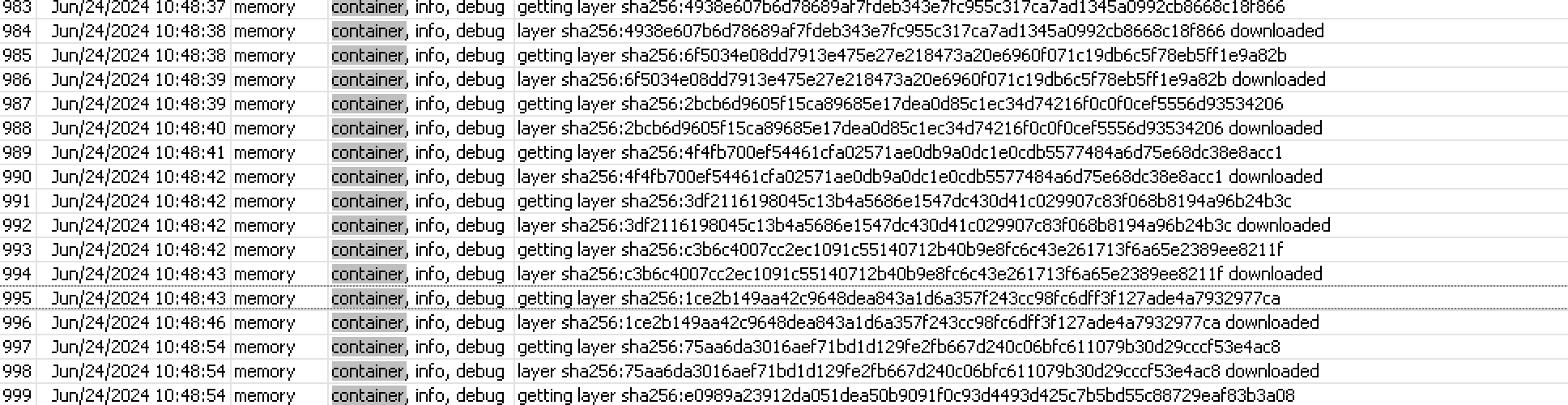

The last message in the log before container status turns to “stop” is
getting layer sha256:aa900376fa4645b30a0d731f2962ade576b143016fc7e8b4d4f12bbd34c30fca
In all other layers such record is followed by downloaded record. But not this one.
Previous layers are like this
getting layer sha256:e0989a23912da051dea50b9091f0c93d4493d425c7b5bd55c88729eaf83b3a08
layer sha256:e0989a23912da051dea50b9091f0c93d4493d425c7b5bd55c88729eaf83b3a08 downloaded
Also i think your container is not properly deployed, from your recording it is visible that OS and arch is missing.
name="7d52c00c-6c85-439b-9e52-efdcb90a2842" tag="homeassistant/home-assistant" os="" arch="" interface=veth2
envlist="ha_env" root-dir=usb1/ha mounts=ha_config dns="" logging=yes status=stopped
Try removing the container completely. Format USB and try again
I’ve had the same problem for months, I’ve never been able to figure out where the problem was.
I tried to format the USB disk also changing the filesystem but nothing to do, it always stops at the same point:

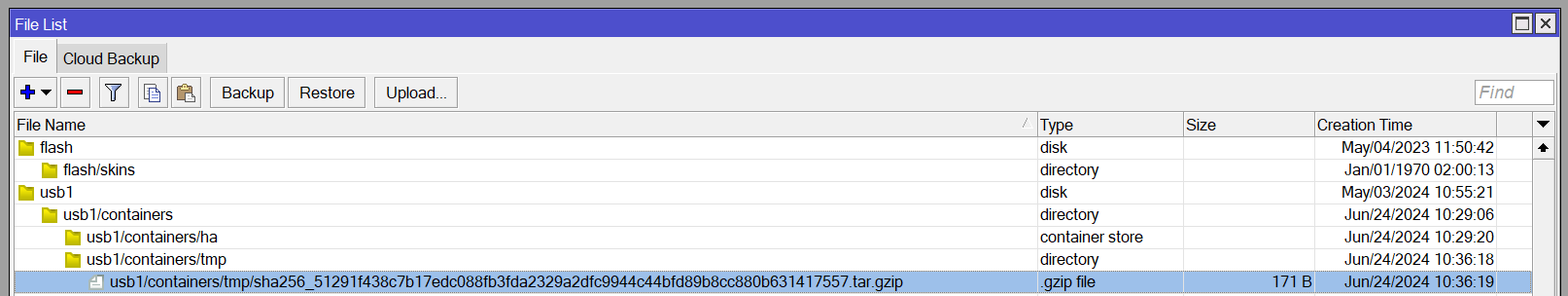

The file download always stops at 171B
I don’t know if it’s a ROS bug…
I’m trying to pull stable image.
Errors a totally random every time.
Some times it pulls arch and os and some times it is not.
I was trying all formats of the flash. With and without MBR.
What is consistent is it is always stuck on this layer.
From it’s size I can see it is that one

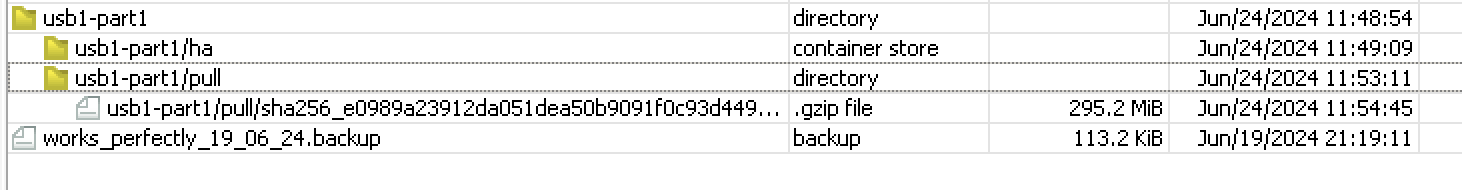

40. RUN |1 QEMU_CPU= /bin/ash -o 295.15 MB
In some cases it shows this at the end
was unable to import, container 8e14971f-a423-4ae1-8b05-d584e1568386
I had issues with my HASS container not starting on my hAP AX3 and after some debugging I determined that I needed to disable jemalloc which is described here - https://www.home-assistant.io/installation/linux#optimizations
You can disable it by simply adding the env variable DISABLE_JEMALLOC=1
Might not be your case but thought it worth mentioning. Runs fine after this is set for me.
Thank you, but it doesn’t helps in my case.
If the flash is formatted with MBD it always ends up with error status.
If the flash is formatted without MBD it always ends up with stopped status and not starts no matter what.
(Sure I’m changing path everywhere accordingly usb1/usb1-part1)
Try to load as a file. With no luck so far…
After command
/container/add file=usb1-part1/docker/ha_stable.tar interface=veth2 root-dir=/usb1-part1/containers/ha mounts=ha_config envli
st=tz,mem logging=yes
I see in the log
11:42:18 container,info,debug importing tar archived image: ha_stable.tar
11:42:18 container,info,debug error getting layer file
11:42:18 container,info,debug failed to load next entry
11:42:18 container,info,debug import finished but no image found
However the file created using buildx looks on on the host machine
docker buildx build --platform linux/arm64 -t homeassistant/home-assistant:latest --load .
docker save -o ha_stable.tar homeassistant/home-assistant:latest
➜ Downloads tar -tzf ha_stable.tar
blobs/
blobs/sha256/
blobs/sha256/089bcd0e76ff34a78b2d3ea7720796a7c78d56e7905166946deb9ecc15aeb883
blobs/sha256/0b428f02d932bb619d00cb44e832e90bac821ca585b51a723cfd164c7bb97493
blobs/sha256/1ce2b149aa42c9648dea843a1d6a357f243cc98fc6dff3f127ade4a7932977ca
blobs/sha256/2bcb6d9605f15ca89685e17dea0d85c1ec34d74216f0c0f0cef5556d93534206
blobs/sha256/2d9a48781ec1a9e471f32f83780efc4a499e4e5a2d837b8ac10e6c1dd3dfb328
blobs/sha256/31da2b26774818938b6809cd3d46d34e1b64273ea84d91364d6d9729b323b8d1
blobs/sha256/3df2116198045c13b4a5686e1547dc430d41c029907c83f068b8194a96b24b3c
blobs/sha256/3fcdbfacc4a9b25a485e84dfb54712d873b83eda4f7c237135fa60a3b3f41880
blobs/sha256/4938e607b6d78689af7fdeb343e7fc955c317ca7ad1345a0992cb8668c18f866
blobs/sha256/4f4fb700ef54461cfa02571ae0db9a0dc1e0cdb5577484a6d75e68dc38e8acc1
blobs/sha256/5765303681ca44fd73671d2d677816f9ee76a5f138cba58315544f4e5c597e44
blobs/sha256/66b066939690947e97de35014d9346b46f2e7873e20626e99b182bf7273659b0
blobs/sha256/6718b0d2600aa668dffa4ac25c5f2d794a5a978bf96d8afc399d788a5e2f32af
blobs/sha256/6c1deb6d01089cf88e1d430b154a1d1b58aee580e708f7964fc972ac02770455
blobs/sha256/6f5034e08dd7913e475e27e218473a20e6960f071c19db6c5f78eb5ff1e9a82b
blobs/sha256/6fef378a8ecbc81681350e322a5e0a135bd4a81e58dffd9c6426bd6bb6b0c5ed
blobs/sha256/73c5fcf46683d9eca12f93709bc6f49e206bb3f5363c7290878e20b98902c47e
blobs/sha256/7510e47ef9afab6c762b8ff4a33af1b5d9204b50ed7d84beee23bf97b08ed5f0
blobs/sha256/75aa6da3016aef71bd1d129fe2fb667d240c06bfc611079b30d29cccf53e4ac8
blobs/sha256/77024b8c709d61bbdfadde2749d713d23a2fb292112eed377170ab9209588a80
blobs/sha256/79f326c1b5bf84081f88d80457cc50d8399c750836c8d89ae5eaa774b5f441a0
blobs/sha256/97b8596a4cf5199f4185ce8edfd57ada7a58368d6a7faef1ba5a4b4d0e721eb6
blobs/sha256/aa900376fa4645b30a0d731f2962ade576b143016fc7e8b4d4f12bbd34c30fca
blobs/sha256/bac8bb614983e301adbcce34a2c8cda1ee3c05ccafd3724c8bf25fe779f606ca
blobs/sha256/bca4290a96390d7a6fc6f2f9929370d06f8dfcacba591c76e3d5c5044e7f420c
blobs/sha256/bcb19f2aaa8ba275a9b27a2699111c7392c07b2ceec984d99d3ab0a0b002c716
blobs/sha256/c3b6c4007cc2ec1091c55140712b40b9e8fc6c43e261713f6a65e2389ee8211f
blobs/sha256/d0dab9d61593c322f6725686d2bd925a9fa5fc55faad1e75cea7e3345bdc5d97
blobs/sha256/e0989a23912da051dea50b9091f0c93d4493d425c7b5bd55c88729eaf83b3a08
blobs/sha256/e2788bb47bb3bcde9b1f02f81309c24ba64f28d94b5e592bb7d2665ba0f925f7
blobs/sha256/fb64257fde615a7834ae3fb0137d3bafc4411a20fb74d56b99f36d8747d824c6
blobs/sha256/fc06312c1f7a144fec5167a933d18c4e43432dace9386343620095c643e734ae
index.json
manifest.json
oci-layout
I also tried to load as file a few weeks ago without success… at this point only MikroTik support can help us, have you already created a ticket?
No. I do not think they will help with 3rd party software which HA is.
