LHG 60 project in Hawaii

RouterOS General
1

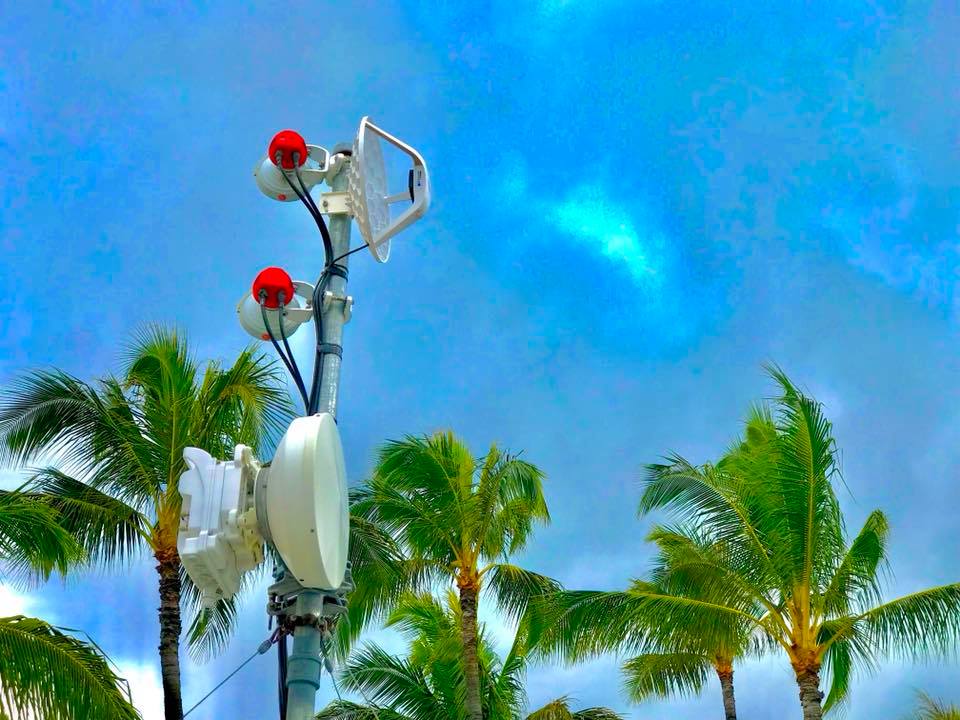

A customer from Hawaii has gotten his first LHG60 link up with good results. Here are some photos and test results:

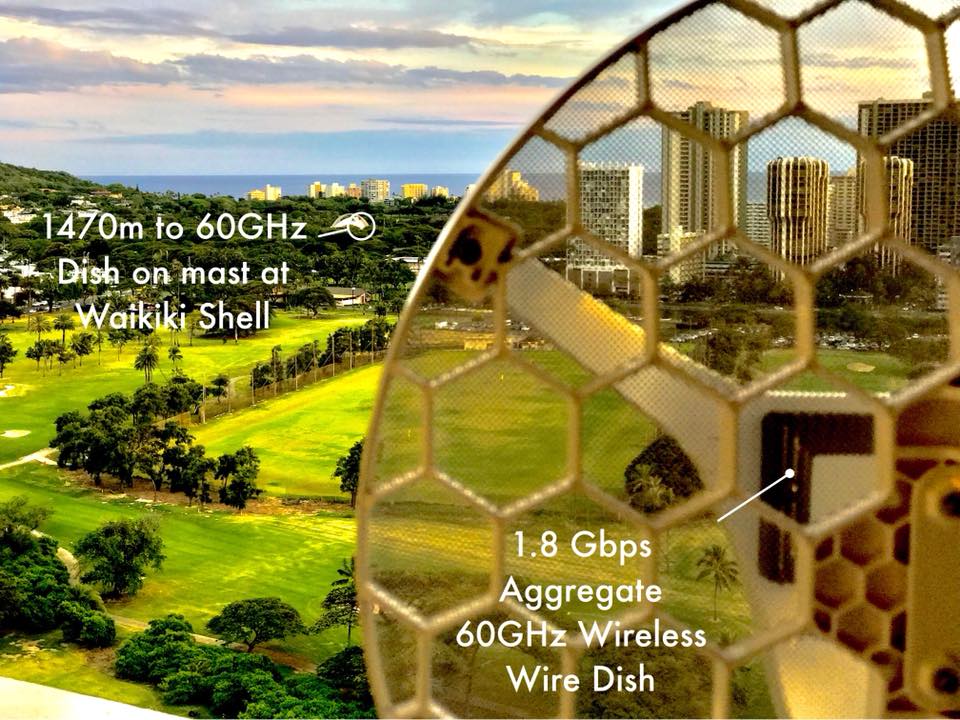

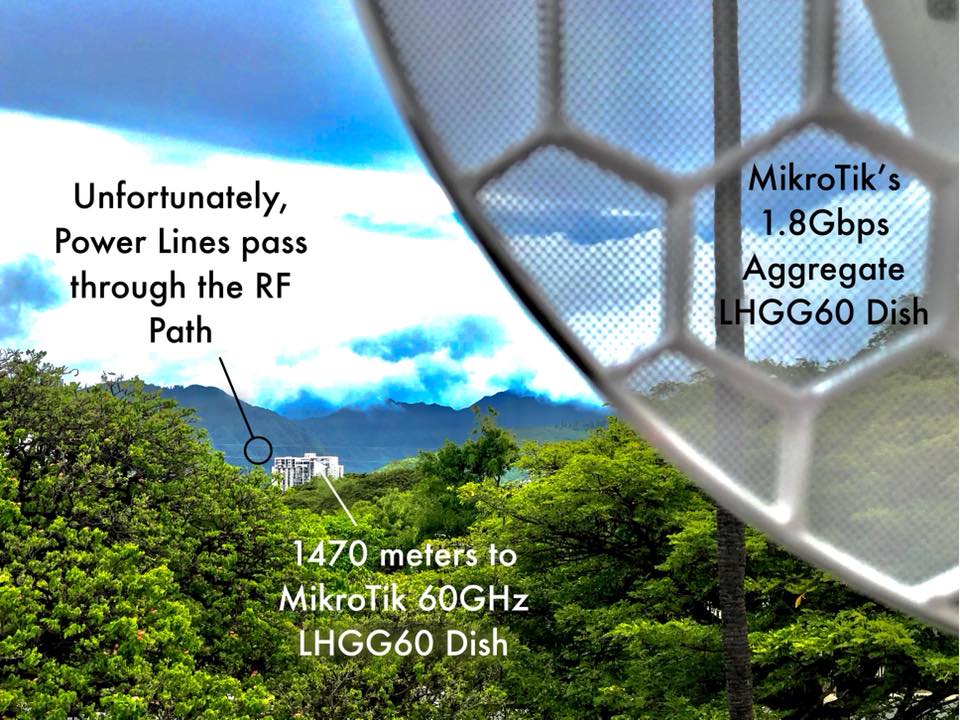

1,470 Meter Link

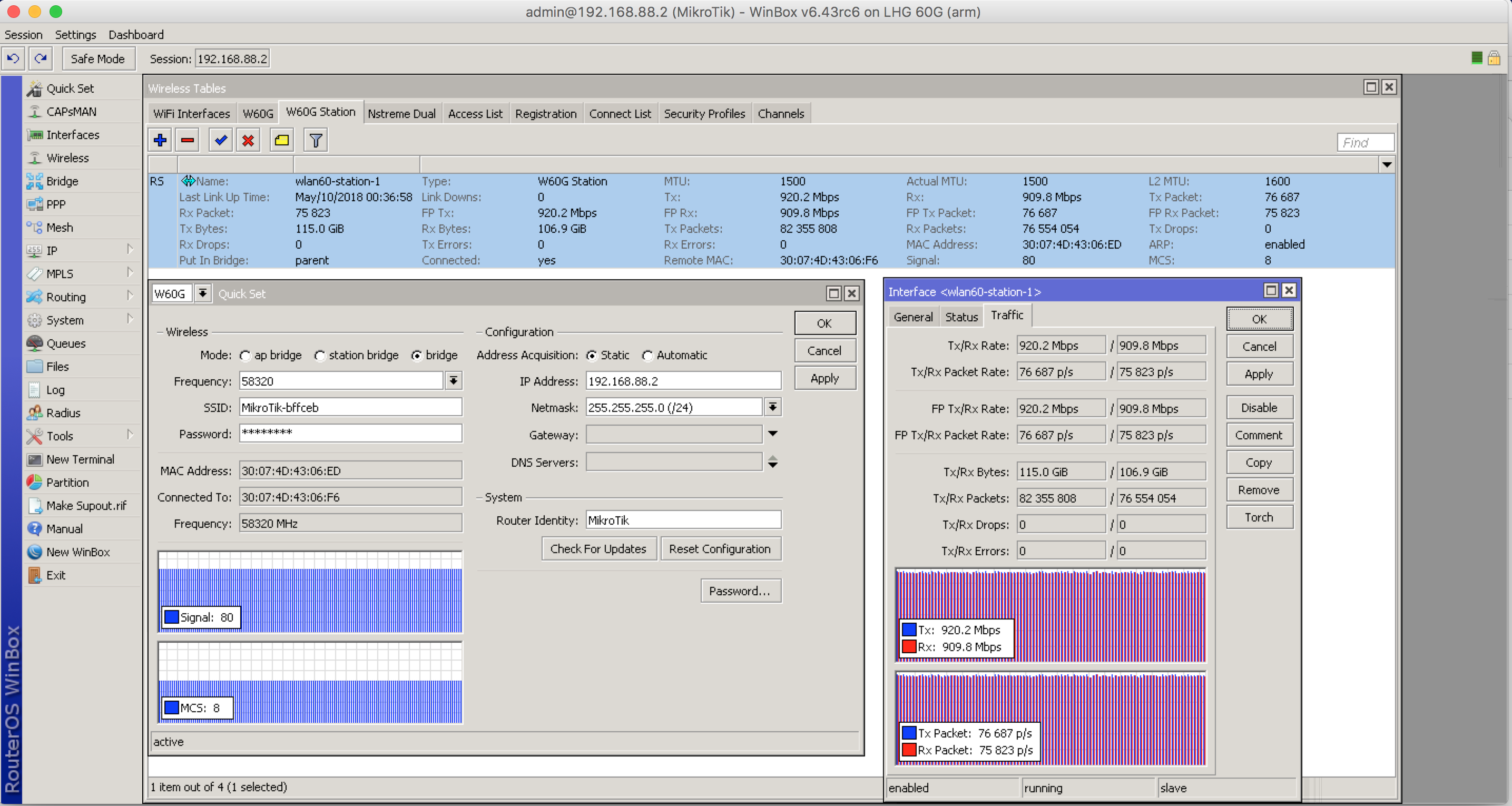

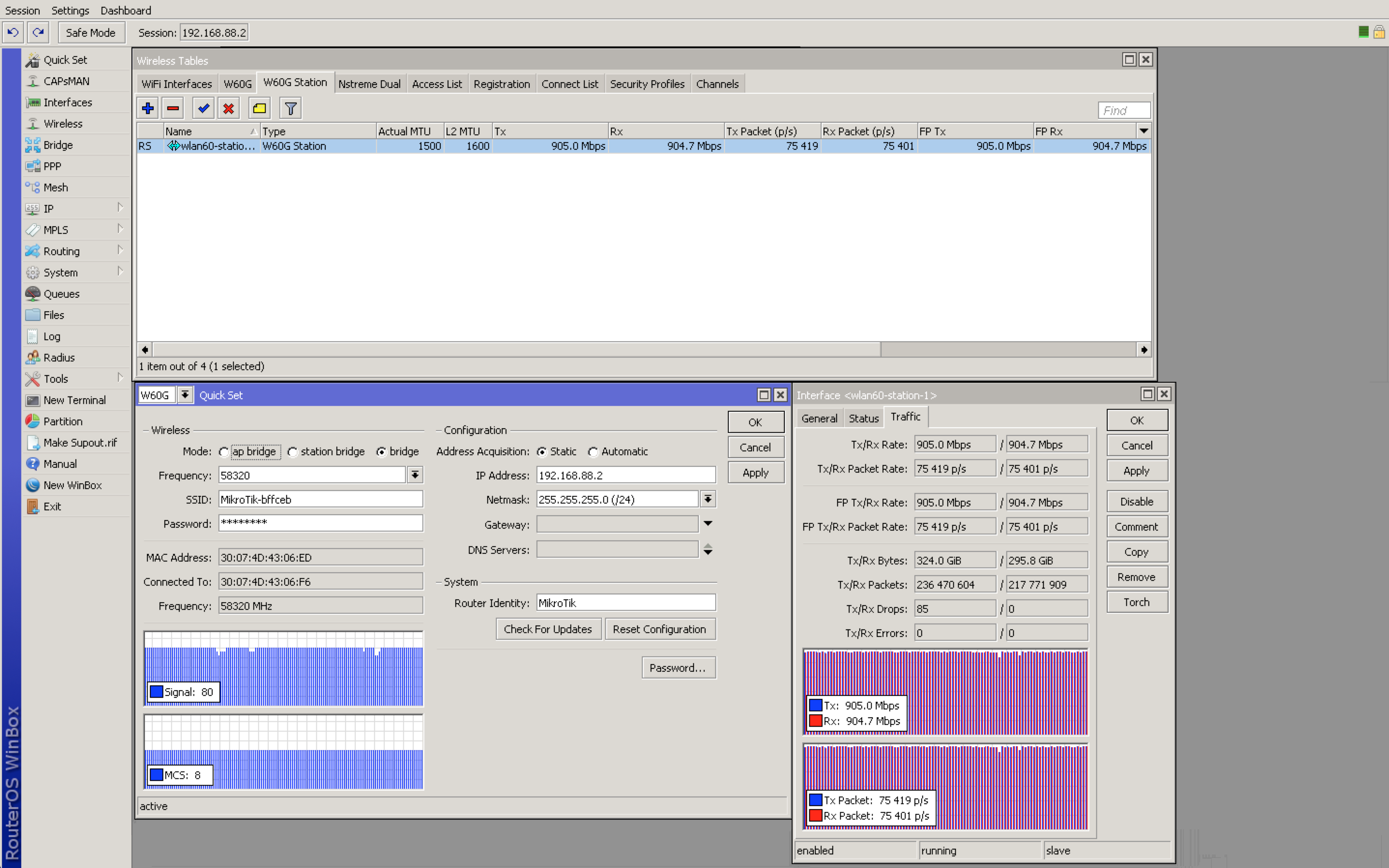

TRAFFIC GENERATOR TEST SETUP:
LHGG60 in Bridge Mode (192.168.88.2) - - to - - LHGG60 in Station Bridge Mode (192.168.88.3)

MacBook Pro (192.168.88.10)

/tool traffic-generator packet-template
add ip-dst=192.168.88.2 ip-gateway=192.168.88.3 ip-src=192.168.88.10
name=test1 udp-dst-port=100-300
/tool traffic-generator stream
add mbps=2000 name=stream3 packet-size=1500 tx-template=test1

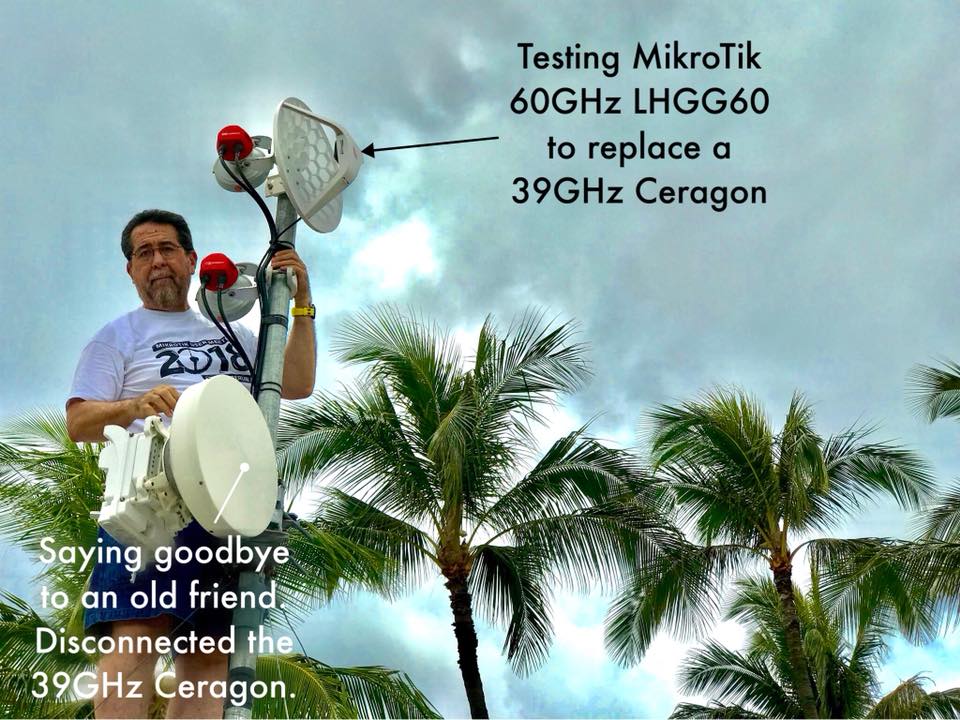

31961464_10156245514607510_3229962839934369792_n (1).jpg

2

Good results but in rainy days? The US version has the same power outpu of EU?

3

Same power output.
In other forum threads there are results from rainy days as well. Rain adds some attenuation but if link is set up correctly there shouldn’t be any issues in those distances.

4

I read the orther thread and If i remember well the link drop during heavy rain at 1200m :slight_smile:

5

That link drop was due to misalignment and multiple devices squeezed close together with self made solutions.
There are clever LED alignment option added to those devices that helps to find best position. Wiki will be updated soon.

6

We need an XL version. Bigger antenna + better gain

7

Antonsb I hope you are true :wink:

And I hope to see a version with integrated 5 Ghz backup

8

This is much more than we see with ignitenet. What is the difference? More TX, higher gain or better sensivity? Or marketing :wink:

9

All of mentioned + beam forming antennas :slight_smile:
Results from sunny day, but at least some useful insight:
Distance Speed(tx+rx)
1100m 1.8Gbps+
1200m 1.8Gbps+
1500m 1.8Gbps+
1600m 1.8Gbps+
1700m 1.8Gbps+
1800m 1.8Gbps
1900m 800Mbps+

10

Is there any chance to overcome 3000 meters?

11

we have custom made antennas on WAP and on 1km test link it has 4dBi less then LHG60 on the same link. 500m link still drops with heavy rain. 420m is rock solid.

12

Does WAP has any kind of limitation? When I am using it on larger dsitances speed drops a lot and signal is still 80. Is there lower ACK or something?

13

wAP60 has a specially designed and calibrated beamforming antenna with pre-configured patterns. you can’t use it with custom antennas and I am surprised it works for you at all.

14

+1 Can’t be to diffilcult

15

Custom antennas will never work as well without proper calibration.

16

Sweet pics, thanks for sharing.

17

Seems to be already prepared in WAP60G and LHG60G. Just missing the Amplifiers and Internal Antennas.

18

Any update in rainy days? Some print screen from wireless monitor 'll be appreciated :slight_smile:

19

Awesome Normis !

If you could add a integrated 5 Ghz backup radio this would be amazesauce !

20

where can these be bought? I dont see anyone carrying them yet…
