Usage GPON module SFP in Spain

almeiras · May 26, 2020, 8:39pm

Great, thank you so much JeanPierre!

I have already ordered a couple of SFP female connectors for the soldering. My Pi Zero and I are looking forward to some UART flashing!

BackON · May 29, 2020, 3:31pm

Hello

I have another sfp gpon module from Nokia. The model is G-010s-B

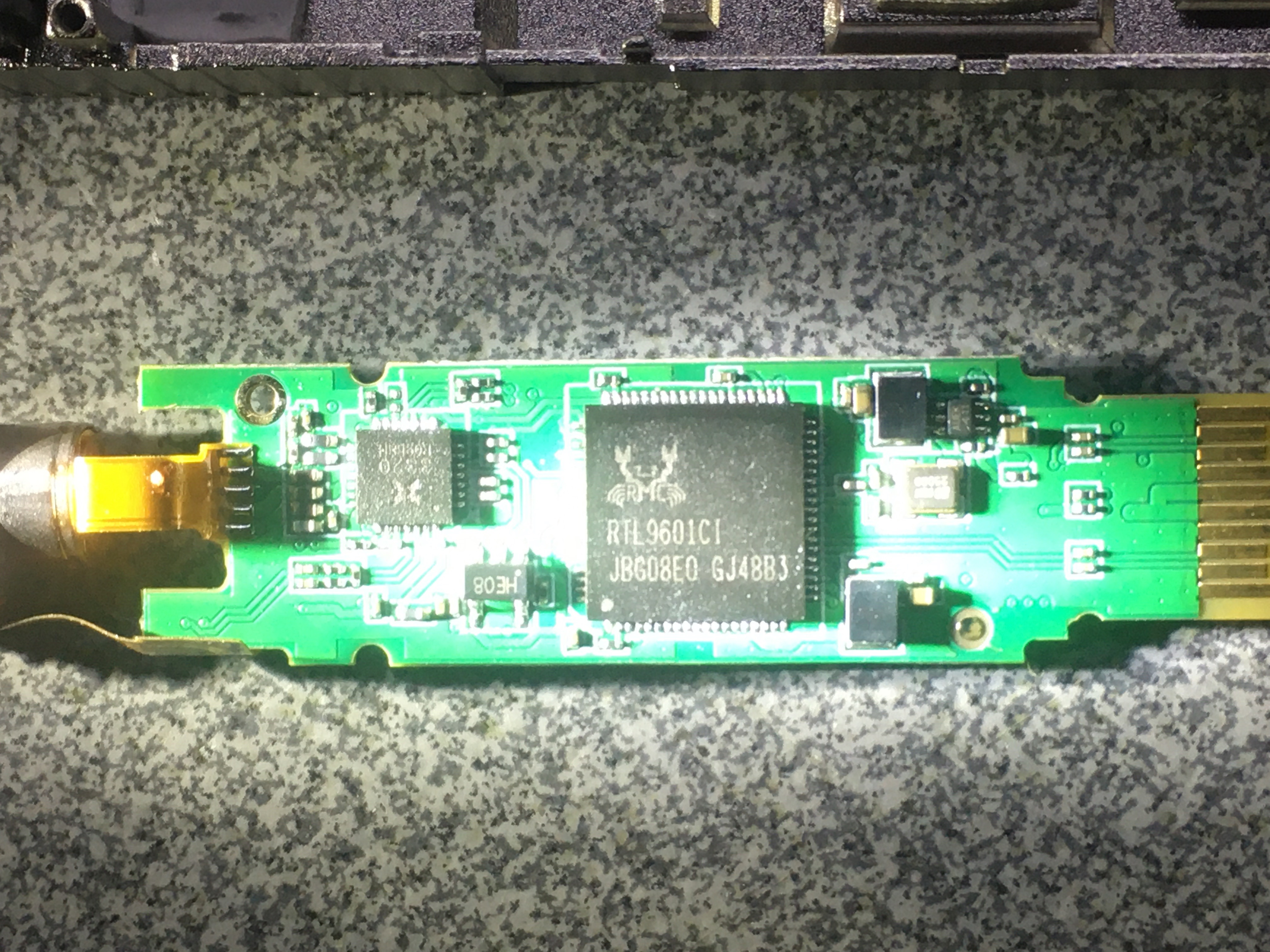

Intrrnal photos

Running on 192.168.1.10 but i dont know Web user and password but ssh password is ONTUSER/SUGAR2A041. Nmap says runs on 15.05 openwrt

i accesed it via ssh.

ONTUSER@easy98035synce1588:/# cat /proc/cpuinfo
system type             : Falcon rev A22
machine                 : EASY98035SYNCE1588 - Lantiq Falcon SFP Stick with Sync       E/1588
processor               : 0
cpu model               : MIPS 34Kc V5.6
BogoMIPS                : 265.98
wait instruction        : yes
microsecond timers      : yes
tlb_entries             : 16
extra interrupt vector  : yes
hardware watchpoint     : yes, count: 4, address/irw mask: [0x0ffc, 0x0ffc, 0x0f       fb, 0x0ffb]
isa                     : mips1 mips2 mips32r1 mips32r2
ASEs implemented        : mips16 dsp mt
shadow register sets    : 1
kscratch registers      : 0
package                 : 0
core                    : 0
VCED exceptions         : not available
VCEI exceptions         : not available

dev:    size   erasesize  name
mtd0: 00040000 00010000 "uboot"
mtd1: 00080000 00010000 "uboot_env"
mtd2: 00c00000 00010000 "linux"
mtd3: 0013cedb 00010000 "kernel"
mtd4: 00ac3125 00010000 "rootfs"
mtd5: 00600000 00010000 "rootfs_data"
mtd6: 00c00000 00010000 "image1"
mtd7: 00200000 00010000 "configfs"
mtd8: 00300000 00010000 "logfs"
mtd9: 00200000 00010000 "extfs"
mtd10: 00010000 00010000 "ri"
mtd11: 00010000 00010000 "sfp"
mtd12: 00010000 00010000 "ribackup"
mtd13: 00010000 00010000 "reserve"

Uci Config

 uci: Entry not found
dhcp.odhcpd=odhcpd
dhcp.odhcpd.maindhcp='0'
dhcp.odhcpd.leasefile='/tmp/hosts/odhcpd'
dhcp.odhcpd.leasetrigger='/usr/sbin/odhcpd-update'
dropbear.@dropbear[0]=dropbear
dropbear.@dropbear[0].PasswordAuth='on'
dropbear.@dropbear[0].RootPasswordAuth='on'
dropbear.@dropbear[0].Port='22'
goi_config.global=goi
goi_config.global.CalibrationTimestamp='2018-04-13T10:08; script V7.6.4; OCAL V7.6.1; FW V7.6.1'
goi_config.ranges=goi
goi_config.temperature_tables=goi
goi_config.dcdc_apd=goi
goi_config.transmitter=goi
goi_config.transmit_power=goi
goi_config.transmit_power.P1_0='3387'
goi_config.transmit_power.P0_0='170'
goi_config.monitor=goi
goi_config.monitor.MPD_Calibration_PL0='3'
goi_config.monitor.MPD_Calibration_PL1='3'
goi_config.monitor.TiaGain_PL1='1'
goi_config.monitor.TiaGain_PL0='1'
goi_config.monitor.TiaGain_PL2='3'
goi_config.monitor.MPD_Calibration_PL2='2'
goi_config.monitor.Dcalref0_PL0='3050'
goi_config.monitor.Dcalref1_PL0='3146'
goi_config.monitor.Dcalref0_PL1='3047'
goi_config.monitor.Dcalref1_PL1='3118'
goi_config.monitor.Dcalref0_PL2='1260'
goi_config.monitor.Dcalref1_PL2='1254'
goi_config.monitor.Dref0_PL0='184'
goi_config.monitor.Dref1_PL0='1563'
goi_config.monitor.MPDxt_PL0='0.778036673083'
goi_config.monitor.Imodref_PL0='34.6762215795'
goi_config.monitor.Dref0_PL1='117'
goi_config.monitor.Dref1_PL1='938'
goi_config.monitor.MPDxt_PL1='0.933644007699'
goi_config.monitor.Imodref_PL1='19.6178810304'
goi_config.monitor.Dref0_PL2='258'
goi_config.monitor.Dref1_PL2='1669'
goi_config.monitor.MPDxt_PL2='4.0717252558'
goi_config.monitor.Imodref_PL2='9.80894051519'
goi_config.measurement=goi
goi_config.measurement.Tscal_ref='0.484715133905'
goi_config.measurement.RSSI_1490parabolic_ref='0'
goi_config.measurement.RSSI_1490dark_ref='0.0008544921875'
goi_config.measurement.RSSI_1490scal_ref='0.84979253112'
goi_config.omu=goi
goi_config.bosa=goi
goi_config.fcsi=goi
goi_config.fcsi.GVS='0xf653'
goi_defaults.global=goi
goi_defaults.global.CalibrationTimestamp='OCAL V7.5.0'
goi_defaults.global.TempMonitorInterval='1000'
goi_defaults.global.TempMonitorThreshold_MPDcorrection='3'
goi_defaults.global.LaserAgeStoreCycle='43200'
goi_defaults.global.Polarity_Rx='0'
goi_defaults.global.Polarity_Bias='1'
goi_defaults.global.Polarity_Mod='1'
goi_defaults.global.Temp_IntCorr_AlarmYellow_Set='390'
goi_defaults.global.Temp_IntCorr_AlarmYellow_Clear='370'
goi_defaults.global.Temp_IntCorr_AlarmRed_Set='420'
goi_defaults.global.Temp_IntCorr_AlarmRed_Clear='400'
goi_defaults.global.TransmitLevelCheckInterval='1000'
goi_defaults.global.OpticMode='undefined'
goi_defaults.ranges=goi
goi_defaults.ranges.TableTemp_ExtCorr_Min='223'
goi_defaults.ranges.TableTemp_ExtCorr_Max='423'
goi_defaults.ranges.TableTemp_ExtNom_Min='200'
goi_defaults.ranges.TableTemp_ExtNom_Max='450'
goi_defaults.ranges.TableTemp_IntCorr_Min='223'
goi_defaults.ranges.TableTemp_IntCorr_Max='473'
goi_defaults.ranges.TableTemp_IntNom_Min='200'
goi_defaults.ranges.TableTemp_IntNom_Max='450'
goi_defaults.ranges.Ibias_Max='60'
goi_defaults.ranges.Imod_Max='80'
goi_defaults.ranges.Iavg_Max='200'
goi_defaults.ranges.IbiasImod_Max='120'
goi_defaults.ranges.CInt_Bias_Max='7'
goi_defaults.ranges.CInt_Mod_Max='7'
goi_defaults.ranges.VAPD_Min='20'
goi_defaults.ranges.VAPD_Max='60'
goi_defaults.ranges.Power_Measure_Min='0.30'
goi_defaults.ranges.Overcurrent_Ibias_Thr='60'
goi_defaults.ranges.Overcurrent_Imod_Thr='80'
goi_defaults.ranges.Overcurrent_IbiasImod_Thr='100'
goi_defaults.temperature_tables=goi
goi_defaults.temperature_tables.Tci_Ith_low='50'
goi_defaults.temperature_tables.Tci_Ith_high='40'
goi_defaults.temperature_tables.Tci_SE_low='-200'
goi_defaults.temperature_tables.Tci_SE_high='-100'
goi_defaults.temperature_tables.Tcd_Ith_low='30'
goi_defaults.temperature_tables.Tcd_Ith_high='30'
goi_defaults.temperature_tables.Tcd_SE_low='30'
goi_defaults.temperature_tables.Tcd_SE_high='30'
goi_defaults.temperature_tables.VAPD_scal_ref_low='0.09'
goi_defaults.temperature_tables.VAPD_scal_ref_high='0.09'
goi_defaults.dcdc_apd=goi
goi_defaults.dcdc_apd.VAPD_enable='0'
goi_defaults.dcdc_apd.Rdiv_low='10000'
goi_defaults.dcdc_apd.Rdiv_high='294000'
goi_defaults.dcdc_apd.VAPD_offset='3.0'
goi_defaults.dcdc_apd.VAPD_ext_inductivity='12'
goi_defaults.dcdc_apd.VAPD_ext_supply='3.30'
goi_defaults.dcdc_apd.VAPD_efficiency='50'
goi_defaults.dcdc_apd.VAPD_current_limit='2.00'
goi_defaults.transmitter=goi
goi_defaults.transmitter.TxEnableDelay='8'
goi_defaults.transmit_power=goi
goi_defaults.transmit_power.P0_0='180'
goi_defaults.transmit_power.P1_0='3820'
goi_defaults.transmit_power.P0_1='90'
goi_defaults.transmit_power.P1_1='1910'
goi_defaults.transmit_power.P0_2='45'
goi_defaults.transmit_power.P1_2='955'
goi_defaults.monitor=goi
goi_defaults.monitor.TiaGain_PL0='2'
goi_defaults.monitor.TiaGain_PL1='3'
goi_defaults.monitor.TiaGain_PL2='3'
goi_defaults.monitor.MPD_Calibration_PL0='3'
goi_defaults.monitor.MPD_Calibration_PL1='2'
goi_defaults.monitor.MPD_Calibration_PL2='2'
goi_defaults.monitor.ImodScalCorr_PL0='1.0'
goi_defaults.monitor.ImodScalCorr_PL1='1.0'
goi_defaults.monitor.ImodScalCorr_PL2='1.0'
goi_defaults.monitor.Dcalref0_PL0='3930'
goi_defaults.monitor.Dcalref1_PL0='4000'
goi_defaults.monitor.Dcalref0_PL1='1160'
goi_defaults.monitor.Dcalref1_PL1='1230'
goi_defaults.monitor.Dcalref0_PL2='1160'
goi_defaults.monitor.Dcalref1_PL2='1230'
goi_defaults.monitor.Dref0_PL0='180'
goi_defaults.monitor.Dref1_PL0='1910'
goi_defaults.monitor.Dref0_PL1='280'
goi_defaults.monitor.Dref1_PL1='2540'
goi_defaults.monitor.Dref0_PL2='200'
goi_defaults.monitor.Dref1_PL2='1270'
goi_defaults.monitor.PowerSave='1'
goi_defaults.monitor.rogue_onu_interburst='0'
goi_defaults.monitor.RogueAlarm_Threshold_P0='20'
goi_defaults.monitor.RogueAlarm_Threshold_P1='120'
goi_defaults.monitor.MPDxt_PL0='-1'
goi_defaults.monitor.MPDxt_PL1='-1'
goi_defaults.monitor.MPDxt_PL2='-1'
goi_defaults.monitor.Imodref_PL0='36.0'
goi_defaults.monitor.Imodref_PL1='18.0'
goi_defaults.monitor.Imodref_PL2='9.0'
goi_defaults.measurement=goi
goi_defaults.measurement.Tscal_ref='0.550'
goi_defaults.measurement.pnR='1.0'
goi_defaults.measurement.pnIsource='1'
goi_defaults.measurement.Supply_voltage_Enable='1'
goi_defaults.measurement.RSSI_1550_Enable='0'
goi_defaults.measurement.RF_1550_Enable='0'
goi_defaults.measurement.DAC_1550_Enable='0'
goi_defaults.measurement.RSSI_1490mode='1'
goi_defaults.measurement.RSSI_1490shunt_res='4990'
goi_defaults.measurement.RSSI_1490dark_corr='1.20'
goi_defaults.measurement.RSSI_1550vref='1'
goi_defaults.measurement.RF_1550vref='1'
goi_defaults.measurement.RSSI_1490scal_ref='0.07'
goi_defaults.measurement.RSSI_1550scal_ref='0.10'
goi_defaults.measurement.RF_1550scal_ref='0.10'
goi_defaults.measurement.RSSI_1490parabolic_ref='0.08'
goi_defaults.measurement.RSSI_1490dark_ref='0.002'
goi_defaults.measurement.RSSI_autolevel='0'
goi_defaults.measurement.RSSI_1490threshold_low='40'
goi_defaults.measurement.RSSI_1490threshold_high='70'
goi_defaults.measurement.Tbosa_source='1'
goi_defaults.measurement.Vdd_scal='0.5'
goi_defaults.measurement.V0K_Tref='1200'
goi_defaults.omu=goi
goi_defaults.omu.SignalDetectAvailable='1'
goi_defaults.omu.SignalDetectPort='2'
goi_defaults.omu.LolThreshold_set='20'
goi_defaults.omu.LolThreshold_clear='20'
goi_defaults.omu.LaserSignalSingleEnded='1'
goi_defaults.bosa=goi
goi_defaults.bosa.LoopMode='2'
goi_defaults.bosa.LolThreshold_set='20'
goi_defaults.bosa.LolThreshold_clear='20'
goi_defaults.bosa.LosThreshold_set='0.0005'
goi_defaults.bosa.LosThreshold_clear='0.0010'
goi_defaults.bosa.RxOverloadThreshold='0.2000'
goi_defaults.bosa.CInt_Bias_init='2'
goi_defaults.bosa.CInt_Mod_init='2'
goi_defaults.bosa.PICtrl='0x00004049'
goi_defaults.bosa.UpdateThreshold_Bias='2'
goi_defaults.bosa.UpdateThreshold_Mod='2'
goi_defaults.bosa.LearningThreshold_Bias='99'
goi_defaults.bosa.LearningThreshold_Mod='99'
goi_defaults.bosa.StableThreshold_Bias='2'
goi_defaults.bosa.StableThreshold_Mod='2'
goi_defaults.bosa.ResetThreshold_Bias='70'
goi_defaults.bosa.ResetThreshold_Mod='70'
goi_defaults.fcsi=goi
goi_defaults.fcsi.GVS='0xF653'
gpon.ploam=gpon
gpon.ploam.nPassword='0x20 0x20 0x20 0x20 0x20 0x20 0x20 0x20 0x20 0x20'
gpon.ploam.nT01='11000'
gpon.ploam.nT02='100'
gpon.ploam.nRogueMsgIdUpstreamReset='255'
gpon.ploam.nRogueMsgRepeatUpstreamReset='3'
gpon.ploam.nRogueMsgIdDeviceReset='255'
gpon.ploam.nRogueMsgRepeatDeviceReset='3'
gpon.ploam.nRogueEnable='0'
gpon.gtc=gpon
gpon.gtc.bDlosEnable='0'
gpon.gtc.bDlosInversion='0'
gpon.gtc.nDlosWindowSize='0'
gpon.gtc.nDlosTriggerThreshold='0'
gpon.gtc.ePower='0'
gpon.gtc.nLaserGap='0'
gpon.gtc.nLaserOffset='0'
gpon.gtc.nLaserEnEndExt='0'
gpon.gtc.nLaserEnStartExt='0'
gpon.gtc.nDyingGaspHyst='0'
gpon.gtc.nDyingGaspMsg='0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00'
gpon.gtc.nDyingGaspEnable='0'
gpon.gpe=gpon
gpon.gpe.nPeNumber='6'
gpon.gpe.nDSCP_MappingRule='0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 '
ieee_1588.ptp_sync=ieee_1588
ieee_1588.ptp_sync.delay_mechanism='-E'
ieee_1588.ptp_sync.network_transport='-2'
ieee_1588.ptp_sync.timestamping='-H'
ieee_1588.ptp_sync.cfg_file='/etc/g_8275_1.conf'
ieee_1588.ptp_sync.interface='lct0'
ieee_1588.ptp_sync.log_level='6'
ieee_1588.tod2phc=ieee_1588
ieee_1588.tod2phc.xpectd_mc_name='Intel PON TOD'
ieee_1588.tod2phc.xpectd_sc_name='Intel F24S'
ieee_1588.tod2phc.master_clock='/dev/ptp0'
ieee_1588.tod2phc.slave_clock='/dev/ptp1'
ieee_1588.tod2phc.offset='0'
ieee_1588.tod2phc.time_thr='20'
ieee_1588.tod2phc.sync_offset='-14'
ieee_1588.tod2phc.log_level='6'
ieee_1588.tod2phc.threshold='0.00002'
ieee_1588.tod2ktimer=ieee_1588
ieee_1588.tod2ktimer.xpectd_phc_name='Intel PON TOD'
ieee_1588.tod2ktimer.auto_cfg='-a'
ieee_1588.tod2ktimer.synch_sys_clk='-r'
ieee_1588.tod2ktimer.phc_clk='/dev/ptp0'
ieee_1588.tod2ktimer.domain_num='24'
ieee_1588.tod2ktimer.offset='0'
ieee_1588.tod2ktimer.log_level='6'
network.loopback=interface
network.loopback.ifname='lo'
network.loopback.proto='static'
network.loopback.ipaddr='127.0.0.1'
network.loopback.netmask='255.0.0.0'
network.globals=globals
network.globals.ula_prefix='auto'
network.lct=interface
network.lct.ifname='lct0'
network.lct.netmask='255.255.255.0'
network.lct.proto='static'
network.lct.macaddr='ac:9a:96:00:00:00'
network.lct.gateway='192.168.2.1'
network.lct.ipaddr='192.168.1.10'
network.host=interface
network.host.ifname='host'
network.host.proto='static'
network.host.ipaddr='0.0.0.0'
network.host.netmask='0.0.0.0'
network.host.macaddr='ac:9a:96:00:02:00'
network.host6=interface
network.host6.ifname='@host'
network.host6.proto='static'
nmea.message=nmea
nmea.message.nmea_format='1'
nmea.message.time_offset='19'
omci.default=omci
omci.default.mib_file='/etc/mibs/data_2g_8q.ini'
omci.default.status_file='/tmp/omci_status'
omci.iphost=omci
omci.iphost.enabled='1'
omci.iphost.committed='32000 2048'
omci.iphost.peak='32000 2048'
omci.iphost.color_aware='0'
omci.iphost.mode='0'
rpcd.@login[0]=login
rpcd.@login[0].username='root'
rpcd.@login[0].password='$p$root'
rpcd.@login[0].read='*'
rpcd.@login[0].write='*'
sfp_eeprom.default=sfp_eeprom
sfp_eeprom.default.eeprom='0'
sfp_eeprom.default.vendor_name='Lantiq'
sfp_eeprom.default.vendor_partno='Part Number'
sfp_eeprom.default.vendor_rev='0000'
sfp_eeprom.default.vendor_oui='AC:9A:96'
sfp_eeprom.default.serial_no='no serial number'
sfp_eeprom.default.datecode='150414'
sfp_eeprom.default.addr_eeprom_0='0x80'
sfp_eeprom.default.addr_eeprom_1='0x51'
sfp_pins.@pin[0]=pin
sfp_pins.@pin[0].name='tx_fault'
sfp_pins.@pin[0].pin='2'
sfp_pins.@pin[0].restriction='ASC_TX'
sfp_pins.@pin[1]=pin
sfp_pins.@pin[1].name='tx_disable'
sfp_pins.@pin[1].pin='1'
sfp_pins.@pin[2]=pin
sfp_pins.@pin[2].name='los'
sfp_pins.@pin[2].pin='3'
sfp_pins.@pin[3]=pin
sfp_pins.@pin[3].name='mod_def'
sfp_pins.@pin[3].pin='41'
synce.ethernet=synce
synce.ethernet.nSyncE_Mode='1'
synce.ethernet.bSyncE_SGMII_Squelch='0'
synce_pins.@pin[0]=pin
synce_pins.@pin[0].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[0].pin='43'
synce_pins.@pin[1]=pin
synce_pins.@pin[1].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[1].pin='44'
synce_pins.@pin[2]=pin
synce_pins.@pin[2].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[2].pin='43'
synce_pins.@pin[3]=pin
synce_pins.@pin[3].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[3].pin='44'
synce_pins.@pin[4]=pin
synce_pins.@pin[4].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[4].pin='43'
synce_pins.@pin[5]=pin
synce_pins.@pin[5].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[5].pin='44'
synce_pins.@pin[6]=pin
synce_pins.@pin[6].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[6].pin='43'
synce_pins.@pin[7]=pin
synce_pins.@pin[7].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[7].pin='44'
synce_pins.@pin[8]=pin
synce_pins.@pin[8].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[8].pin='43'
synce_pins.@pin[9]=pin
synce_pins.@pin[9].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[9].pin='44'
synce_pins.@pin[10]=pin
synce_pins.@pin[10].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[10].pin='43'
synce_pins.@pin[11]=pin
synce_pins.@pin[11].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[11].pin='44'
synce_pins.@pin[12]=pin
synce_pins.@pin[12].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[12].pin='43'
synce_pins.@pin[13]=pin
synce_pins.@pin[13].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[13].pin='44'
synce_pins.@pin[14]=pin
synce_pins.@pin[14].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[14].pin='43'
synce_pins.@pin[15]=pin
synce_pins.@pin[15].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[15].pin='44'
synce_pins.@pin[16]=pin
synce_pins.@pin[16].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[16].pin='43'
synce_pins.@pin[17]=pin
synce_pins.@pin[17].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[17].pin='44'
synce_pins.@pin[18]=pin
synce_pins.@pin[18].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[18].pin='43'
synce_pins.@pin[19]=pin
synce_pins.@pin[19].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[19].pin='44'
synce_pins.@pin[20]=pin
synce_pins.@pin[20].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[20].pin='43'
synce_pins.@pin[21]=pin
synce_pins.@pin[21].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[21].pin='44'
synce_pins.@pin[22]=pin
synce_pins.@pin[22].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[22].pin='43'
synce_pins.@pin[23]=pin
synce_pins.@pin[23].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[23].pin='44'
synce_pins.@pin[24]=pin
synce_pins.@pin[24].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[24].pin='43'
synce_pins.@pin[25]=pin
synce_pins.@pin[25].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[25].pin='44'
synce_pins.@pin[26]=pin
synce_pins.@pin[26].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[26].pin='43'
synce_pins.@pin[27]=pin
synce_pins.@pin[27].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[27].pin='44'
synce_pins.@pin[28]=pin
synce_pins.@pin[28].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[28].pin='43'
synce_pins.@pin[29]=pin
synce_pins.@pin[29].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[29].pin='44'
synce_pins.@pin[30]=pin
synce_pins.@pin[30].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[30].pin='43'
synce_pins.@pin[31]=pin
synce_pins.@pin[31].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[31].pin='44'
synce_pins.@pin[32]=pin
synce_pins.@pin[32].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[32].pin='43'
synce_pins.@pin[33]=pin
synce_pins.@pin[33].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[33].pin='44'
synce_pins.@pin[34]=pin
synce_pins.@pin[34].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[34].pin='43'
synce_pins.@pin[35]=pin
synce_pins.@pin[35].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[35].pin='44'
synce_pins.@pin[36]=pin
synce_pins.@pin[36].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[36].pin='43'
synce_pins.@pin[37]=pin
synce_pins.@pin[37].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[37].pin='44'
synce_pins.@pin[38]=pin
synce_pins.@pin[38].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[38].pin='43'
synce_pins.@pin[39]=pin
synce_pins.@pin[39].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[39].pin='44'
synce_pins.@pin[40]=pin
synce_pins.@pin[40].name='nGPIO_ExtPLL_LD'
synce_pins.@pin[40].pin='43'
synce_pins.@pin[41]=pin
synce_pins.@pin[41].name='nGPIO_ExtPLL_CF'
synce_pins.@pin[41].pin='44'
system.@system[0]=system
system.@system[0].timezone='UTC'
system.@system[0].hostname='easy98035synce1588'
system.ntp=timeserver
system.ntp.server='0.openwrt.pool.ntp.org' '1.openwrt.pool.ntp.org' '2.openwrt.pool.ntp.org' '3.openwrt.pool.ntp.org'
system.ntp.enabled='1'
system.ntp.enable_server='0'

BackON · May 29, 2020, 6:29pm

dmesg log

ONTUSER@easy98035synce1588:/# dmesg
[    0.000000] Linux version 3.18.44 (buildmgr@AONT27) (gcc version 4.8.3 (OpenWrt/Linaro GCC 4.8-2014.04 15.05_ltq) ) #1 Mon Aug 21 17:16:12 CST 2017
[    0.000000] SoC: Falcon rev A22
[    0.000000] bootconsole [early0] enabled
[    0.000000] CPU0 revision is: 00019556 (MIPS 34Kc)
[    0.000000] MIPS: machine is EASY98035SYNCE1588 - Lantiq Falcon SFP Stick with SyncE/1588
[    0.000000] e=memsize=64
[    0.000000] e=initrd_start=0xA0000000
[    0.000000] e=initrd_size=0x0
[    0.000000] e=flash_start=0x00000000
[    0.000000] e=flash_size=0x0
[    0.000000] e=ethaddr=ac:9a:96:00:00:00
[    0.000000] MEMSIZE = 67108864
[    0.000000] Determined physical RAM map:
[    0.000000]  memory: 04000000 @ 00000000 (usable)
[    0.000000] User-defined physical RAM map:
[    0.000000]  memory: 03f00000 @ 00000000 (usable)
[    0.000000] Initrd not found or empty - disabling initrd
[    0.000000] Zone ranges:
[    0.000000]   Normal   [mem 0x00000000-0x03efffff]
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x00000000-0x03efffff]
[    0.000000] Initmem setup node 0 [mem 0x00000000-0x03efffff]
[    0.000000] On node 0 totalpages: 16128
[    0.000000] free_area_init_node: node 0, pgdat 80361d50, node_mem_map 81009840
[    0.000000]   Normal zone: 126 pages used for memmap
[    0.000000]   Normal zone: 0 pages reserved
[    0.000000]   Normal zone: 16128 pages, LIFO batch:3
[    0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[    0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[    0.000000] pcpu-alloc: [0] 0
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 16002
[    0.000000] Kernel command line: rootfstype=squashfs,jffs2 ip=192.168.1.10:192.168.1.100:192.168.2.1::::off ethaddr=ac:9a:96:00:00:00 machtype=EASY98035SYNCE1588 vpe1_load_addr=0x83f00000 vpe1_mem=1M mem=63M mtdparts=sflash:256k(uboot)ro,512k(uboot_env),12288k(linux),12288k(image1),2048k(configfs),3072k(logfs),2048k(extfs),64k(ri),64k(sfp),64k(ribackup),64k(reserve) quiet console= console=ttyLTQ0,115200 init=/etc/preinit
[    0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[    0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[    0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Writing ErrCtl register=00018252
[    0.000000] Readback ErrCtl register=00018252
[    0.000000] Memory: 59856K/64512K available (2858K kernel code, 145K rwdata, 564K rodata, 192K init, 199K bss, 4656K reserved)
[    0.000000] NR_IRQS:328
[    0.000000] Setting up vectored interrupts
[    0.000000] CPU Clock: 400MHz
[    0.032000] Calibrating delay loop... 265.98 BogoMIPS (lpj=531968)
[    0.036000] pid_max: default: 32768 minimum: 301
[    0.036000] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.036000] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[    0.040000] pinctrl core: initialized pinctrl subsystem
[    0.044000] NET: Registered protocol family 16
[    0.056000] pinctrl-falcon pinctrl: Init done
[    0.064000] FALC(tm) ON GPIO Driver, (C) 2012 Lantiq Deutschland Gmbh
[    0.068000] Switched to clocksource MIPS
[    0.072000] NET: Registered protocol family 2
[    0.072000] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[    0.072000] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[    0.072000] TCP: Hash tables configured (established 1024 bind 1024)
[    0.072000] TCP: reno registered
[    0.072000] UDP hash table entries: 256 (order: 0, 4096 bytes)
[    0.072000] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[    0.072000] NET: Registered protocol family 1
[    0.072000] RPC: Registered named UNIX socket transport module.
[    0.072000] RPC: Registered udp transport module.
[    0.072000] RPC: Registered tcp transport module.
[    0.072000] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.072000] EASY98000 LED driver, Version 1.0.1 (c) Copyright 2013, Lantiq Deutschland GmbH
[    0.072000] Wired TLB entries for Linux read_c0_wired() = 0
[    0.072000] config3 0x2425 MT 1
[    0.072000] MVPControl 0x2, STLB 0 VPC 1 EVP 0
[    0.072000] mvpconf0 0xb8008403, PVPE 1 PTC 3 M 1
[    0.076000] futex hash table entries: 256 (order: -1, 3072 bytes)
[    0.076000] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.076000] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.076000] msgmni has been set to 116
[    0.080000] io scheduler noop registered
[    0.080000] io scheduler deadline registered (default)
[    0.080000] 1e100c00.serial: ttyLTQ0 at MMIO 0x1e100c00 (irq = 104, base_baud = 0) is a lantiq,asc
[    0.080000] console [ttyLTQ0] enabled
[    0.080000] bootconsole [early0] disabled
[    0.116000] m25p80 spi0.0: found mx25l25635e, expected s25fl129p0
[    0.116000] m25p80 spi0.0: mx25l25635e (32768 Kbytes)
[    0.116000] 11 cmdlinepart partitions found on MTD device sflash
[    0.116000] Creating 11 MTD partitions on "sflash":
[    0.116000] 0x000000000000-0x000000040000 : "uboot"
[    0.116000] 0x000000040000-0x0000000c0000 : "uboot_env"
[    0.116000] 0x0000000c0000-0x000000cc0000 : "linux"
[    0.144000] 2 uimage-fw partitions found on MTD device linux
[    0.144000] 0x0000000c0000-0x0000001fcedb : "kernel"
[    0.144000] 0x0000001fcedb-0x000000cc0000 : "rootfs"
[    0.144000] mtd: device 4 (rootfs) set to be root filesystem
[    0.144000] 1 squashfs-split partitions found on MTD device rootfs
[    0.144000] 0x0000006c0000-0x000000cc0000 : "rootfs_data"
[    0.148000] 0x000000cc0000-0x0000018c0000 : "image1"
[    0.148000] 0x0000018c0000-0x000001ac0000 : "configfs"
[    0.148000] 0x000001ac0000-0x000001dc0000 : "logfs"
[    0.152000] 0x000001dc0000-0x000001fc0000 : "extfs"
[    0.152000] 0x000001fc0000-0x000001fd0000 : "ri"
[    0.152000] 0x000001fd0000-0x000001fe0000 : "sfp"
[    0.156000] 0x000001fe0000-0x000001ff0000 : "ribackup"
[    0.156000] 0x000001ff0000-0x000002000000 : "reserve"
[    0.156000] wdt 1f8803f0.watchdog: Init done
[    0.160000] TCP: cubic registered
[    0.160000] NET: Registered protocol family 17
[    0.160000] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[    0.160000] 8021q: 802.1Q VLAN Support v1.8
[   12.212000] VFS: Mounted root (squashfs filesystem) readonly on device 31:4.
[   12.216000] Freeing unused kernel memory: 192K (80380000 - 803b0000)
[   14.852000] init: Console is alive
[   16.032000] pps_core: LinuxPPS API ver. 1 registered
[   16.032000] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[   16.032000] PTP clock support registered
[   16.944000] init: - preinit -
[   17.552000] jffs2: notice: (293) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[   17.608000] jffs2: notice: (295) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[   18.480000] random: mktemp urandom read with 72 bits of entropy available
[   21.728000] procd: - early -
[   22.440000] procd: - ubus -
[   23.448000] procd: - init -
[   24.856000] g_board_hw_version 87
[   24.856000] ri module install
[   24.860000] IFXOS, Version 1.6.9 (c) Copyright 2009, Lantiq Deutschland GmbH
[   24.948000] NET: Registered protocol family 10
[   24.956000] i2c /dev entries driver
[   24.964000] Custom GPIO-based I2C driver version 0.1.1
[   24.964000] i2c-gpio i2c-gpio.0: using pins 37 (SDA) and 38 (SCL)
[   24.968000] i2c_driver_major is 247
[   24.968000] This board has 1 i2c bus, 0 bus is expanded by PCA9554i2c driver install.
[   25.048000] kigmp: Unknown symbol gpe_short_fwd_mac_mc_port_delete (err 0)
[   25.048000] kigmp: Unknown symbol onu_mod_open (err 0)
[   25.048000] kigmp: Unknown symbol netdev_rem_igmp_snooping_rx_callback (err 0)
[   25.048000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_filter_add (err 0)
[   25.048000] kigmp: Unknown symbol netdev_set_igmp_snooping_rx_callback (err 0)
[   25.048000] kigmp: Unknown symbol onu_mod_close (err 0)
[   25.048000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_filter_add (err 0)
[   25.048000] kigmp: Unknown symbol gpe_ext_vlan_get (err 0)
[   25.048000] kigmp: Unknown symbol gpe_table_entry_get (err 0)
[   25.048000] kigmp: Unknown symbol gpe_ext_vlan_set (err 0)
[   25.048000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_port_add (err 0)
[   25.048000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_port_add (err 0)
[   25.048000] kigmp: Unknown symbol gpe_short_fwd_mac_mc_port_add (err 0)
[   25.048000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_port_delete (err 0)
[   25.048000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_port_delete (err 0)
[   25.052000] F24S Driver, Version 1.2.0
[   25.124000] Intel PON Chipset Optic Driver, version 7.6.2.0
[   25.132000] GPON SFP I2C Slave Driver, Version 2.4.0 (c) Copyright 2015, Lantiq Beteiligungs-GmbH & Co. KG
[   25.236000] [sfp_i2c] vpe code <sfp_i2c_vpe.bin> with size <3352 bytes> loaded!
[   25.236000] VPE loader: VPE1 running successfully
[   25.252000] kigmp: Unknown symbol gpe_short_fwd_mac_mc_port_delete (err 0)
[   25.252000] kigmp: Unknown symbol onu_mod_open (err 0)
[   25.252000] kigmp: Unknown symbol netdev_rem_igmp_snooping_rx_callback (err 0)
[   25.252000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_filter_add (err 0)
[   25.252000] kigmp: Unknown symbol netdev_set_igmp_snooping_rx_callback (err 0)
[   25.252000] kigmp: Unknown symbol onu_mod_close (err 0)
[   25.252000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_filter_add (err 0)
[   25.252000] kigmp: Unknown symbol gpe_ext_vlan_get (err 0)
[   25.252000] kigmp: Unknown symbol gpe_table_entry_get (err 0)
[   25.252000] kigmp: Unknown symbol gpe_ext_vlan_set (err 0)
[   25.252000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_port_add (err 0)
[   25.252000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_port_add (err 0)
[   25.252000] kigmp: Unknown symbol gpe_short_fwd_mac_mc_port_add (err 0)
[   25.252000] kigmp: Unknown symbol gpe_short_fwd_ipv4_mc_port_delete (err 0)
[   25.252000] kigmp: Unknown symbol gpe_long_fwd_ipv6_mc_port_delete (err 0)
[   25.636000] watchdog: add to proc fs ok
[   25.636000] Intel PON Chipset Base Driver, Version 7.6.2.0
[   25.660000] Intel PON Chipset Ethernet Driver, Version 7.6.2.0
[   25.664000] Registered Intel PON TOD PTP clock
[   25.700000] igmpdrv k_igmp_drv_init
[   25.700000] igmpmap IgmpMapFilterConfig IPTV Filter mode changed from 1 to 5
[   25.708000] igmpdb igmpdbthreadinit Enter DB create the thread.
[   25.724000] [onu] Now netdev have set Snooping Call Back.
[   25.724000] successfully insert igmp dev module
[   32.860000] random: nonblocking pool is initialized
[   41.888000] [onu] GPHY Firmware loaded into RAM (phy11g.bin)
[   42.416000] [onu] PE[255] firmware loaded v15.9.8.4
[   44.920000] [f24s]: Registered Intel F24S PTP clock
[   44.920000] libphy: Falcon MDIO: probed
[   44.936000] IPv6: ADDRCONF(NETDEV_UP): host: link is not ready
[   44.988000] [f24s]: lct0: Intel F24S Switch driver attached (irq=10).
[   44.996000] [onu_netdev]: onu_netdev_probe: connect to phy at falcon_mdio:1f
[   45.092000] IPv6: ADDRCONF(NETDEV_UP): lct0: link is not ready
[   45.996000] IPv6: ADDRCONF(NETDEV_CHANGE): lct0: link becomes ready
[   47.776000] IPv6: ADDRCONF(NETDEV_UP): lct0: link is not ready
[   48.068000] IPv6: ADDRCONF(NETDEV_UP): lct0: link is not ready
[   48.996000] IPv6: ADDRCONF(NETDEV_CHANGE): lct0: link becomes ready
[   64.016000] IPv6: ADDRCONF(NETDEV_UP): host: link is not ready
[   64.140000]
[   64.140000] Set board info type = 255
[   64.156000] Reset igmp snooping.
[   65.044000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   65.064000] igmpltq Cfg Vlan Action with itf:1 Error.
[   65.068000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   65.076000] igmpltq Cfg Vlan Action with itf:2 Error.
[   65.080000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   65.100000] igmpltq Cfg Vlan Action with itf:3 Error.
[   65.104000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   65.120000] igmpltq Cfg Vlan Action with itf:4 Error.
[   65.124000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   65.144000] igmpltq Cfg Vlan Action with itf:5 Error.
[   65.148000] igmpltq hal_kernel_cfg_mcast_vlan_action  There is no Gemport found for Mulitcast.
[   67.956000] get OperatorID=XXXX and start long time light status

fw_printenv

ONTUSER@easy98035synce1588:/# fw_printenv
a0_image=3FE46956AAAA_a0.bin
a2_iaddr=0x1FD0000
a2_image=3FE46956AAAA_a2.bin
act_img_addr=0xBF20003C
addip=setenv bootargs ${bootargs} ip=${ipaddr}:${serverip}:${gatewayip}:${netmask}:${hostname}:${netdev}:off
addmisc=setenv bootargs ${bootargs} ethaddr=${ethaddr} machtype=${machtype}  vpe1_load_addr=0x83f00000 vpe1_mem=1M mem=63M ${mtdparts} quiet
addmtdparts0=setenv mtdparts mtdparts=sflash:256k(uboot)ro,512k(uboot_env),12288k(linux),12288k(image1),2048k(configfs),3072k(logfs),2048k(extfs),64k(ri),64k(sfp),64k(ribackup),64k(reserve)
addmtdparts1=setenv mtdparts mtdparts=sflash:256k(uboot)ro,512k(uboot_env),12288k(image0),12288k(linux),2048k(configfs),3072k(logfs),2048k(extfs),64k(ri),64k(sfp),64k(ribackup),64k(reserve)
asc0=3
baudrate=115200
boot_image=run boot_image${c_img};
boot_image0=run kernel0_from_sf flashargs addip addmtdparts0 addmisc && bootm ${ram_addr}
boot_image1=run kernel1_from_sf flashargs addip addmtdparts1 addmisc && bootm ${ram_addr}
boot_image_err=setenv kernel_offs ${kernel0_offs};httpd && setenv image0_is_valid 1
bootargs=rootfstype=squashfs,jffs2 ip=192.168.1.10:192.168.1.100:192.168.2.1::::off ethaddr=ac:9a:96:00:00:00 machtype=EASY98035SYNCE1588 vpe1_load_addr=0x83f00000 vpe1_mem=1M mem=63M mtdparts=sflash:256k(uboot)ro,512k(uboot_env),12288k(linux),12288k(image1),2048k(configfs),3072k(logfs),2048k(extfs),64k(ri),64k(sfp),64k(ribackup),64k(reserve) quiet
bootcmd=run flash_flash
bootdelay=5
c_img=0
commit=0
config_iaddr=0x18C0000
env_offs=0x40000
env_offs_redund=0x80000
ethact=RGMII1
ethaddr=ac:9a:96:00:00:00
ethprime=RGMII1
flash_flash=run select_image boot_image
flashargs=setenv bootargs rootfstype=squashfs,jffs2
gatewayip=192.168.2.1
goi_calibrated=1
goi_config=begin-base64 644 goi_config@H4sIAB8BAAACA+1YS0/bQBDOtfkVW3HICbPvR60eUh4VKi2IpOGAkLVxnGA1@jiPbofTfd5YEMHagVWmjlnouHs/szrevbzzrqAh30nkRhzuTNA4KO5xGwdTm@URZk0TgYguaF+VXrWYJBJOc3T5DqExOp7nQmRQsTRSVtIdzagCzywmYItY4/@9T/39k8fbZeladF6ebKF9lI0SwsUXtrZJELFZYT63+YRikfRrIjHcZS99n2/@7Wxvj7qwQsHp/oGzbKF+lMzR+YcLHx0Wl+h80QWttw/K2U7idAvxzvOLNsPG@Vx6X3DfUU4r5uN1q5O+Q6Cn+P5/6v8h/SRVu+P+P8T9p+P8y+H9l56NgOPpN@7P8J/pd0SRz/hcKy4f9m+D96wH/H8xXbB92TveDd3i3TfTSATwI6HzhCS58z@TzPdEPlF8R8y9h/AcLxWQjzKf8gALUIVkJ5QLBjwnxHW1P8bEdxQ4L/nf5jO@xvHkJgEs1c3ynzIu73IBJ9LxXzX3/81Ie7njCDYfdSbTdGinnfYr90VIZ2jX@TuNhZp3ej5MIVgoK/g7FRG9jvk1Yn+A3WPsoD7N4XqCB8qTHfXS82z1avhAf@HZyt1E77AVbmyo28YiygzogAcJFFy1q02mAUjsIAytNqP4iWJ3FRRNkjnmCe@fnXO26mdkACjDmNalWzY2YjClRhJOouLtNT5IxRGpbUJTo5crKf85IG/H9v3@Nl7ZyTo7fsROf4ADfnrv3wvtFGo2vBogFrjmIysf4XJtPzdwzNXafs5HiF7b@DwZCqFyPd+MTvOS7HyTRFftqgETIhxO/LpYODDdKjZmUimFdanKYpCP3C3M5@Pe5JSCkULhZG1HHdLhBVxwW7YboOSxysYQwuNZDZpDHrYF1Q40mitCYY1rAO@6zZL6DqsWx8pTR0XHNzDiigqqCj3vEeFJsbTWBuOBRHEVI9yZHMgVwJ3+9Lx@ymFv3P8eNy2uuYKOjBlcWqnTXu8wINzguc3sMJ3G4ar9miYjm325jQYZXQvO@DSVarQtXRtbcKEMFHClaGXWaLCqWYZrbimkc5vE9wvtBD2Jej6WAM9HcUhpp@pJFGavIdZGLmDgAcAAA=@====@
gphy0_phyaddr=0
hwconfig=RGMII1:phyaddr=31
image0_addr=0xB00C0000
image0_is_valid=1
image1_addr=0xB0800000
image1_is_valid=1
image_name=g010sb
import_uboot_env=env import -t ${ram_addr} ${filesize}
ipaddr=192.168.1.10
kernel0_from_sf=sf probe 0;sf read ${ram_addr} ${kernel0_offs} ${max_kernel_size}
kernel0_offs=0xC0000
kernel1_from_sf=sf probe 0;sf read ${ram_addr} ${kernel1_offs} ${max_kernel_size}
kernel1_offs=0xCC0000
load_kernel=tftpboot ${ram_addr} ${tftppath}${image_name}-uImage
load_uboot=tftpboot ${ram_addr} ${tftppath}u-boot.img
load_uboot_env=tftp ${ram_addr} ${tftppath}u-boot.env
load_uboot_env_y=loady ${ram_addr}
log_iaddr=0x1AC0000
machtype=EASY98035SYNCE1588
magic_addr=0xBF200038
magic_val=0xDEADBEEF
max_kernel_size=180000
mtdparts=mtdparts=sflash:256k(uboot)ro,512k(uboot_env),12288k(linux),12288k(image1),2048k(configfs),3072k(logfs),2048k(extfs),64k(ri),64k(sfp),64k(ribackup),64k(reserve)
net_nfs=run load_kernel nfsargs addip addmtdparts0 addmisc;bootm ${ram_addr}
netconsole=set stderr nulldev;set stdin nc,serial;set stdout nc,serial
next_active=0
nfsargs=setenv bootargs root=/dev/nfs rw nfsroot=${serverip}:${rootpath},${nfsoptions}
nfsoptions=rsize=1024,wsize=1024
preboot=gpio clear 100
ram_addr=80F00000
reserve_iaddr=0x1FF0000
reset_uboot_env=env default -f -a; saveenv
ri_hiaddr=0x1FC0000
ri_image=3FE46956AAAA_ri.bin
ri_siaddr=0x1FE0000
save_uboot=sf probe 0;sf erase 0 40000;sf write ${ram_addr} 0 ${filesize}
select_image=if test -n $commit  ; then else setenv commit  _err;saveenv;fi;if test -n $image0_is_valid ; then else setenv image0_is_valid 1;saveenv;fi;if test -n $image1_is_valid ; then else setenv image1_is_valid 0;saveenv;fi;if itest *${magic_addr} == ${magic_val} ; then if itest *${act_img_addr} == 0 ; then setenv next_active 0;fi;if itest *${act_img_addr} == 1 ; then setenv next_active 1;fi;mw ${magic_addr} 0x0;mw ${act_img_addr} 0x0;fi;if test $next_active = -1 ; then setenv c_img $commit;else setenv c_img $next_active;if test $next_active != $commit ;then if test $next_active = 0 ;then setenv next_active 1;setenv image0_is_valid 0;setenv commit 1;else setenv next_active 0;setenv image1_is_valid 0;setenv commit 0;fi;saveenv;fi;fi;exit 0
serverip=192.168.1.100
start_netconsole=if test -n ${ncip}; then echo 'check for netconsole'; if ping ${ncip}; then run netconsole; echo 'netconsole enabled'; fi; fi
stderr=serial
stdin=serial
stdout=serial
update_A0=gpio clear 102;tftpboot ${ram_addr} ${tftppath}${a0_image};eeprom write 50 ${ram_addr} 0 ${filesize}
update_A2=tftpboot ${ram_addr} ${tftppath}${a2_image};sf probe 0;sf erase ${a2_iaddr} +${filesize};sf write ${ram_addr} ${a2_iaddr} ${filesize}
update_configfs=tftpboot ${ram_addr} ${tftppath}configfs.image;sf probe 0;sf erase ${config_iaddr} +${filesize};sf write ${ram_addr} ${config_iaddr} ${filesize}
update_image0=tftpboot ${ram_addr} ${tftppath}${image_name}-squashfs.image;sf probe 0;sf erase ${kernel0_offs} +${filesize};sf write ${ram_addr} ${kernel0_offs} ${filesize}
update_image1=tftpboot ${ram_addr} ${tftppath}${image_name}-squashfs.image;sf probe 0;sf erase ${kernel1_offs} +${filesize};sf write ${ram_addr} ${kernel1_offs} ${filesize}
update_logfs=tftpboot ${ram_addr} ${tftppath}logfs.image;sf probe 0;sf erase ${log_iaddr} +${filesize};sf write ${ram_addr} ${log_iaddr} ${filesize}
update_openwrt=run update_system
update_ri=tftpboot ${ram_addr} ${tftppath}${ri_image};sf probe 0;sf erase ${ri_hiaddr} +${filesize};sf write ${ram_addr} ${ri_hiaddr} ${filesize};sf erase ${ri_siaddr} +${filesize};sf write ${ram_addr} ${ri_siaddr} ${filesize}
update_system=run update_image0 && setenv commit 0 && setenv image0_is_valid 1 && saveenv
update_uboot=run load_uboot && run save_uboot
update_uboot_env=run load_uboot_env && run import_uboot_env && saveenv
update_uboot_env_y=run load_uboot_env_y && run import_uboot_env && saveenv
update_uboot_y=loady ${ram_addr} && run save_uboot
ver=U-Boot 2015.04-lantiq-gpon-1.3.7.1 (Aug 21 2017 - 17:12:42)
boot_fail=0

maybe can be compatible with
https://downloads.openwrt.org/releases/19.07.3/targets/lantiq/falcon/lantiq_easy98035synce1588-squashfs-sysupgrade.bin

BackON · May 29, 2020, 7:12pm

Finally i got to the web acess to G-010S-B module user adminadmin password ALC#FGU

this is the web page only i can change SLID and password. all other command works like the g-010s-p tomorrow im going to test it in my gpon line

BackON · May 30, 2020, 12:35pm

Hi again

G-010s-b doesnt work on ftth in spain maybe the missing synce? I going to try to disable it in the firmware and check it again.

Any suggestions?

JeanPierre · June 8, 2020, 7:07pm

There have been several reports about new modules with Realtek chips: Ubiquiti UFiber-Instant, V-Solutions - V2801F and many more. I’ve updated my list of GPON modules.
http://forum.mikrotik.com/t/usage-gpon-module-sfp-in-spain/104807/320

Does anyone know the difference between RTL8672 and RTL9601C. I suppose RTL8672 is the main processor and RTL9601C is dedicated to GPON processing. All clones of modules with Realtek chip have the similar partition layout.

Ubiquiti UFiber-Instant

# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00040000 00001000 "boot"
mtd1: 00002000 00001000 "env"
mtd2: 00002000 00001000 "env2"
mtd3: 0003c000 00001000 "config"
mtd4: 00300000 00001000 "k0"
mtd5: 004b0000 00001000 "r0"
mtd6: 00300000 00001000 "k1"
mtd7: 004b0000 00001000 "r1"
mtd8: 00010000 00001000 "hw"
mtd9: 00010000 00001000 "sec"
mtd10: 00001000 00001000 "Partition_010"
mtd11: 00001000 00001000 "Partition_011"
mtd12: 00300000 00001000 "linux"
mtd13: 004b0000 00001000 "rootfs"

Brief datasheet for V-SOL V2801F listed the RTL9601C as the main chipset.
https://www.vsolcn.com/1ge-sfp-onu-p00193p1.html

mgarcia · June 13, 2020, 11:53am

Dear all.
a few hours ago I ran Zisa with Tilera.
I have heard some comments that were incompatible and I can now confirm that it is certainly compatible.
You can browse my old post regarding the ZISA OP151S. I have made it work by changing only the firmware I mentioned earlier, modifying MAC, SERIAL NUMBER, LoID, and PLOAM PASSWORD / IDONT.

To connect to Zisa ONT:

create a bridge without STP with ports where laptop connected and Zisa connected
Add an IP in laptop LAN in 192.168.1.2 (f. Example)
Connect Zisa ONT to the Fiber from ISP wait untill links UP. if till down after some time reeboot router with all connected.
Type in webbrowser 192.168.1.1 user: admin pass: admin upgrade firmware mentioned on my last posts from web.

after updated: Make sure your Zisa fiber Link is UP. If not just wait a while or reboot router as mentioned.

Telnet to 192.168.1.1

user: twmanu - pass: twmanu

type “?” without wuotes for the menu options.

We just will need manufactory menu to work.

Enter to manufactory menu:

type: “manufactoy” and press enter

“show ?” without quotes to show all options to check
“set ?” without quotes to show all options to set.

SERIAL NUMBER:

Inside Manufactory menu:

type: “show sn” = shows Actual SN
type: “set sn CCCCXXXXXXXX” with your serial number

confirm change with “show SN” command

LoID and Password:

inside Manufactory menu:

type: “show ctc info” (shows actual info) in blank normally

\
type: “set ctc loid XXXXXXXXXXXXXXXXXXXXXXXX” (in ASCII Format)
type: “set ctc password XXXXXXXXXXXXXXXXXXXX” (20digit) without “0x”

If your Loid is in HEX just use one online HEX to ASCII converter.

confirm with “show ctc info” command

after all settings remove from created bridge SFP port and reboot router. ont will connect properly.

I hope all this settings would be fine for all ISP in spain.

After this you should add the corresponding VLAN/ PPPoE if needed from wour ISP in the SFP port to work.

Waiting for Zisa Users who can check this in the forum!

Kind regards!

iperezandres · June 13, 2020, 12:12pm

This is great! Thanks for all the info and detail. My one and only question is: where can I buy a ZISA OP151S module? It seems to be out of stock in all the stores I checked…

Thanks.

mgarcia · June 13, 2020, 12:38pm

I bought in Alibaba.

Kind regards,

BackON · June 26, 2020, 10:38pm

hello again

I got several SFP but im not able to connect (zisa op151s g-010s-a g010s-b dfp-34g-2c2) i put the slid on the zisa with the slid and serial but its stuck on 05 state in init.
y tested too the ZTE and the nokia module but im not able to connect. in g-010s-a says error from omci manager

My original ont is a g-010g-p only i have a HEX SLID and serial number

Sob · July 15, 2020, 1:10pm

Out of curiosity, what’s with the secrecy? You know, the “mail us if you want to know anything”, instead of simply making the info public.

Petronas · July 23, 2020, 5:49pm

Hello.

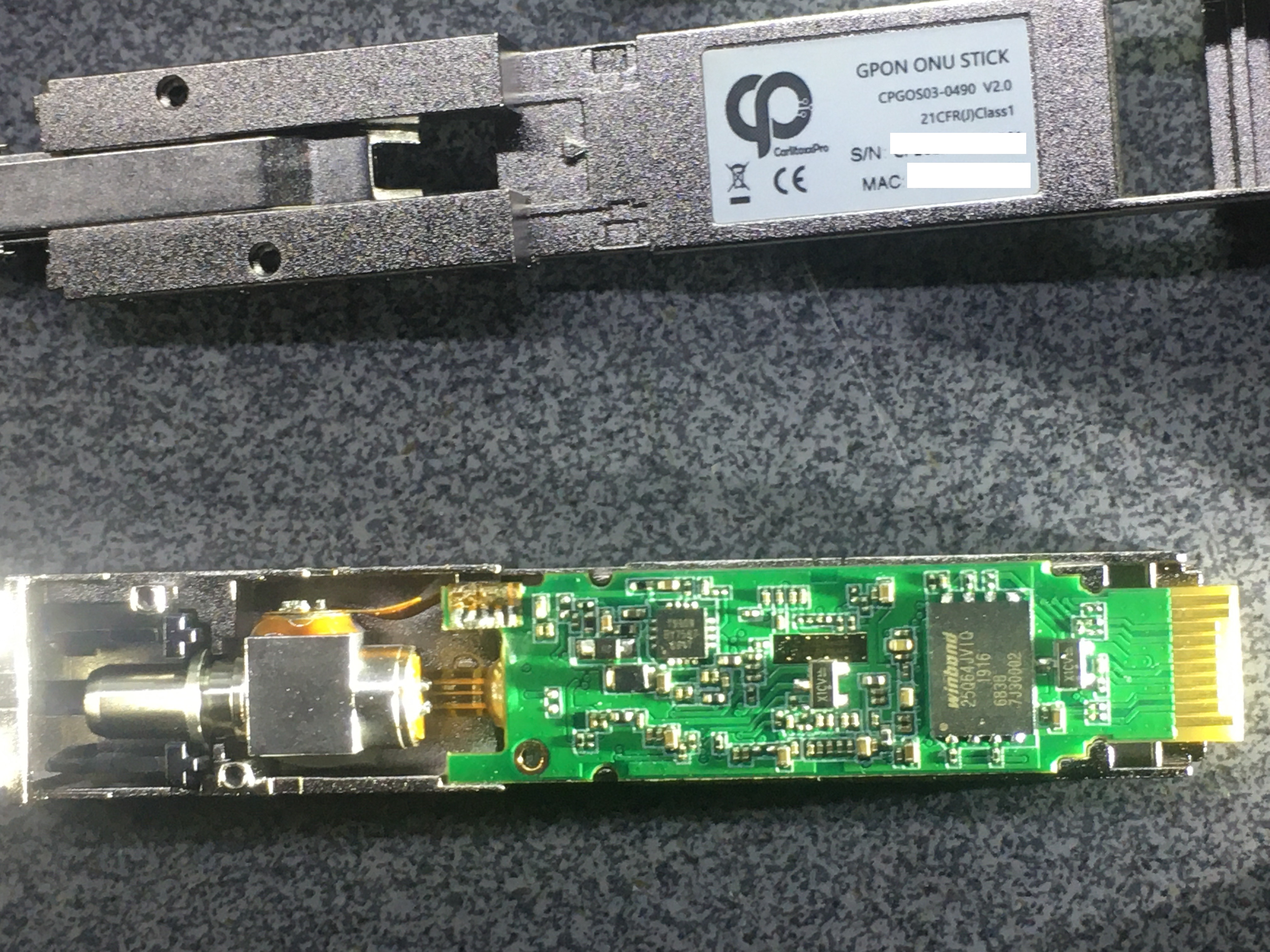

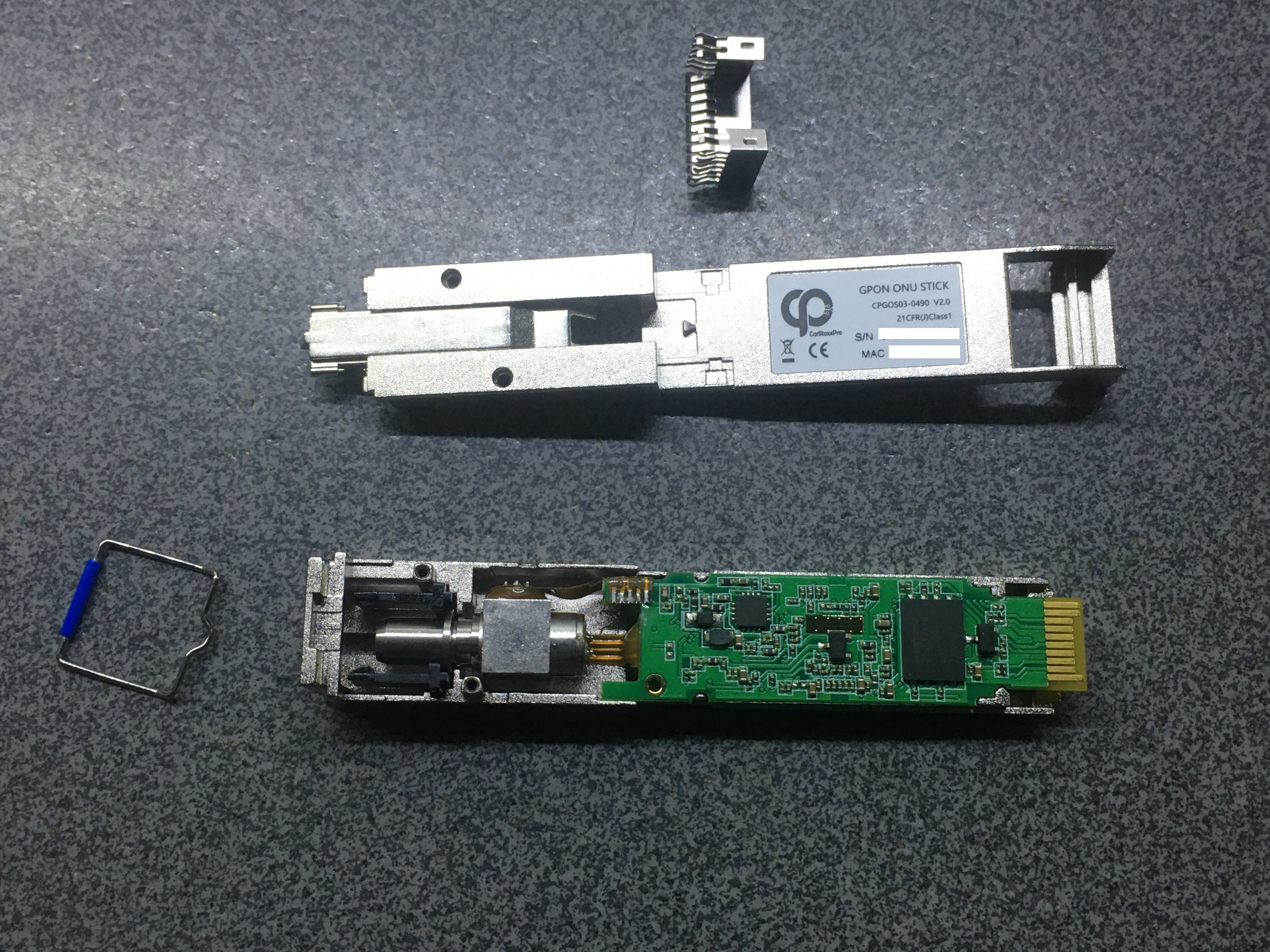

Here is Carlitos’ stick. GPON ONU SFP (CPGOS03-0490 v2.0)

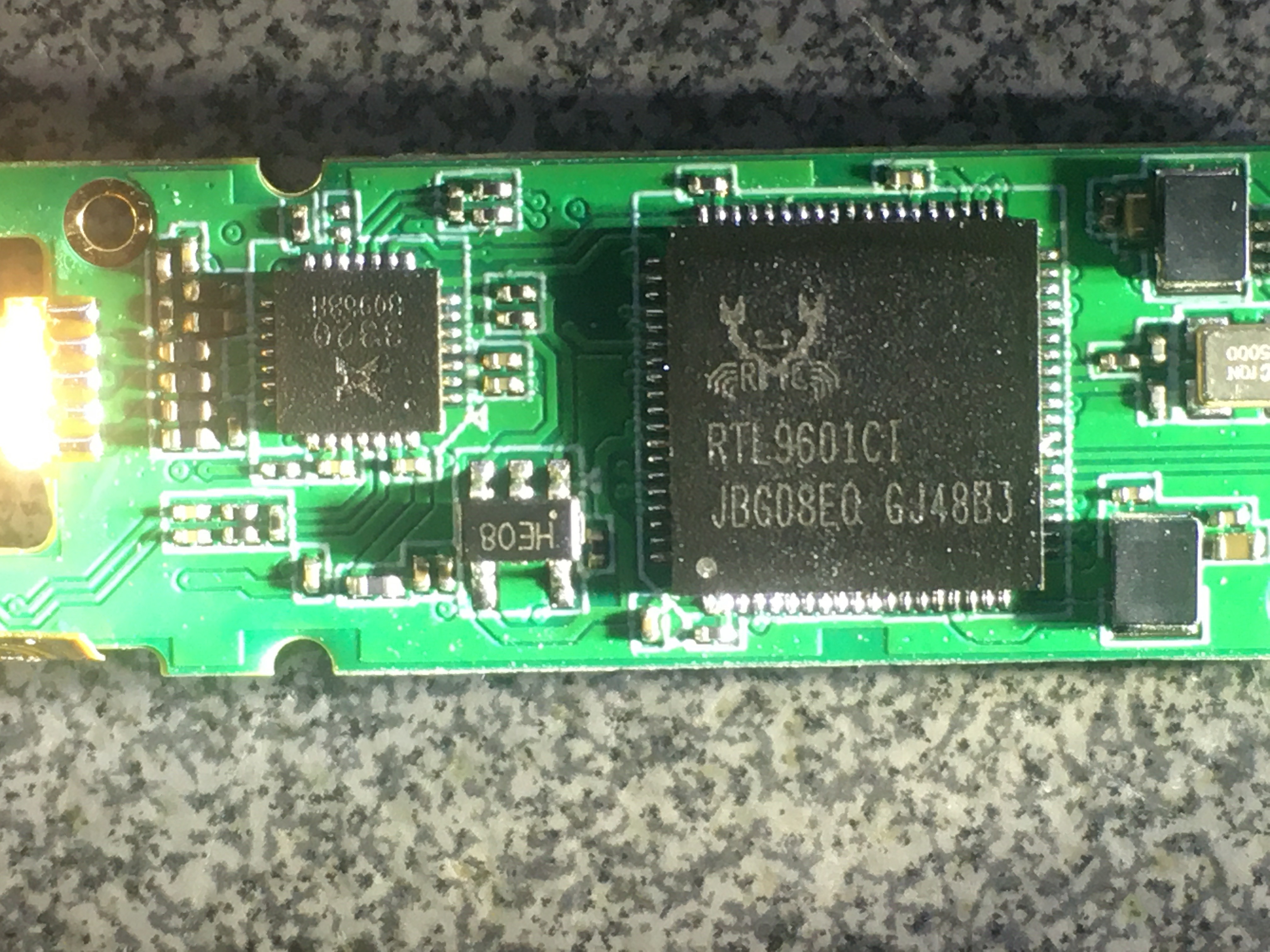

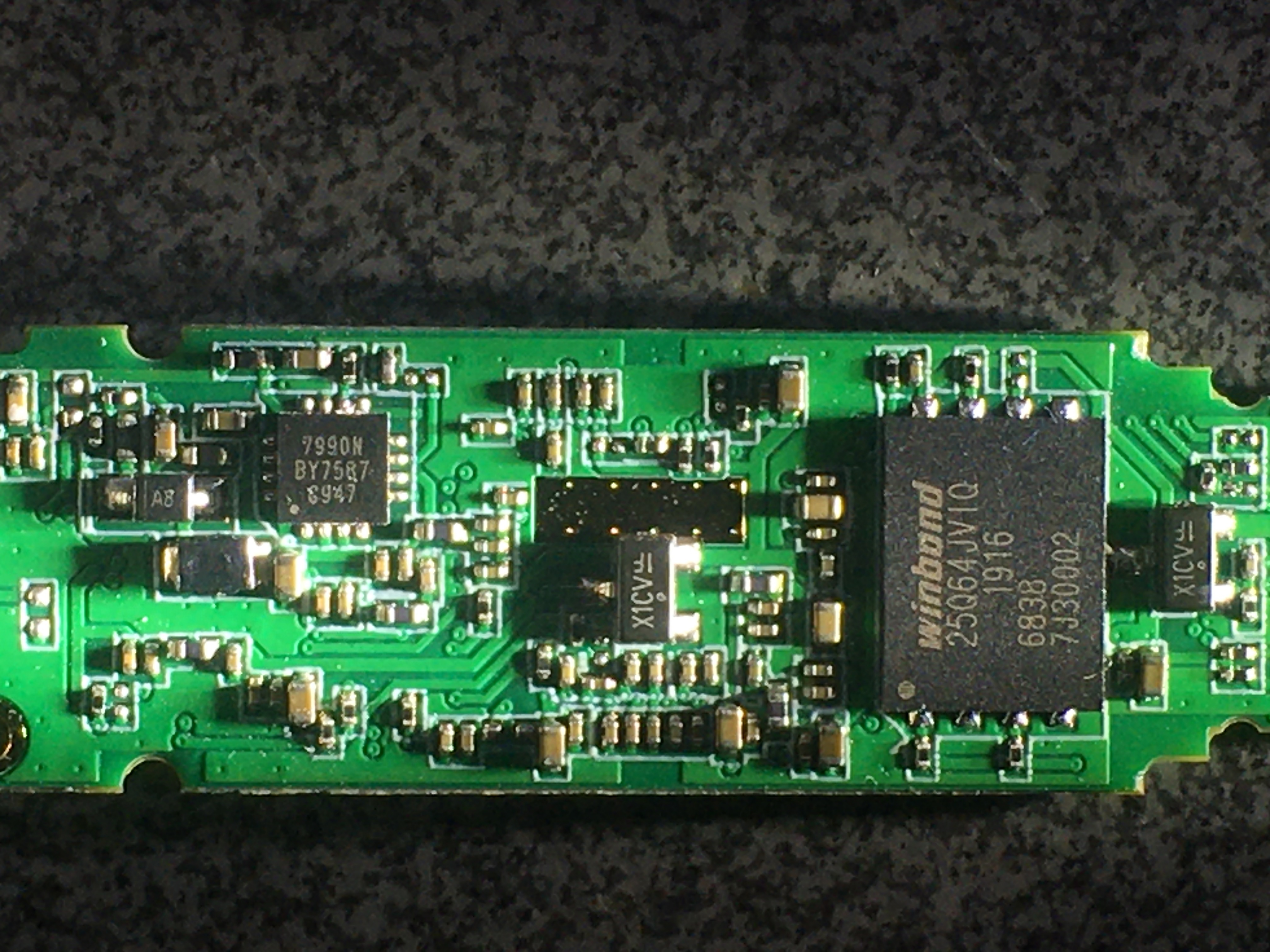

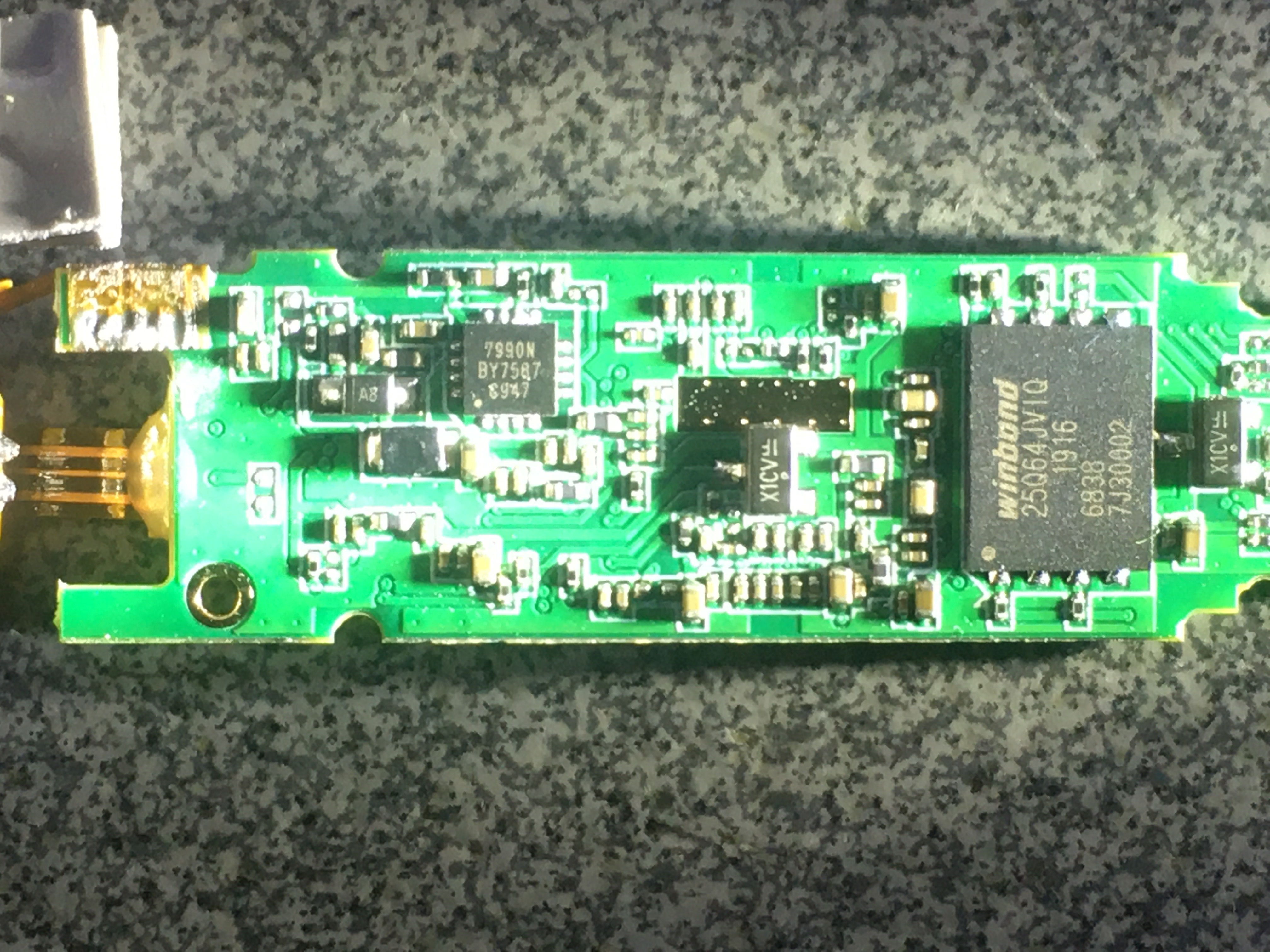

Memory processor photos and others Realtek RTL 9601 - Winbond 25Q64JVIQ

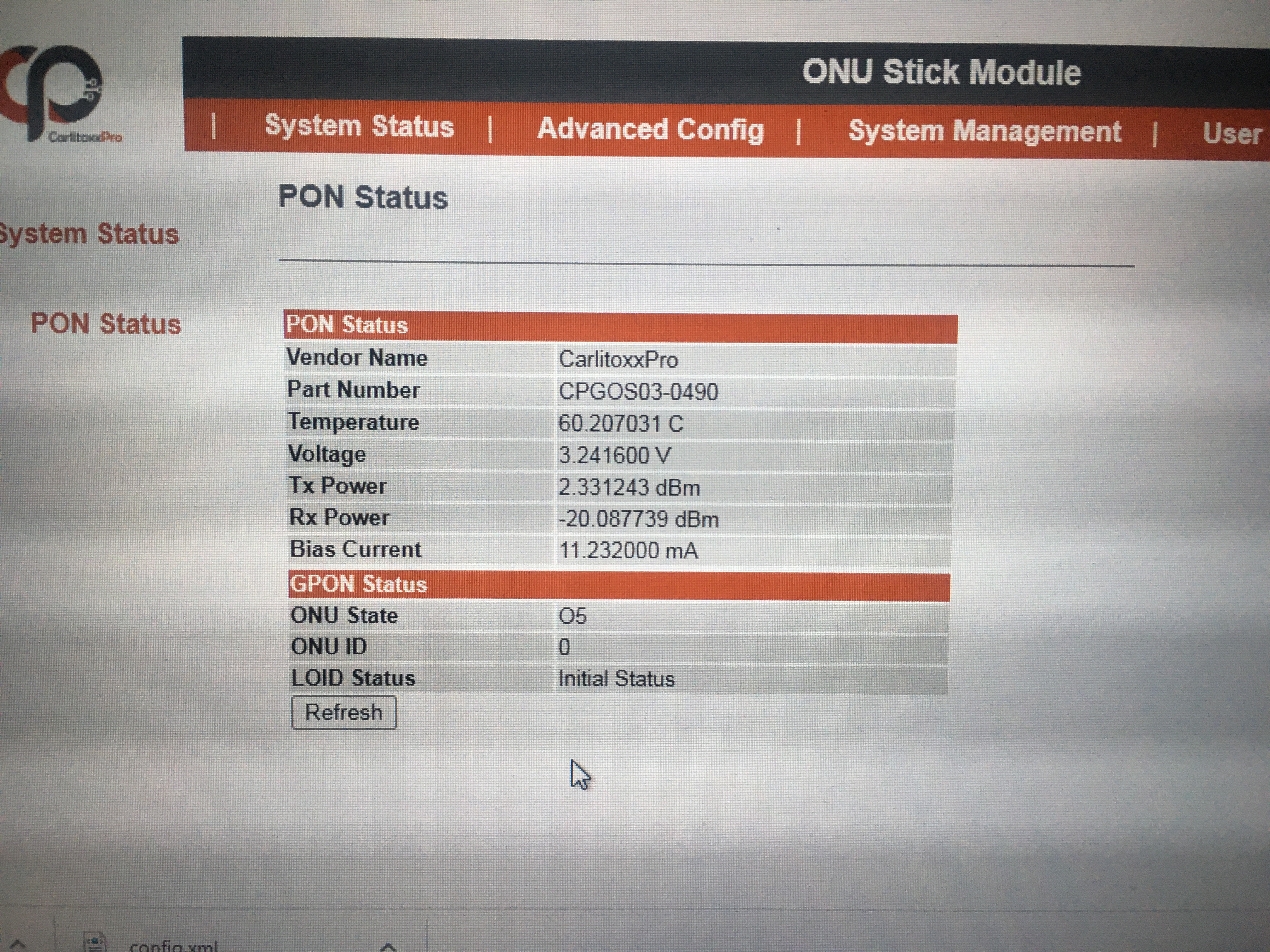

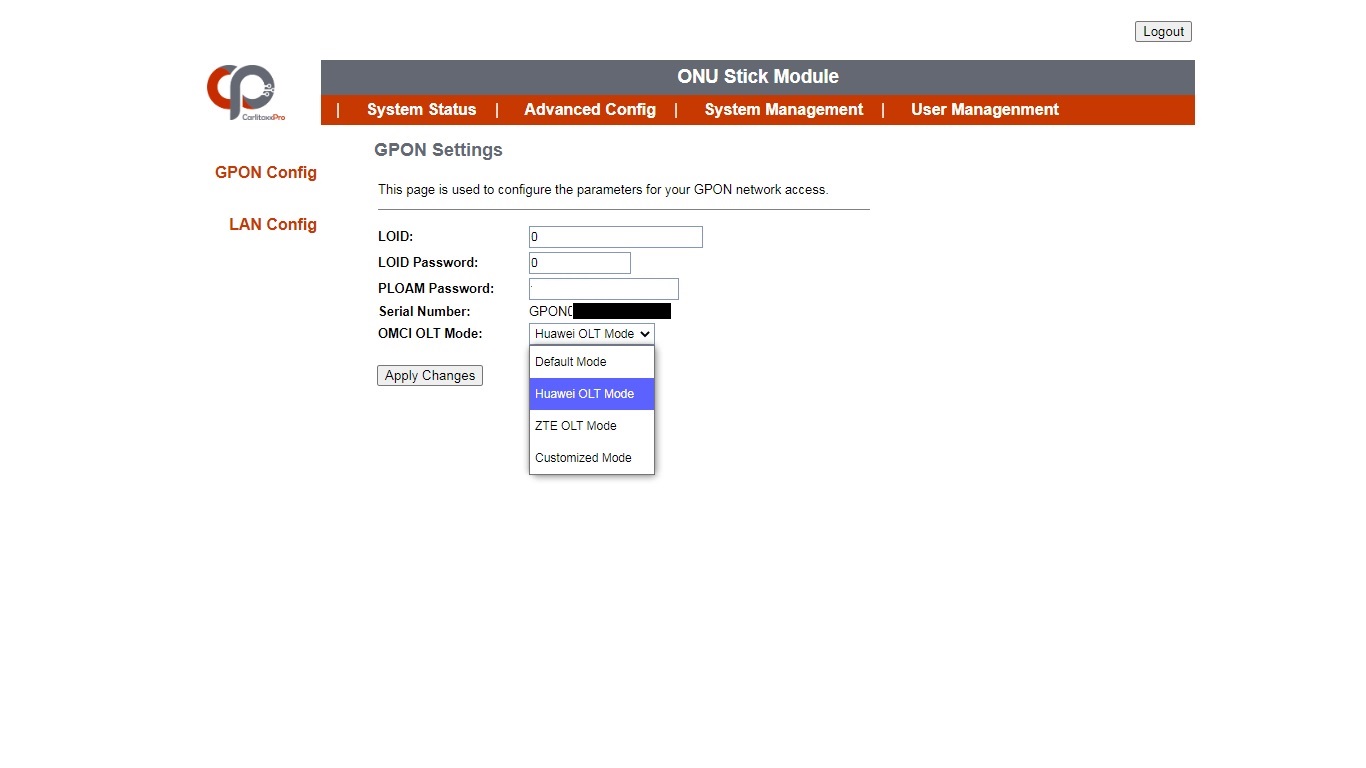

Many values can be modified via WebUI and Telnet
You can also change the serial number of the stick by Telnet

Very stable, The only annotation I see is the warm-up, but the same thing happens in other modules

I recommend it, get in touch with CarlitoxxPro.
Good quality.

Regards.

JeanPierre · July 23, 2020, 7:07pm

Great post. Thank you for sharing all these photos with us. We see what is inside the stick
It seems CarlitoxxPro has put a lot of work into the module customization and testing to make sure it works with all popular OLT models.

JeanPierre · July 24, 2020, 1:59pm

Hi Petronas

Can you share more about Realtek RTL9601C.

What does it display?
cat /proc/cpuinfo

cat /proc/mtd

Petronas · July 25, 2020, 10:57am

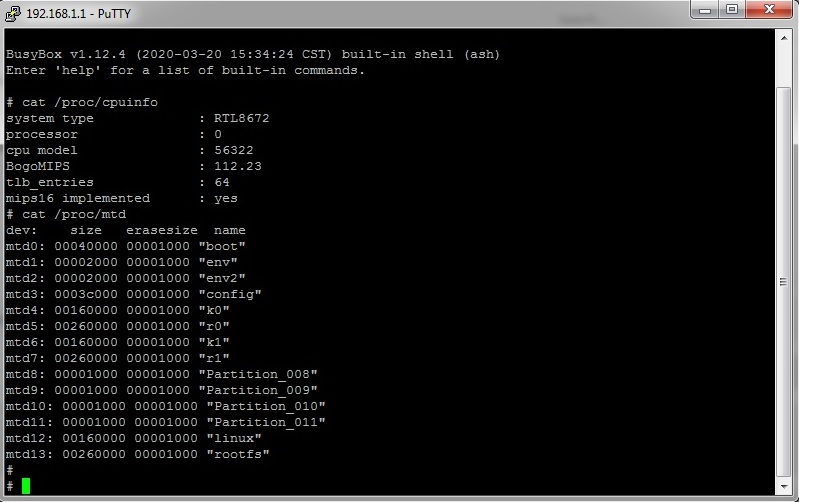

Here, drop this !!!

vuducdong · July 27, 2020, 2:38pm

I’m sent email to you but not reply ???

JacquesL · July 27, 2020, 3:08pm

The system type is RTL8672 , so very similar to the CarlitoxxPro module. Have you tried to understand more? One can telnet to 192.168.1.1 ubnt/ubnt . Apparenly some of the parameters can be set using the flash command. I am wondering if there is a way to get it to work as well

JacquesL · July 27, 2020, 7:57pm

Petronas, what user ID and password are you using? I can get the webpage to load on 192.168.1.1 or use telnet but cpAdmin/cpAdmin or cpUser/cpUser is not accepted. I’d like to be able to test the module after waiting so long

thank you

JacquesL · July 28, 2020, 3:13pm

I’ve been able to make progress with the UFiber-Instant ONU module: it can definitely reach Operation State (o5) on the Movistar (Huwaei) ONT in Spain

Onustate 5.png
However I had to go in the diag system and manually overwrite the PLOAM password, because the flash command limits the GPON_PLOAM_PASSWD to 10 characters in the settings that survive reboots. Still WIP …

karman · July 31, 2020, 1:40am

I received DFP-34X-2C2 and can confirm is working just perfect with pepephone ISP (S/N and Password).

Has anyone had any problem with this module or its twin DFP-34G-2C2 with other spanish ISP?
