What does PVID do on bridge VLAN

[hooyao]

I’m playing around with VLAN for my home. I plan to have 3 VLANS

1. HOME including the management access to Mikrotik - VLAN 10 on eth3
2. IOT wifi VLAN 20 on eth4
3. Guest wifi VLAN 30 on eth5
   Trunk port of VLAN 20/30/40 on eth2

I setup the VLANs based on https://www.youtube.com/watch?v=4Z32oOPqCqc, simple and straightforward.

So far everything goes well, but I have trouble keeping IOT and Guest from seeing my Mikrotik router.
I tried to setting the PVID and ingress filtering on the CPU-port(from this post http://forum.mikrotik.com/t/routeros-bridge-mysteries-explained/147832/1), but nothing works. The IOT and Guest VLAN still can login to the router.

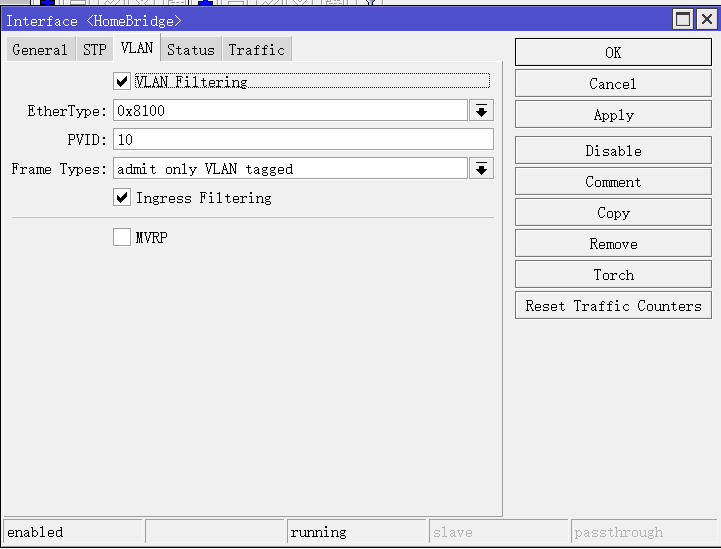

My bridge setting is as follows

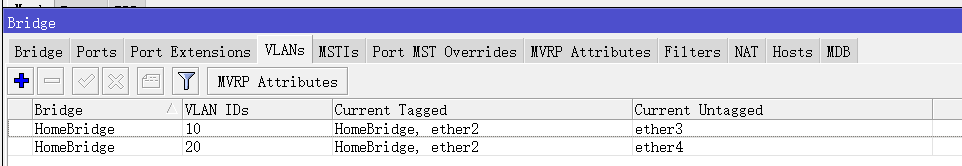

VLAN table

I’m curious if the bridge settings can help keep IOT and Guest network out.

I understand my requirement can be done via firewall filter rules, still want to get a better understanding of the bridge.

I’m experimenting on rb750gr3, my home router is CHR.

[tdw]

In Winbox the VLAN tab of a bridge interface contains the settings of the bridge-to-CPU port, in exactly the same way as the VLAN tab of a bridge port does for other ports added to the bridge.

These are layer 2 settings - they will not stop your Guest & IoT networks from accessing some IP services on the Mikrotik, you have to use firewall rules to achieve that.
