📣 WinBox 4 is here 📣

[PavelNarozhny]

I use DNS Static for FWD to create an addresslist.

[pe1chl]

Then why do you have so many names that you cannot manage it anymore?

[EdPa]

Version 4.0rc1 has been released:

WinBox v4.0rc released!

What's new in 4.0rc1 (2026-Feb-04 13:26): linux: try to use XDG Desktop Portals to support better File selector dialogs table: auto adjust width of popup while scrolling for table quick filter table: fix rare cases where view hangs when filtering/removing many rows which are not in viewport ui: fix invisible scrollbar when UI is zoomed out too much terminal: add text strike-through support (will be used by newer RouterOS to show deprecated parameters) about: add MikroTik license text WinBox f…

[jerogabe]

Hi, why is my history always empty since I started using WinBox 4 in all versions, including the new RC, on different Windows PCs?

[Paternot]

Now the file dialog uses the system native window! Worked very well (both upload and download) with Mint Cinammon.

There is only one little detail: we can’t change the file name on the dialog window - this have to be done on the router, before the download, or on the OS, before the upload.

But worked very well here.

[patrikg]

Can also confirm it's working well from Arch Linux with Gnome

[RcRaCk2k]

I know this is a user forum, but since some MikroTik developers also read along, I’m posting this here:

Feature request for WinBox 4.x

Please consider adding an “ARP Ping” option to the context menu (right-click) of an entry in IP → ARP List in one of the upcoming WinBox 4.x versions.

When selecting this option, WinBox should automatically open the Ping dialog with the following fields pre-filled:

• IP address

• Interface

• “arp ping” checkbox enabled

This would make it quick and convenient to test reachability of an IP address via ARP ping directly from the ARP list.

Thank you for considering this improvement.

[zYx]

Any news on this, anyone?

@zYx

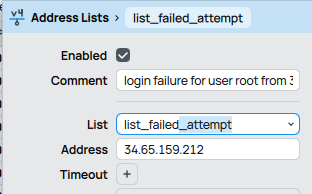

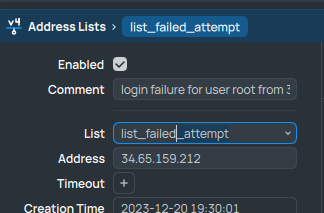

Highlighted text in dark mode is barely visible

In the example above, the “_attempt” text in the list box is highlighted, allegedly.

Is there any way to change the colour of the highlighted text?

The light mode is a bit better, but could still be improved. Is this customisable and I’m missing this?

[infabo]

No, this is not customizable.

This is also one example why I have already mentioned several times that the dark theme needs improvement. A lot of improvement, to be clear. The light theme is acceptable and one can work with it, but the dark theme is very difficult to use.

I have already pointed out that the WebFig light theme has better colors. I do not understand why WebFig and WinBox use different color schemes. That seems inconsistent.

Once again, the dark theme is very hard to look at. I normally use dark themes across many applications, and my entire system and CLI are dark. However, there is something about the WinBox 4 dark theme that makes my eyes hurt.

[pep]

I can confirm this issue still persists in the stable WinBox 4.0.1 release. Like the previous posters, I get stuck at "Reading the index file", while WinBox 3.43 connects flawlessly but fails about half a minute and then reconnect again.

Unlike the ROS 6.x reports above, this is happening on ROS 7.20.8 (hAP ax3).

My connection scenario:

• VPN: Remote access via WireGuard (Back-to-Home) tunnel via direct IPv6 connection

Weirdly, I have another router with very similar settings where this connection works. Also the relayed connection (not strictly direct IPv6) works.

[pe1chl]

“the index file” apparently is quite a big file. I noticed that it takes considerable time to read it from an unlicensed CHR (used as test environment) because that is capped at 1Mbit/s.

Maybe in your environment the connection cannot sustain that load?

[pep]

I don’t think my connection is the problem, as the same connection can load the index file from the other router. When I don’t use the direct IPv6 connection but instead use the default configuration, which usually routes the connection via a relay, the connection works well and is stable.

[CGGXANNX]

So, it's not a site-to-site WG configuration, but you run the WireGuard client on your computer running WinBox 4? Does the internet connection on one of the ends (or on both) have MTU smaller than 1500 (for example 1492 with PPPoE without RFC 4638)? If yes, then the default WireGuard MTU of 1420 will be too large if the transport uses IPv6. You don't notice the problem with IPv4 because the IPv4 header is 20 bytes smaller and the WG MTU can be as large as 1440 if the underlaying network can have MTU 1500. So you don't see any problem with MTU 1492 and WG MTU 1420 for example.

But if IPv6 is used to transport the WG packets then an MTU of 1492 can only work without fragmentation if you set the WG MTU to 1412 (outer MTU minus 80 bytes).

[pep]

Thank you for pointing me into the right direction. My router is on PPPoE (MTU 1492), and the problem only appeared when WireGuard was transported over IPv6. WinBox 4.0.1 got stuck on “reading index file”, while WinBox 3.43 connected briefly and then dropped.

In my case, 1412 alone was not enough. What finally fixed it was:

• setting the MikroTik WG interface MTU to 1280

• adding hardcoded MSS clamping on the MikroTik (not just clamp-to-pmtu), with new-mss=1240

• applying the MSS rules both for forward traffic and for output traffic

So the final fix was basically: yes, it was an IPv6/MTU issue, but I had to go lower than 1412 and force MSS manually to make it stable on all networks, especially mobile IPv6.

[Ahriman]

Great to see WinBox 4 moving forward, but can we please get Native Wayland support?

Currently, the Linux binary is a static build that only supports xcb, forcing us to use XWayland. For a tool where we type sensitive passwords, relying on the legacy X11 protocol is suboptimal. Modern distros are phasing out X11, and native Wayland support would fix the blurry HiDPI scaling and improve input security.

Please consider enabling the Qt Wayland plugin in future builds!

[Bagumka]

Made URI Helper. Try:

GitHub - ITIT-ua/WinBoxURI: winbox:// URI Helper for MacOS

[Jairo]

WINBOX OPENGL INSTALLATION

1. Open Terminal.
2. Drag the file install-winbox-opengl.sh into the Terminal window.
3. Press Enter.

The installer will create:

~/Applications/WinBox OpenGL.app

The application will internally launch:

QSG_RHI_BACKEND=opengl /Applications/WinBox.app/Contents/MacOS/WinBox

After installation, you can drag the "WinBox OpenGL" application to the Dock.

If macOS blocks the application the first time you open it:

• Right-click the application.
• Select "Open".
• Click "Open" again to confirm.

To remove the application:

rm -rf "$HOME/Applications/WinBox OpenGL.app"

-------------install-winbox-opengl.sh----------

#!/bin/zsh
set -e

APP_NAME="WinBox OpenGL.app"
TARGET_DIR="$HOME/Applications"
TARGET_APP="$TARGET_DIR/$APP_NAME"
SOURCE_APP="/Applications/WinBox.app"

if [ ! -d "$SOURCE_APP" ]; then
echo "ERRO: O WinBox não foi encontrado em:"
echo " $SOURCE_APP"
echo
echo "Instale ou mova o WinBox para /Applications/WinBox.app e execute novamente."
exit 1
fi

mkdir -p "$TARGET_APP/Contents/MacOS"
mkdir -p "$TARGET_APP/Contents/Resources"

cat > "$TARGET_APP/Contents/MacOS/WinBoxOpenGL" <<'EOF'
#!/bin/zsh

export QSG_RHI_BACKEND=opengl
exec "/Applications/WinBox.app/Contents/MacOS/WinBox" "$@"
EOF

chmod +x "$TARGET_APP/Contents/MacOS/WinBoxOpenGL"

cat > "$TARGET_APP/Contents/Info.plist" <<'EOF'

<?xml version="1.0" encoding="UTF-8"?> CFBundleDisplayName WinBox OpenGL

<key>CFBundleExecutable</key>
<string>WinBoxOpenGL</string>

<key>CFBundleIdentifier</key>
<string>br.com.direction.winbox-opengl</string>

<key>CFBundleName</key>
<string>WinBox OpenGL</string>

<key>CFBundlePackageType</key>
<string>APPL</string>

<key>CFBundleShortVersionString</key>
<string>1.0</string>

<key>CFBundleVersion</key>
<string>1</string>

<key>LSMinimumSystemVersion</key>
<string>10.13</string>

<key>NSHighResolutionCapable</key>
<true/>

<key>CFBundleIconFile</key>
<string>WinBox.icns</string>

EOF

ICON_SOURCE=""

if [ -f "$SOURCE_APP/Contents/Resources/WinBox.icns" ]; then
ICON_SOURCE="$SOURCE_APP/Contents/Resources/WinBox.icns"
else
ICON_SOURCE=$(find "$SOURCE_APP/Contents/Resources" -maxdepth 1 -iname "*.icns" -print -quit 2>/dev/null || true)
fi

if [ -n "$ICON_SOURCE" ] && [ -f "$ICON_SOURCE" ]; then
cp "$ICON_SOURCE" "$TARGET_APP/Contents/Resources/WinBox.icns"
else
/usr/libexec/PlistBuddy -c "Delete :CFBundleIconFile" "$TARGET_APP/Contents/Info.plist" 2>/dev/null || true
fi

touch "$TARGET_APP"

echo
echo "Aplicativo criado com sucesso:"
echo " $TARGET_APP"
echo
echo "Abrindo o Finder..."
open "$TARGET_DIR"

[Amm0]

Personally opengl should be default, or at least an option, for Qt rendering. Otherwise, WinBox4 does seem to use Metal 3D stuff which for a network admin tool is unnecessary and spins up the GPU for unknown reasons, at high battery/power costs/heat. I filed a bug about this already, so MikroTik is aware of the request.

@Jairo

WINBOX OPENGL INSTALLATION

Since I already use ENVs to force opengl, I think your approach is way over-complex. Mac ships with Automator.app to create a native .app that runs a shell script to start the "real" WinBox. No plist or gatekeeper worries. So you can do the same as @Jairo by using Automator.app:

1. Open Automator.app
2. Select "New"
3. Select "Application"
4. Then, select "Run Shell Script" in list of "Actions" on left
5. Paste in the following below:

# Force the rendering backend to OpenGL (less likely to trigger dGPU than Metal)
export QSG_RHI_BACKEND=opengl

# Explicitly request the low-power GPU for the RHI
export QSG_RHI_PREFER_LOW_POWER_GPU=1

# macOS-specific Qt flag for the platform plugin
export QT_MAC_WANTS_LOW_POWER_GPU=1

# Use the basic render loop to prevent 'spinning' on the render thread
export QSG_RENDER_LOOP=basic

# Launch the binary directly to ensure environment inheritance
/Applications/Winbox.app/Contents/MacOS/Winbox &

6. Select File > Save, and pick a name like "WinBox (OpenGL)" which will be default to /Applications
7. Use the new "WinBox (OpenGL)" instead of the "real" WinBox.app
